T1000 14500 Severe Duty Winch

12v / Steel RopeSKU: T114S12 EAN: 5060423986041
24v / Steel RopeSKU: T114S24 EAN: 5060423986331
12v / Synthetic RopeSKU: T114A12 EAN: 5060423985662
24v / Synthetic RopeSKU: T114A24 EAN: 5060423985679
No reviews

Voltage: 12v
Rope: Steel Rope
Find a store near you
Or buy online from our approved partners:
Bimson Power Approved Warrior Stockists

Features

  • Revolutionary external brake, designed to ensure there is no critical heat build-up in the drum
  • Special Lithium Grease ensures operation in extreme temperatures.
  • IP68 Rated Military Grade Winch & Control Box
  • Trident 2.4G Wireless Remote
  • Hardened 3 stage planetary gears for reliability & efficiency

The T1000 range of Severe Duty Warrior Winches were originally designed as highly advanced prototypes for military application, where the ability to perform in severe climates and the harshest environments imaginable are an essential prerequisite.

After successful operations in the field & following many plaudits at last year's Defence and Security Equipment International Expo, the decision was made to allow the T1000 range to become widely available for general use.

Available in both 12v or 24v options, with either steel or the more widely preferred military grade Armortek Extreme ropes, the T1000 Series range from 10,000lbs (4,545 Tonne) right up to the colossal 22,000 pounder (10 Tonne).

The T1000 could be a complete game changer as it is a more than capable solution for any Industrial, Commercial or Military applications requiring a truly fully functional battle ready unit, or for those individuals who just demand the ultimate beast of a Warrior on their truck.

Like its namesake, T1000 series is undoubtedly one of the most the most advanced and durable machines on the market, it really is the best of the best.

Rated Line Pull14500 lbs
Motor Type12V: Input: 7.2hp / 5.4 kW; Output: 3.6hp / 2.7 kW
24V: Input: 8.7hp / 6.5 kW; Output: 3.8hp / 2.8 kW
Gearing228:1
ClutchManual
Braking ActionExternal Brake

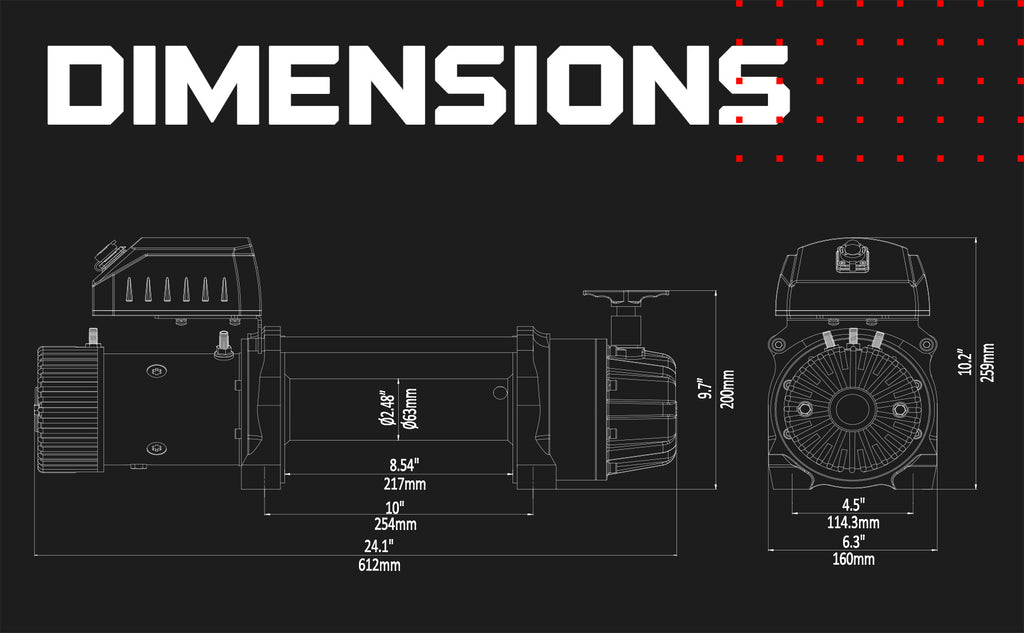

Drum Size (Dia x L)63 x 217 mm
Cable MaterialSteel or Synthetic
Cable – Dia x LSteel: 11mm x 23m
Synth: 11mm x 25m
Mounting Pattern254mm × 114.3 mm mm
Dimensions612 x 160 x 259 mm
Weight41.0 kg
Warranty3 Years
CertificationCE, UKCA



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 14500 (6577) 14.4 (4.4)
2 11177 (5070) 33.1 (10.1)
3 9093 (4124) 56.1 (17.1)
4 7664 (3476) 75.4 (23.0)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Line Speed 24v
ft/min (m/min)
Amp Draw
12v
Amp Draw
24v
0 29.5 (9.0) 31.1 (9.5) 65 40
5000 (2268) 11.8 (3.6) 13.8 (4.2) 210 115
10000 (4536) 5.9 (1.8) 7.5 (2.3) 300 190
14500 (6577) 3.9 (1.2) 5.2 (1.6) 405 260

What's in the box

  • T1000 Winch
  • Heavy Duty Stainless Steel Fairlead OR Aluminium Hawse Fairlead
  • Steel Rope OR Synthetic Rope
  • Heavy Duty Hook
  • Heavy Duty Wired Remote
  • Trident 2.4G Wireless Remote
  • Tensioner
  • Stainless Steel Mounting Hardware (nuts/bolts)
User Manual Download
Brochure Download

Limited lifetime with 3 year on electrical

Winch Solutions are the sole distributors of WARRIOR WINCHES.

Winch Solutions (“seller” or winch solutions) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for the lifetime of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (3) three years (36 Months) from the original purchase provable date of purchase.

Any product Winch Solutions determines to be defective will be repaired or replaced at Winch Solutions sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

Winch Solutions shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

Winch Solution reserves the right to change the Product design without notice. Winch Solutions reserves the right to replace any part or whole unit with a newer design of the same function.
