Predator 10000 Dual Performance Winch

Discontinued
SKU EAN
Excluding Rope 10EWS12 5060423981756
Synthetic Rope 10EWA12 5060423982760

Rope: Excluding Rope

Features

  • Designed for hardcore competition
  • Two powerful 7.2HP sealed motors
  • 10,000LB (4,546KG) Pulling Power
  • External drum prevents heat transferring to rope
  • Off-load line speeds from 20m per minute

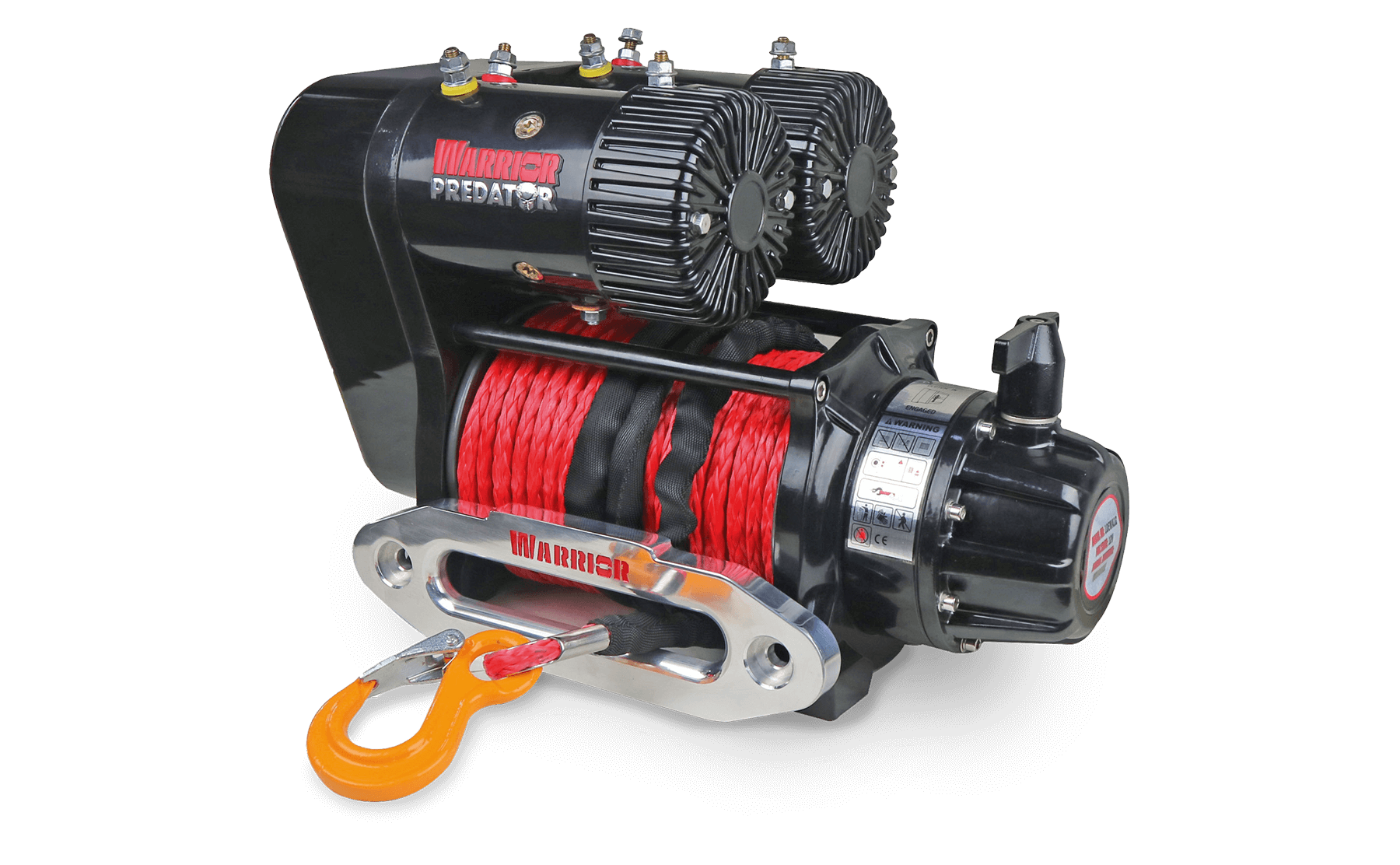

The Predator 10,000LB (4,546KG) Dual Motor Electric Winch is designed for hard-core competition. Two powerful 7.2HP sealed motors provide a performance that is truly out of this World, coupling this with a 108:1 ratio 3 stage planetary gearbox enables this performance winch to handle even the most extreme off-road punishment.

With a surprisingly low draw of only 140 amps (at no load), the Predator also contains an innovative 'multi stop' 10% ratchet brake design, which provides zero drag when returning the 'cable in', and is situated away from the drum to prevent any damaging heat transferring to your Armortek or Synthetic rope.

The steel drum flanges are precision machined to 10mm on either side to resist the unique loading characteristics of synthetic rope, while the Alloy Carbon gears are heat treated and tempered to 62HRc rating for extra strength. This Warrior from another dimension will mercilessly prey on its weaker rivals, hunting the opposition down. At 10kg lighter than any of its nearest competitors, with off-load line speeds from 20m per minute & available with or without synthetic rope, there's a Predator out there, ready & waiting, for everyone!

Rated Line Pull10000 lbs
Motor Type7.2hp / 5.4kw
Gearing80:1
ClutchManual
Braking ActionAuto in the drum
Drum Size (Dia x L)72 x 214 mm
Cable MaterialSynthetic
Cable – Dia x L9mm x 38m
Mounting Pattern254 x 114.3 mm
Dimensions479 x 262 x 355 mm
Weight45.0 kg
Warranty3 Years
CertificationCE



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 10000 (4536) 18.4 (5.6)
2 8153 (3698) 41.0 (12.5)
3 6881 (3131) 68.9 (21)
4 5953 (2700) 101 (30.8)
5 5245 (2379) 131.2 (40)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 66 (20) 150
4000 (1816) 22.6 (6.8) 420
6000 (2722) 18.7(5.7) 580
8000 (3629) 15.7(4.8) 700
10000 (4536) 12.8(3.9) 860

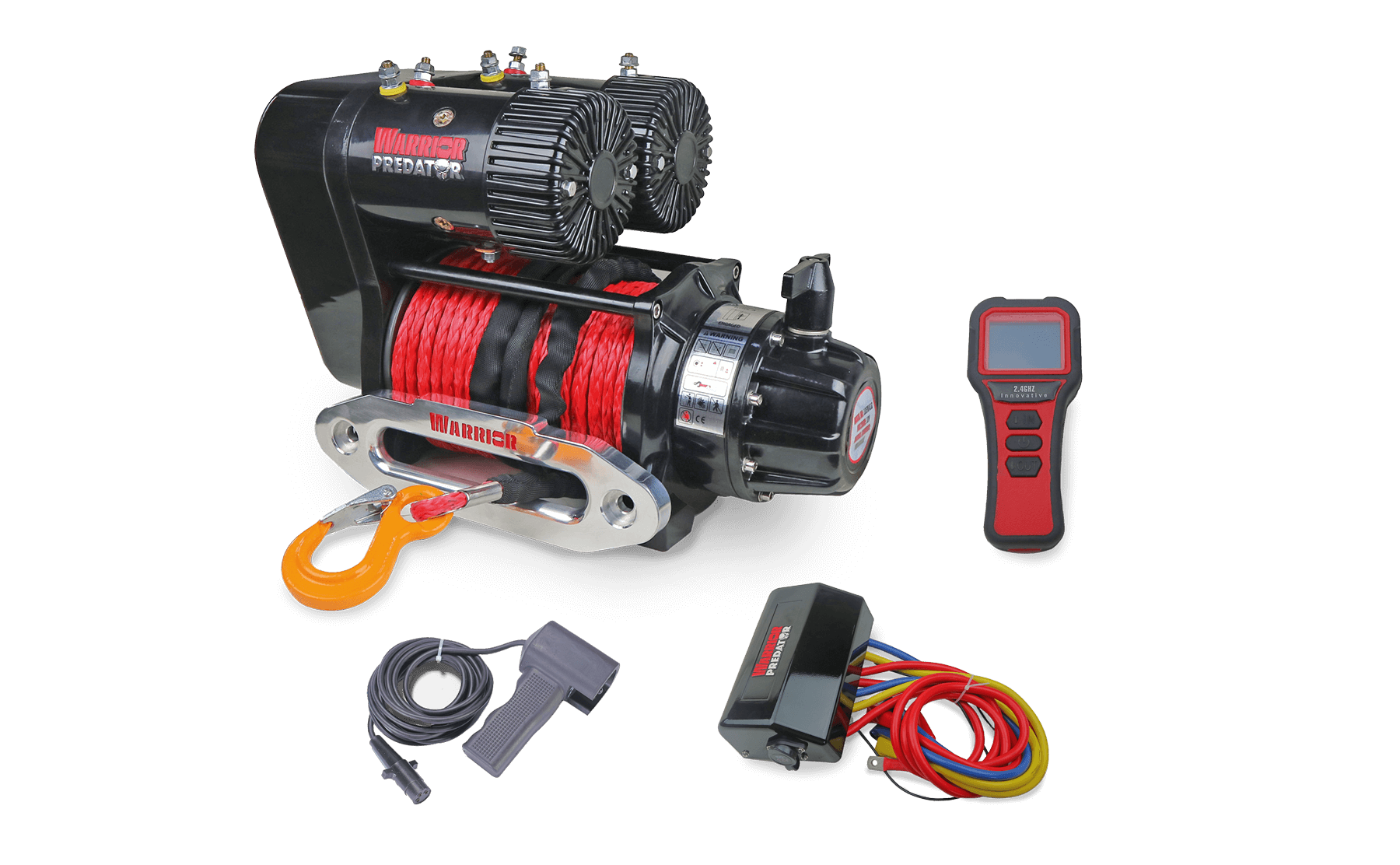

What's in the box

  • Predator Winch Winch
  • Aluminium Hawse Fairlead
  • Synthetic Rope OR Available without rope
  • Heavy Duty Battery Leads
  • Heavy Duty Wired Remote handset
  • Wireless Remote with LCD Display
  • 12 ton Competition Hook
  • Predator Contactor Pack
  • Stainless Steel Mounting Hardware (nuts/bolts)
User Manual Download
Brochure Download
Parts List Download

Warrior Winches Warranty

BPE Holdings Ltd are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earning a
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.



WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 5-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.



WARRANTY EXCLUSIONS

This warranty excludes:

- Cosmetic defects such as paint, decals, ,
- Worn parts due to improper use.
- Steel ropes
- Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.


- Any Accessory part including roller fairleads, hooks and mounting plates.
- Failures due to acts of God and other force major events beyond the manufacturer’s control
- Problems caused by parts that are not original WARRIOR WINCH parts
- Alteration or modification(s) made by any party other than the
- Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
- Any third party equipment
- Batteries



Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

   Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

Register your winch here
