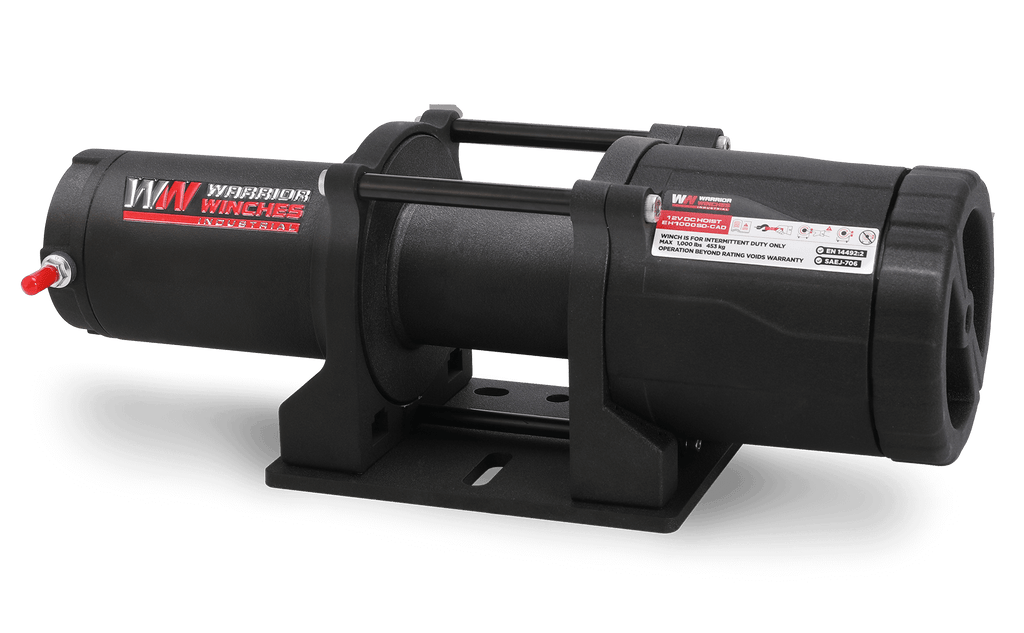

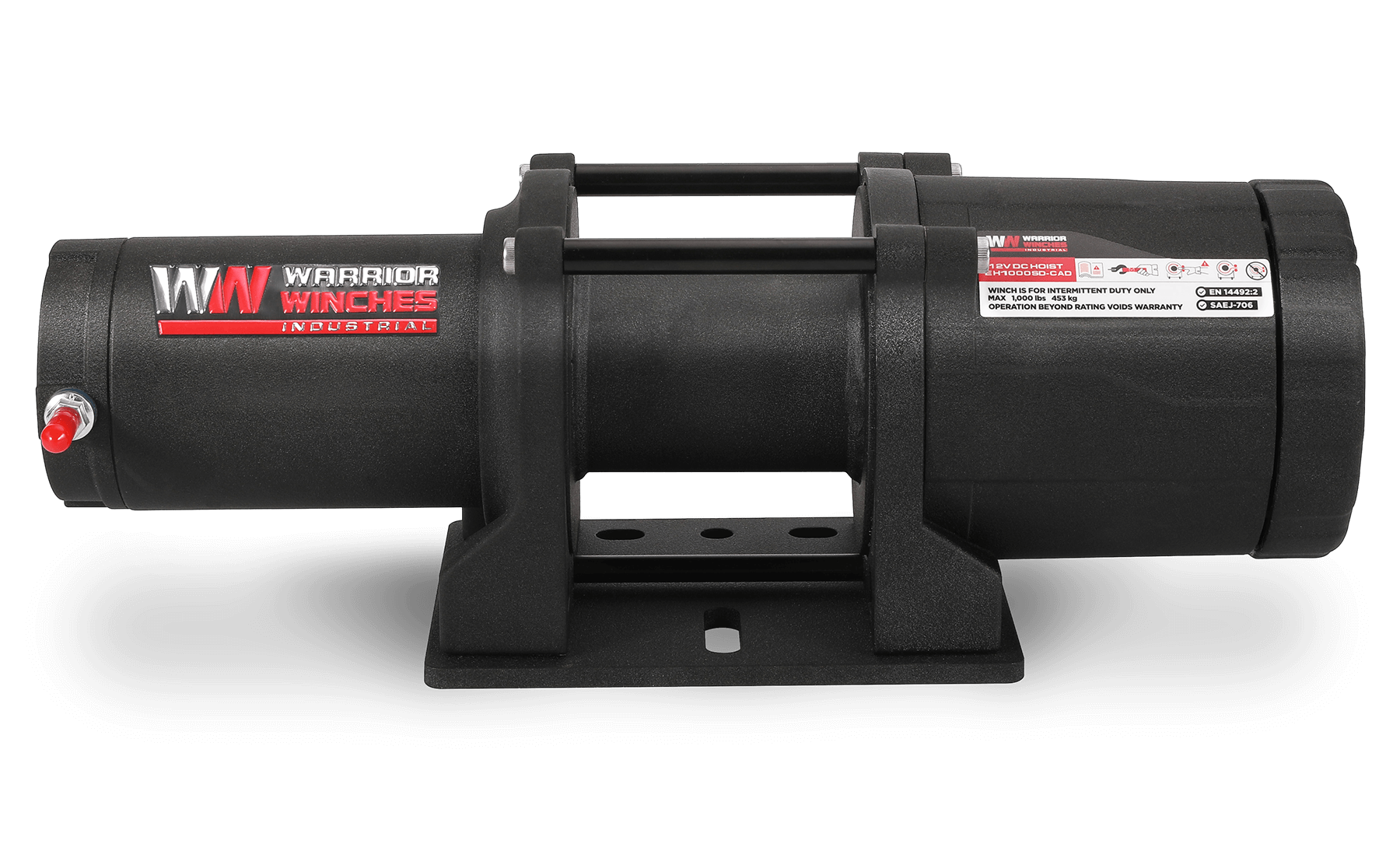

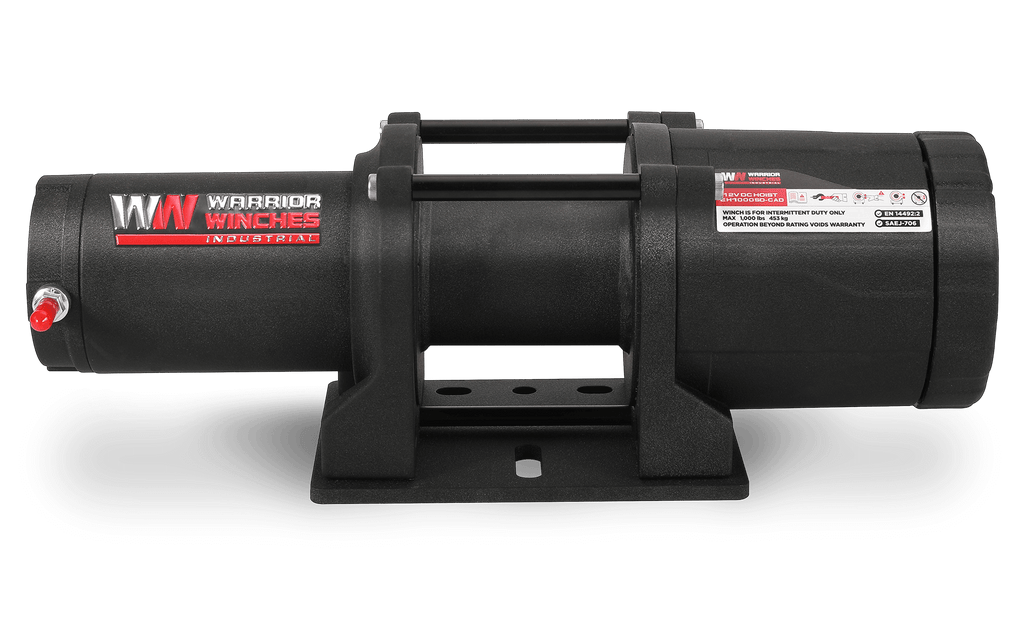

EH1000 Short Drum 12v Industrial Hoist

Coming Soon
SKU: EH1000SD
No reviews

Features

  • Powerful 3.2hp 12v Motor
  • Automatic Full Load Holding Brake: Benefit from an automatic mechanical brake that securely holds the full rated load, providing unparalleled safety during operation.
  • Durable Powder Coated Finish: Every Warrior Hoist comes with a durable powder-coated finish as standard. Engineered to withstand heavy usage, this finish not only enhances the hoist's resilience but also adds a touch of sophistication to its design.
  • SAEJ-706 Compliant: Committed to excellence, Warrior Hoists comply with SAEJ-706 standards, meeting and exceeding regulatory requirements for quality and safety.
  • Compact Drum for installation in tight spaces.

The Warrior EH1000 Short Drum Industrial Hoist is designed for a wide range of lifting scenarios including vehicle mounted cranes, portable light towers and fixed applications.

Each EH Industrial Hoist is equipped with an All Metal Planetary Gear Train, Rugged 12V DC Motor, and Automatic Full Load Holding Brake.

The Hoist is supplied without rope and hook. These are available as optional accessories which include:

  • Full Control Box
  • Albright Contactor
  • Wire Rope and Hook
  • Overload Protection
  • Heavy Duty Wireless Remote
  • Hand Remote with Emergency Stop.

You can be assured of safe and reliable lifting every time with the entire family of EH Industrial Hoists.

Rated Line Pull 1000 lbs (453 kgs)
Motor Type 12V:Input:2.4kw/3.2hp; Output:1.0kw/1.3hp
Gearing 166:1
Braking Action Automatic screw cone

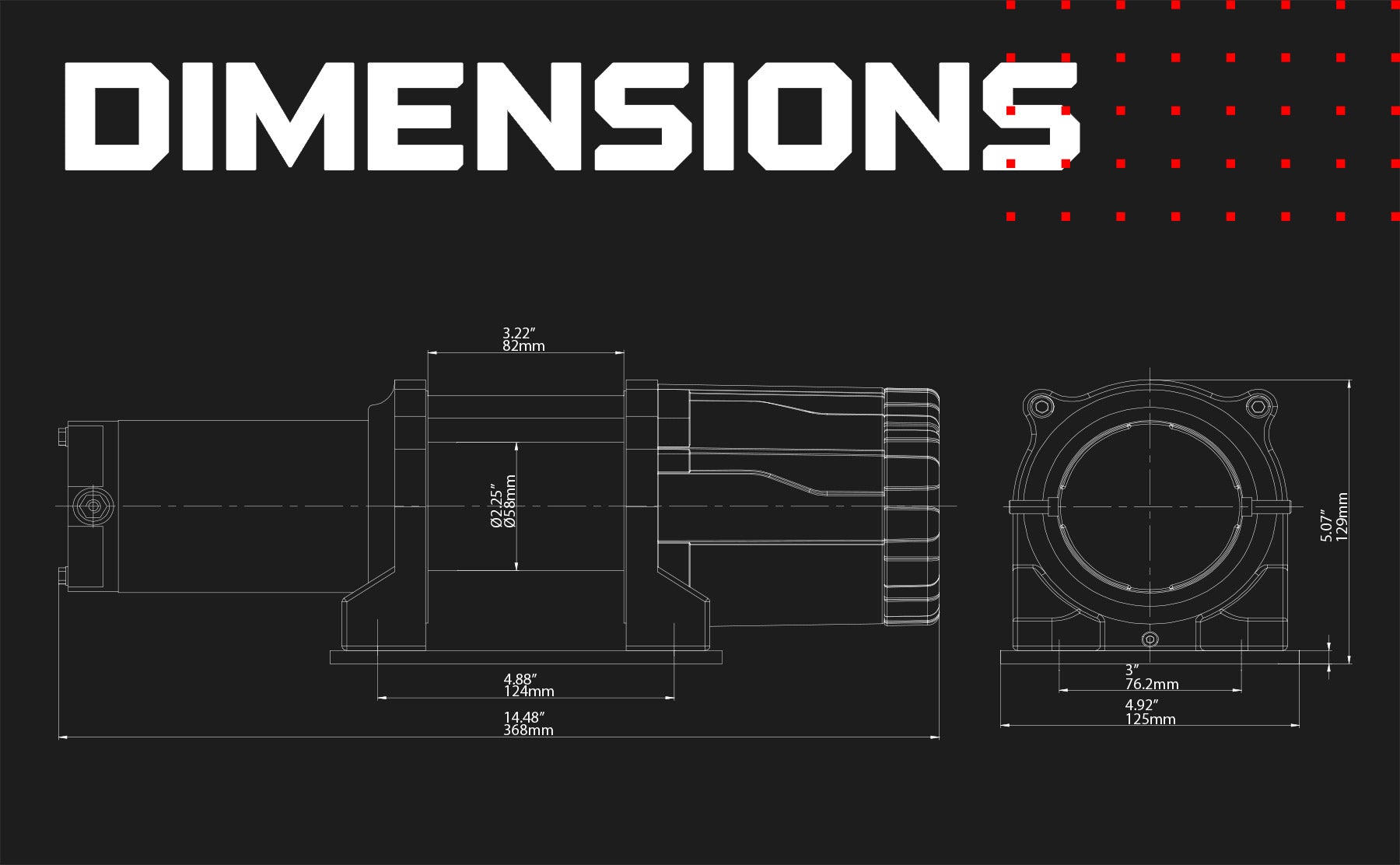

Drum Size (Dia x L) Ø2.28 "×3.2 " (Ø58mm×82 mm)
Cable Material Steel
Cable – Dia x L Ø1/5"×42 ' (Ø5.2mm×12.8m)
Mounting Pattern 4.89 "×3.0 " (124mm×76.2 mm
Dimensions 14.5"×4.92"×5.1" 368 mm ×125 mm ×129 mm
Certification SAEJ-706 & EN14492:2



Layer Rated line pull lbs (kgs) Total rope on the drum ft (m)
1 1000 (453) 9.2 (2.8)
2 858 (389) 19.7 (6)
3 752 (341) 31.5 (9.6)
4 669 (303) 42 (12.8)

Line Pull Line Speed ft/min (m/min) Current A
lbs (kgs) 12v DC 12v DC
0 18 (5.5) 28
500 (227) 16.4 (5.0) 35
800 (363) 15.7 (4.8) 45
1000 (453) 15.1 (4.6) 52

What's in the box

  • EH Hoist
  • Mounting Plate
  • Operating Manual
User Manual Download
Brochure Download
Parts List Download
