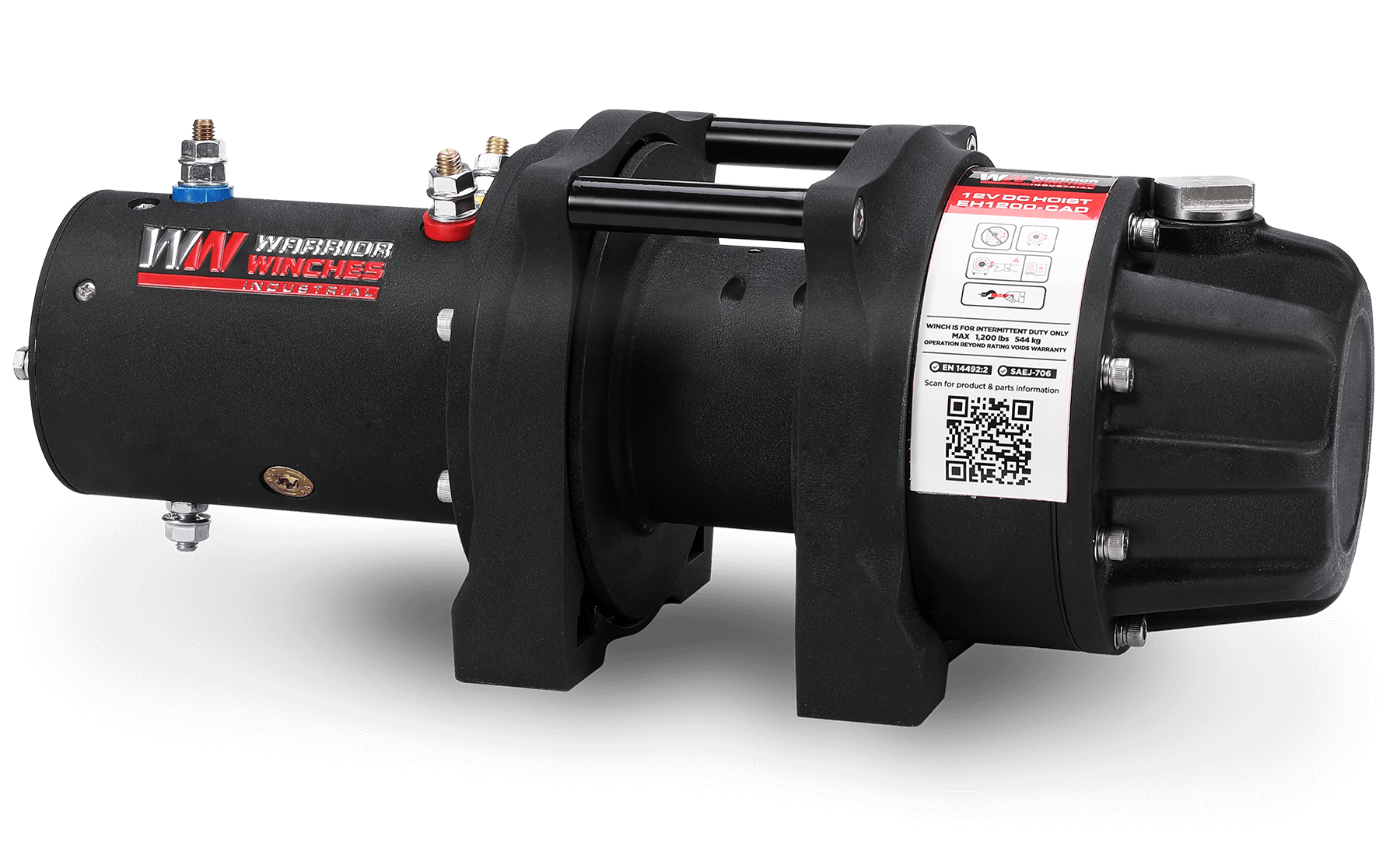

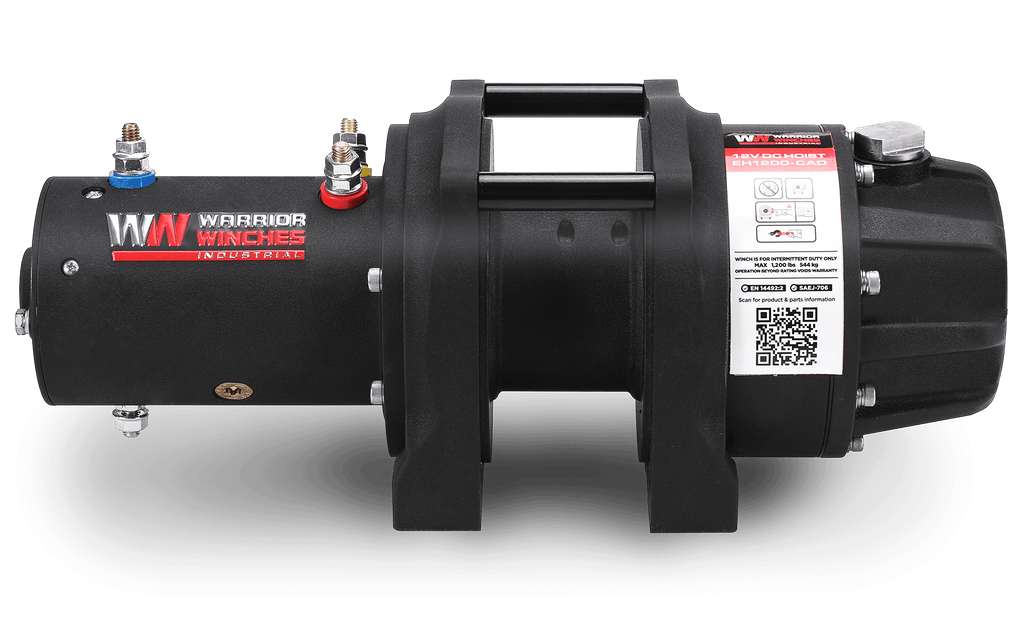

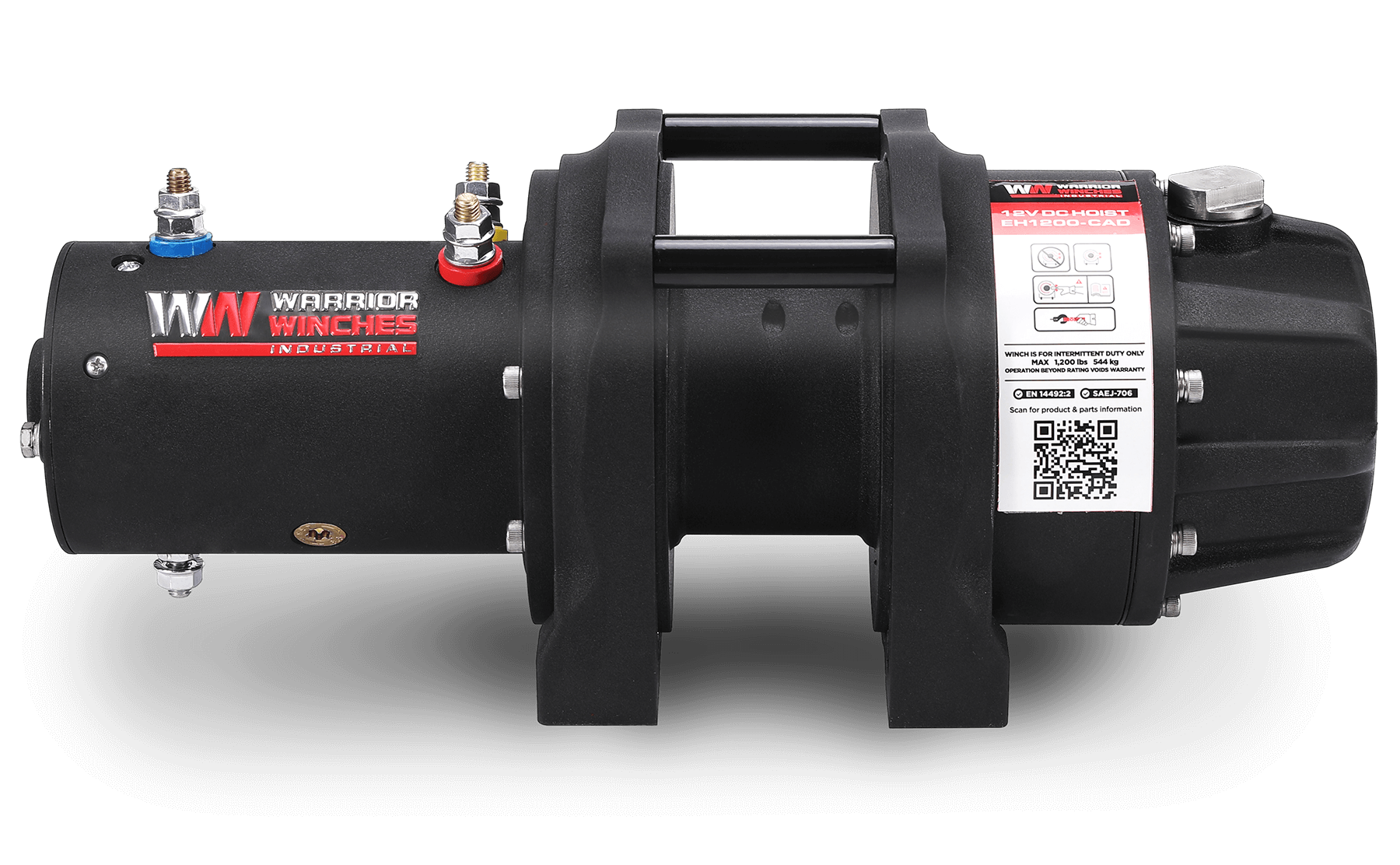

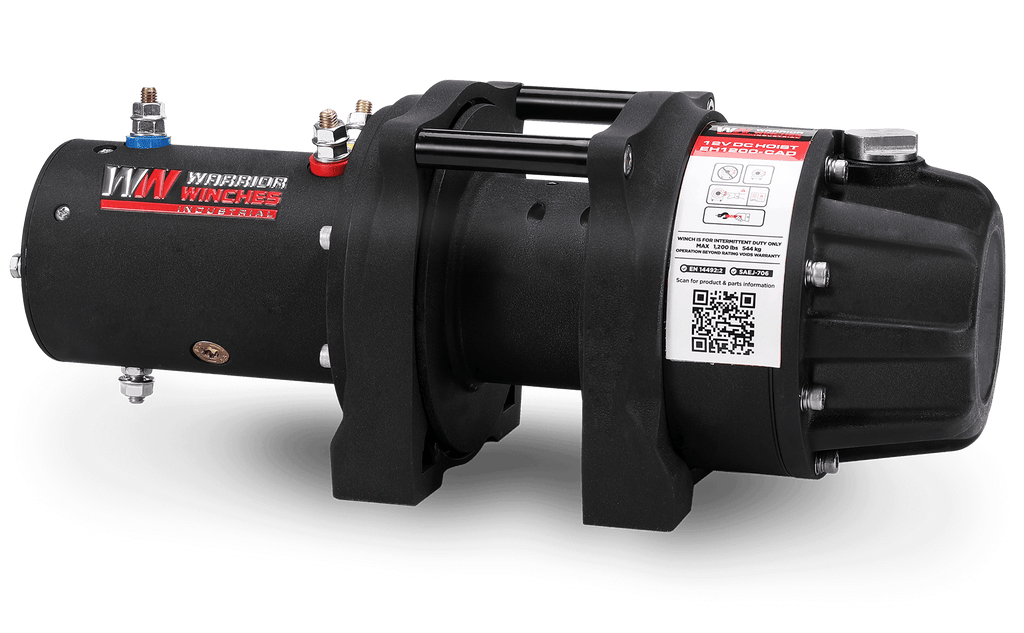

EH1200 12v Industrial Hoist

Coming Soon
SKU: EH1200
No reviews

Features

  • Powerful 4.6hp 12v Motor
  • Automatic Full Load Holding Brake: Benefit from an automatic mechanical brake that securely holds the full rated load, providing unparalleled safety during operation.
  • Durable Powder Coated Finish: Every Warrior Hoist comes with a durable powder-coated finish as standard. Engineered to withstand heavy usage, this finish not only enhances the hoist's resilience but also adds a touch of sophistication to its design.
  • SAEJ-706 Compliant: Committed to excellence, Warrior Hoists comply with SAEJ-706 standards, meeting and exceeding regulatory requirements for quality and safety.

The Warrior EH1200 Industrial Hoist is designed for a wide range of lifting scenarios including vehicle mounted cranes, portable light towers and fixed applications.

Each EH Industrial Hoist is equipped with an All Metal Planetary Gear Train, Rugged 12V DC Motor, and Automatic Full Load Holding Brake.

The Hoist is supplied without rope and hook. These are available as optional accessories which include:

  • Full Control Box
  • Albright Contactor
  • Wire Rope and Hook
  • Overload Protection
  • Heavy Duty Wireless Remote
  • Hand Remote with Emergency Stop.

You can be assured of safe and reliable lifting every time with the entire family of EH Industrial Hoists.

Rated Line Pull 1200 lbs (544 kgs)
Motor Type 12V:Input: 3.4kw/4.6hp; Output:1.8kw/2.4hp
Gearing 228:1
Braking Action Automatic screw cone/Ratchet-paw
Drum Size (Dia x L) Ø3.5 "×2.6 " (Ø89mm×66mm)
Cable Material Steel
Cable – Dia x L Ø3/16"×46 ' (Ø4.8mm×14m)
Mounting Pattern 4 "×4.5 " (102mm×114.3 mm
Dimensions 16.73"×6.3"×6.6" 425 mm ×160 mm ×167 mm
Certification SAEJ-706 & EN14492:2



Layer Rated line pull lbs (kgs) Total rope on the drum ft (m)
1 1200 (544) 11.5 (3.5)
2 1088 (493) 24 (7.3)
3 996 (451) 37.7 (11.5)
4 918 (416) 46 (14)

Line Pull Line Speed ft/min (m/min) Current A
lbs (kgs) 12v DC 12v DC
0 28.2 (8.6) 58
300 (136) 26.9 (8.2) 63
600 (272) 26.2 (8 ) 68
900 (408) 25.2 (7.7) 74
1200 (544) 24.6 (7.5) 80

What's in the box

  • EH Hoist
  • Operating Manual
User Manual Download
Brochure Download
Parts List Download
