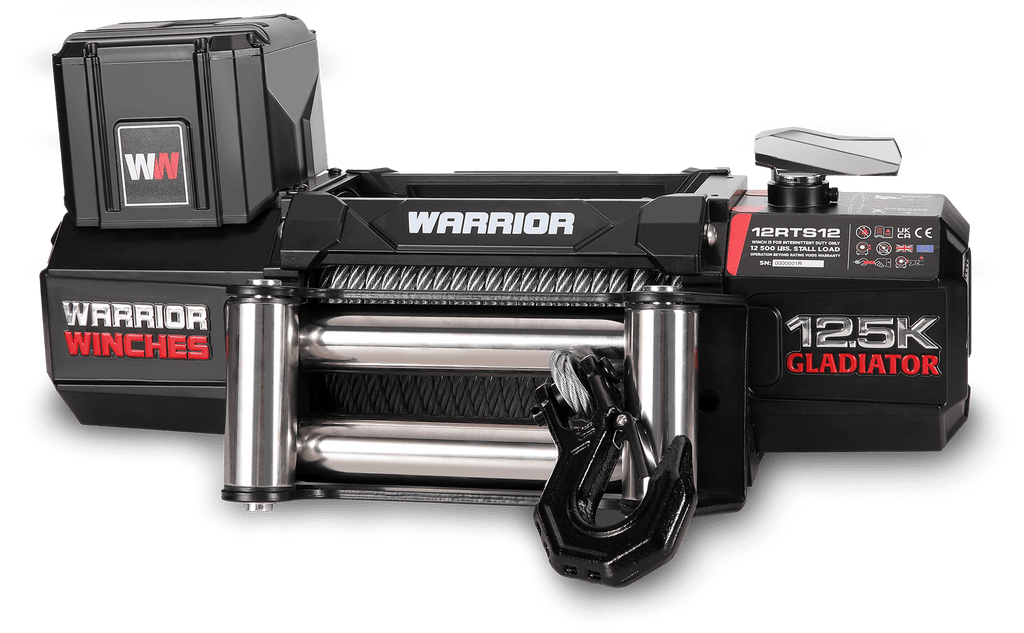

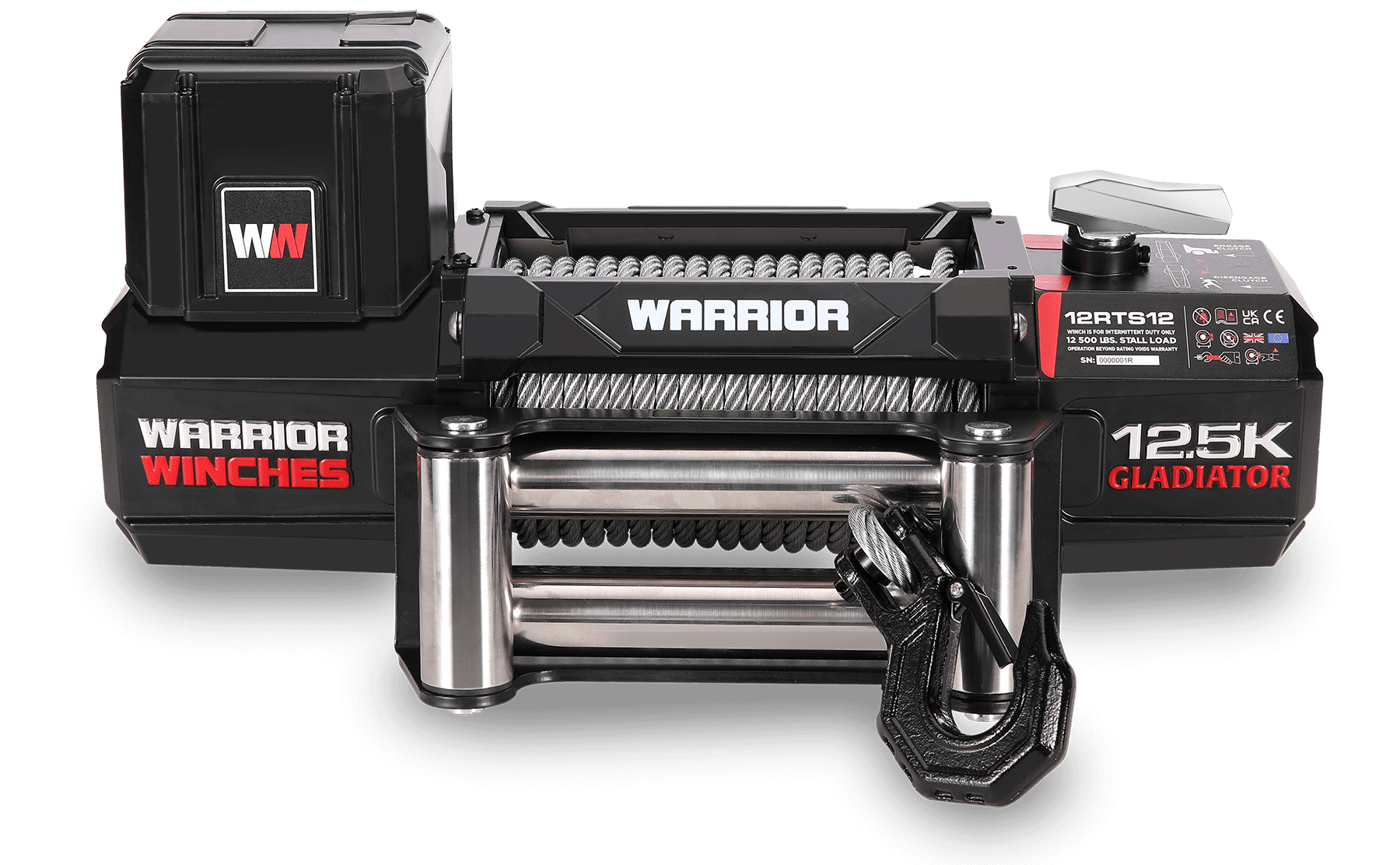

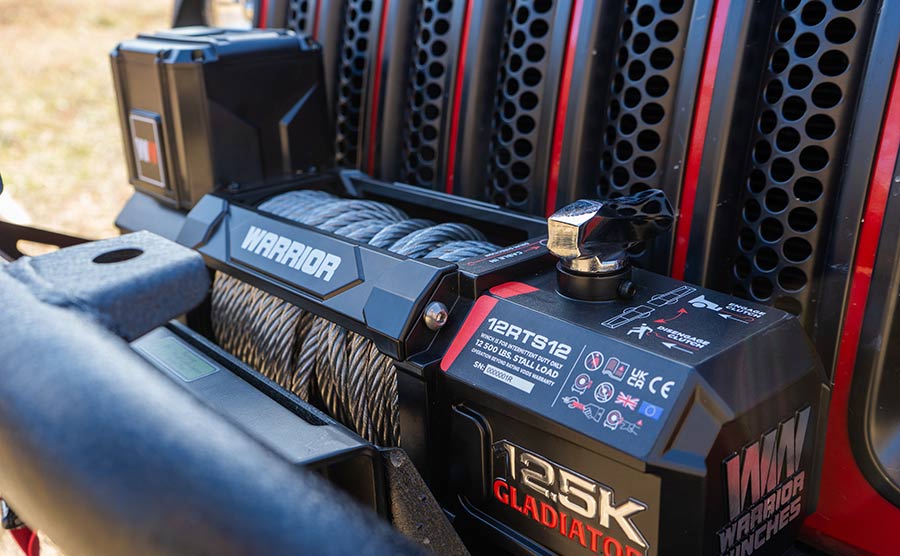

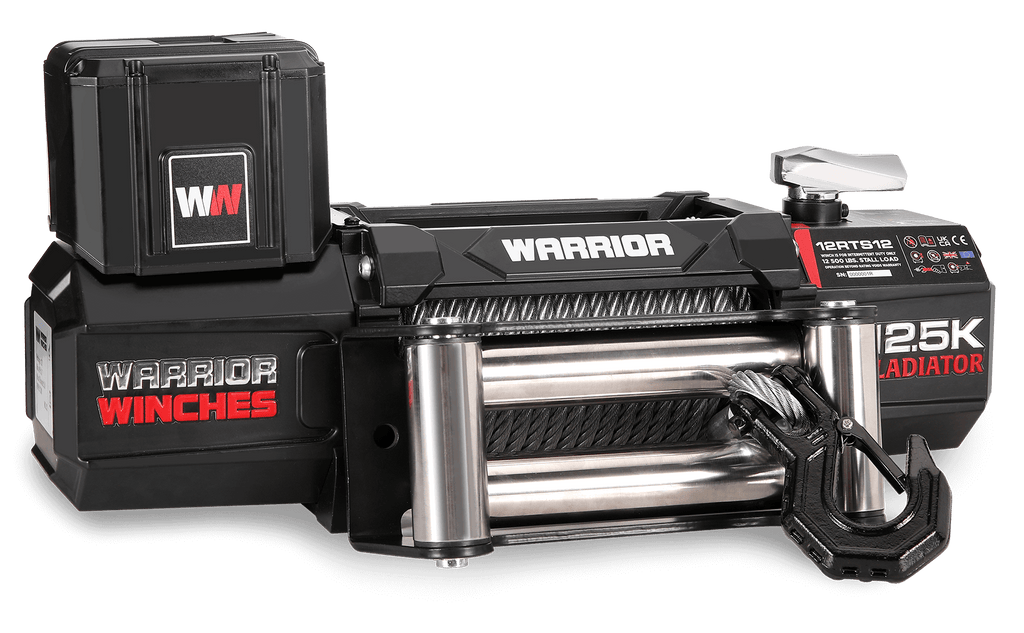

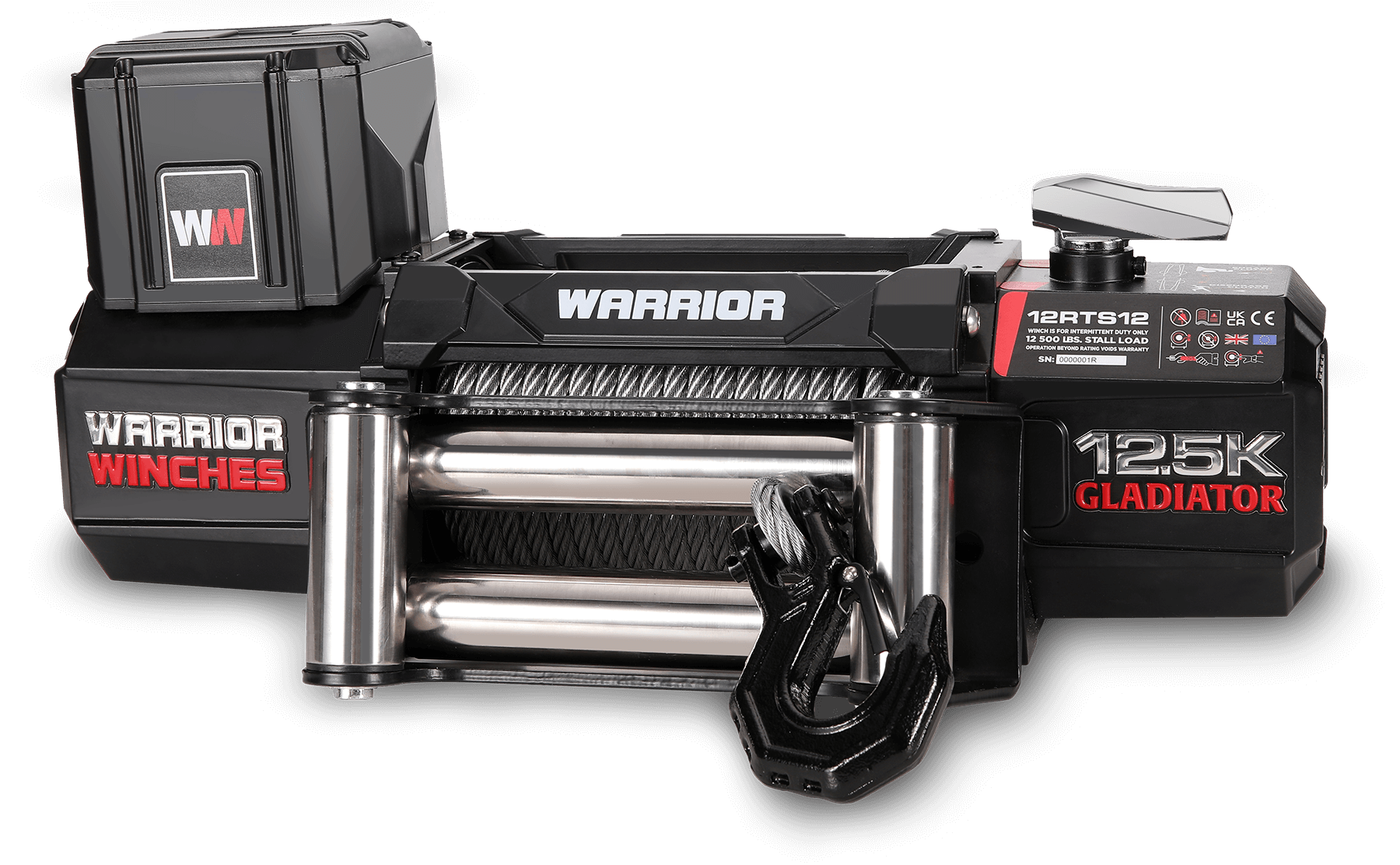

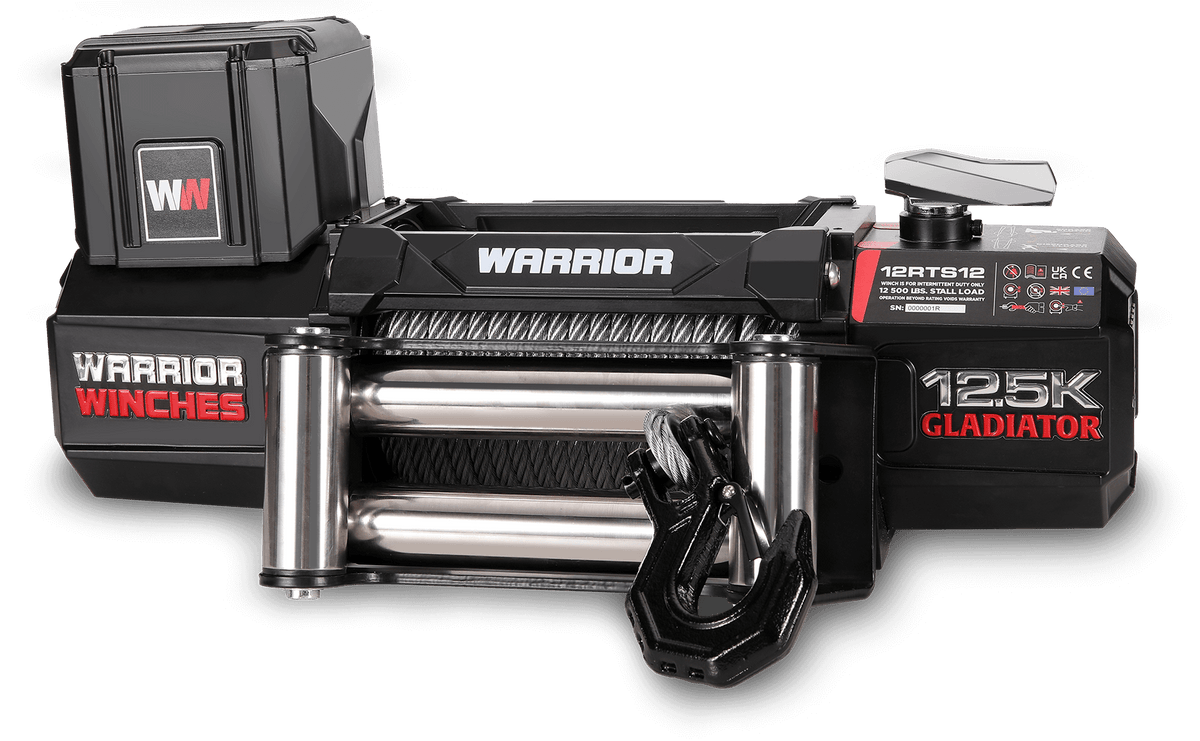

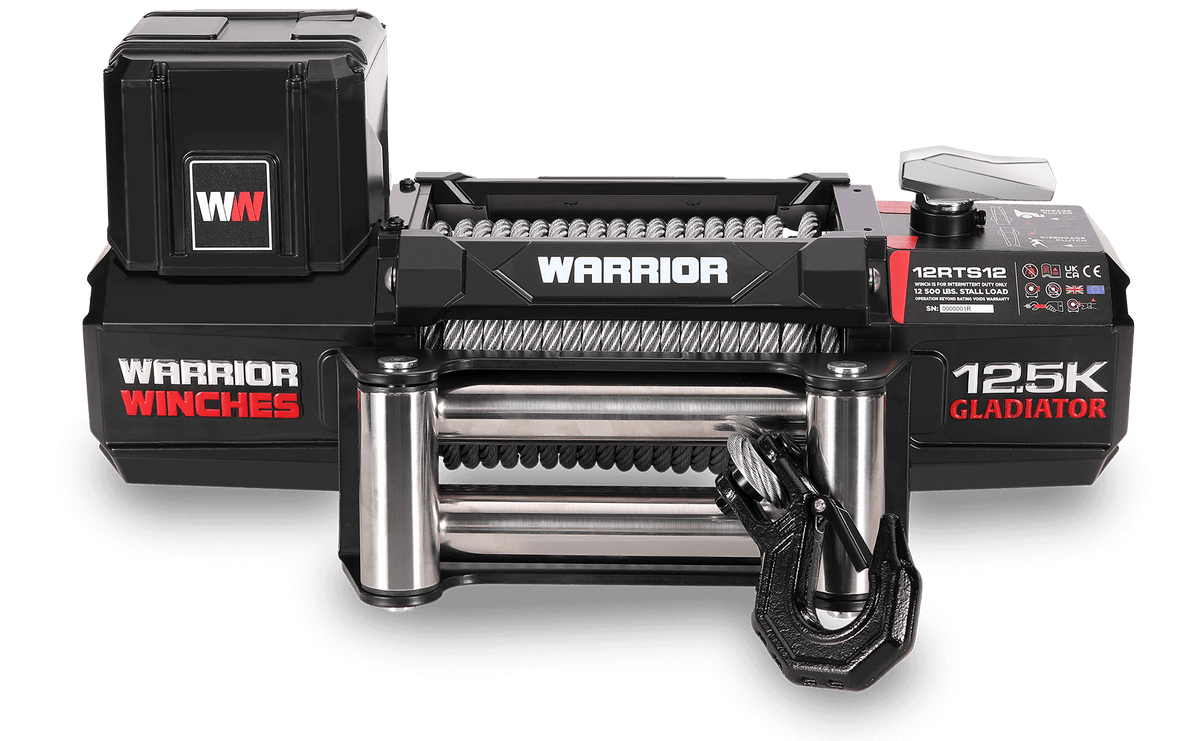

Gladiator R-Type 12500 Electric Winch

SKU EAN
12v / Steel Rope 12RTS12 5060966746171

Voltage: 12v
Rope: Steel Rope
Find a store near you
Or buy online from our approved partners:
Winch Industry LogoAmazon Logo

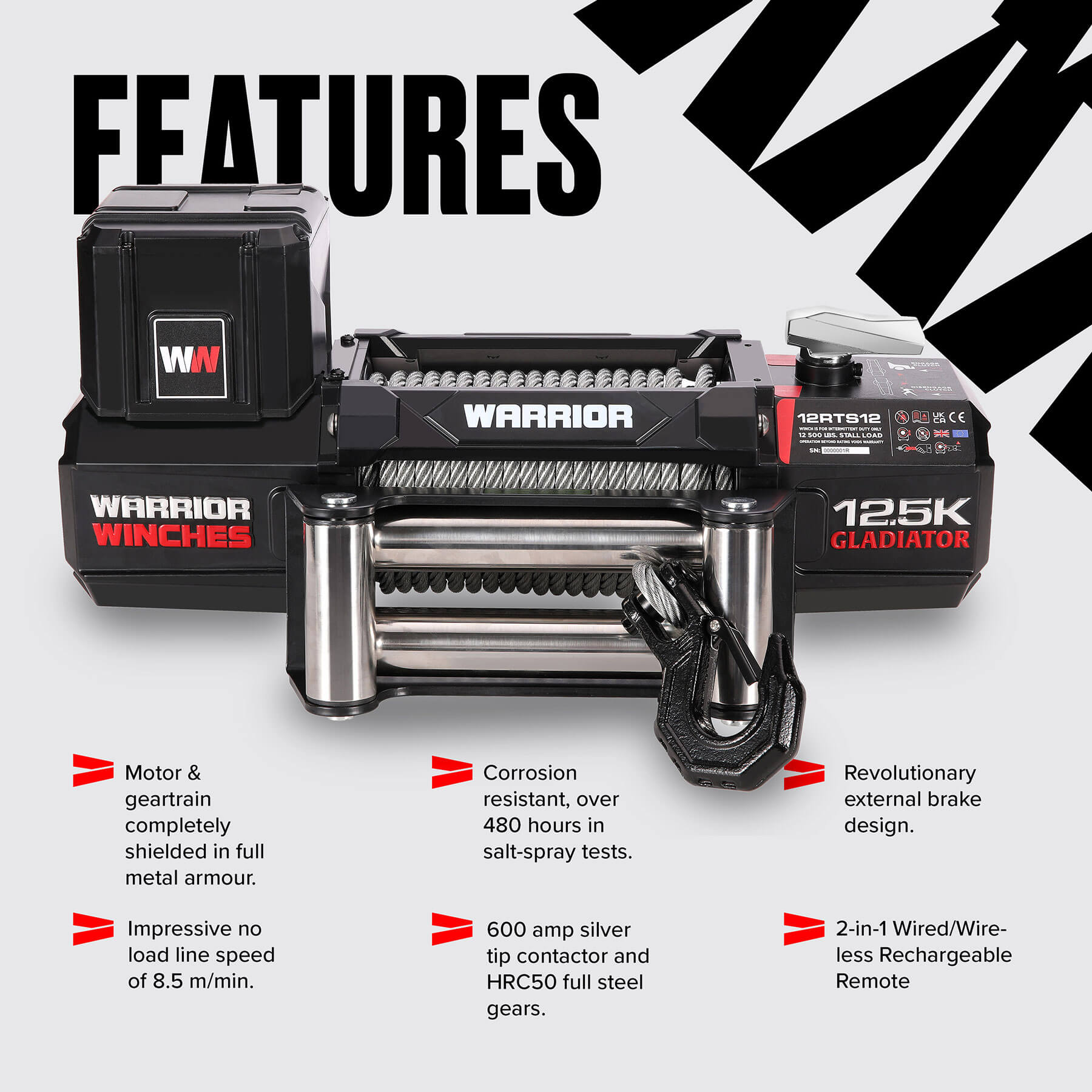

Features

  • The motor and geartrain are completely shielded in full metal armour and we have gone the extra step to cover the control pack in sturdy aluminium for maximum protection.
  • Durable aluminium cover, outdoor anti-corrosion powder coating and stainless steel mounting hardware provide an exceptional corrosion resistance of over 480 hours of salt-spray-testing.
  • 2in1 Wired/Wireless Rechargeable Remote for ease of use in any situation. A USB charging cable means you can recharge the remote in your vehicle.
  • Thermal Overload Protection System prevents damage to the winch, giving you peace of mind that your winch is protected in extreme use cases
  • Warrior's high powered motor and geartrain delivers high performance and powerful pulling capacity whilst maintaining an ultra low amp draw so you don't drain your battery.
  • Impressive no load line speed of 27.8ft/min (8.5m/min) is fastest in this segment.
  • 600 amp Silver Tip Contactor provides greater electrical efficiency and withstands higher temperatures, whilst a low corrosive Silver Copper Motor with Copper Brush Holders ensures a longer motor life.
  • HRC50 Full Steel Gears provide superior durability and long life.
  • Extensive Waterproof Sealing to the IP68 Standard keeps water and the elements out.
  • Our Revolutionary External Brake Design means less heat and stress is transferred to your winch rope, prolonging it's life, giving you maximum return and value for money.
  • Large Steel Winch Drum reduces wear and tear on the Armortek Extreme Synthetic Rope.
  • Stainless steel mounting hardware, extensive sealing and durable outdoor anti-corrosion powder coating provides superior corrosion resistance.

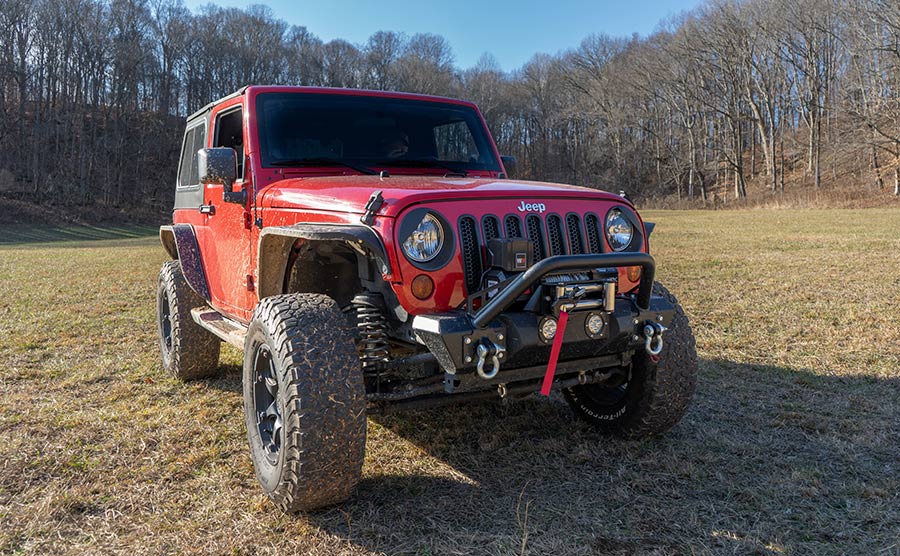

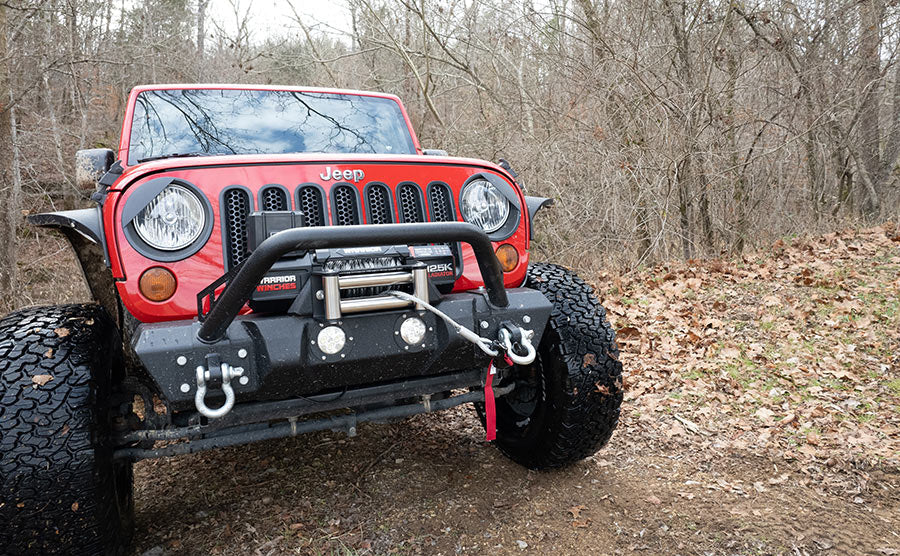

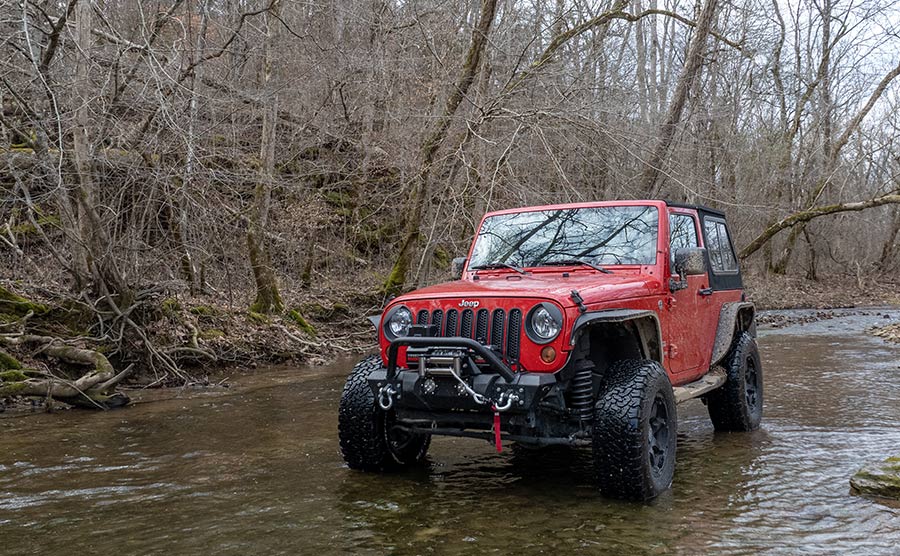

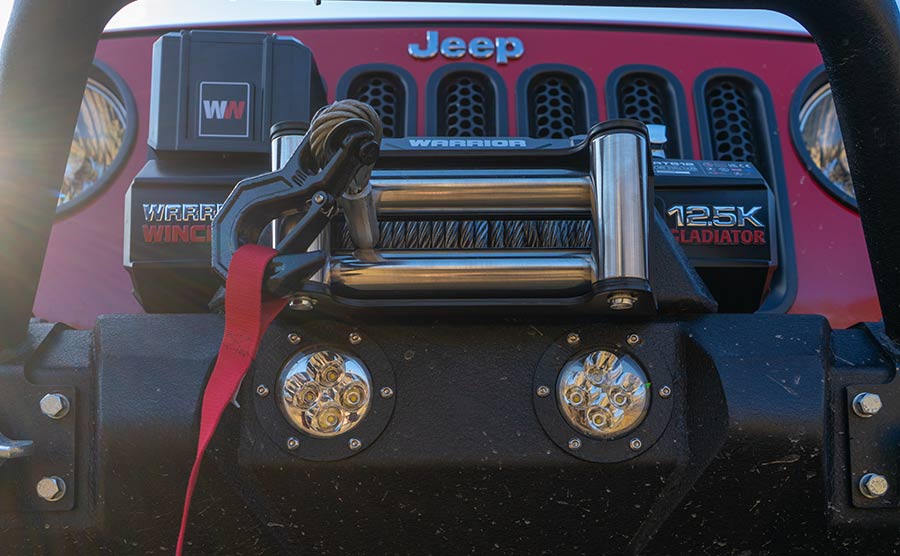

The Gladiator 12v 12500 lbs Electric winch is part of our New Premium Winch Range perfectly suited for offroad, trailers, trucks, Jeeps, SUVs, 4x4 and small recovery.

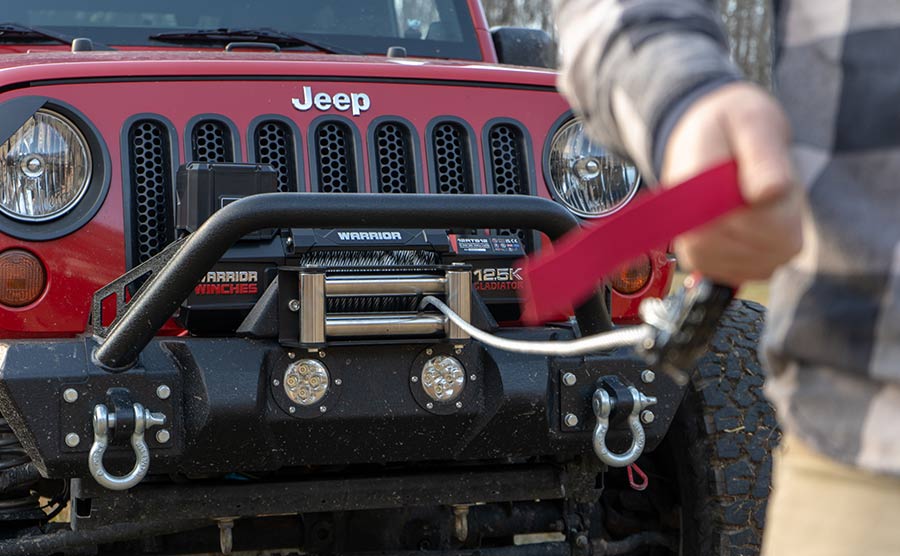

Warrior’s Gladiator winches continue to redefine winching with unmatched durability, performance, and style. A built in 2in1 wired/wireless rechargeable remote system makes winching easy from up to 50ft (15m) away. The Thermal Overload Protection System means no fear of overheating and damage when winching in extreme environments and during long, hard pulls.

Our Revolutionary External Brake Design keeps heat away from the drum, putting less strain and wear and tear on your winch rope whilst our HRC50 Full Steel Gears offer superior durability and high efficiency for sustained pulling power.

Extensive IP68 Waterproofing together with a Silver Copper Motor with Copper Brush Holders, plus the Durable Coating and Stainless-Steel Mounting Hardware provides superior corrosion resistance.

Couple that with our Limited Lifetime Warranty with 7 years on electrical components and nationwide support centers for ultimate peace of mind.

These winches are our top premium choice for a good reason and look as good as they perform.

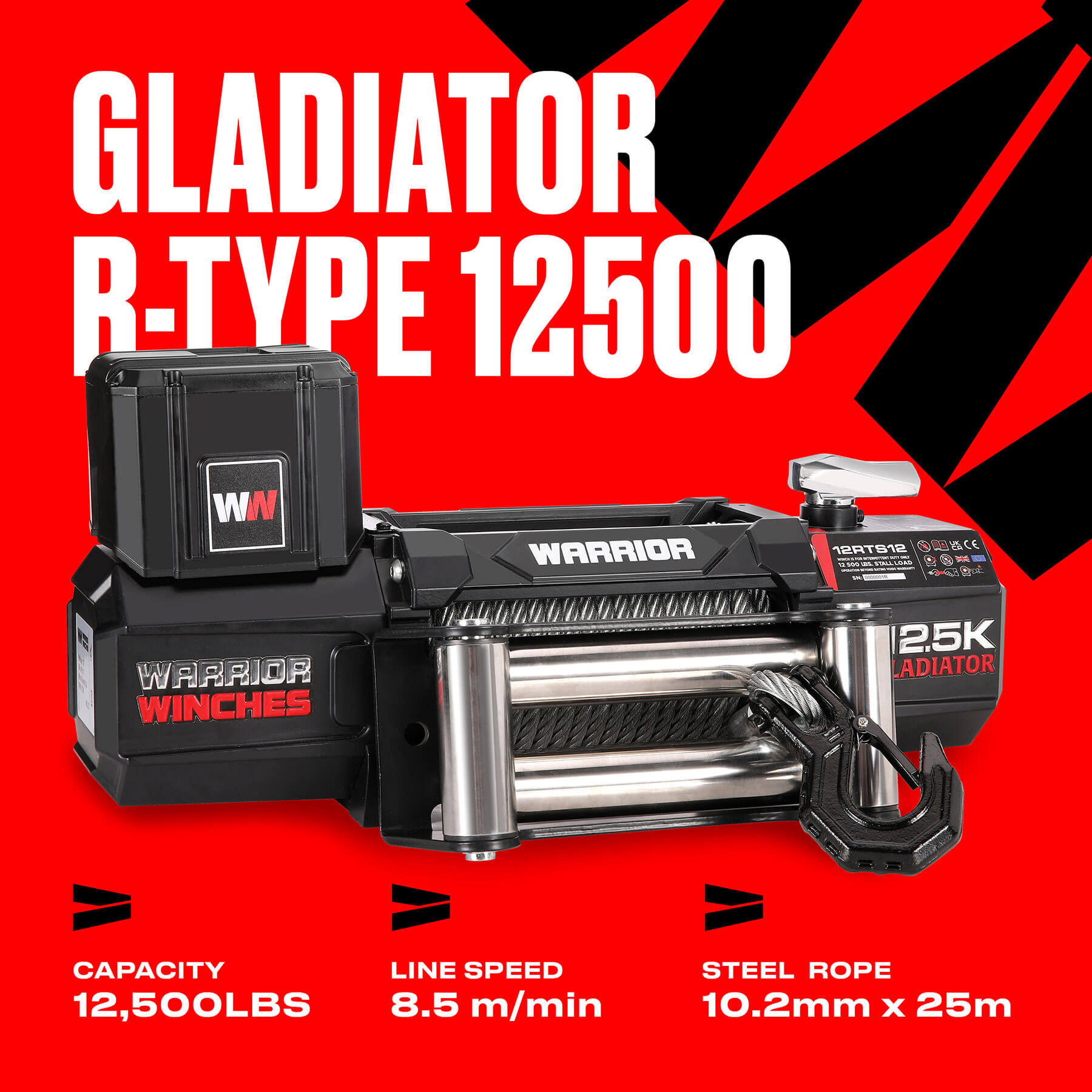

Rated Line Pull12500 lbs
Motor Type12V Input: 5.0kw/6.7hp; Output: 2.4kw/3.2hp
Rated Volt12
Gearing196:1
ClutchManual Clutch
Braking ActionPatented ratchet

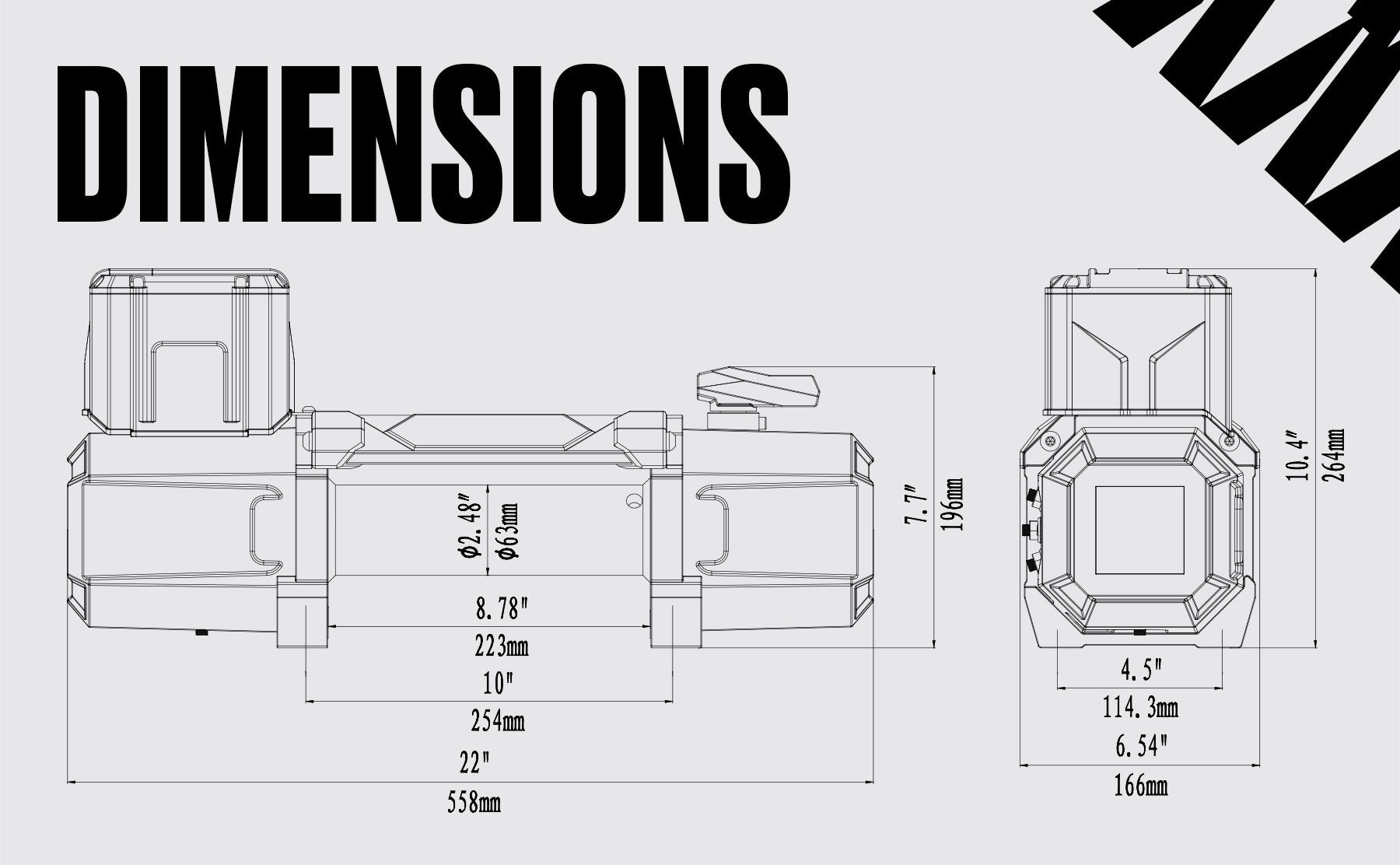

Drum Size (Dia x L)63 x 223 mm
Cable MaterialSteel or Synthetic
Cable – Dia x L10.2 mm x 25m
Rating68
Mounting Pattern254mmx114.3mm (10”x 4.5”) (4-M10) mm
Dimensions558 x 166 x 264 mm
Weight43.0 kg
Warranty3 Years



Layer of Rope/Cable Line Pull: lbs (kgs) Rope on drum ft(m)
1 12500(5670)15.1(4.6)
2 9775(4434)34.1(10.4)
3 8000(3629)57.7(17.6)
4 6800(3084)82(25)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 27.9(8.5)45
6000(2722)11.5(3.5) 200
8000(3629) 8.2(2.5) 240
10000(4536) 5.9(1.8)300
12500(5670) 4.2(1.3) 380

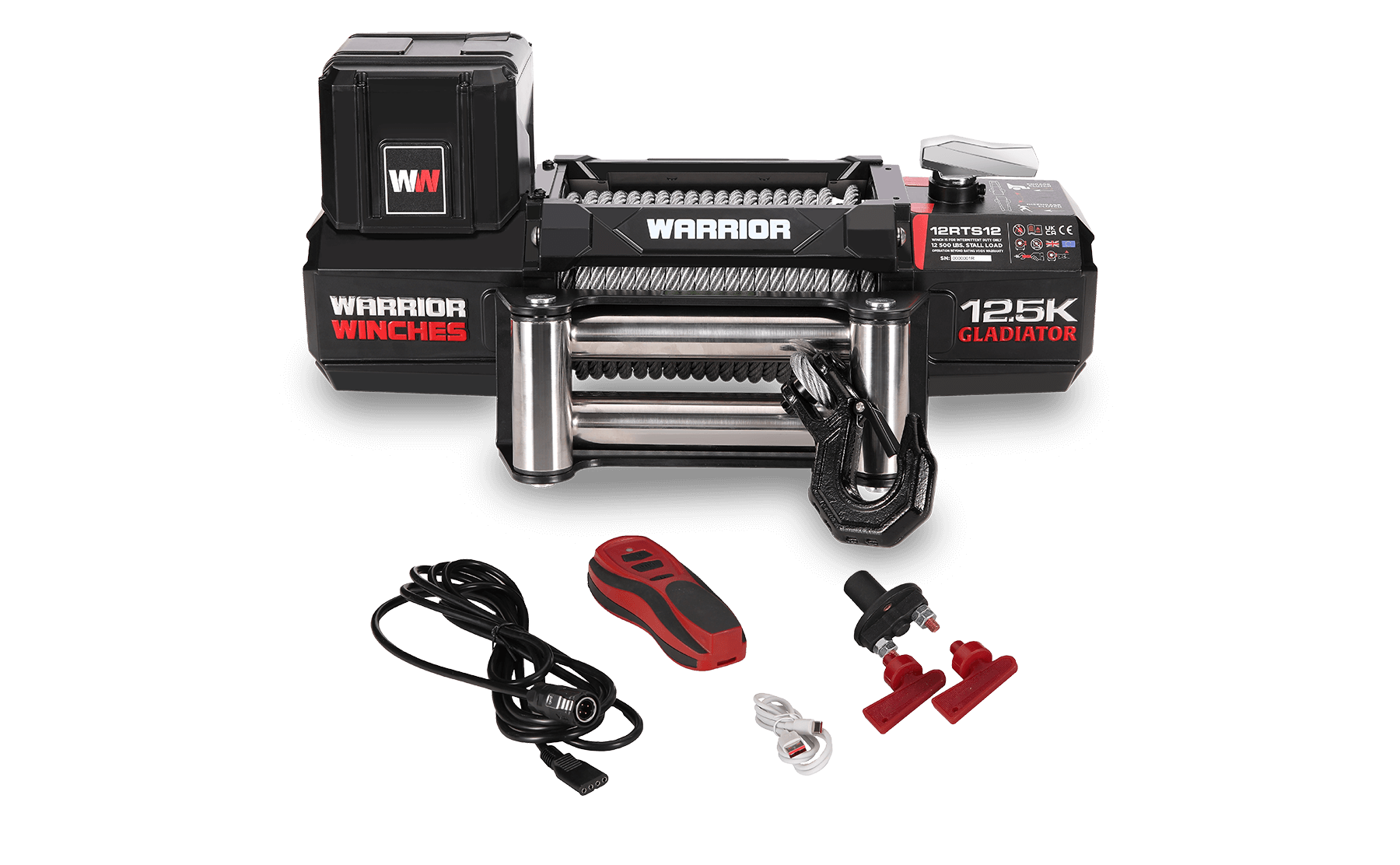

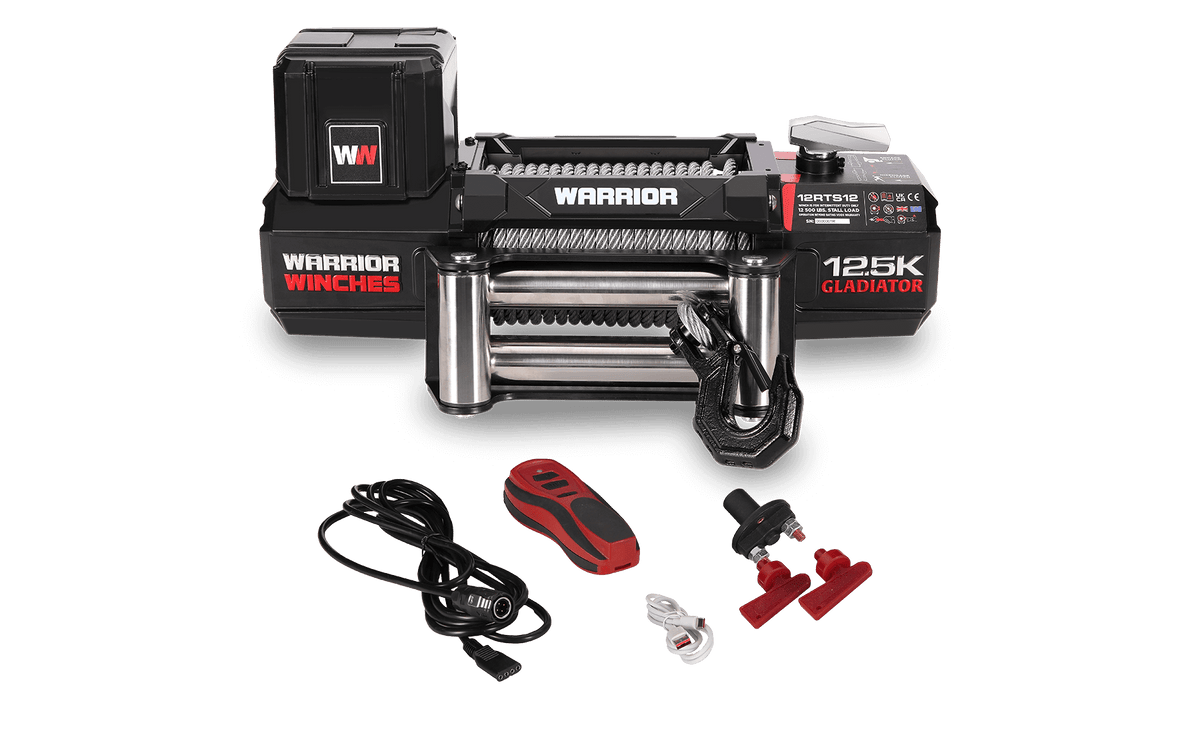

What's in the box

  • Gladiator Winch
  • 2in1 Rechargeable Remote (Wired and wireless)
  • Roller Fairlead
  • Removable Heavy Duty Hook
  • Heavy Duty Battery Leads
  • Isolation Switch
  • Stainless Steel Mounting Hardware (nuts/bolts)
User Manual Download
Brochure Download
Parts List Download

Warrior Winches 7 Year Warranty

BPE Holdings Ltd are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earning a
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.



WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 7-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.



WARRANTY EXCLUSIONS

This warranty excludes:

- Cosmetic defects such as paint, decals, ,
- Worn parts due to improper use.
- Steel ropes
- Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.


- Any Accessory part including roller fairleads, hooks and mounting plates.
- Failures due to acts of God and other force major events beyond the manufacturer’s control
- Problems caused by parts that are not original WARRIOR WINCH parts
- Alteration or modification(s) made by any party other than the
- Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
- Any third party equipment
- Batteries



Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

   Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.
