The Warrior Winches JR Range is our industrial hydraulic winching solution, engineered for demanding commercial and heavy-duty applications where exceptional pulling power, durability and controlled operation are essential. Built around compact, high-performance hydraulic systems and designed to meet the SAE J706 standard, JR winches provide the strength and reliability required for professional towing, recovery, construction, forestry and other industrial applications.

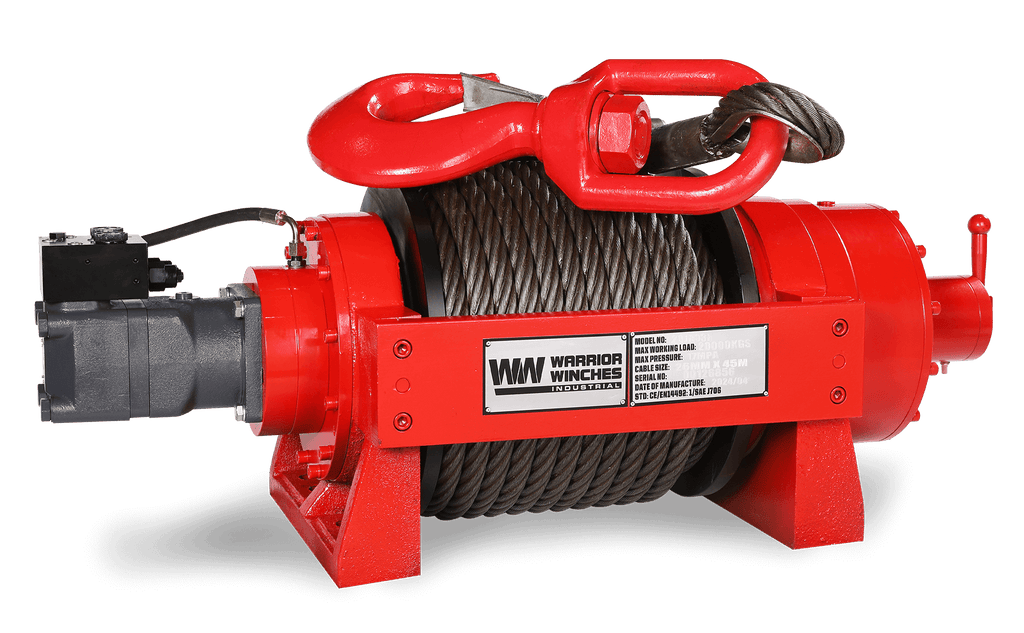

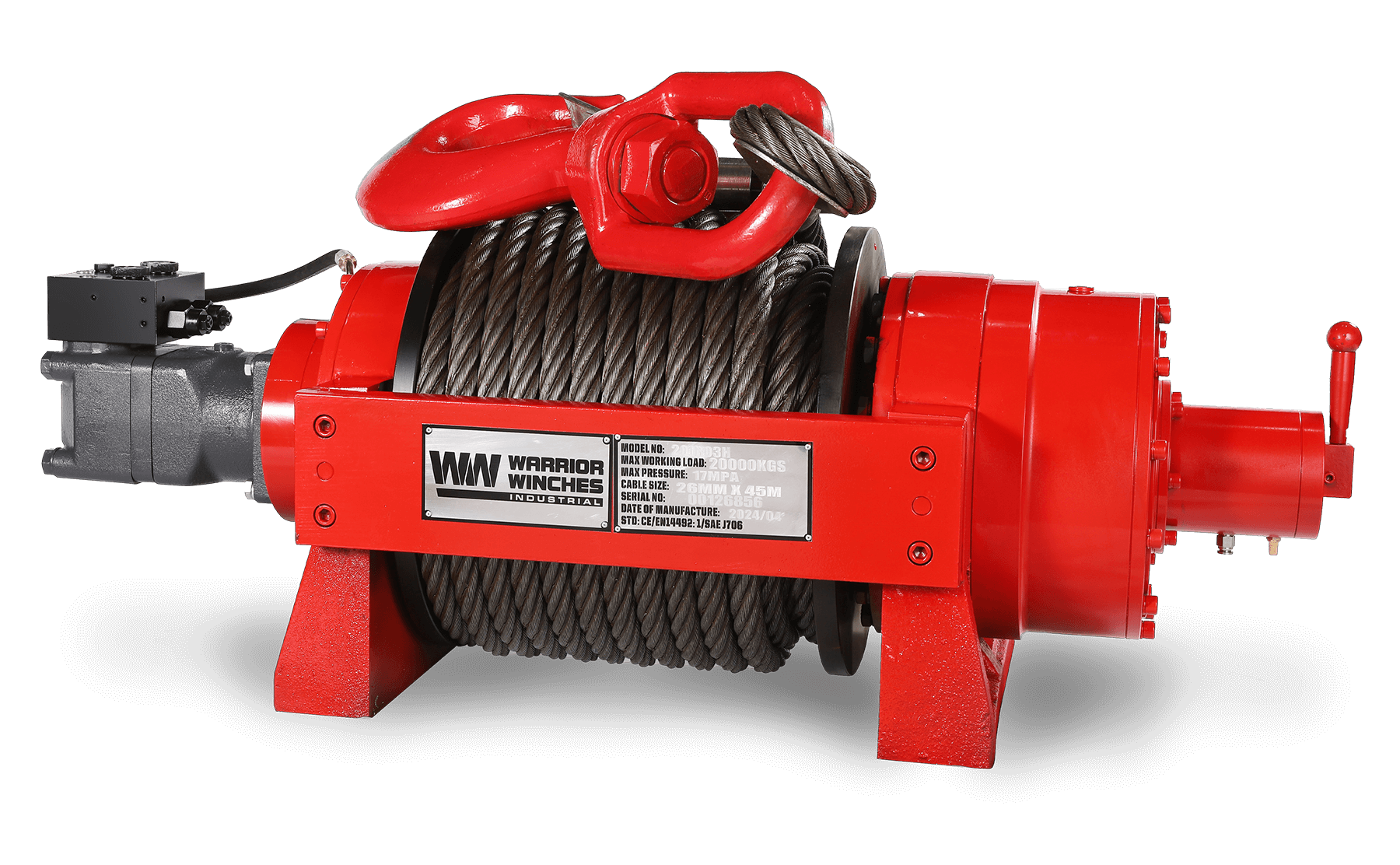

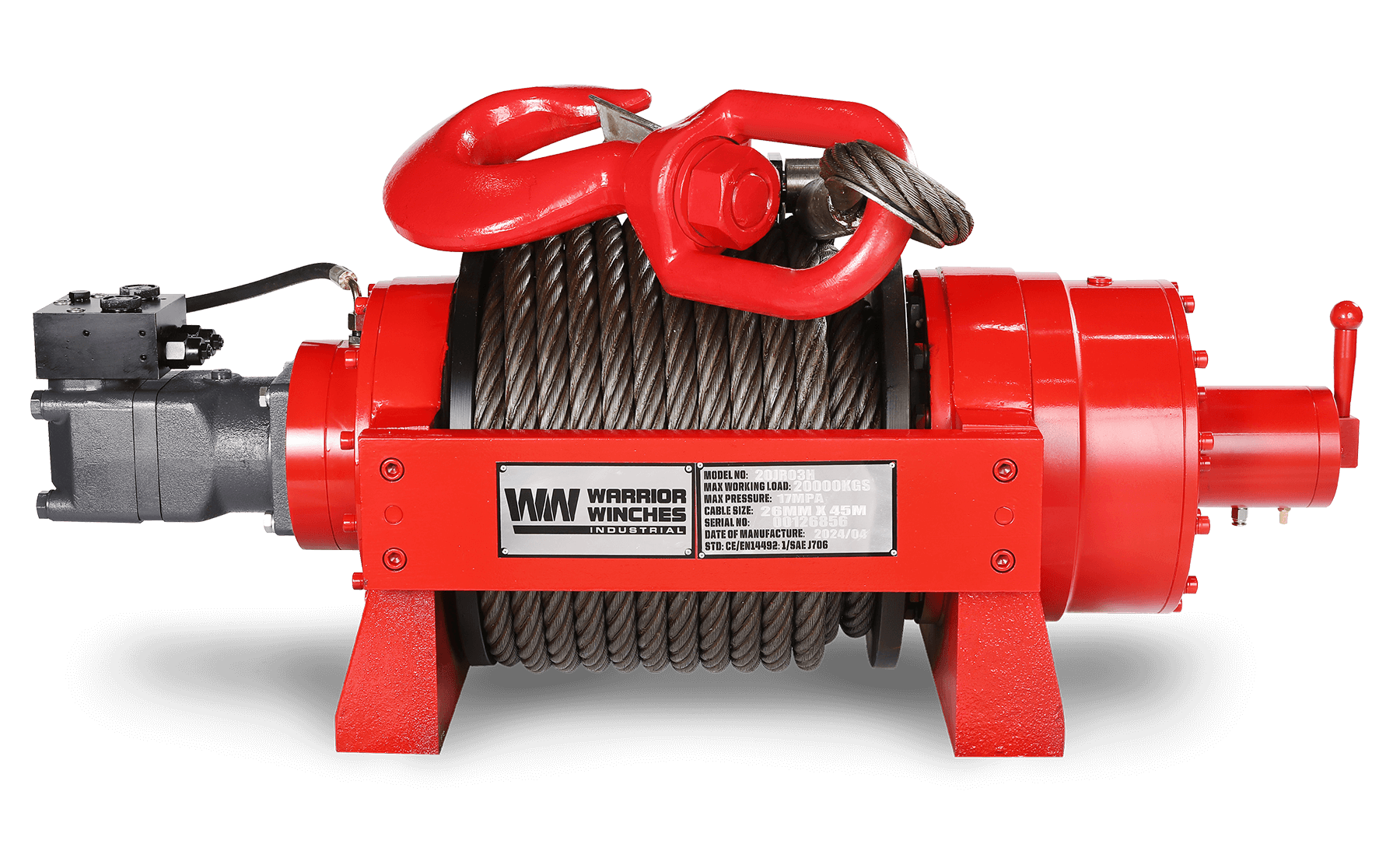

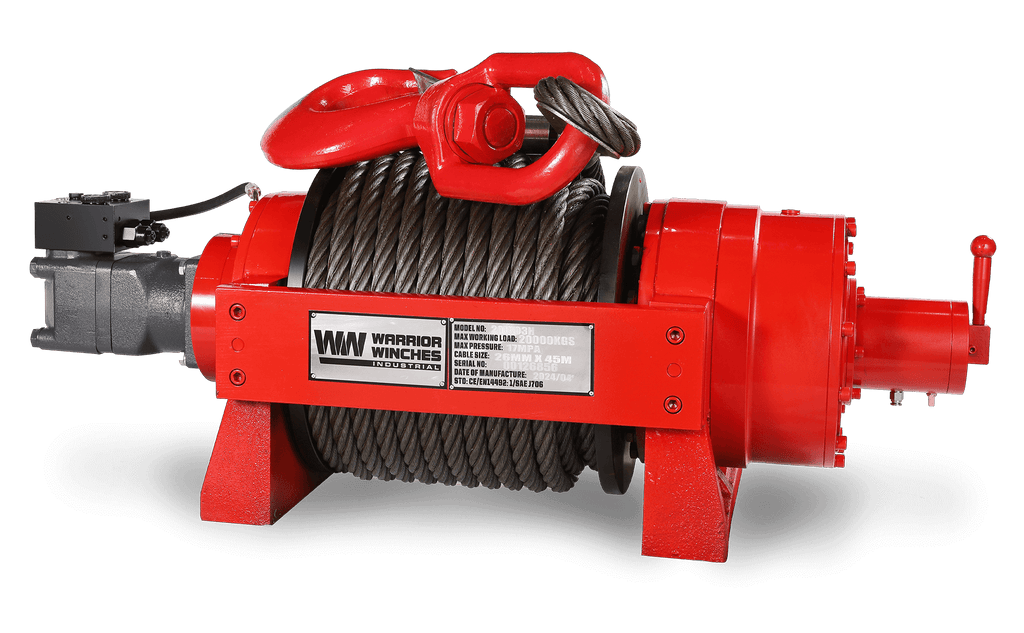

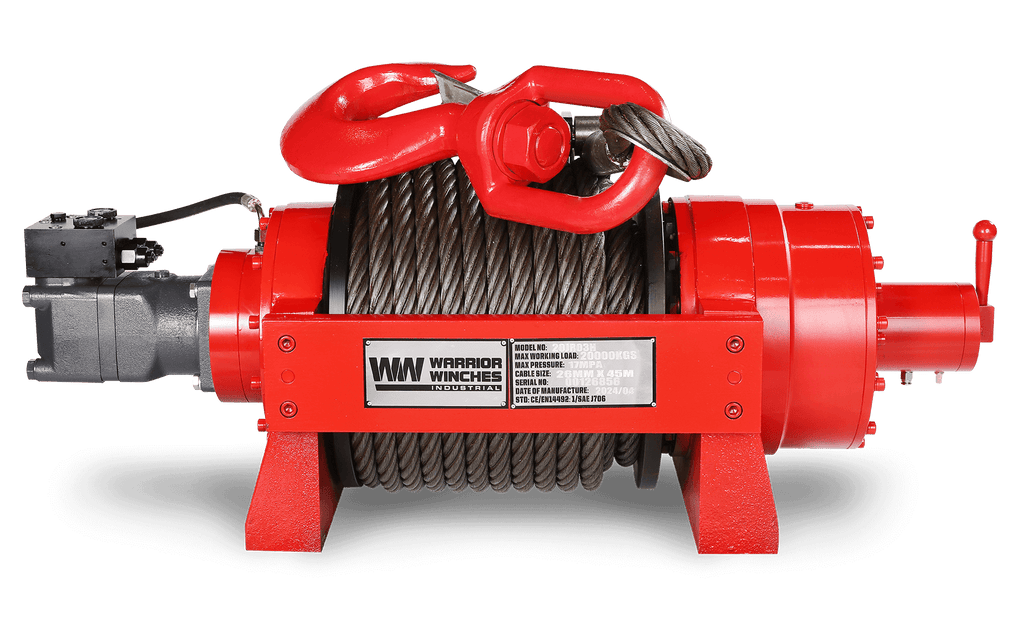

The JR 20 Tonne Industrial Hydraulic Winch delivers an exceptional 44,000lb (20,000kg) rated line pull, making it one of the most capable models in the JR range. Powered by a Sauer Danfoss OMT 310 hydraulic motor and backed by 36:1 planetary gearing, it combines enormous pulling power with controlled operation, flexible installation and 45 metres of 26mm steel rope.
44,000lb of Industrial Pulling Power. With a rated line pull of 44,000lb (20,000kg) on the first layer, the JR20 is engineered for applications where extreme pulling capability is essential. It provides the strength required for demanding commercial towing, recovery, construction, forestry and heavy-duty industrial work.
High-Torque Hydraulic Power. The Sauer Danfoss OMT 310 hydraulic motor delivers the high torque required to move substantial loads. With hydraulic drive, the JR20 can integrate into suitable vehicle or machinery hydraulic systems for professional applications where dependable pulling power is essential.
36:1 Planetary Gearing for Controlled Torque. The 36:1 planetary gearing system provides the mechanical advantage needed to convert hydraulic motor output into substantial pulling force. This allows the JR20 to deliver serious torque while maintaining controlled and predictable winching performance.
45 Metres of Heavy-Duty Steel Rope. The 26mm x 45m steel rope provides substantial reach for demanding industrial pulling and recovery operations. With four rope layers available on the drum, the JR20 continues to provide significant pulling capacity as more rope is wound onto the drum.
Multi-Disc Braking for Precise Load Control. The multi-disc friction brake is designed to provide dependable load holding and controlled operation when working with exceptionally heavy loads. Combined with the balance valve, it allows operators to manage both pulling and lowering with greater precision.
Smooth Lowering with the Balance Valve. The balance valve helps control the movement of the load during lowering, providing smoother and more predictable operation. This is particularly valuable when positioning heavy equipment or managing loads where precision is critical.
Air or Manual Clutch Operation. The JR20 can be operated using either its air clutch or manual clutch, giving operators flexibility when integrating the winch into different vehicles and working environments. This dual-operation design provides a practical solution for a range of professional installations.
Built to SAE J706 Standards. The JR20 is designed to meet the SAE J706 standard, providing a recognised foundation for winch performance, durability and safety. It is engineered for professional applications where dependable equipment is essential.
Adaptable Installation Configuration. The reversible orientation allows the hydraulic motor to be positioned on either the left or right side, while the rope can spool from either the top or bottom. This gives installers greater flexibility when working around the physical constraints of heavy-duty vehicles and machinery.

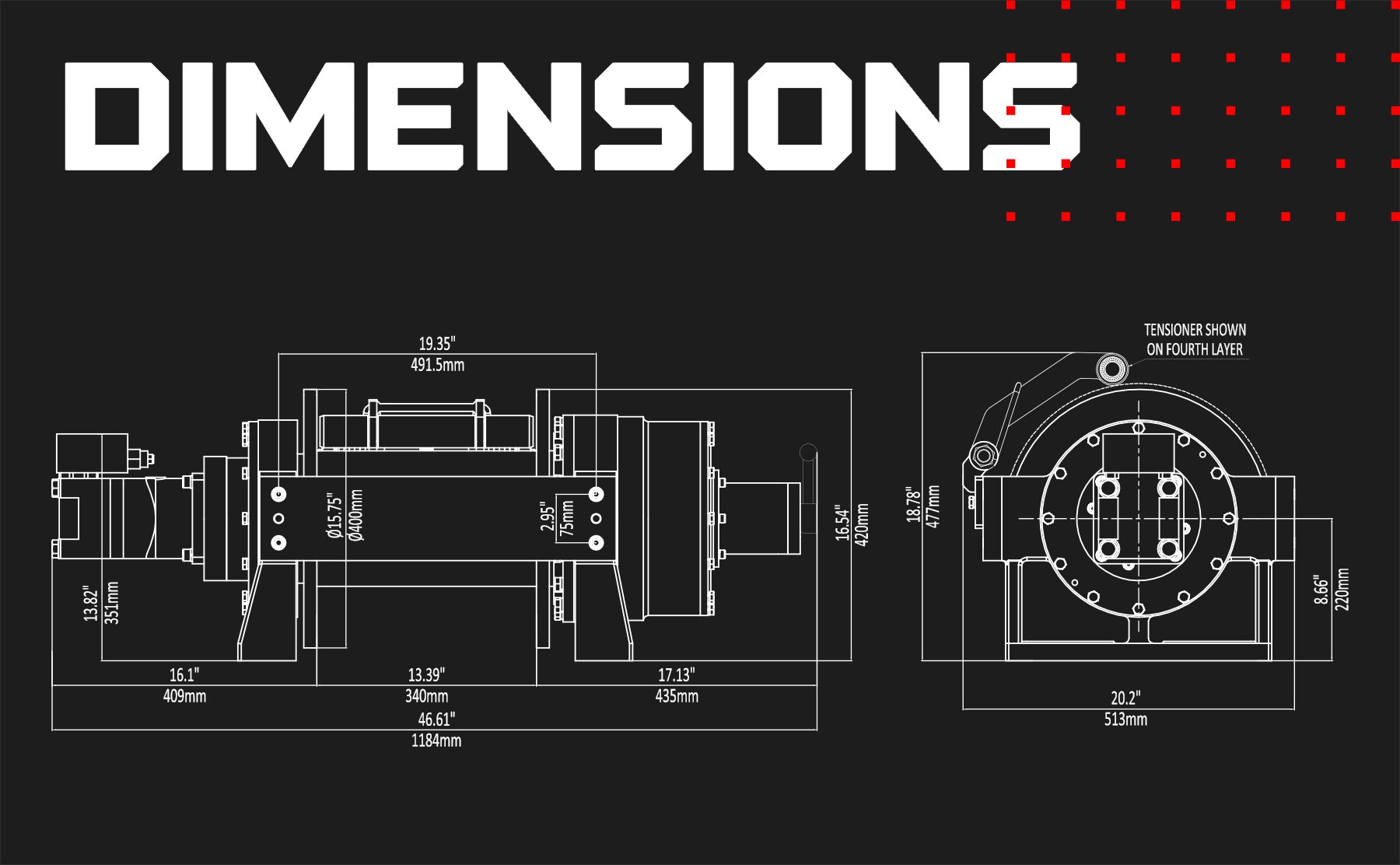

Built for Heavy-Duty Working Environments. Measuring 1,224 x 640 x 420mm and weighing 515kg, the JR20 is substantial by design. Its heavy-duty construction provides the foundation required to handle its exceptional 44,000lb pulling capacity in demanding professional environments.
Ready for Professional Winching Work. The JR20 is supplied with the hydraulic winch, 45m steel rope, heavy-duty hook, air/manual clutch, balance valve, tensioner and operating manual, providing the core components required to put this high-capacity industrial winch to work.
The Warrior Winches JR 20 Tonne Industrial Hydraulic Winch combines 44,000lb of pulling power, a Sauer Danfoss OMT 310 hydraulic motor, 36:1 planetary gearing and 45 metres of 26mm steel rope into an exceptionally capable industrial winching solution. With multi-disc braking, flexible clutch operation and reversible installation, it is engineered for demanding commercial and industrial applications. The JR range is backed by a 5-year warranty for complete peace of mind.
