20SPA12

Ninja 2000 Electric Winch - 12v Synthetic Rope

Warranty: 3 Years

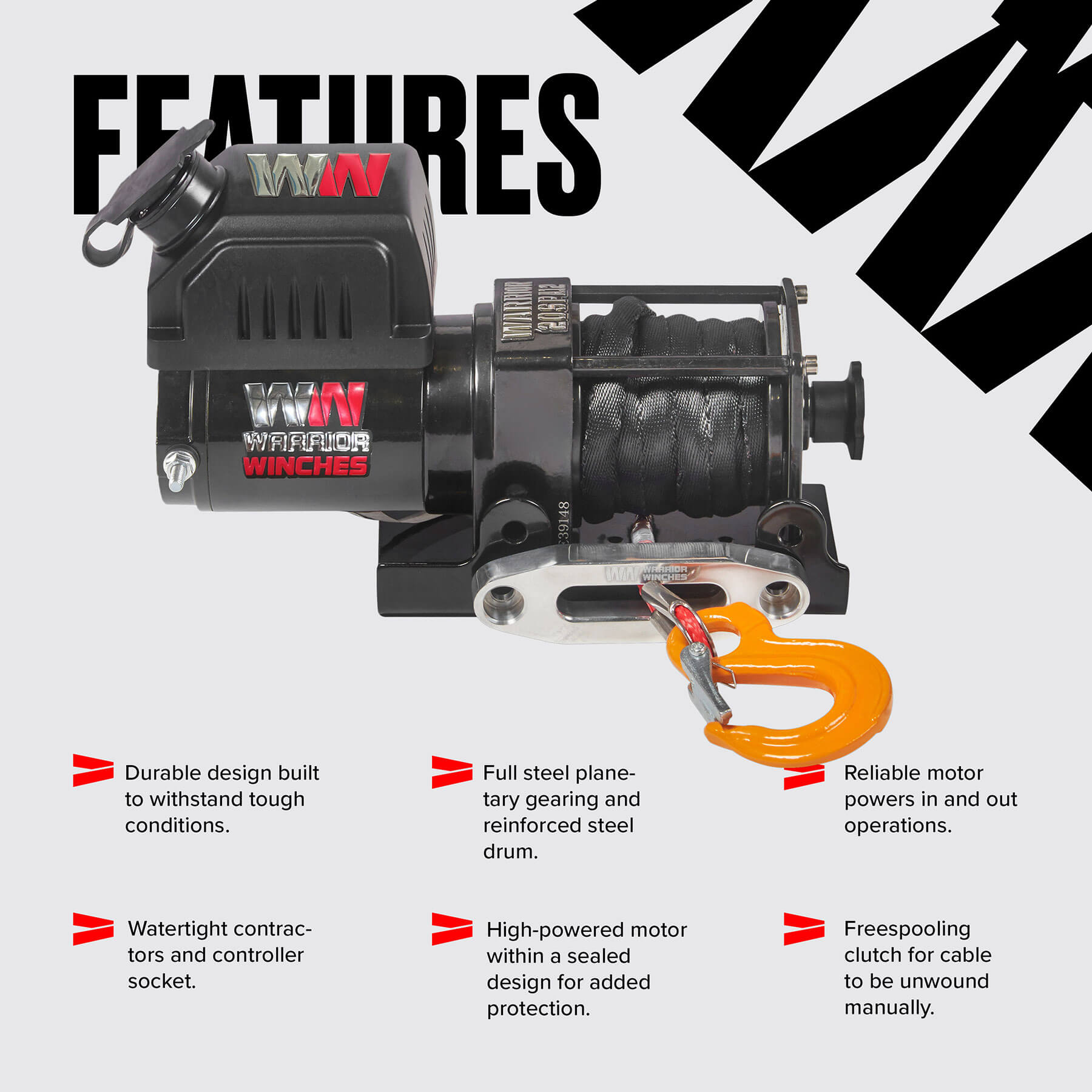

Features

  • Keep Moving Through Difficult Conditions - The sealed high-power motor is designed to deliver dependable performance when mud, water and rough terrain put your recovery equipment to the test.
  • Reliable Electrical Protection - Heavy-duty watertight contactors help prevent water and debris from compromising the winch's electrical components, supporting consistent performance in demanding environments.
  • Strength Where the Load Counts - Full steel planetary gearing provides the robust mechanical foundation needed to transfer motor power efficiently and handle the stresses of serious quad bike and side-by-side recovery.
  • Confidence Under Pulling Load - The strengthened steel drum is built to cope with demanding winching forces, providing a durable platform for the lightweight synthetic rope.
  • Protected Control, Reliable Operation - A watertight controller socket helps keep moisture and debris away from the control connection, giving you dependable operation when conditions are less than ideal.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

The Warrior Winches Ninja Range is our performance-focused range of electric winches designed specifically for trailers, quad bikes (ATV) and side-by-side (UTV) recovery. Compact, responsive and built around proven Warrior engineering, Ninja winches deliver the pulling power and control needed to keep recreational and off-road vehicles moving when the terrain gets challenging.

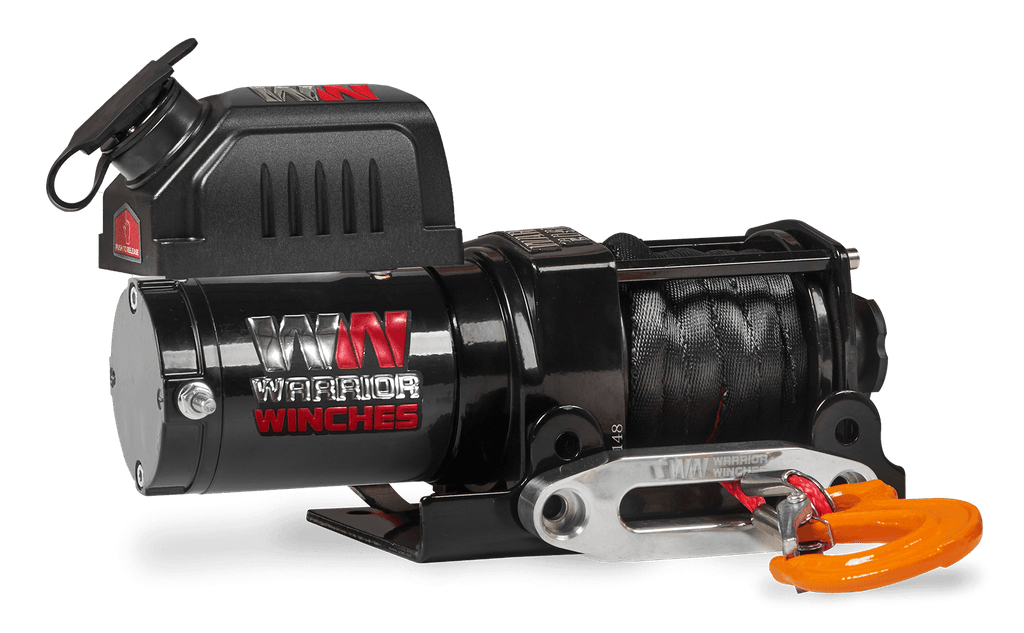

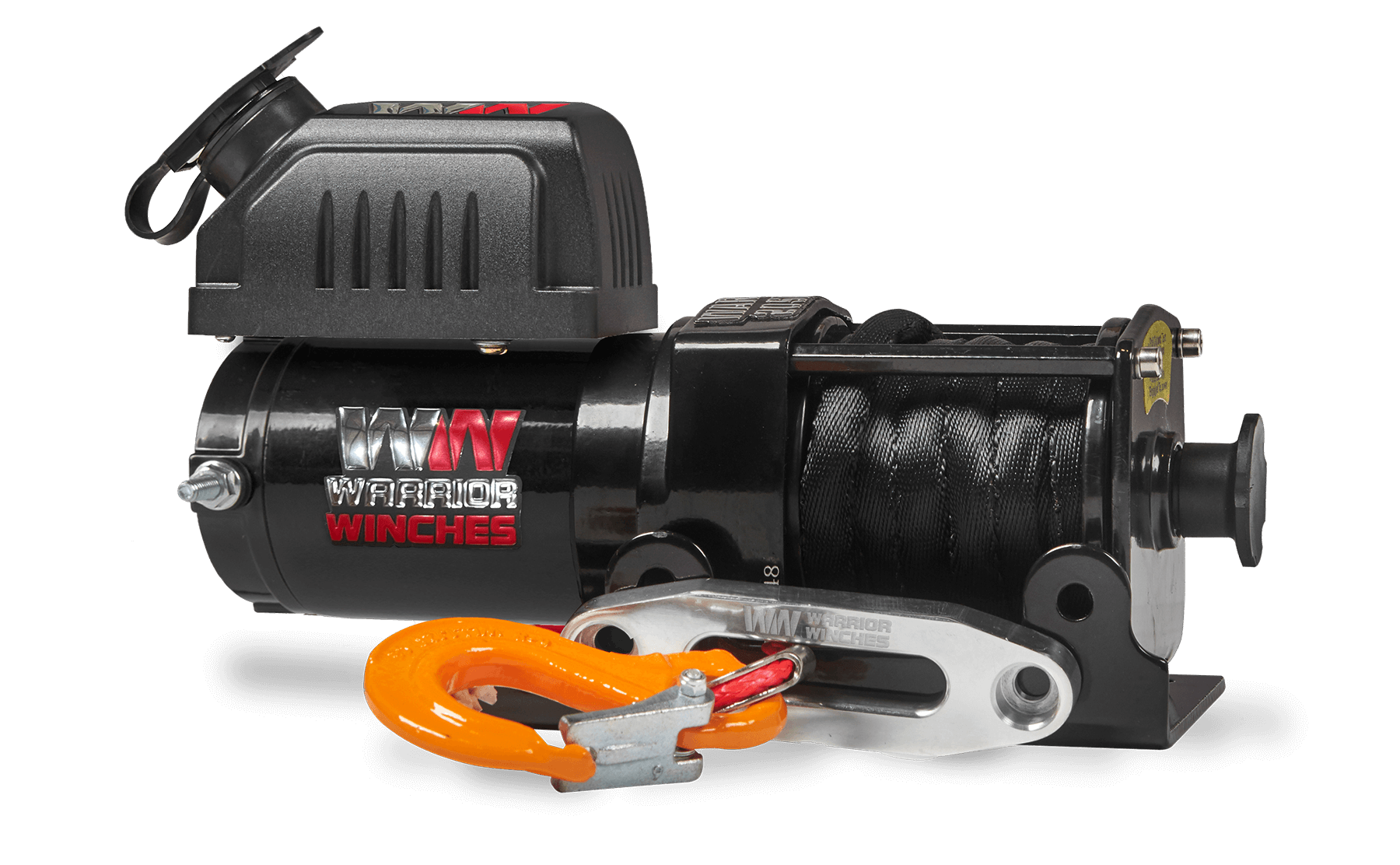

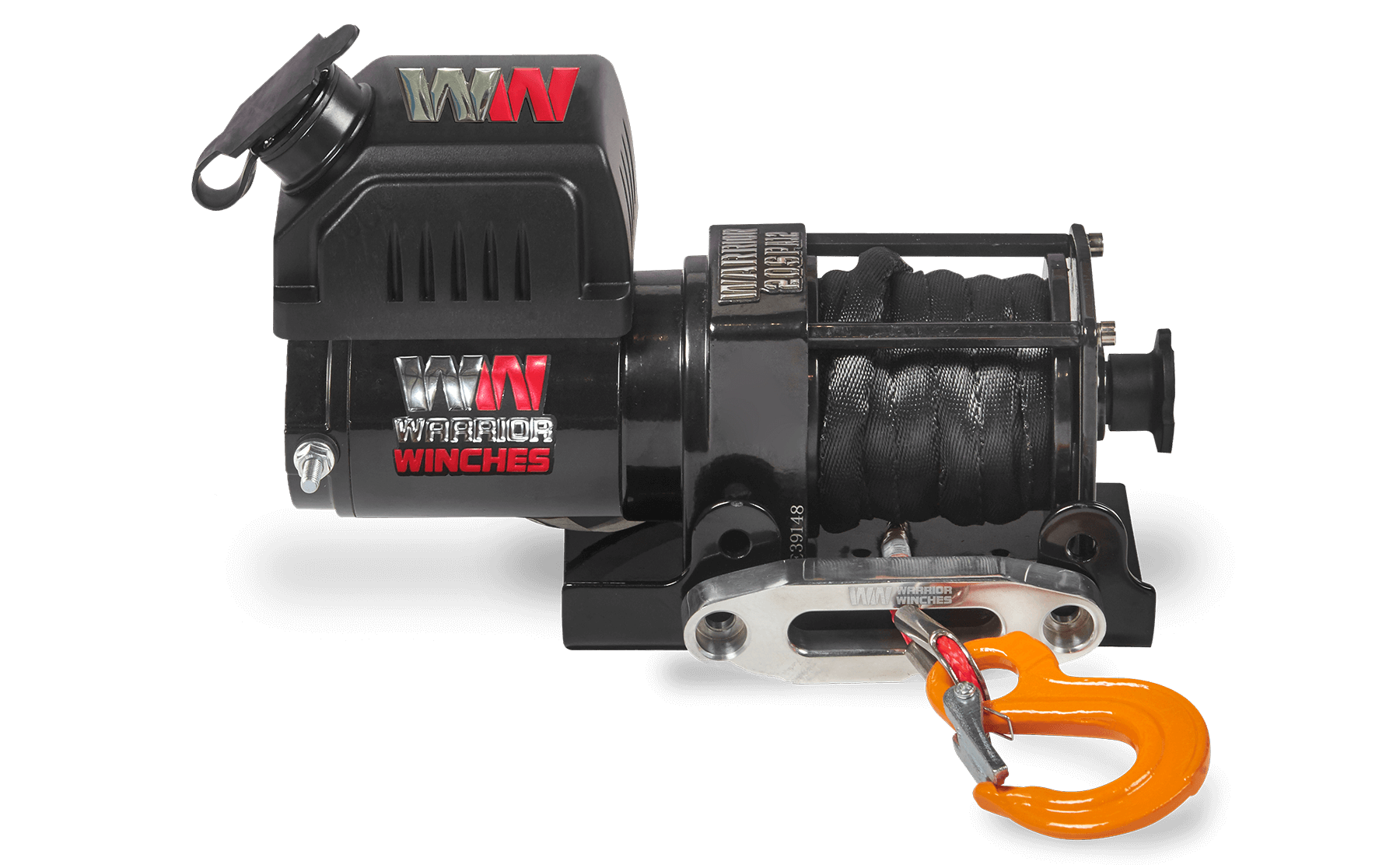

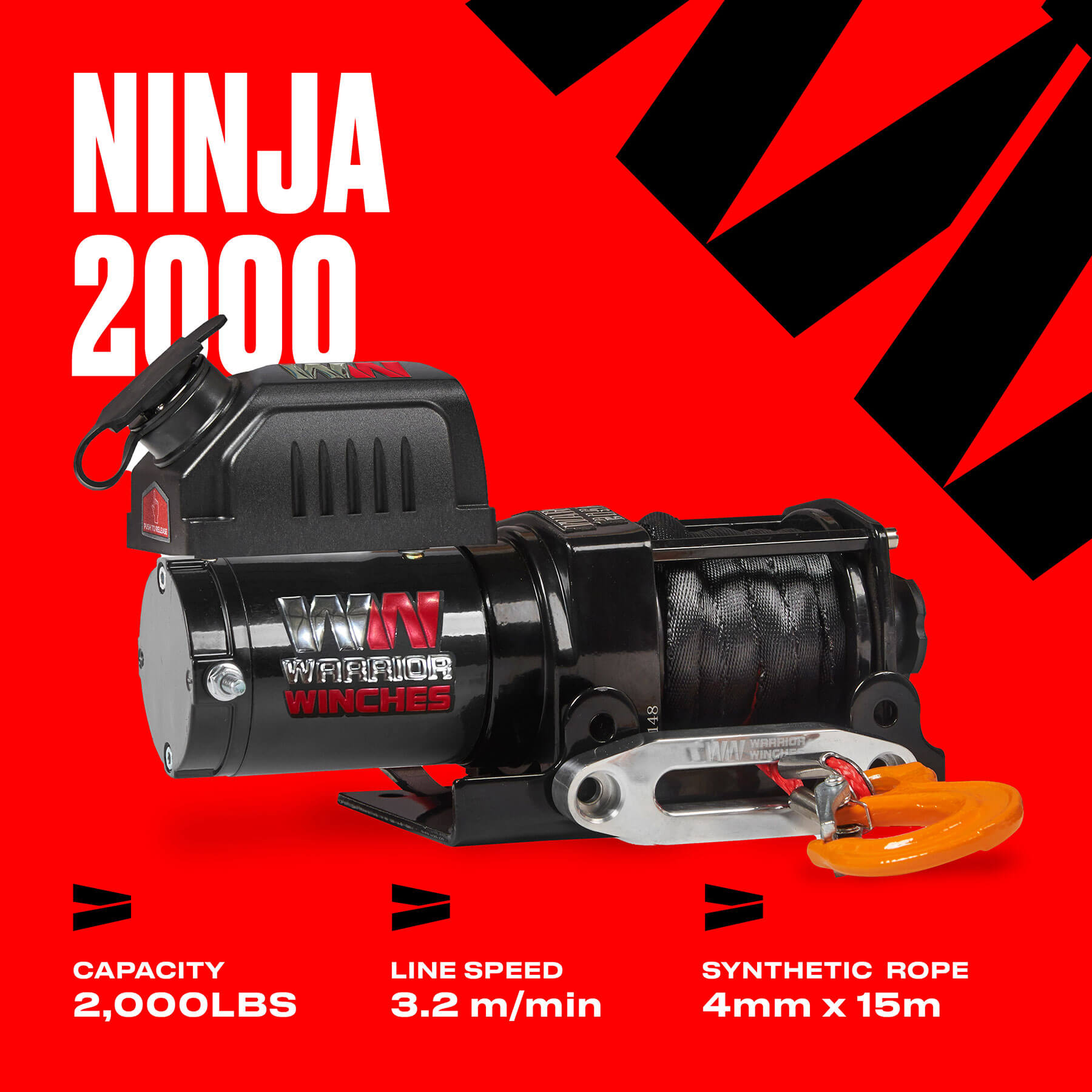

The Ninja 2,000lb 12V electric winch with synthetic rope combines 2,000lb (907kg) of rated line pull with a lightweight, compact design, making it an ideal recovery solution for quad bikes, side-by-sides and other lightweight off-road vehicles. At just 5.5kg, it provides useful recovery performance without adding unnecessary weight to your vehicle.

2,000lb of compact recovery performance. The 2.3hp (1.7kW) 12V motor delivers up to 2,000lb (907kg) of rated line pull through a 153:1 planetary gearing system. This gives you the pulling power needed to tackle mud, steep ground, obstacles and difficult recovery situations while keeping the winch compact enough for quad bike and side-by-side applications.

Lightweight rope. Easier handling. The 15m x 4mm synthetic rope is significantly lighter and easier to handle than steel rope, making manual deployment and recovery setup simpler. The supplied hawse fairlead provides a smooth path for the rope, while the included 1/4 hook gives you a secure connection point for recovery work.

Built for tough conditions. A sealed high-power motor, heavy-duty watertight contactors and full steel planetary gearing provide a durable foundation for off-road recovery. The watertight controller socket helps protect the control connection from moisture and debris, giving you dependable operation when conditions get challenging.

Smooth control when the load gets heavy. The automatic in-drum braking system helps maintain control of the load during winching, while the manual clutch allows you to disengage the gearbox and deploy the synthetic rope by hand. This gives you greater control over the recovery from initial setup through to completion.

More pulling options when you need them. The included 2-tonne pulley block gives you additional flexibility when a recovery requires greater mechanical advantage. It can be used to increase the effective pulling capability of the setup, helping you tackle more demanding situations without changing the winch itself.

Performance without unnecessary weight. At just 318 x 113 x 184mm and 5.5kg, the Ninja 2000 is designed to fit where space and weight are limited. Its compact footprint makes it particularly well suited to quad bikes and side-by-sides, where maintaining useful recovery capability without adding excessive weight is important.

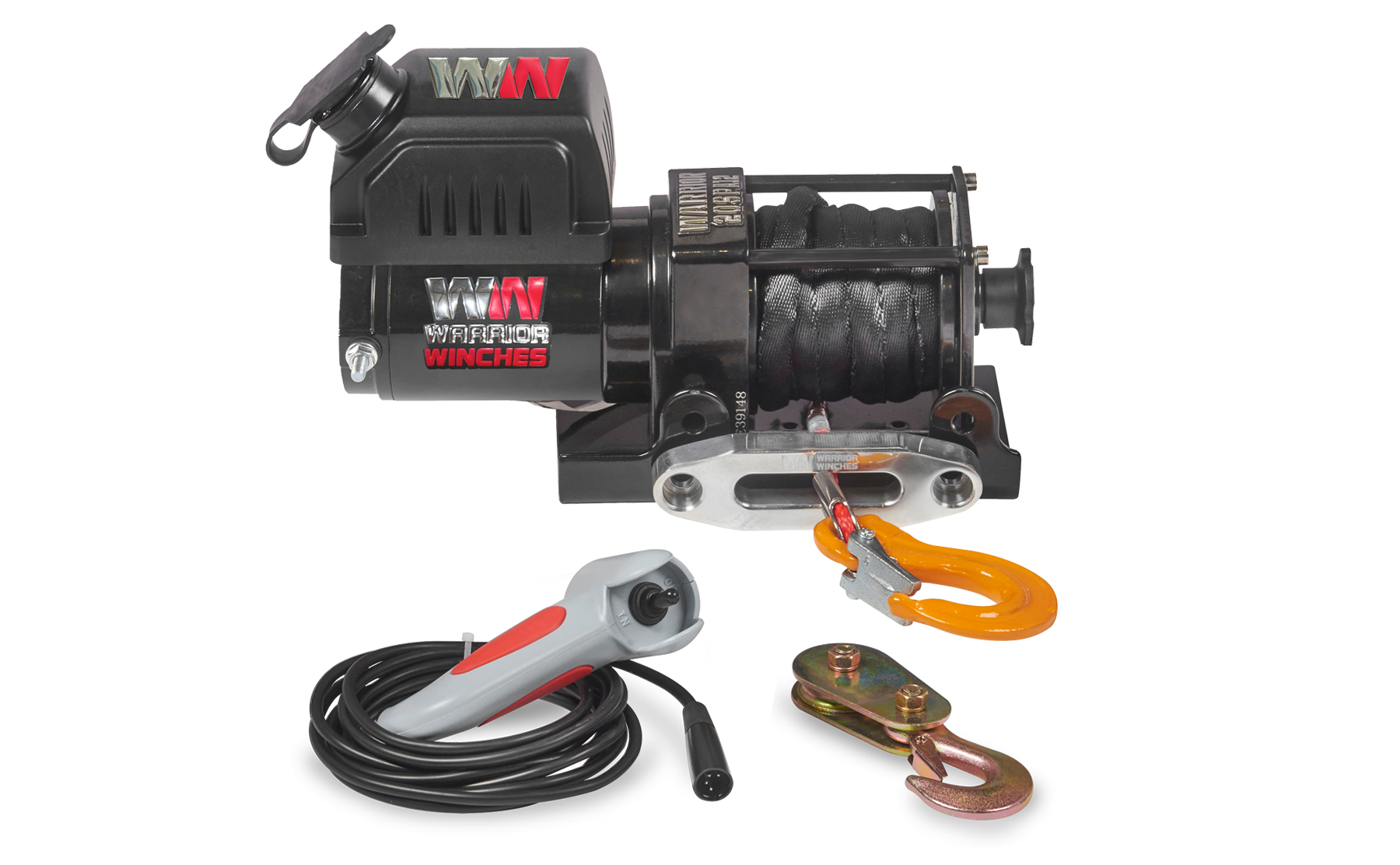

Ready for the trail. The Ninja 2,000lb comes supplied with synthetic rope, hawse fairlead, heavy-duty battery leads, 3.8m wired remote, 1/4 hook, 2-tonne pulley block, mounting plate and mounting hardware. Everything you need for a practical quad bike and side-by-side recovery setup is included.

Backed by a 3-year warranty, the Warrior Winches Ninja 2,000lb 12V electric winch with synthetic rope delivers lightweight performance, dependable control and the recovery capability you need when the trail gets tough.

Sku20SPA12
EAN5060423980629
Rated Line Pull2000 lbs
Motor Type12V: Input: 2.3hp / 1.7kW; Output: 0.8hp / 0.6kW
Rated Volt12
ClutchManual
Gearing153:1
Gearing SystemPlanetary
Braking ActionAuto in the drum
Drum Size (Diameter x Length)31.5 x 73.0 mm
ControlsWired Remote
Cable MaterialSynthetic
Cable Size (Diameter x Length) 4.0 mm x 15.0 m
FairleadHawse
Mounting Pattern79.5mm mm

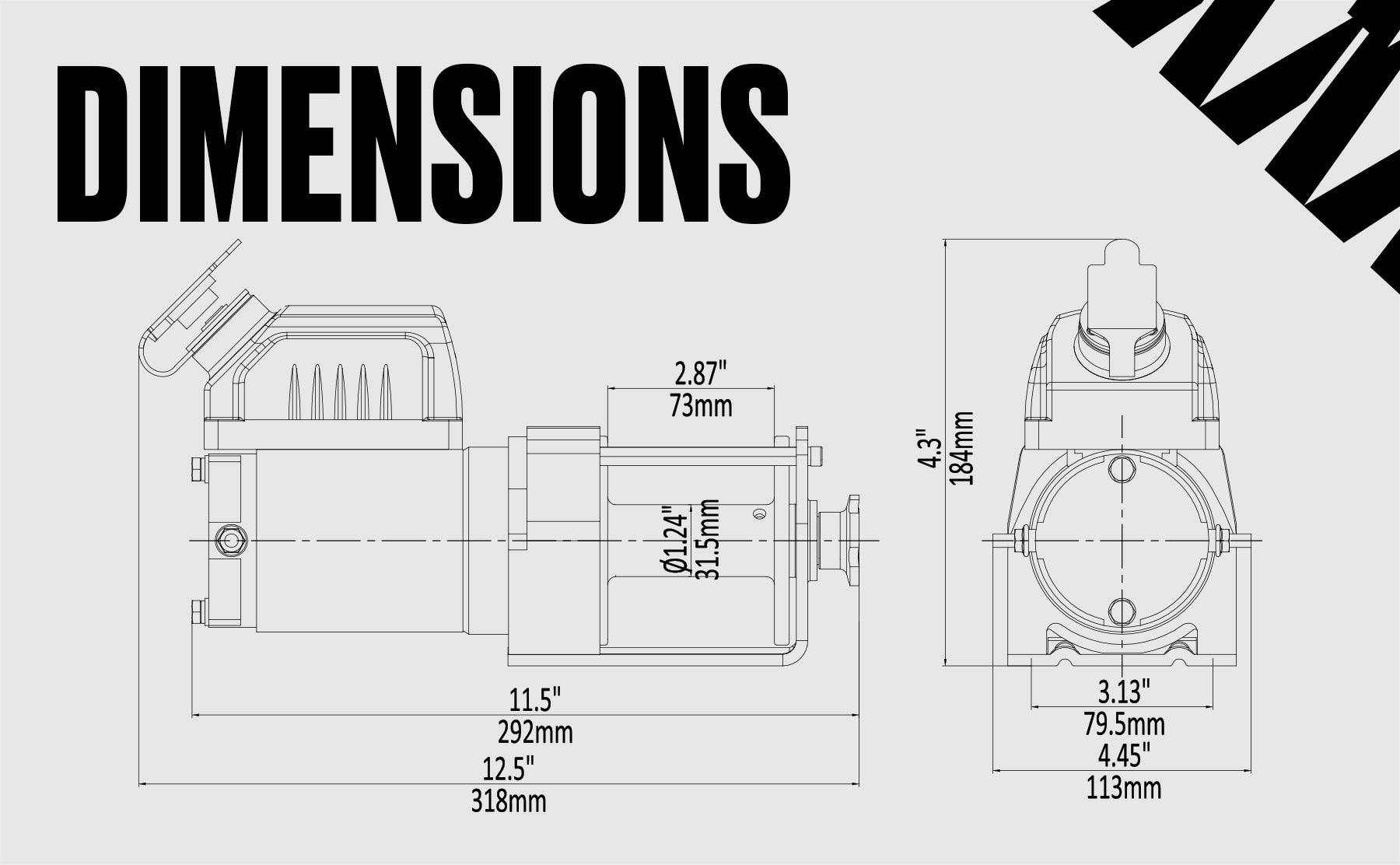

Dimensions318 x 113 x 184 mm
Weight5.5 kg
Warranty3 Year
CertificationCE, UKCA



Layer of Rope/Cable Line Pull: lbs(kgs)
1 2000 (907)
2 1630 (739)
3 1380 (1190)
4 1190 (540)
5 1050 (476)
6 940 (426)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
Amp Draw
24v
0 10.5 (3.2) 12 6
500 (227) 9.2 (2.8) 25 10
1000 (454) 7.5 (2.3) 40 15
1500 (680) 5.9 (1.8) 60 25
2000 (907) 3.3 (1.0) 90 55
  • Ninja Winch
  • Fairlead
  • Synthetic Rope
  • Heavy Duty Battery Leads
  • 3.8m Wired Remote handset
  • 1/4 Hook
  • 2 Tonne Pulley Block
  • Mounting Plate
  • Mounting Hardware
User Manual Download
Technical Drawing Download
Mounting Tray Technical Drawing Download
Specifications Sheet  Download

Warrior Winches 3 Year Warranty

BPE Solutions Deutschland GmbH are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earning a
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.



WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 3-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.



WARRANTY EXCLUSIONS

This warranty excludes:

- Cosmetic defects such as paint, decals, ,
- Worn parts due to improper use.
- Steel ropes
- Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.


- Any Accessory part including roller fairleads, hooks and mounting plates.
- Failures due to acts of God and other force major events beyond the manufacturer’s control
- Problems caused by parts that are not original WARRIOR WINCH parts
- Alteration or modification(s) made by any party other than the
- Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
- Any third party equipment
- Batteries



Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

   Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.
