The Warrior Winches Ninja Range is our performance-focused range of electric winches designed specifically for trailers, quad bikes (ATV) and side-by-side (UTV) recovery. Compact, responsive and built around proven Warrior engineering, Ninja winches deliver the pulling power and control needed to keep recreational and off-road vehicles moving when the terrain gets challenging.

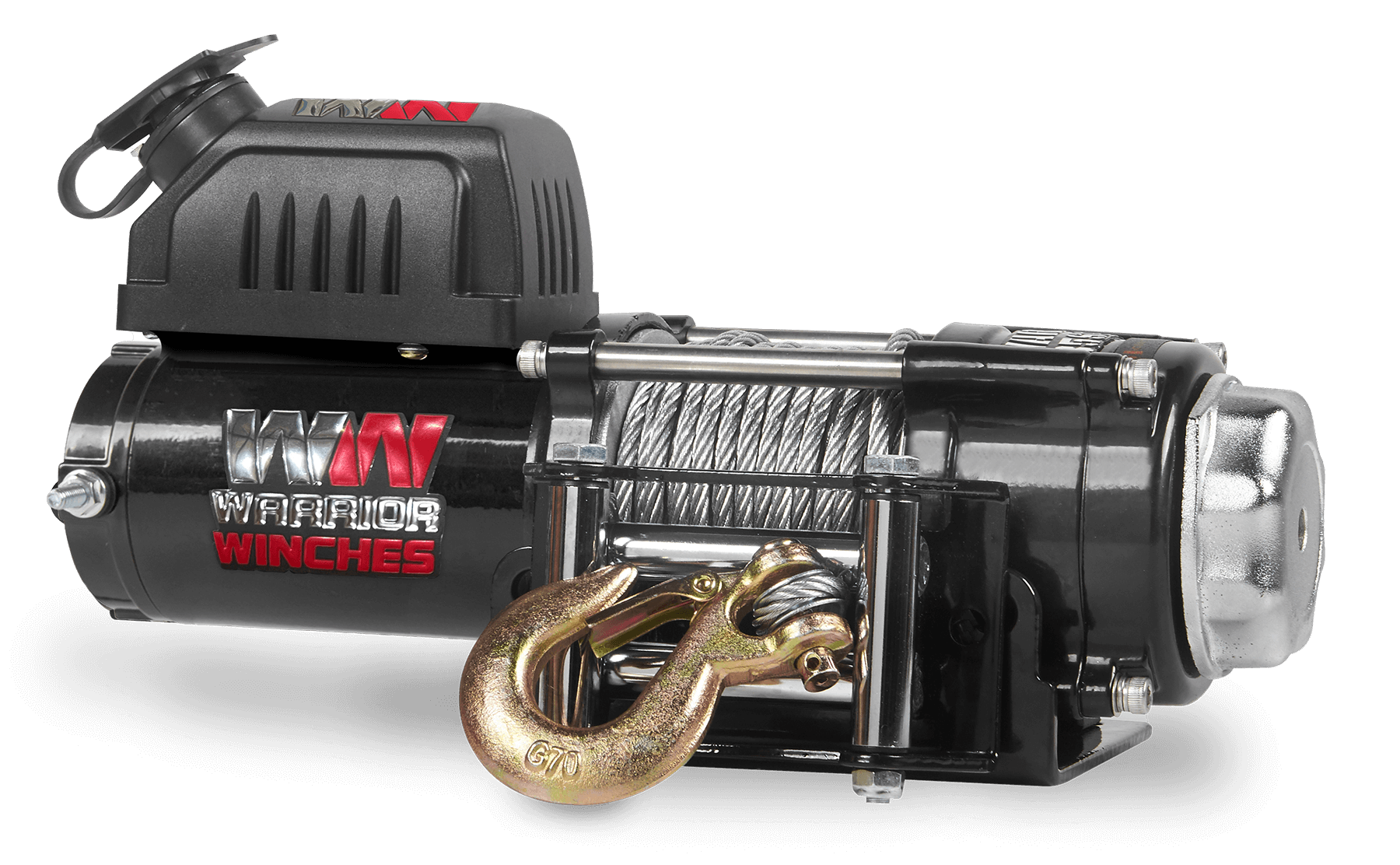

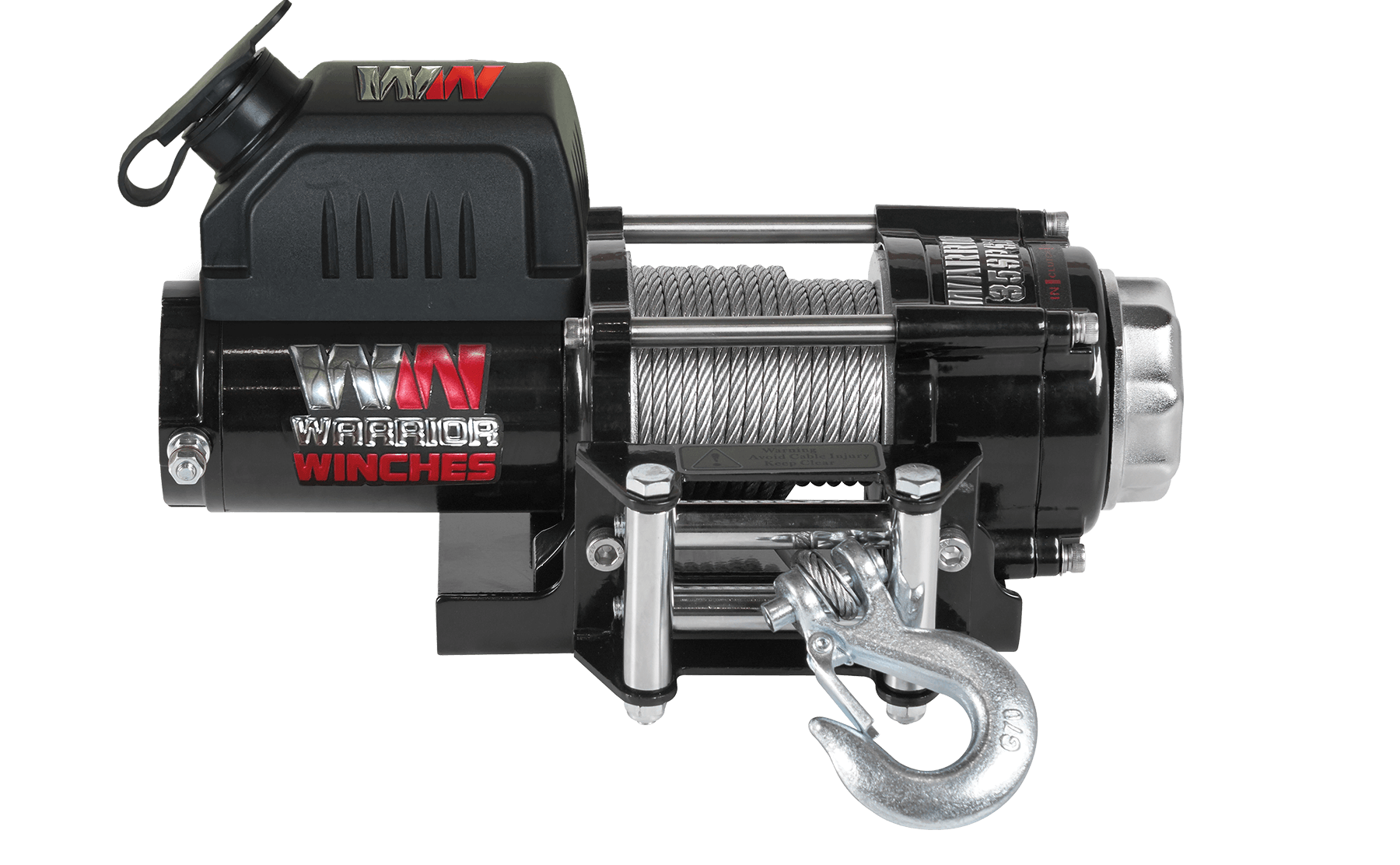

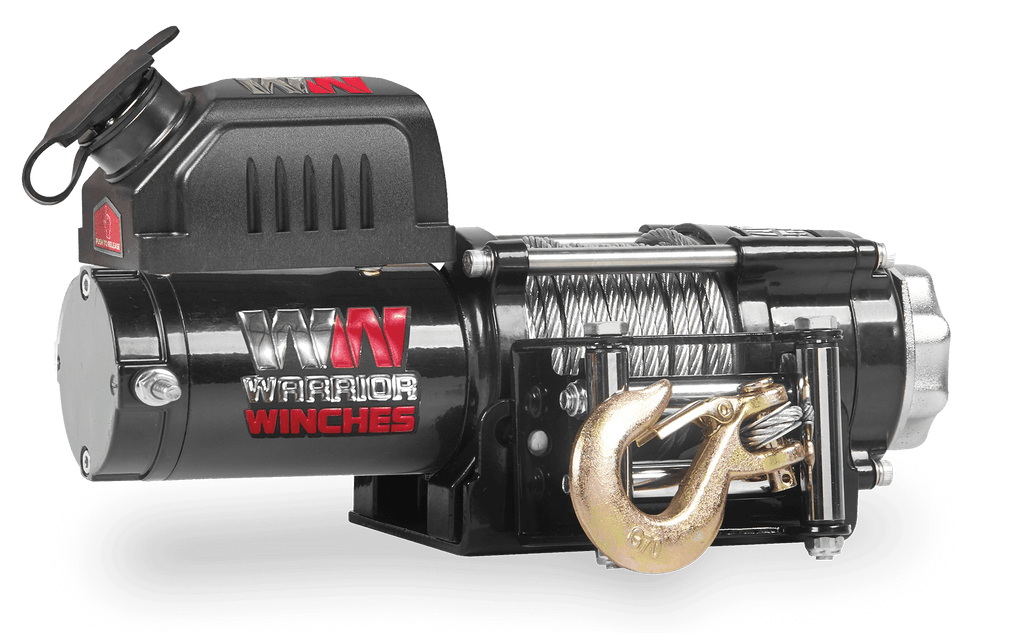

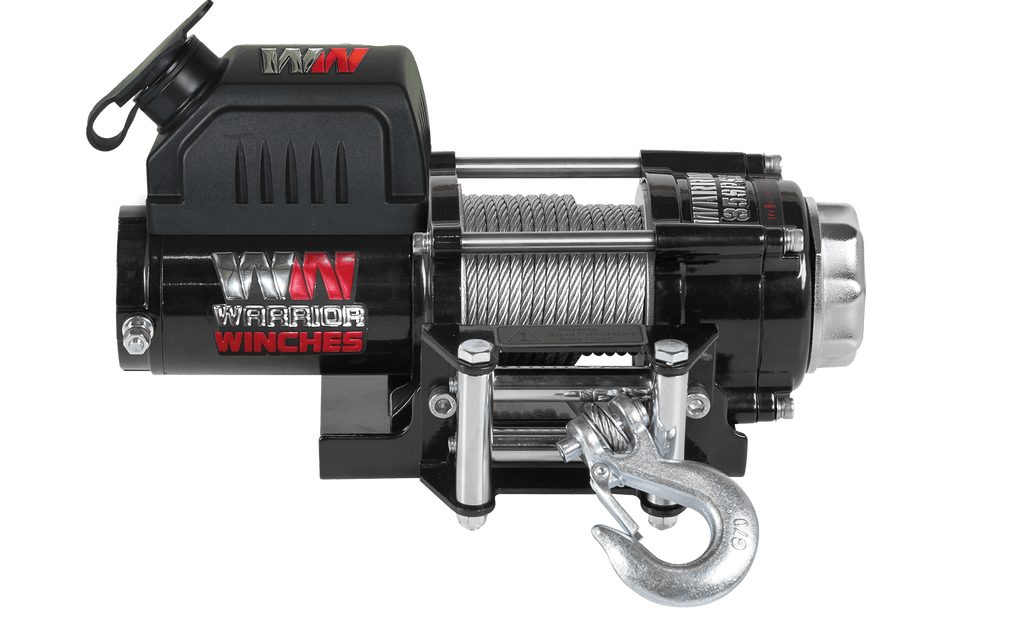

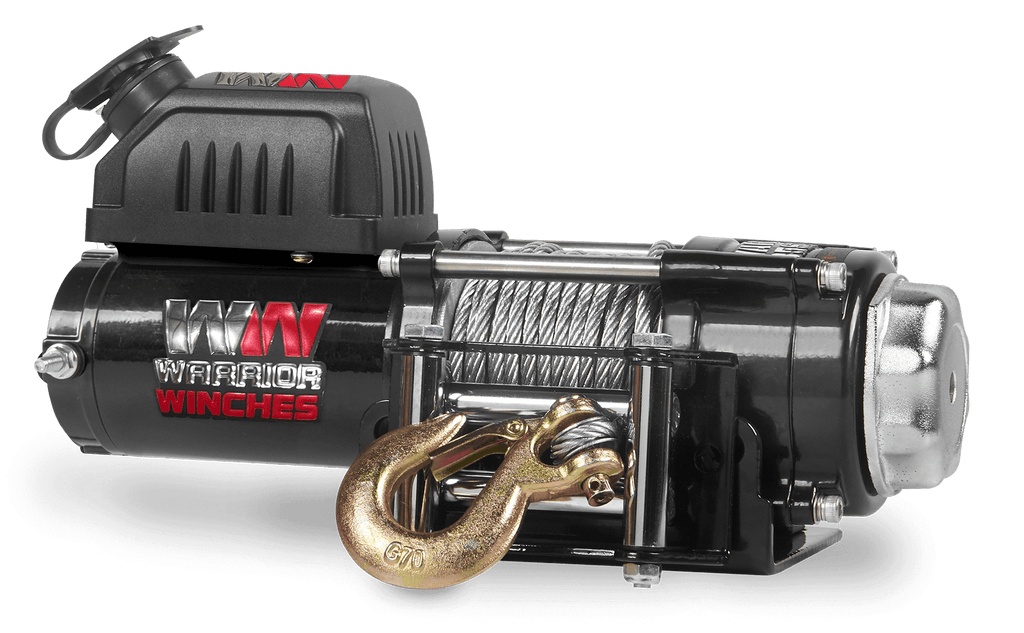

The Ninja 3,500lb 12V electric winch with steel rope delivers 3,500lb (1,588kg) of rated line pull, giving quad bike and side-by-side riders substantial recovery capability in a compact package. With a powerful 3.2hp motor, 170:1 planetary gearing and durable steel rope, it provides the extra pulling capacity needed when smaller winches aren't enough.
3,500lb of serious recovery capability. The 3.2hp (2.4kW) 12V motor delivers up to 3,500lb (1,588kg) of rated line pull through a 170:1 planetary gearing system. This gives you the strength to tackle deeper mud, steeper ground, obstacles and more demanding recovery situations while keeping the winch compact.
Steel rope built for demanding pulls. The 12.8m x 5.4mm steel rope provides a durable recovery line for regular off-road use. The included 1/4 hook and handsaver strap make line handling more practical, while the roller fairlead helps guide the steel rope smoothly onto and off the drum.
Power when you need it. The reversible permanent magnet motor provides reliable pulling power in both directions, giving you greater flexibility when positioning your vehicle, managing the recovery line or working through an obstacle. The 170:1 planetary gearing provides the mechanical advantage needed to put the motor's power to work under load.
Get the line out quickly. The manual freespooling clutch allows you to disengage the gearbox and pull the steel rope out by hand, helping you position the line at your recovery point without relying on powered deployment. Once engaged, the automatic in-drum braking system helps maintain control of the load during the recovery.
Built for tough off-road conditions. A sealed high-power motor, heavy-duty watertight contactors and full steel planetary gearing provide a durable foundation for demanding recovery work. The strengthened steel drum is designed to withstand tough pulling tasks, while the watertight controller socket helps protect the control connection from moisture and debris.
More recovery options when things get difficult. The included 2-tonne pulley block gives you additional flexibility when greater mechanical advantage is required. Used as part of a suitable rigging setup, it can help increase the effective pulling capability available when tackling a particularly demanding recovery.

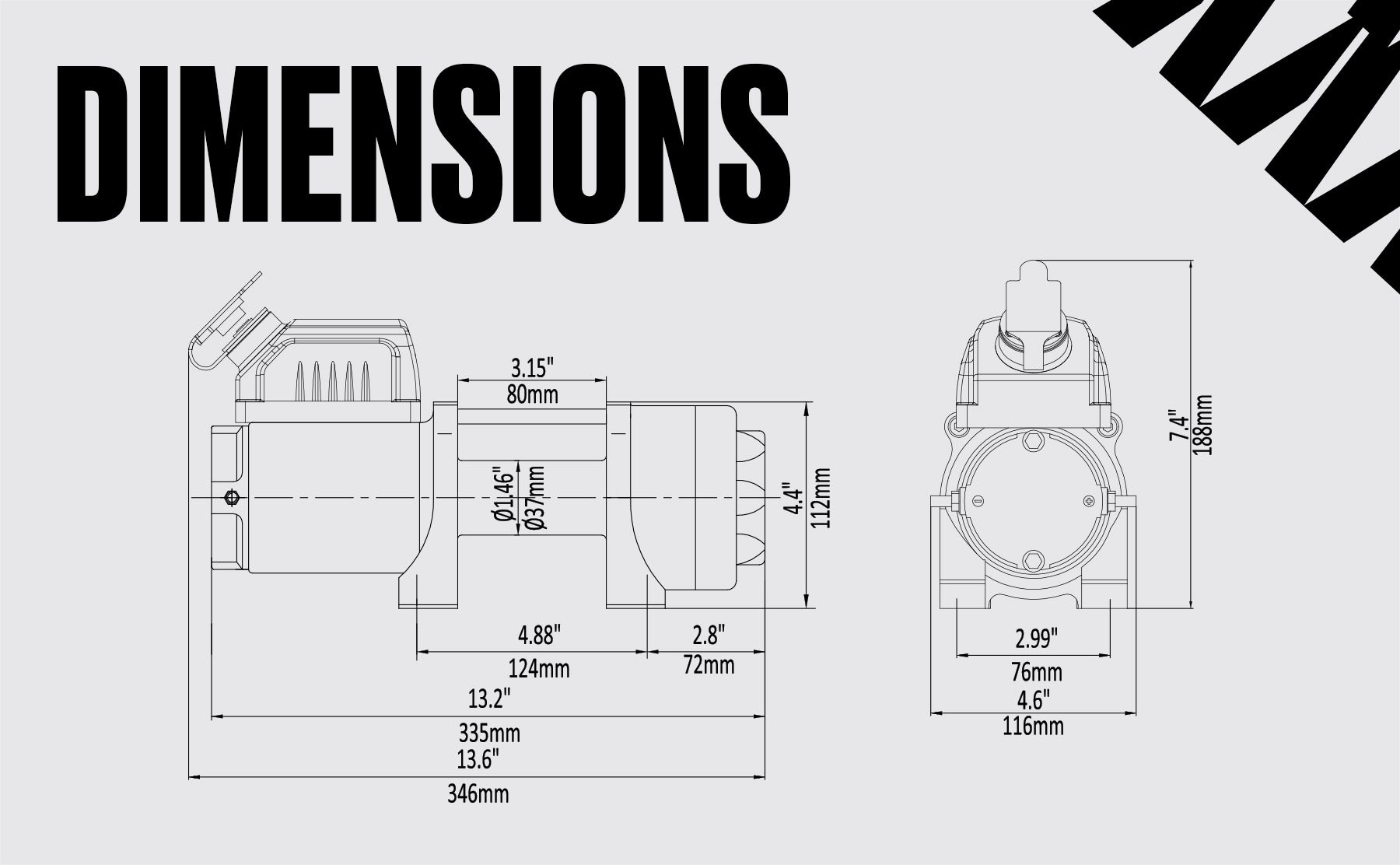

Serious performance without excessive bulk. Measuring 346 x 116 x 188mm and weighing 10kg, the Ninja 3,500lb provides a significant increase in pulling capacity while maintaining a compact footprint. This makes it well suited to ATV and UTV applications where available mounting space and vehicle weight remain important considerations.

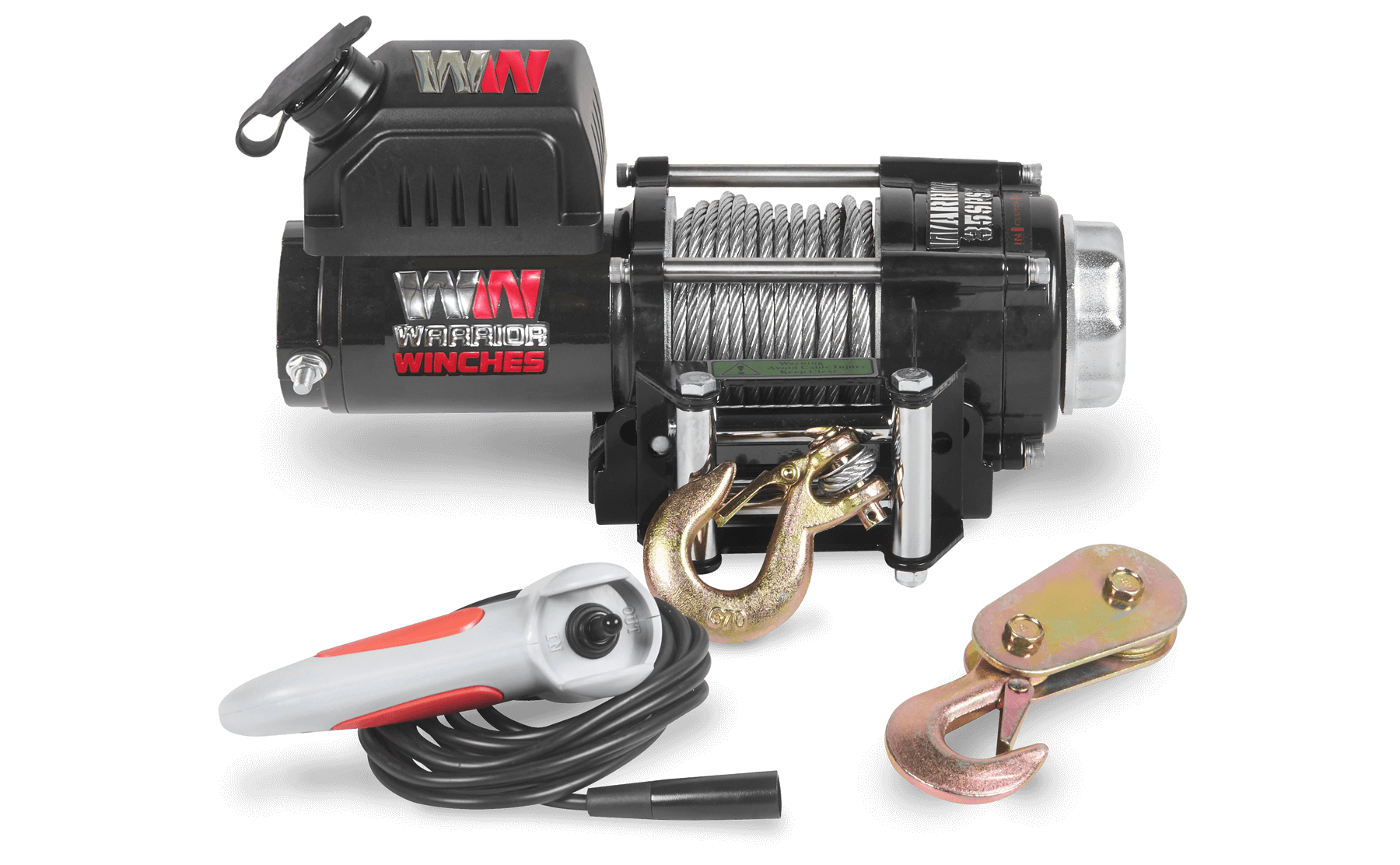

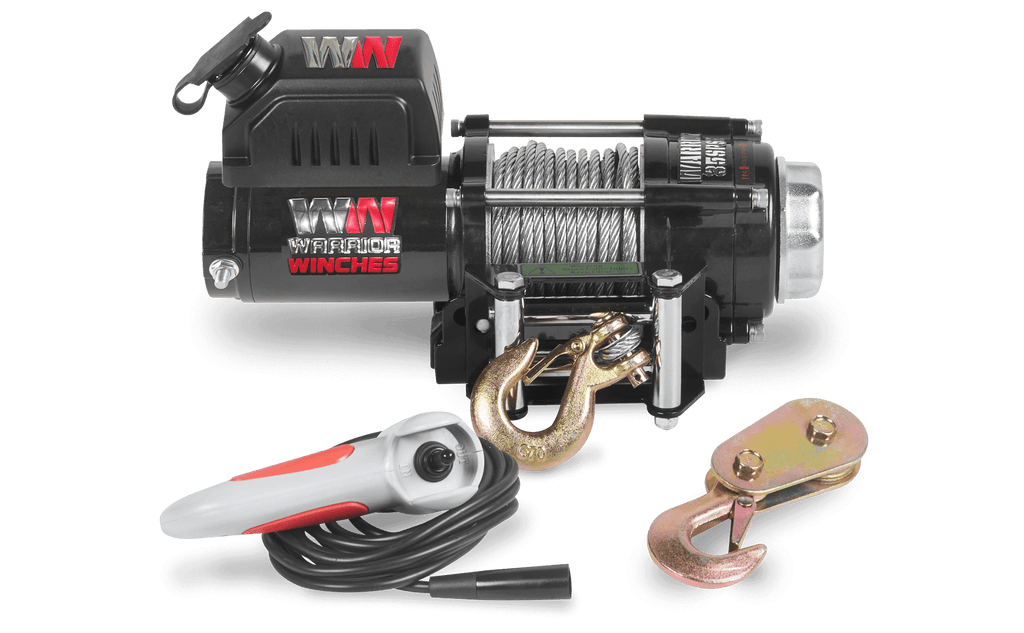

Ready for the next recovery. The Ninja 3,500lb comes supplied with the winch, 12.8m steel rope, roller fairlead, heavy-duty battery leads, 3.8m wired remote, 1/4 hook, 2-tonne pulley block, mounting plate and mounting hardware. With the essential recovery equipment included, you can get the winch installed and ready for the trail.
Backed by a 3-year warranty, the Warrior Winches Ninja 3,500lb 12V electric winch delivers increased pulling power, durable construction and dependable control for demanding ATV, quad bike and side-by-side recovery.
