45SPA12

Ninja 4500 Electric Winch - 12v Synthetic Rope

Warranty: 3 Years
14.5m Steel Rope
15m Synthetic Rope
12v
Find a store near you

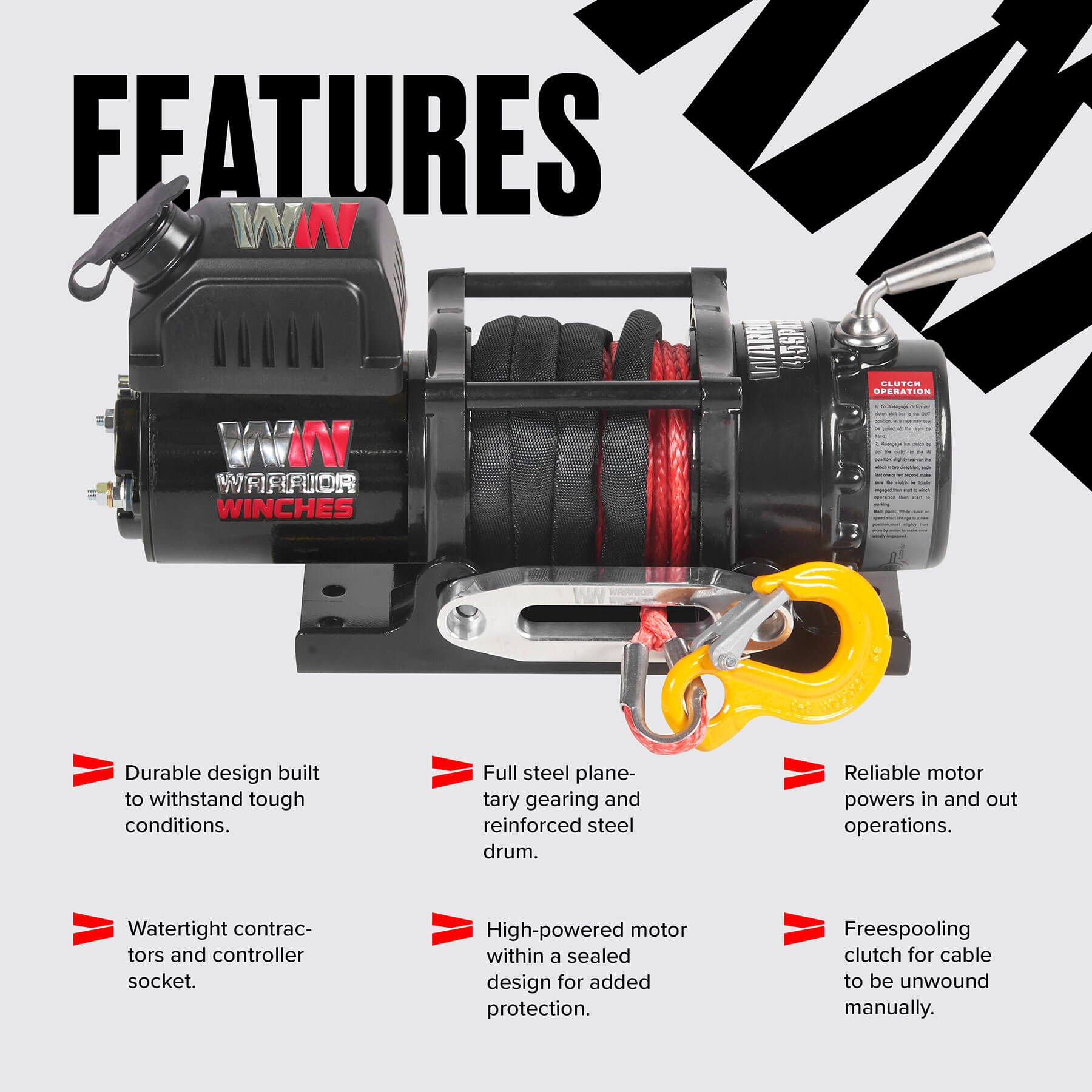

Features

  • Extra Muscle When Traction Runs Out - The high-torque motor delivers the pulling force needed to recover heavier quad bikes and side-by-sides from mud, steep ground and other demanding terrain.
  • Ready for Whatever the Trail Throws at You - Heavy-duty waterproof contactors help protect the electrical system from water and debris, supporting reliable operation when conditions become wet, muddy or unpredictable.
  • Complete Control from Pull to Release - Power in and power out gives you dependable winching in both directions, helping you position the line, manage the vehicle and stay in control throughout the recovery.
  • Built to Take the Load - Full steel planetary gearing provides the strength and durability needed for repeated heavy-duty pulls, helping the Ninja perform reliably when the recovery gets serious.
  • Secure Load Control When It Matters - The full-load holding brake helps keep the vehicle and recovery line under control while winching, providing greater confidence when working with heavy loads or challenging terrain.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

The Warrior Winches Ninja Range is our performance-focused range of electric winches designed specifically for trailers, quad bikes (ATV) and side-by-side (UTV) recovery. Compact, responsive and built around proven Warrior engineering, Ninja winches deliver the pulling power and control needed to keep recreational and off-road vehicles moving when the terrain gets challenging.

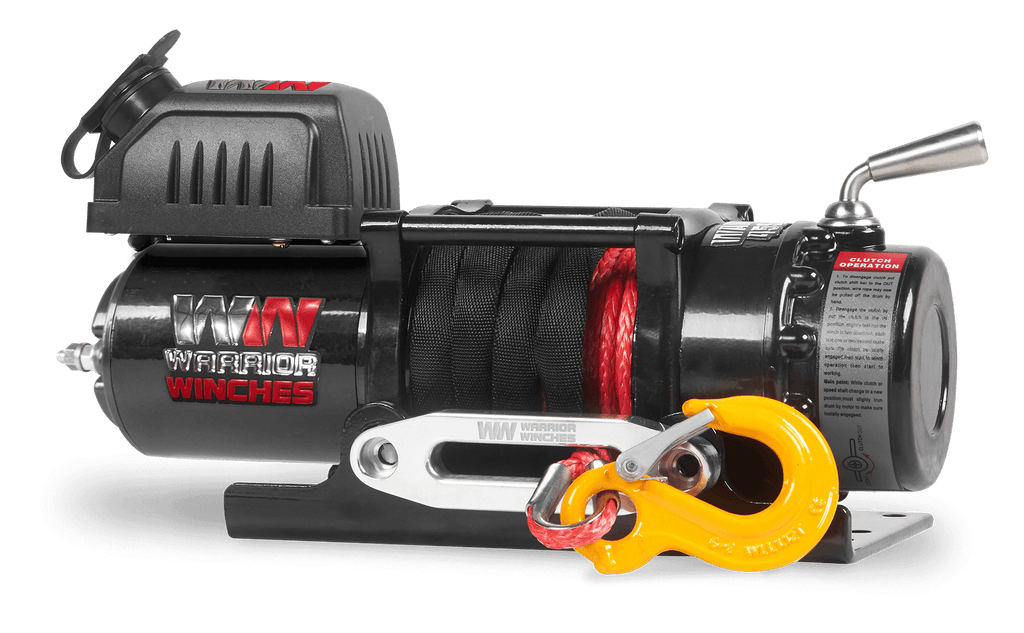

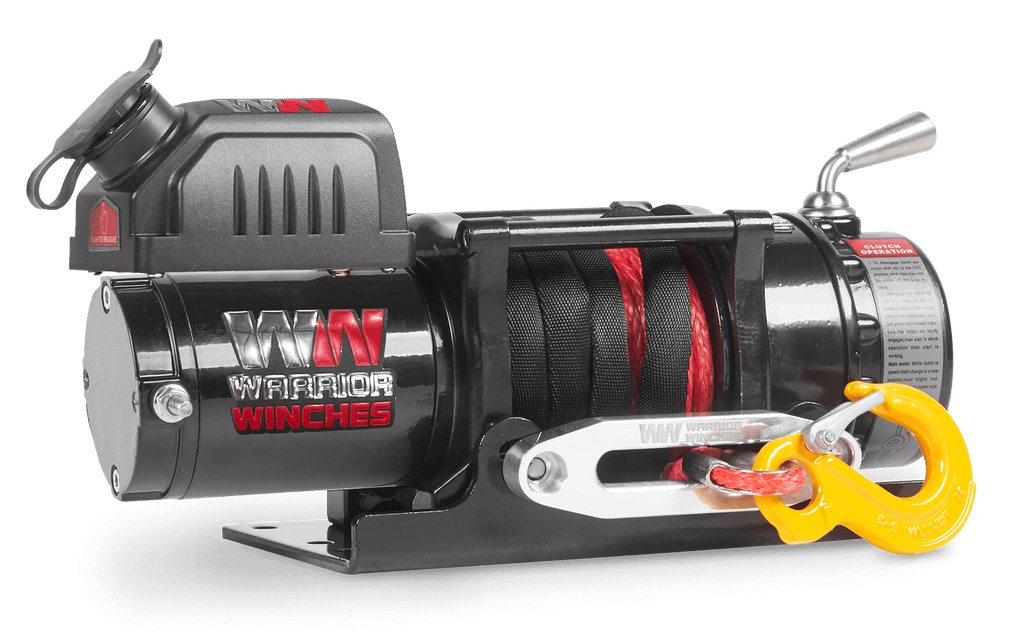

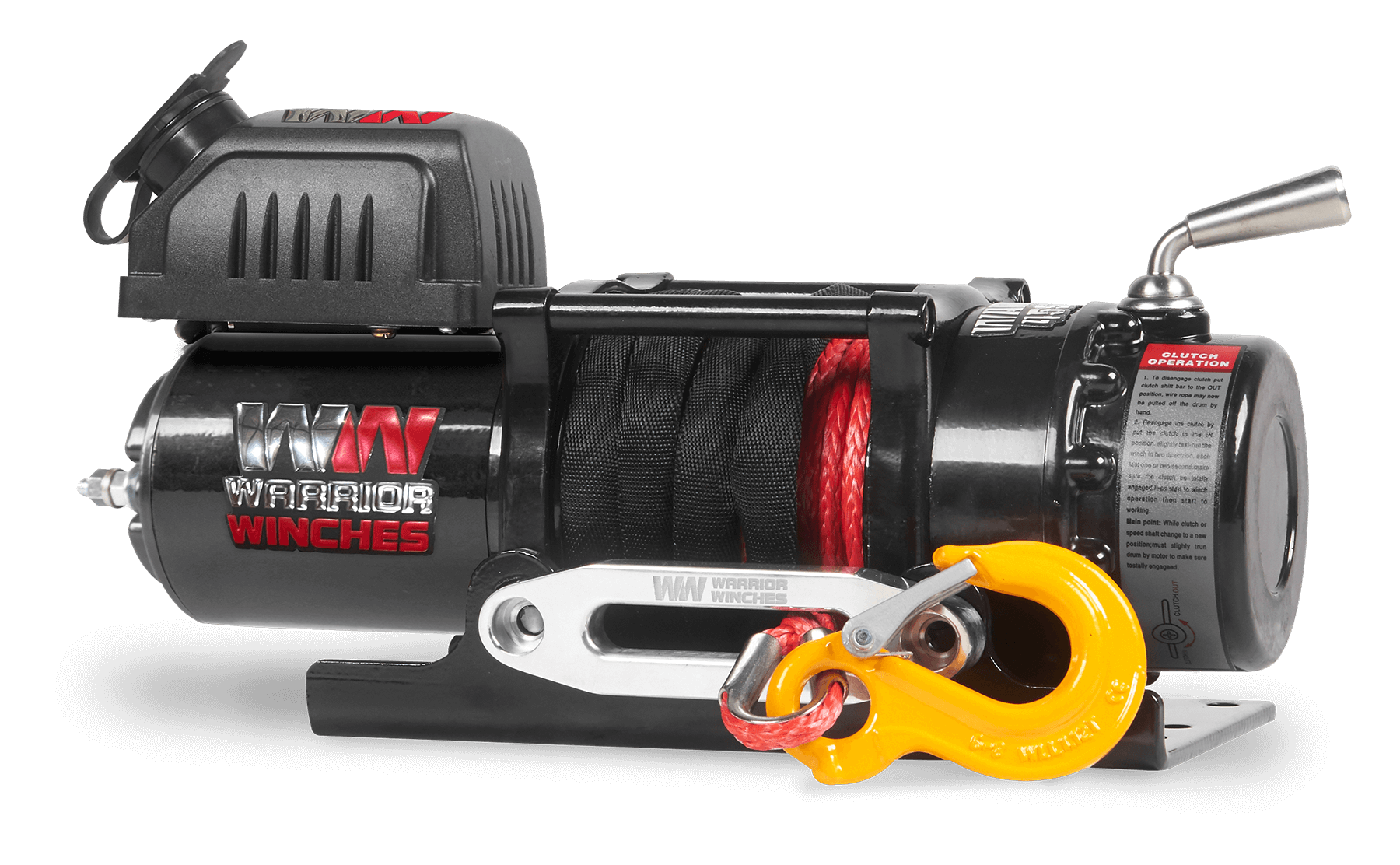

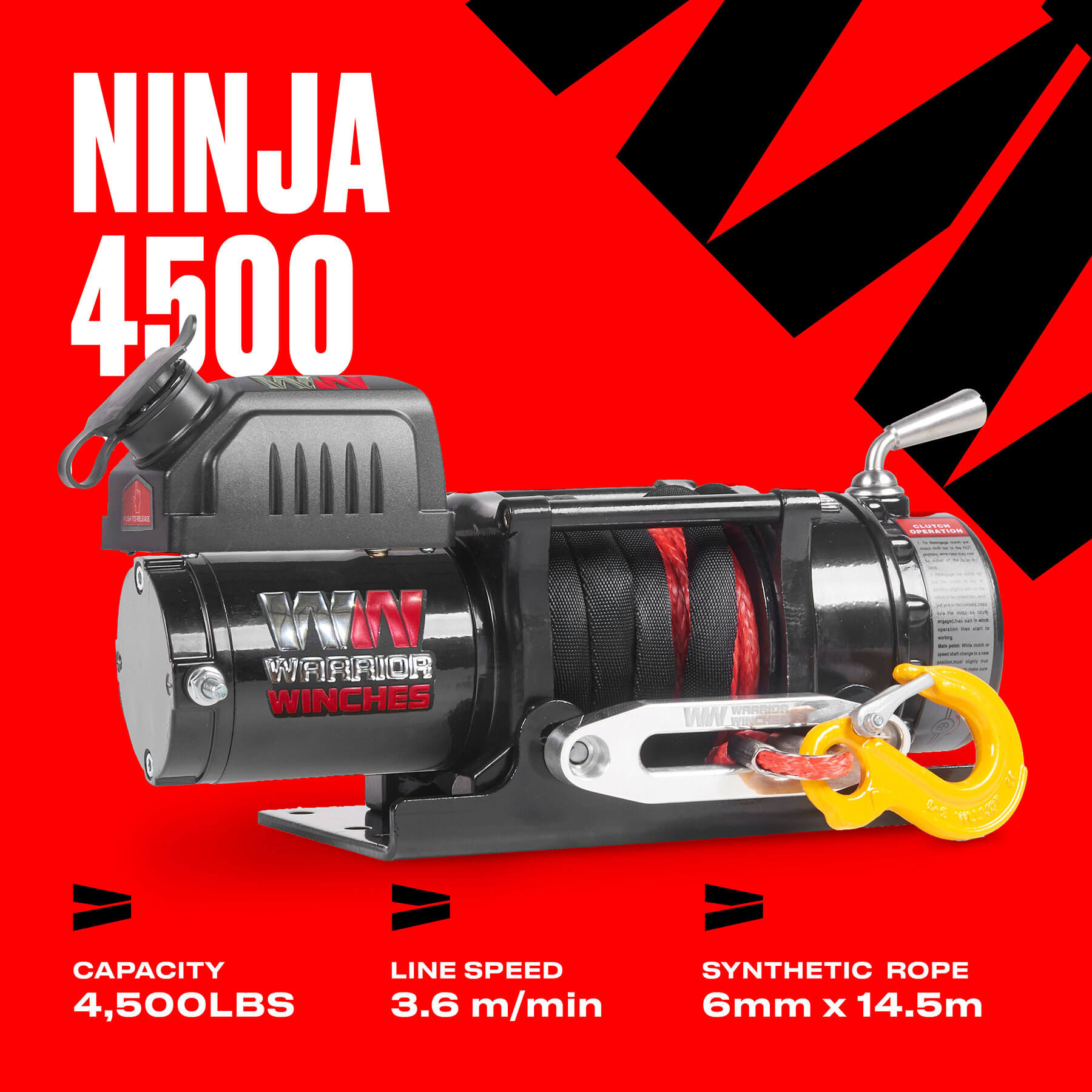

The Ninja 4,500lb 12V electric winch with synthetic rope delivers 4,500lb (2,041kg) of rated line pull, giving you serious recovery capability in a compact package. Powered by a 3.2hp motor and 172:1 planetary gearing, it combines dependable pulling performance with the easier handling and reduced weight of synthetic rope.

4,500lb of Serious Recovery Performance. With 4,500lb (2,041kg) of rated line pull, the Ninja 4,500lb provides the extra pulling capacity needed when the recovery gets tougher. It is built for ATV, quad bike and side-by-side users who need more capability when dealing with difficult terrain, heavy loads or limited traction.

Synthetic Rope. Easier Handling. The 6mm x 15m synthetic rope provides plenty of usable line while being lighter and easier to handle than traditional steel rope. The reduced weight helps keep the overall winch package down to just 10.5kg, making it a practical choice where weight matters.

Power That Works Under Load. The 3.2hp (2.4kW) 12V motor delivers 1.3hp (1.0kW) of output power, giving the Ninja 4,500lb the muscle needed for demanding recoveries. Combined with 172:1 full steel planetary gearing, it provides controlled pulling performance when the load starts to build.

Smooth Rope Deployment and Recovery. The manual clutch allows you to disengage the gearing and pull the synthetic rope out by hand, making it quicker to position your line before a recovery. Once engaged, the automatic in-drum braking system helps maintain control of the load throughout the recovery.

Built for Tough Off-Road Conditions. A sealed high-power motor, heavy-duty watertight contactors and full steel planetary gearing help the Ninja stand up to demanding off-road use. The full-load holding brake provides additional control, while the robust internal construction is designed for reliable performance when conditions get difficult.

Hawse Fairlead for Synthetic Rope. The included hawse fairlead provides a smooth guide for the synthetic rope as it enters and exits the drum. Paired with the supplied 1/4 hook, it gives you a practical setup for positioning and connecting the winch during recovery.

Stay in Control from the Right Position. The 3.8m wired remote handset lets you operate the winch from a practical position around the vehicle rather than directly beside the drum. This gives you useful flexibility when managing the recovery and monitoring the vehicle.

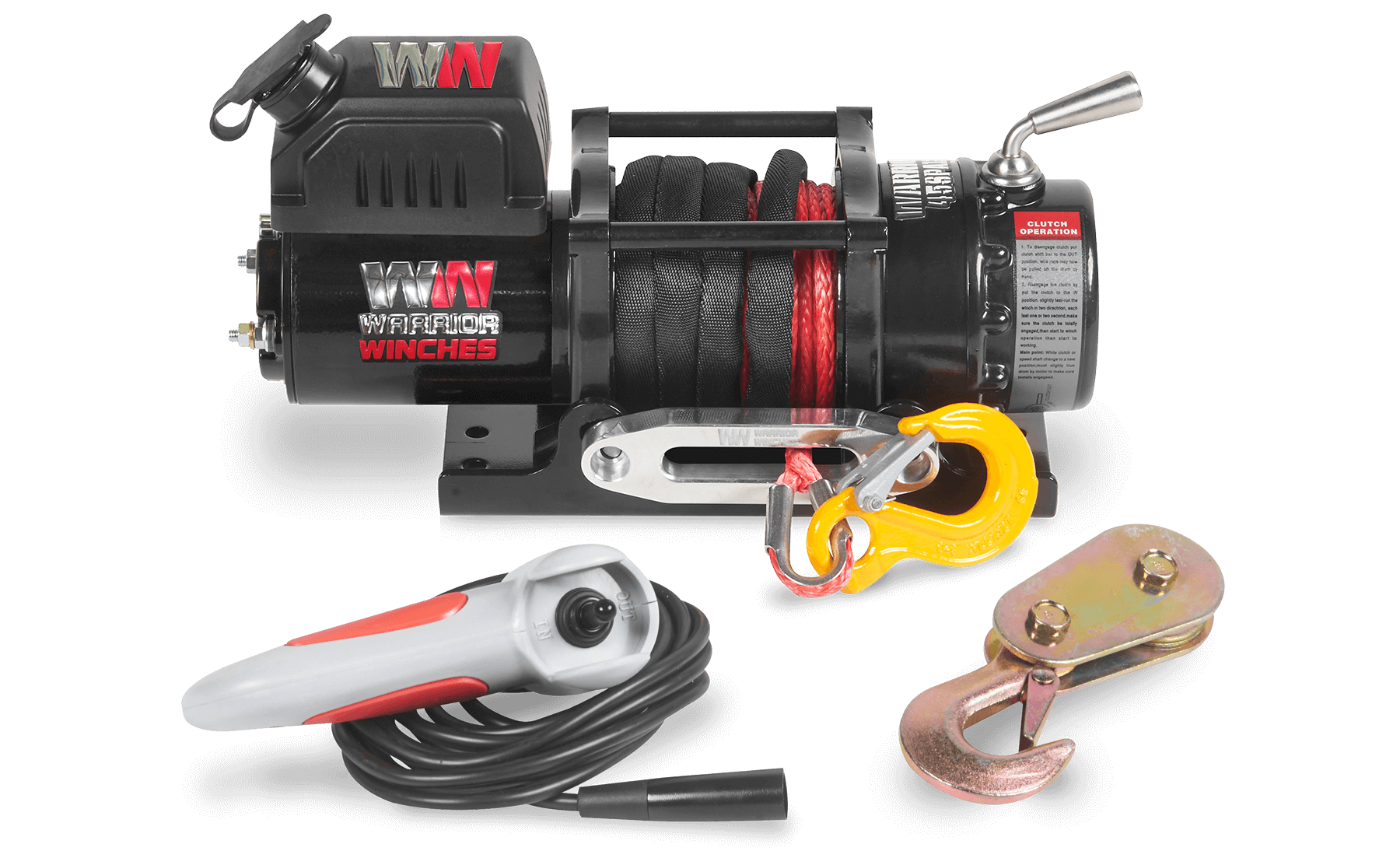

Compact Performance. Ready to Work. Measuring 378 x 126 x 200mm, the Ninja 4,500lb remains compact enough for ATV, quad bike and side-by-side installations while delivering 4,500lb of pulling power. Supplied with heavy-duty battery leads, synthetic rope, hawse fairlead, wired remote, mounting plate, mounting hardware and hook, it provides the key components needed to get your recovery setup ready.

The Warrior Winches Ninja 4,500lb 12V Synthetic Rope Winch is backed by a 3-year warranty, giving you added confidence when putting its performance to work in demanding recreational and off-road recovery situations.

Sku45SPA12
EAN5060423980612
Rated Line Pull4500 lbs
Motor Type12V: Input: 3.2hp / 2.4kW; Output: 1.3hp / 1.0kW
Rated Volt12
ClutchManual
Gearing172:1
Gearing SystemPlanetary
Braking ActionAuto in the drum
Drum Size (Diameter x Length)45.0 x 93.0 mm
ControlsWired Remote
Cable MaterialSynthetic
Cable Size (Diameter x Length) 6.0 mm x 15.0 m
FairleadHawse
Mounting Pattern129mm × 96mm mm
Dimensions378 x 126 x 200 mm
Weight10.5 kg
Warranty3 Year
CertificationCE



Layer of Rope/Cable Line Pull: lbs(kgs)
1 4500 (2041)
2 3642 (1652)
3 3060 (1388)
4 2638 (1196)
Line Pull
lbs (kgs)		 Line Speed 12v
ft/min (m/min)		 Amp Draw
12v		 Amp Draw
24v
0 11.6 (3.6) 20 15
1500 (680) 9.2 (2.8) 70 40
2500 (1134) 7.8 (2.4) 100 65
3500 (1587) 6.6 (2.0) 140 80
4500 (2041) 4.9 (1.5) 200 130
  • Ninja Winch
  • Fairlead
  • Synthetic Rope
  • Heavy Duty Battery Leads
  • 3.8m Wired Remote handset
  • 1/4 Hook
  • Mounting Plate
  • Mounting Hardware
User Manual Download
Technical Drawing Download
Specifications Sheet  Download

Load Test

Warrior Winches 3 Year Warranty

BPE Solutions Deutschland GmbH are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earning a
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.



WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 3-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.



WARRANTY EXCLUSIONS

This warranty excludes:

- Cosmetic defects such as paint, decals, ,
- Worn parts due to improper use.
- Steel ropes
- Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.


- Any Accessory part including roller fairleads, hooks and mounting plates.
- Failures due to acts of God and other force major events beyond the manufacturer’s control
- Problems caused by parts that are not original WARRIOR WINCH parts
- Alteration or modification(s) made by any party other than the
- Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
- Any third party equipment
- Batteries



Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

   Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.
