45STS12

Stealth 4500lb Winch - 12v Steel Rope

Warranty: 3 Years
14.5m Steel Rope
15m Synthetic Rope
Find a store near you

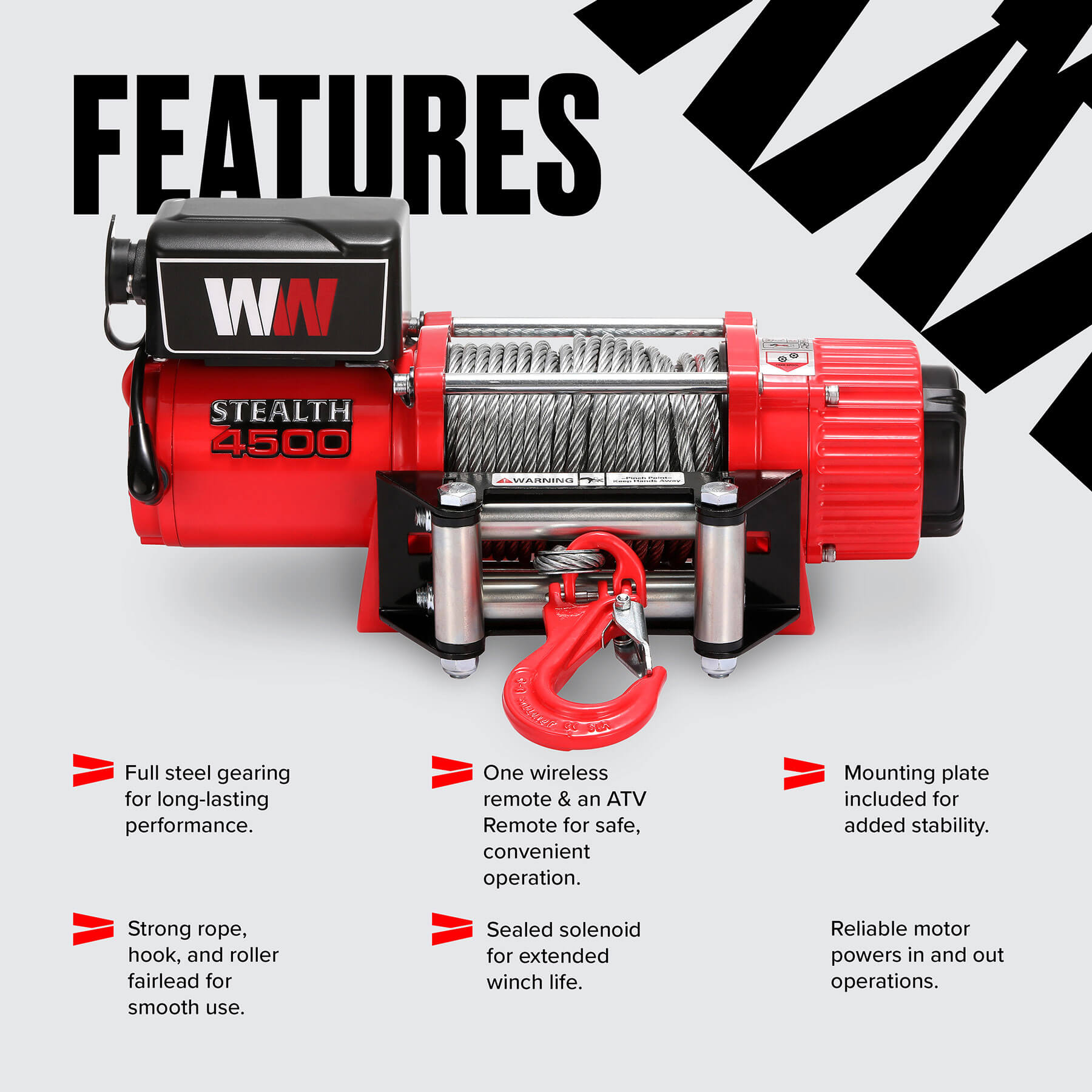

Features

  • Step Up Your Recovery Power - With 4,500lb of rated line pull, this Stealth gives you additional capacity for tougher recoveries while maintaining a compact and practical design.
  • Steel Rope for Hard-Working Recovery - The 14.5m x 6mm steel rope provides a durable solution for regular recovery work and is supplied with a clevis hook and handsaver strap for practical, controlled operation.
  • Reliable Pulling in Both Directions - The 12V permanent magnet motor delivers dependable power when pulling in or out, giving you the flexibility to manage your recovery from start to finish.
  • Deploy the Line Under Your Own Control - The manual freespooling clutch allows the steel rope to be pulled out by hand, making it easier to reach your recovery point and reduce unnecessary powered line deployment.
  • Control It Your Way - Wired and wireless controls give you flexibility during recovery, while the included mounting plate, roller fairlead and mounting hardware make installation straightforward.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

The Warrior Winches Stealth Range is built for 4x4 owners and off-road drivers who want dependable recovery performance without paying for features they don't need. Combining proven engineering, reliable motors, durable gearing and practical recovery features, Stealth winches deliver serious capability at an accessible price.

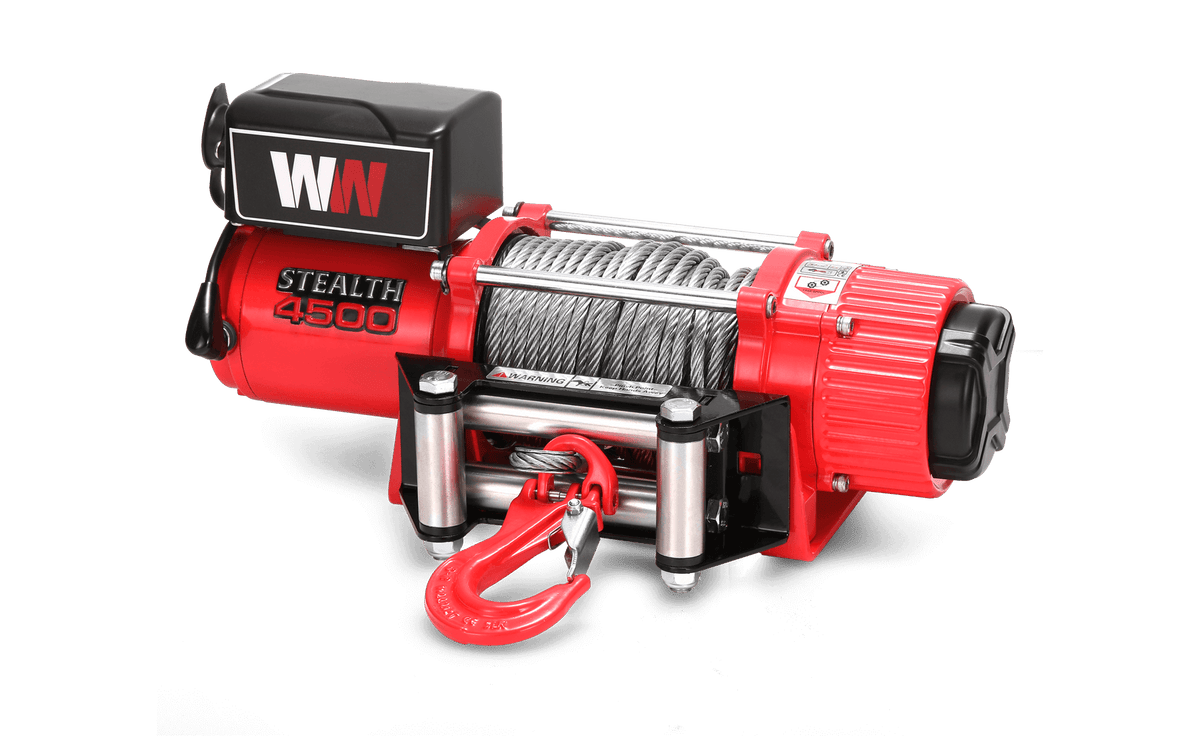

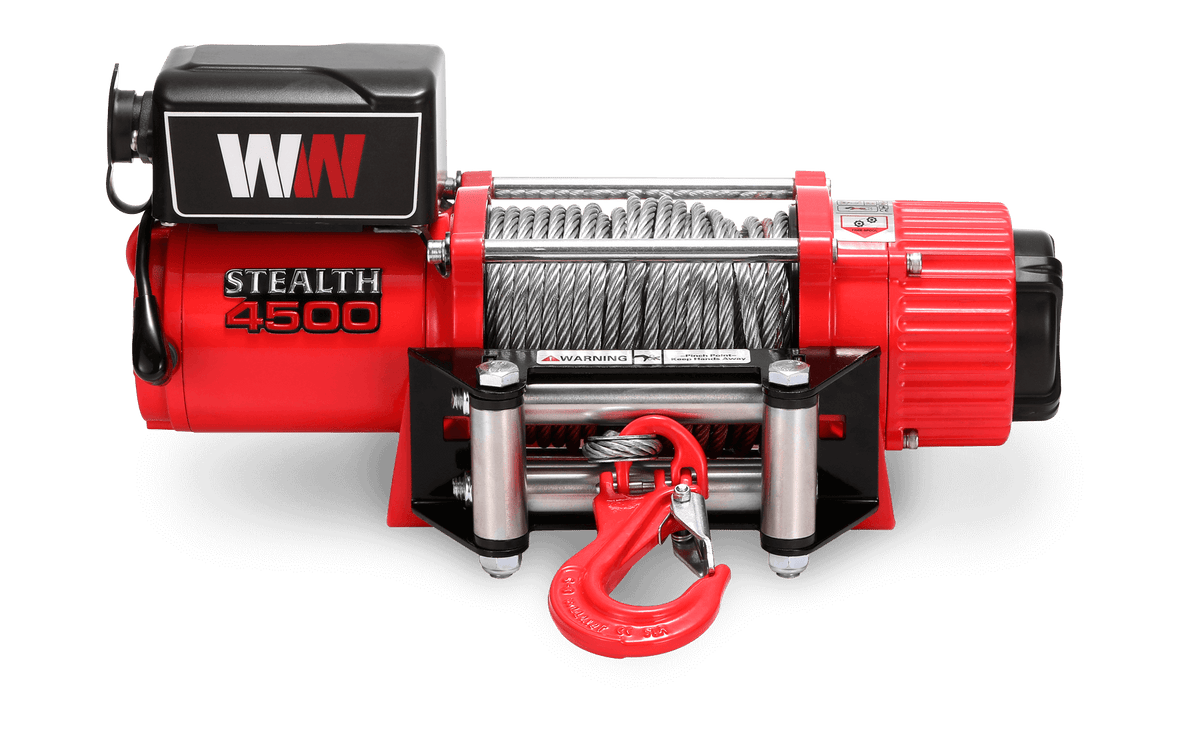

The Stealth 4,500lb 12V electric winch delivers 4,500lb (2,041kg) of rated line pull, giving you extra recovery capability for 4x4s, trailers, recreational vehicles and general hauling applications. With a durable steel rope, fast line speed and both wired and wireless controls included, it provides the essential equipment needed for practical recovery without unnecessary cost or complexity.

More pulling power when you need it. The 2.5kW 12V permanent magnet motor delivers up to 4,500lb (2,041kg) of rated line pull through a 147:1 planetary gearing system. This gives you the extra pulling capacity needed for heavier vehicles and more demanding recovery tasks while maintaining a practical size for a wide range of installations.

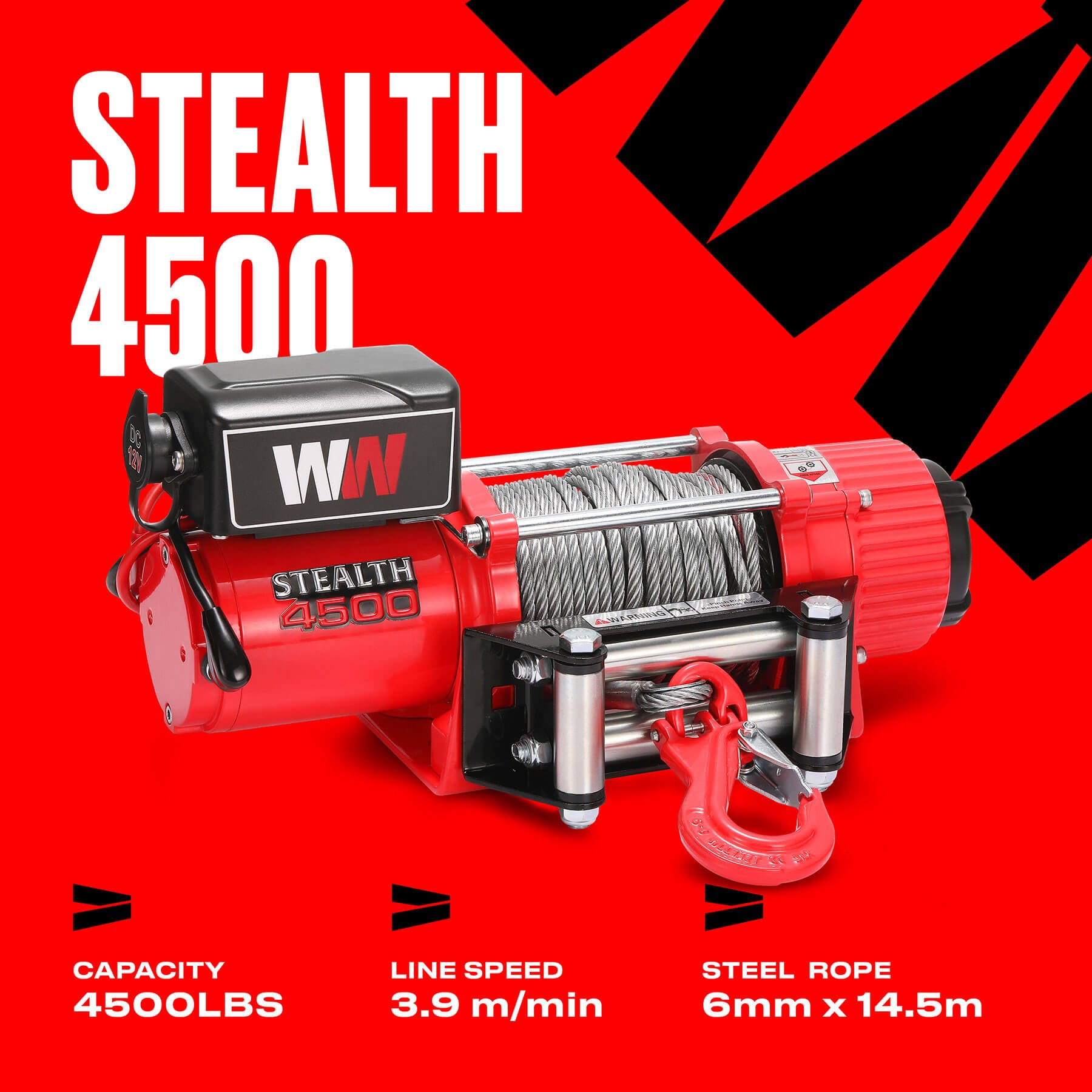

Get the rope deployed quickly. The manual freespooling clutch allows you to disengage the drum and pull the 14.5m x 6mm steel rope out by hand, making it quick and straightforward to position the rope before a recovery. With a no-load line speed of up to 4.6m/min, the Stealth 4,500lb helps keep rope retrieval moving once the winch is engaged.

Steel rope ready for hard work. The 6mm steel rope provides the durability needed for regular recovery and hauling applications, while the supplied clevis hook and handsaver strap make connecting and handling the rope easier. The 4-way roller fairlead helps guide the rope smoothly onto and off the drum during operation.

Two ways to stay in control. The Stealth 4,500lb includes both wired and wireless controls, giving you the flexibility to operate from the vehicle or move to a better position to monitor the recovery. The wireless handset provides convenient remote operation, while the wired controller offers a dependable alternative whenever you need it.

Practical power in a compact package. Measuring 408 x 125 x 175mm and weighing 15.5kg, the Stealth 4,500lb provides substantial pulling capability without an unnecessarily large footprint. The included mounting plate, mounting bolts and heavy-duty battery cables help simplify installation, giving you the essential components to get the winch ready for work.

Serious recovery without the premium price. The Stealth 4,500lb focuses on the features that matter most during everyday recovery: 4,500lb of dependable pulling power, durable steel rope, practical controls and straightforward operation. It's designed for users who want proven Warrior Winches performance and useful recovery capability without paying extra for premium features they may not need.

Backed by a 3-year warranty, the Stealth 4,500lb 12V electric winch is a practical choice for 4x4 owners, off-road enthusiasts, trailer users and recreational applications looking for dependable pulling power, simple operation and excellent value.

Sku45STS12
EAN5060423984740
Rated Line Pull4500 lbs
Motor Type12V: Input: 2.5kW / 3.4hp; Output: 1.1 kW / 1.4hp
Rated Volt12
ClutchManual
Gearing147:1
Braking ActionAuto in the drum
Drum Size (Diameter x Length)50.4 x 125.0 mm
ControlsWired Remote
Wireless Remote
Cable MaterialSteel
Cable Size (Diameter x Length) 6.0 mm x 14.5 m
FairleadRoller
Mounting Pattern168mm x 76.2mm mm

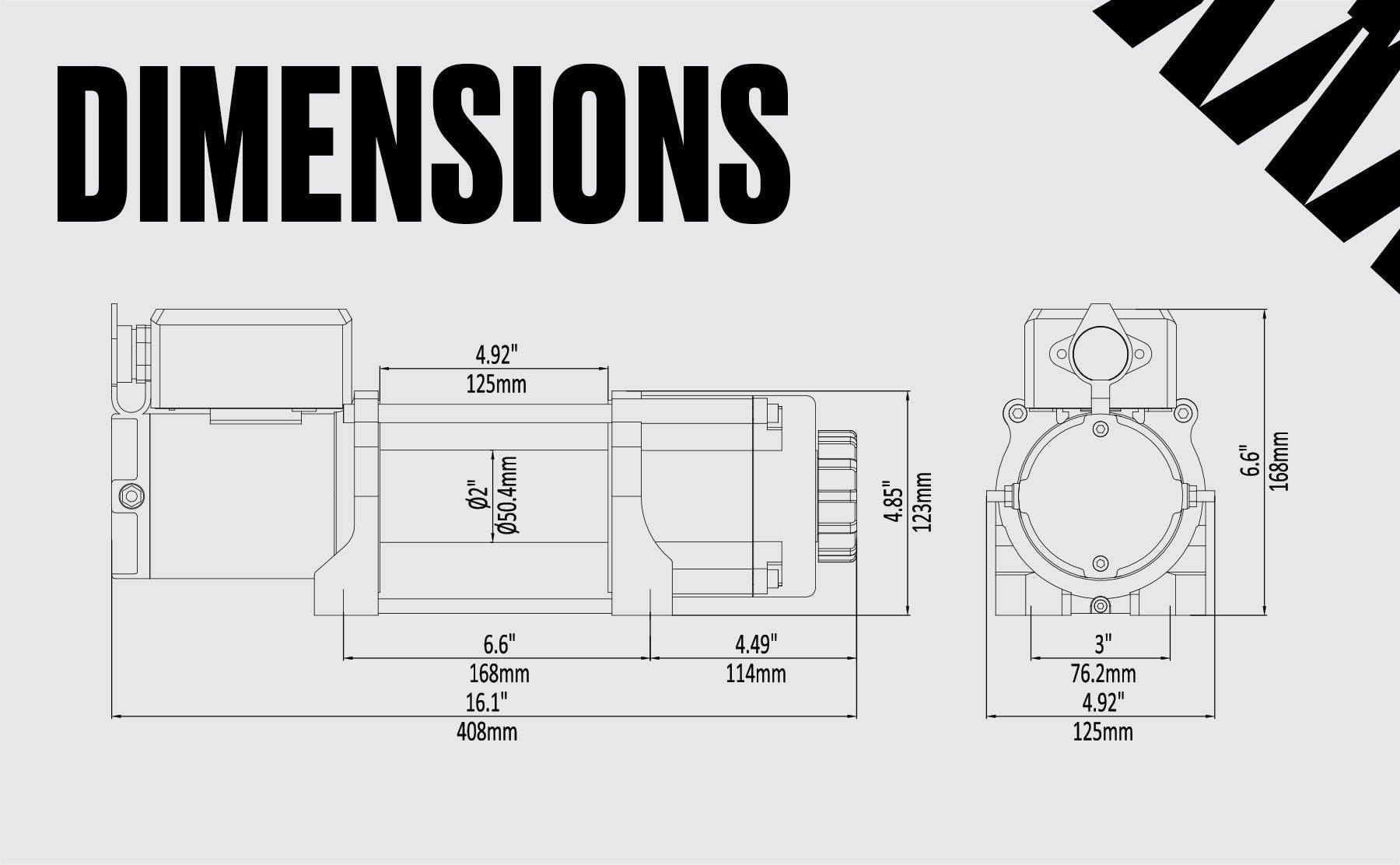

Dimensions408 x 125 x 175 mm
Weight15.5 kg
Warranty3 Year
CertificationCE, UKCA



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 4500 (2041) 12.2 (3.7)
2 3841 (1742) 26.2 (8.0)
3 3310 (1501) 41.9 (12.8)
4 2907 (1319) 47.6 (14.5)
Line Pull
lbs (kgs)		 Line Speed 12v
ft/min (m/min)		 Amp Draw
12v
0 15.1 (4.6) 23
1000 (454) 10.8 (3.3) 85
2500 (1135) 8.5 (2.6) 130
4500 (2041) 5.9 (1.8) 190

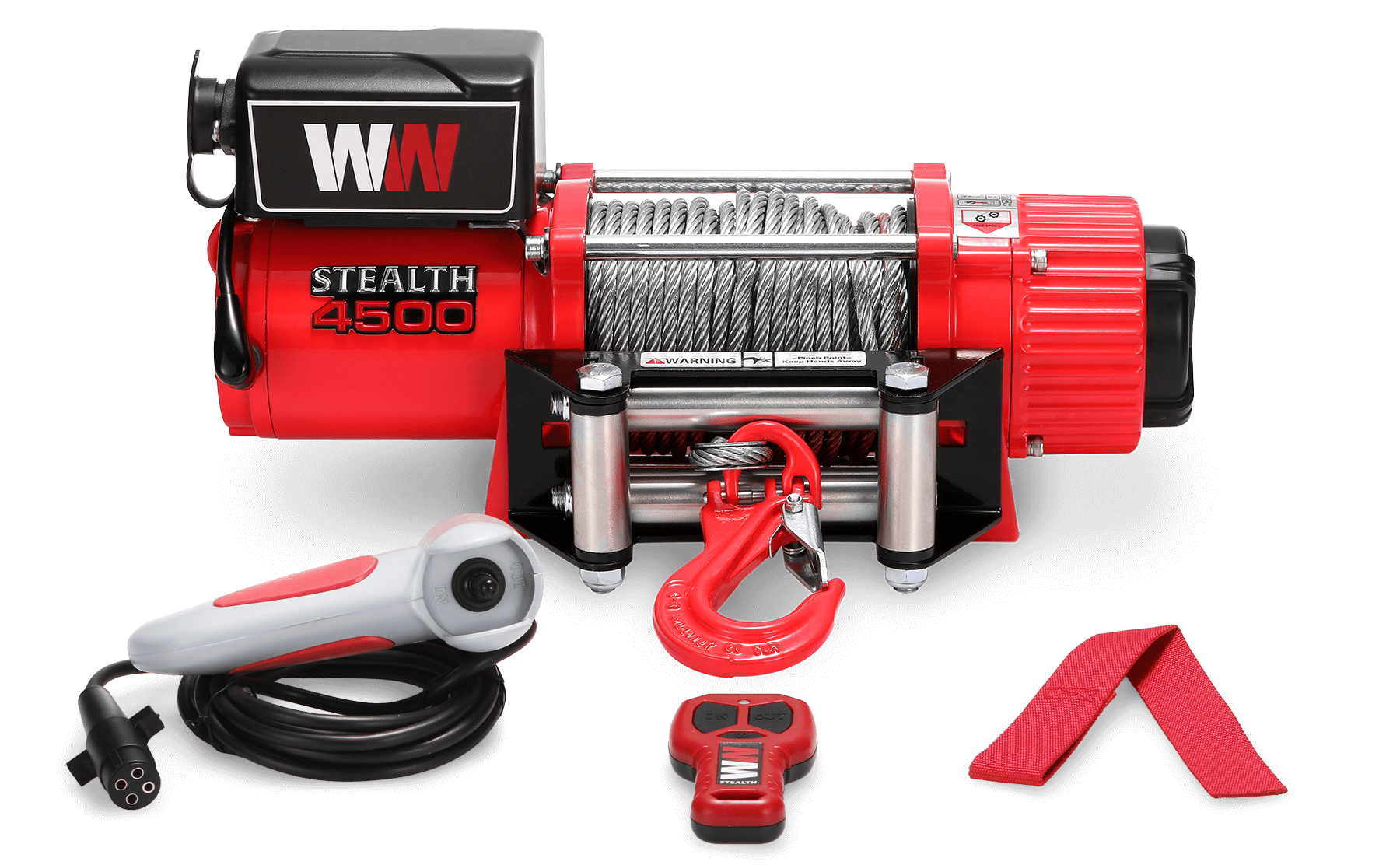

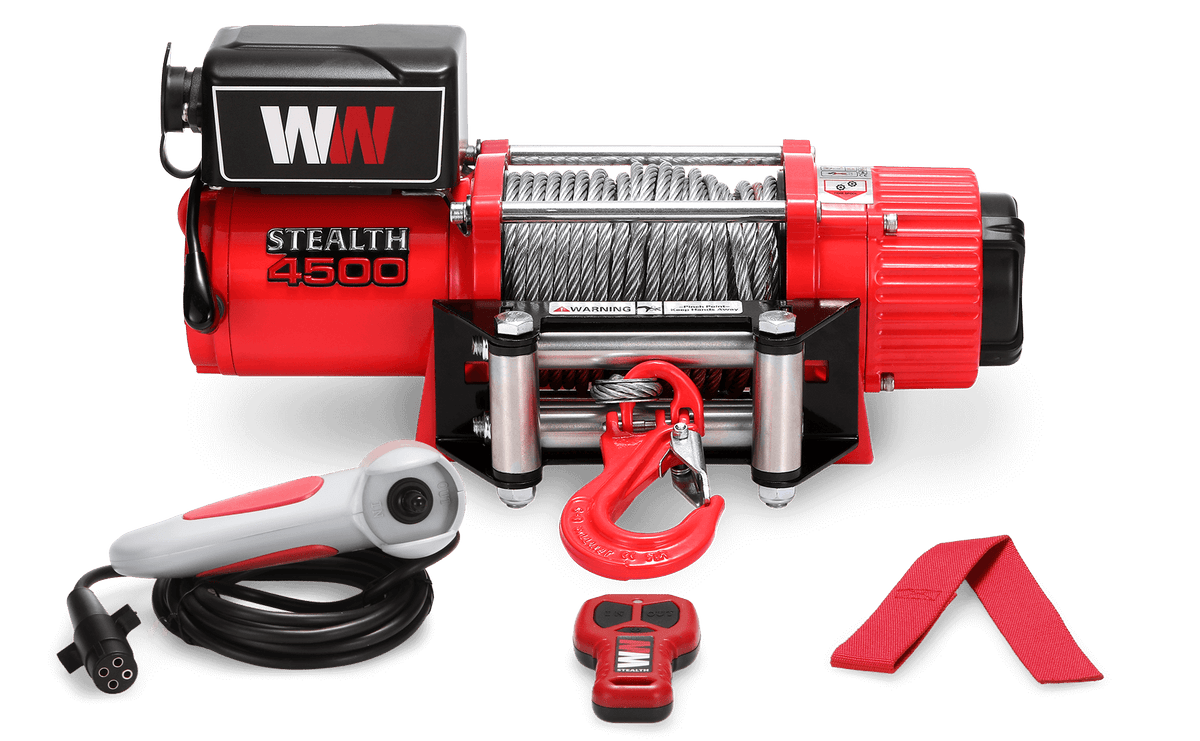

  • Wired Hand Control: Includes Wired Hand Control
  • Wireless Control: One Handset Included
  • Mounting Plate: Included for flat mount application
  • Fairlead: 4-Way Roller Fairlead
  • Mounting Bolts: Included for Standard installations
  • Heavy Duty Battery Cables (May need extending dependent on application))
  • Instruction Manual
User Manual Download
Specifications Sheet  Download

Load Test
