Stealth 13500lb Winch - 12v Steel Rope

Warranty: 3 Years
20m Steel Rope
20m Synthetic Rope
12v
24v
Find a store near you

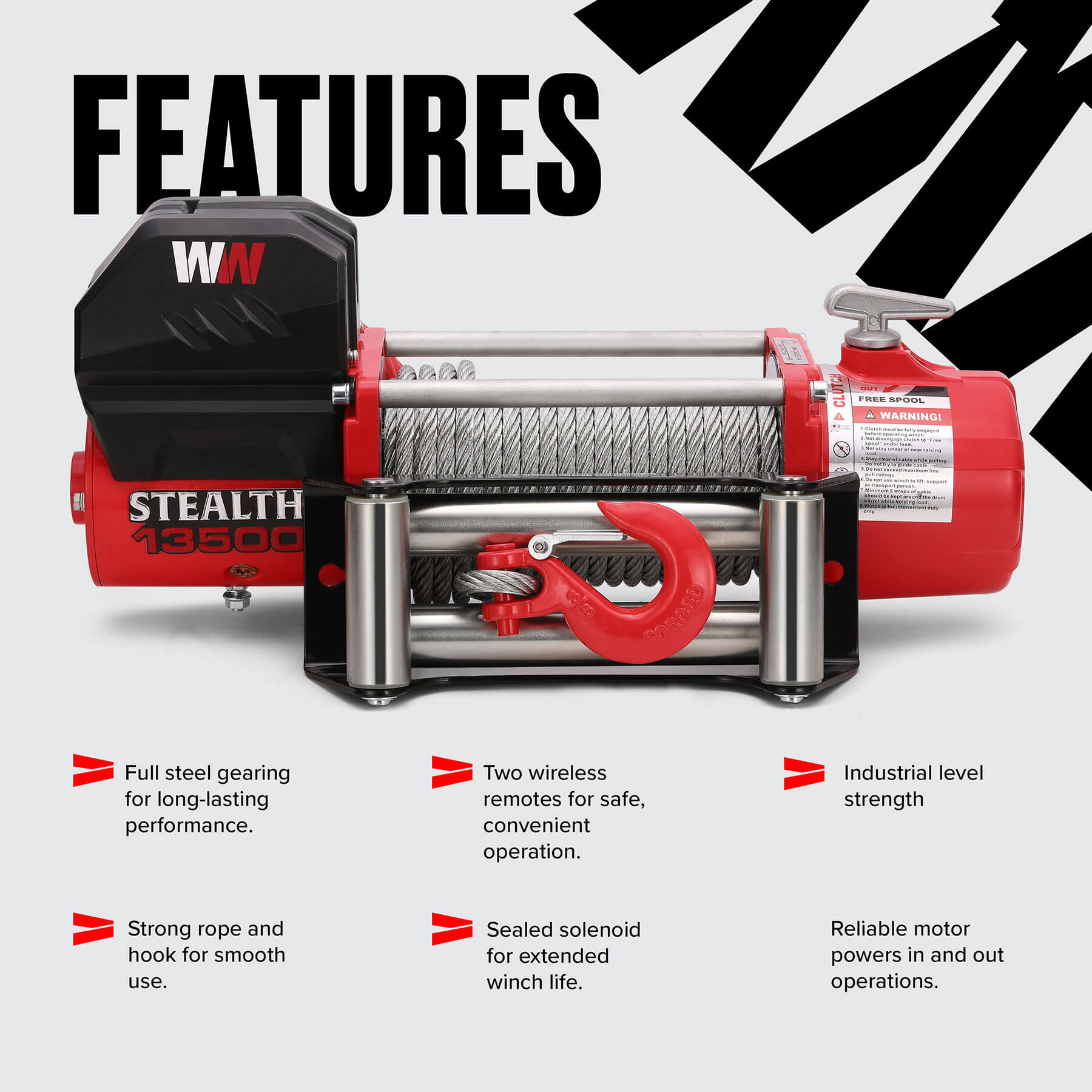

Features

  • Heavy-Duty Pulling Power - With 13,500lb of rated line pull, this Stealth provides the substantial recovery capacity needed for heavier 4x4s, challenging terrain and demanding pulling applications.
  • Steel Rope Built for Tough Use - The 20m x 10.2mm steel rope provides a robust recovery setup, while the included clevis hook, handsaver strap and roller fairlead help make line handling practical and controlled.
  • Power Through the Tough Stuff - The 6.1hp 12V motor works through 265:1 planetary gearing to deliver dependable pulling power, with the reversible motor providing flexibility when pulling in either direction.
  • Position the Line by Hand - The manual freespooling clutch allows you to disengage the gearbox and pull the steel rope out manually, helping you get into position without wasting powered line.
  • Three Ways to Operate - With a wired hand control and two wireless handsets supplied, you can operate the winch from the vehicle or step away for a better view of the recovery.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

The Warrior Winches Stealth Range is built for 4x4 owners and off-road drivers who want dependable recovery performance without paying for features they don't need. Combining proven engineering, reliable motors, durable gearing and practical recovery features, Stealth winches deliver serious capability at an accessible price.

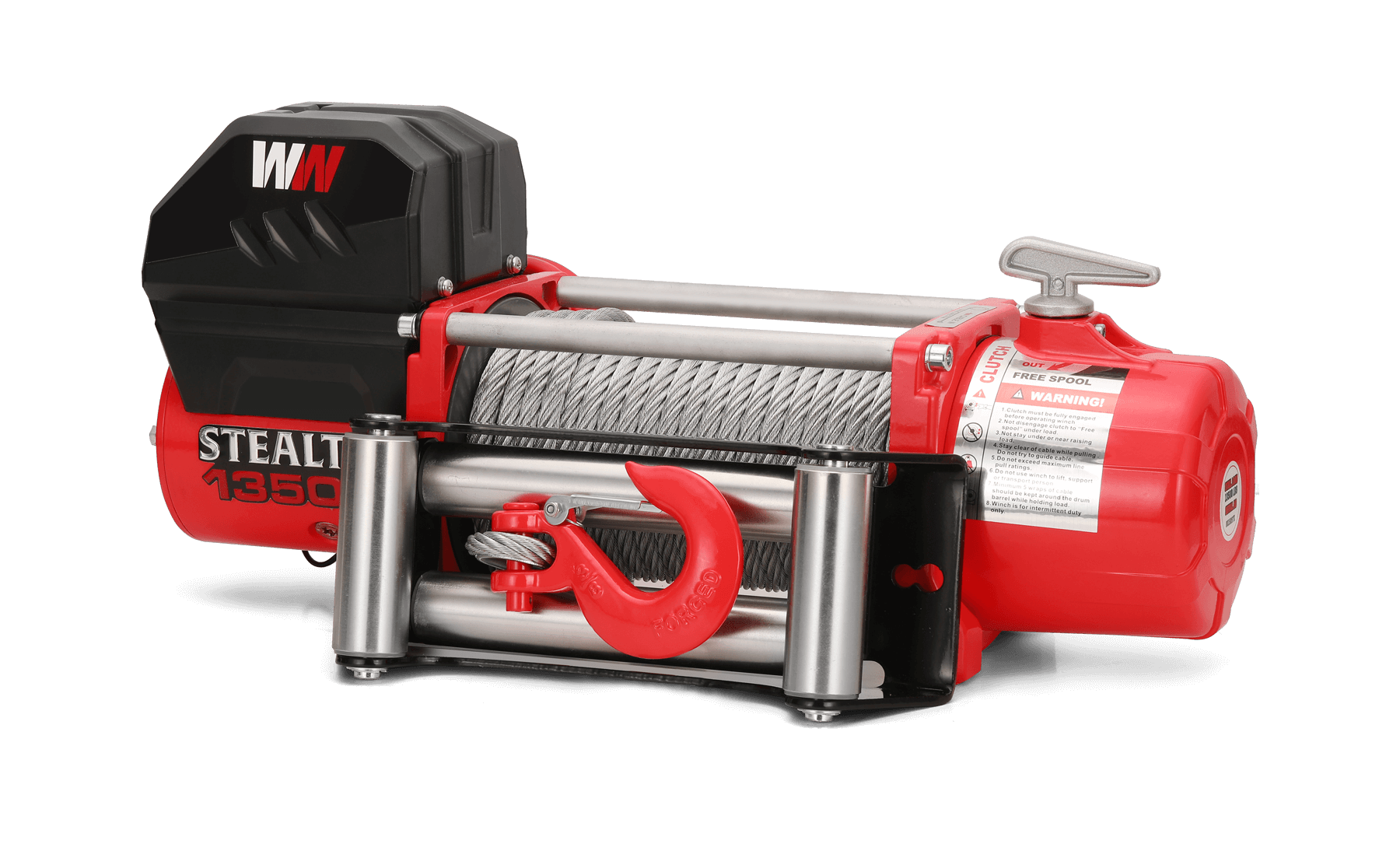

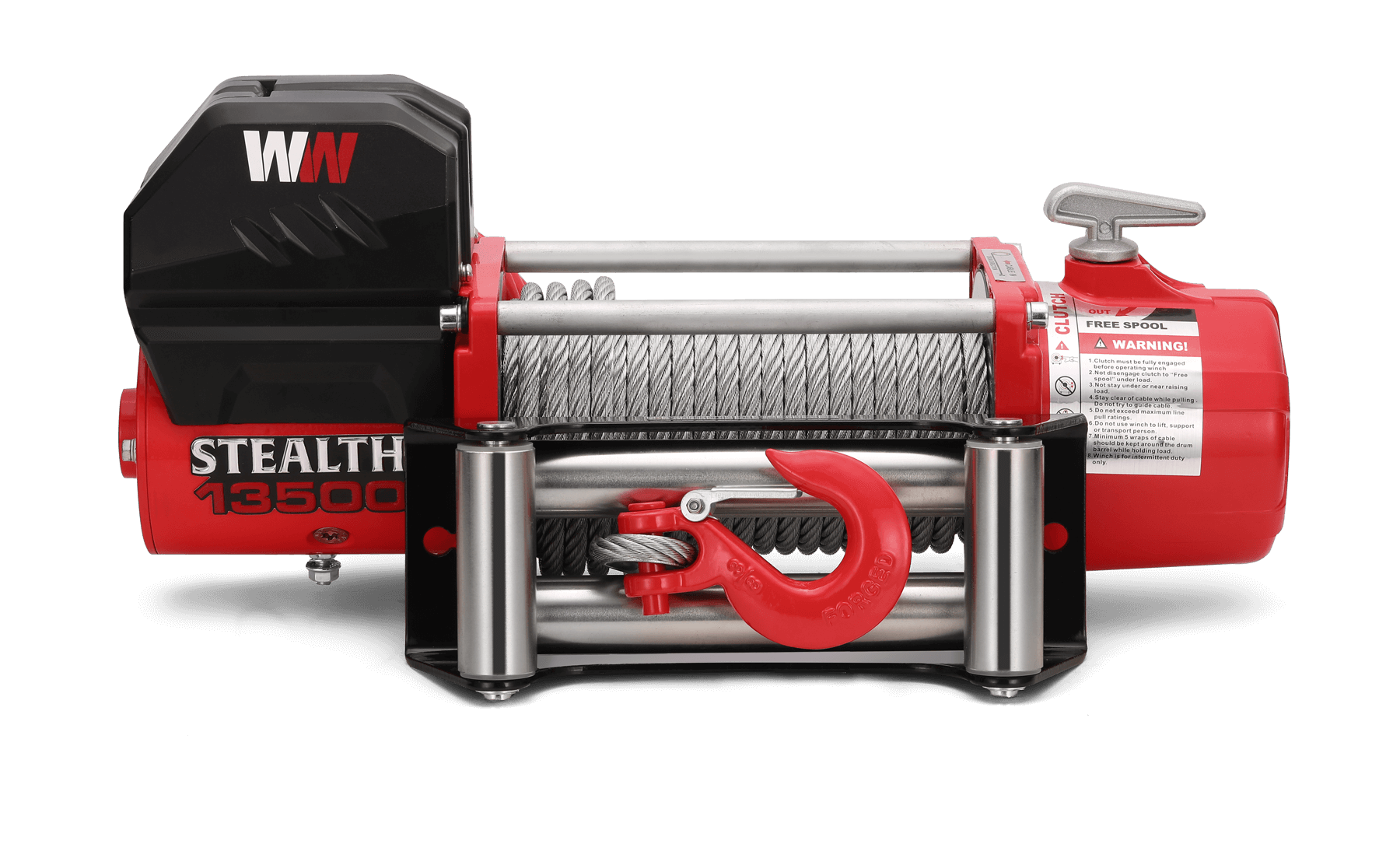

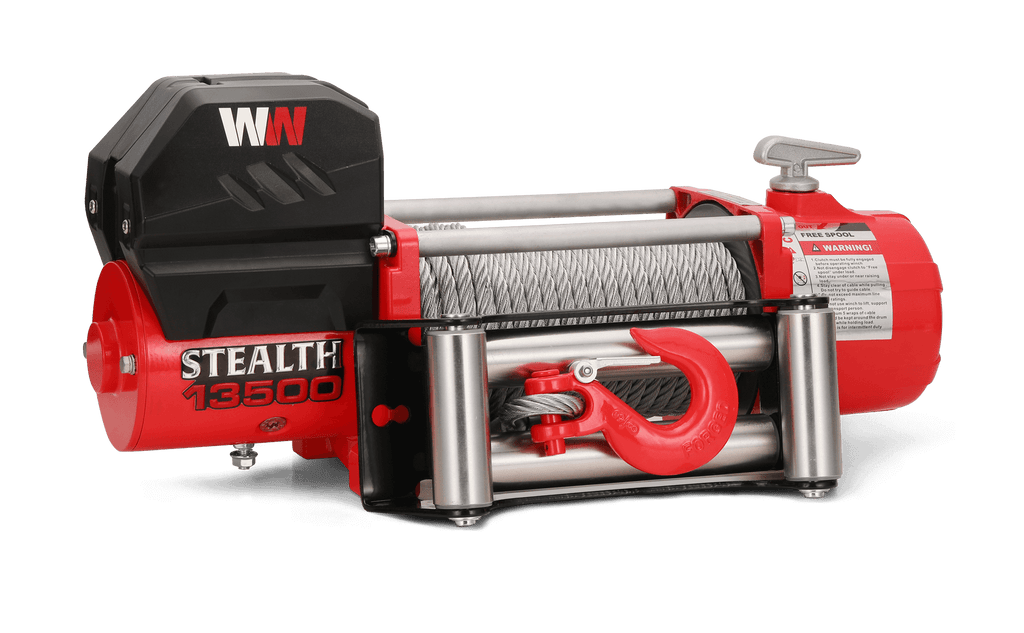

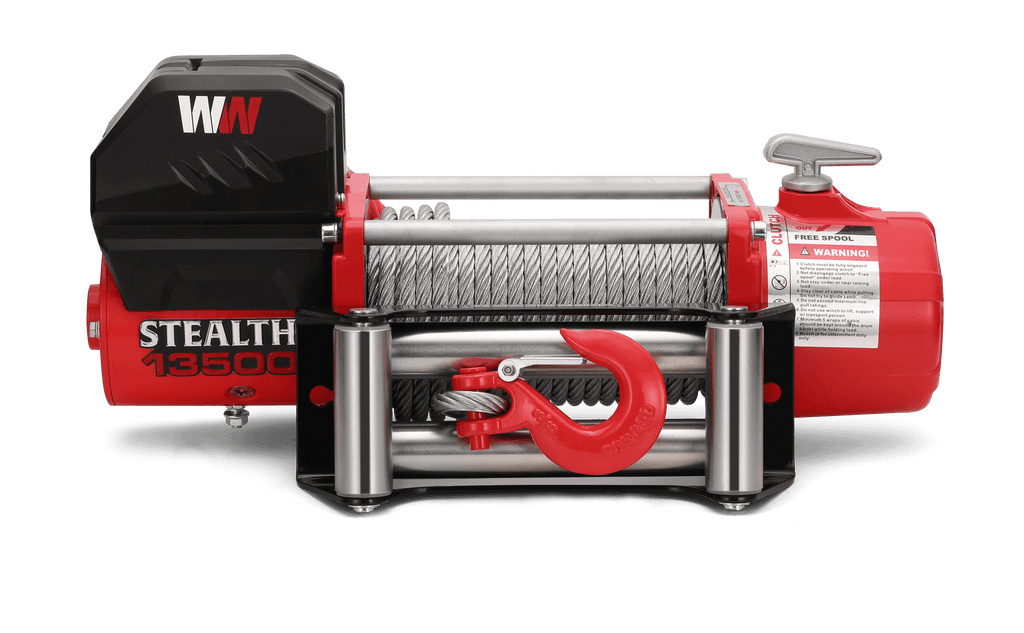

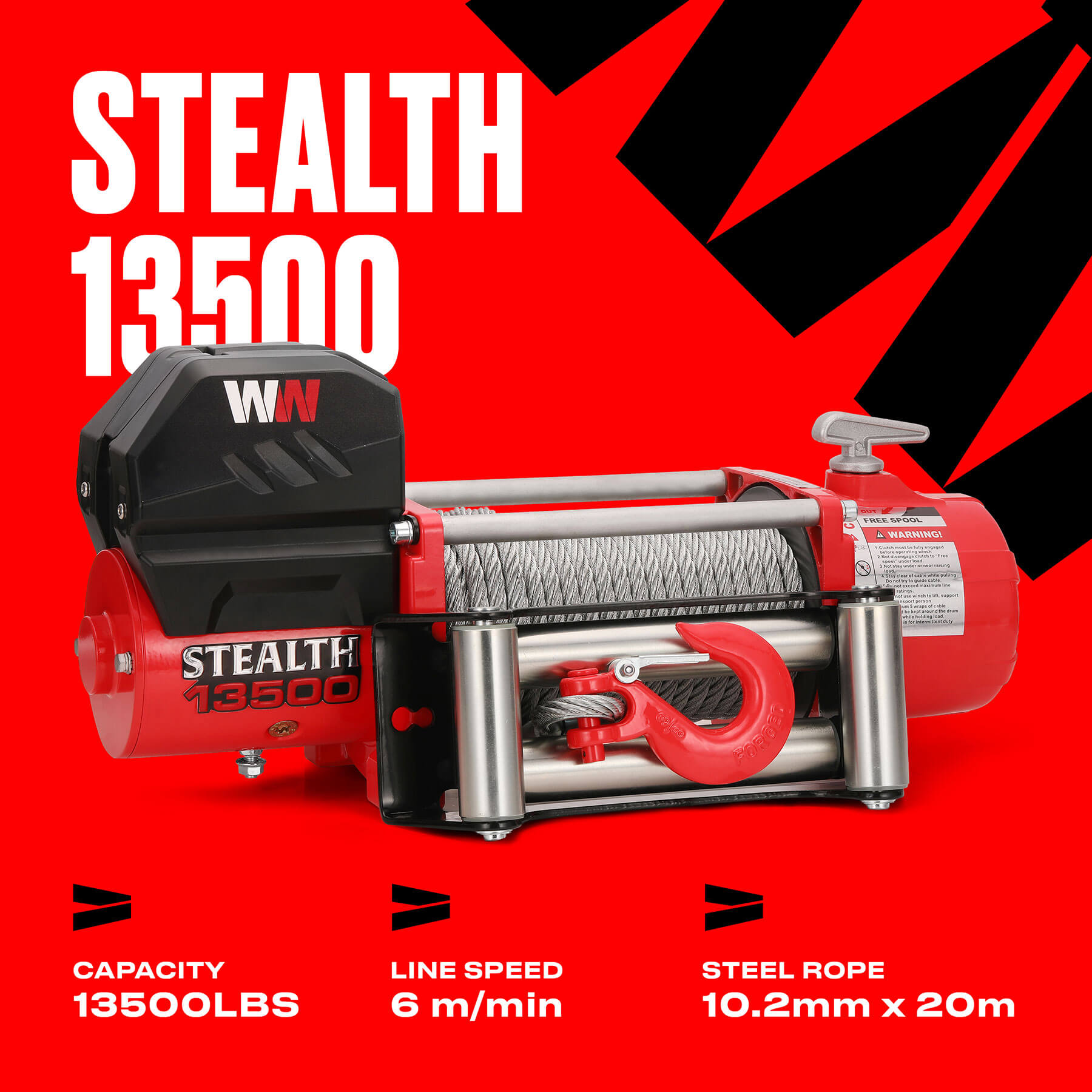

The Stealth 13,500lb 12V electric winch with steel rope delivers serious pulling power for demanding 4x4 recoveries, off-road vehicles, trailers and heavy recreational applications. With a 13,500lb (6,123kg) rated line pull, powerful 6.1hp motor and durable steel rope, it provides the pulling capacity and practical recovery equipment needed when the going gets tough.

13,500lb of serious pulling power. The 6.1hp (4.6kW) 12V permanent magnet motor delivers up to 13,500lb (6,123kg) of rated line pull through a 265:1 planetary gearing system. That gives you substantial recovery capability for heavy vehicles, challenging terrain and demanding pulling applications, while keeping the Stealth focused on practical value.

Steel rope built for hard work. The 20m x 10.2mm steel rope provides a durable solution for demanding recovery applications. Supplied with a clevis hook and handsaver strap, it gives you a robust setup ready for pulling, recovery and hauling work. The included 4-way roller fairlead helps guide the steel rope smoothly onto and off the drum.

Built to work hard. The reversible motor provides reliable power in both directions, while the automatic in-drum braking system helps maintain control of the load during winching. Combined with full steel gearing and a 265:1 planetary gear system, the Stealth 13,500lb is built around the essential components needed for dependable recovery performance.

Get the rope out quickly. The manual freespooling clutch allows you to disengage the gearbox and pull the steel rope out by hand. This makes it easier to position the winch line before starting a recovery, helping you get set up quickly without relying on the motor to deploy the full length of rope.

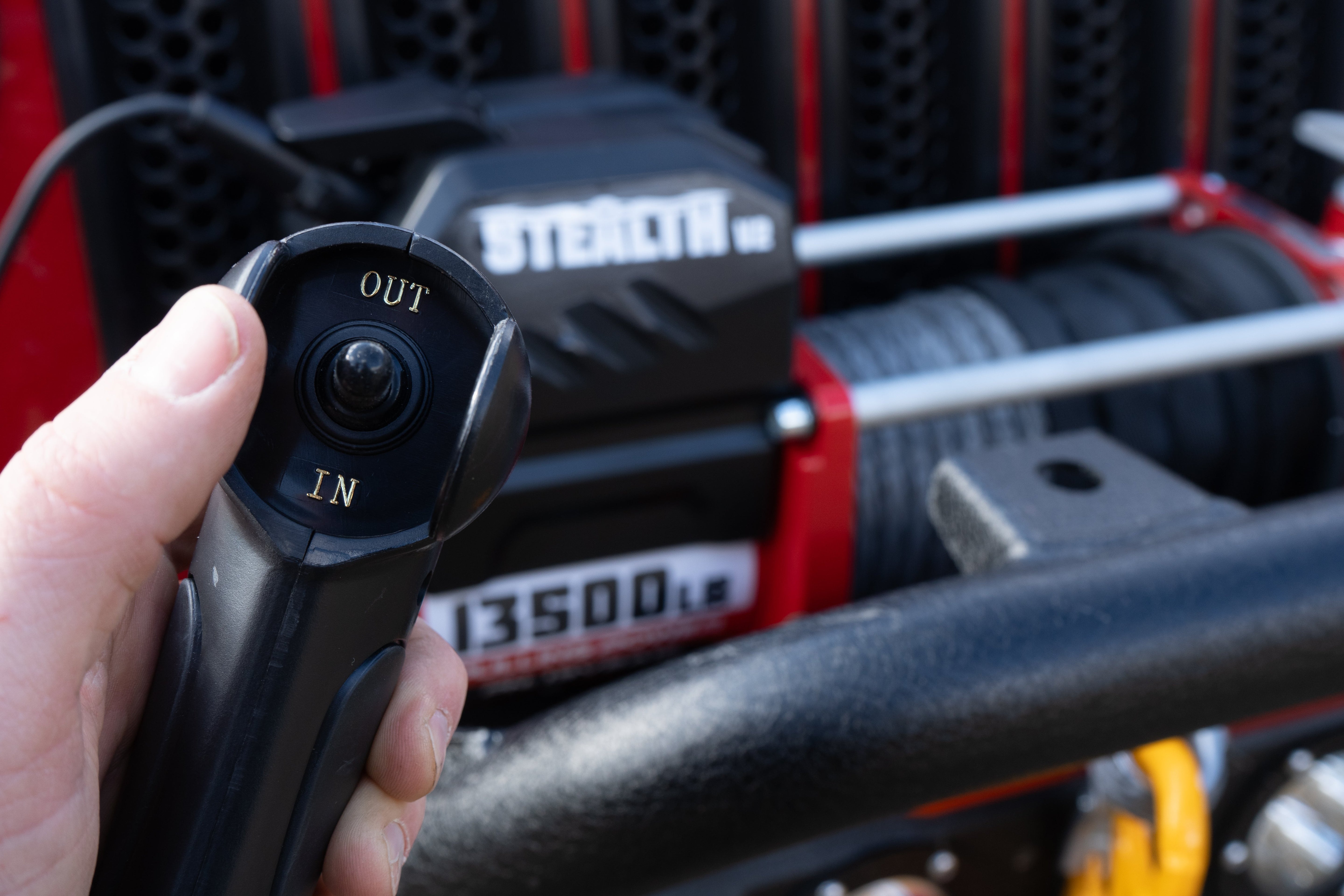

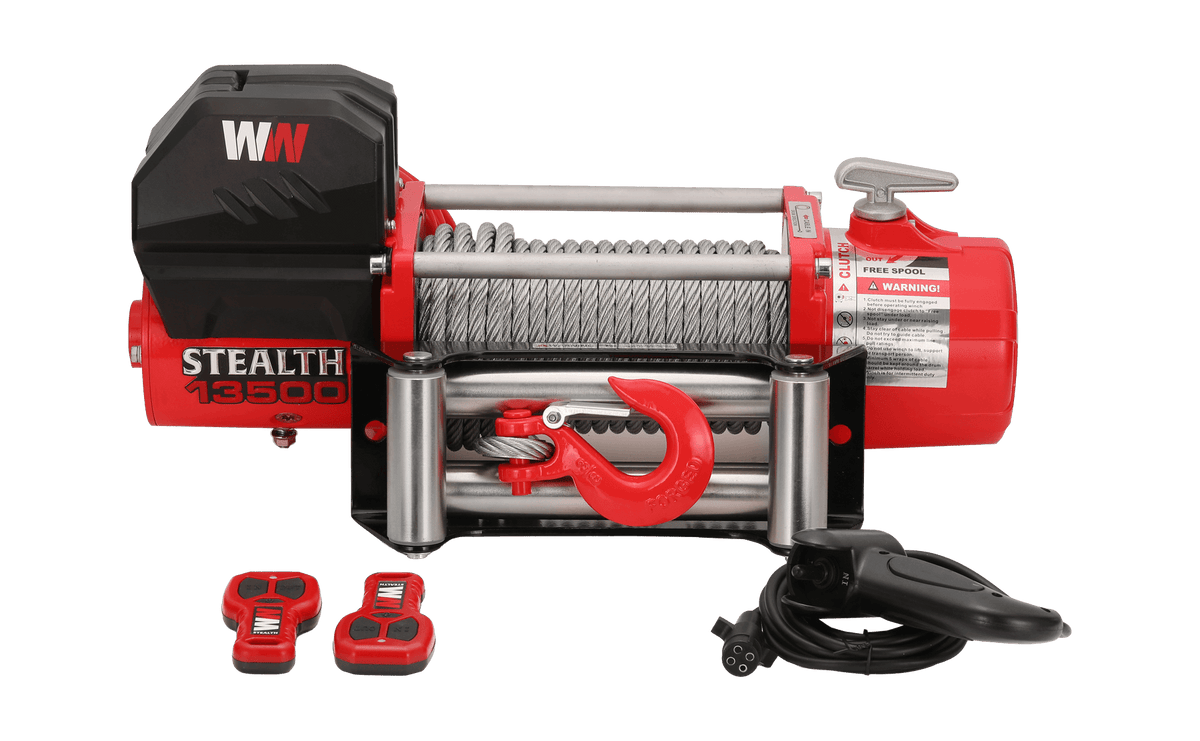

Three ways to stay in control. The Stealth 13,500lb comes supplied with a wired hand control and two wireless handsets, giving you flexibility over how you operate the winch. Wireless operation allows you to step away from the vehicle and get a better view of the recovery, while the wired control provides a direct alternative when required.

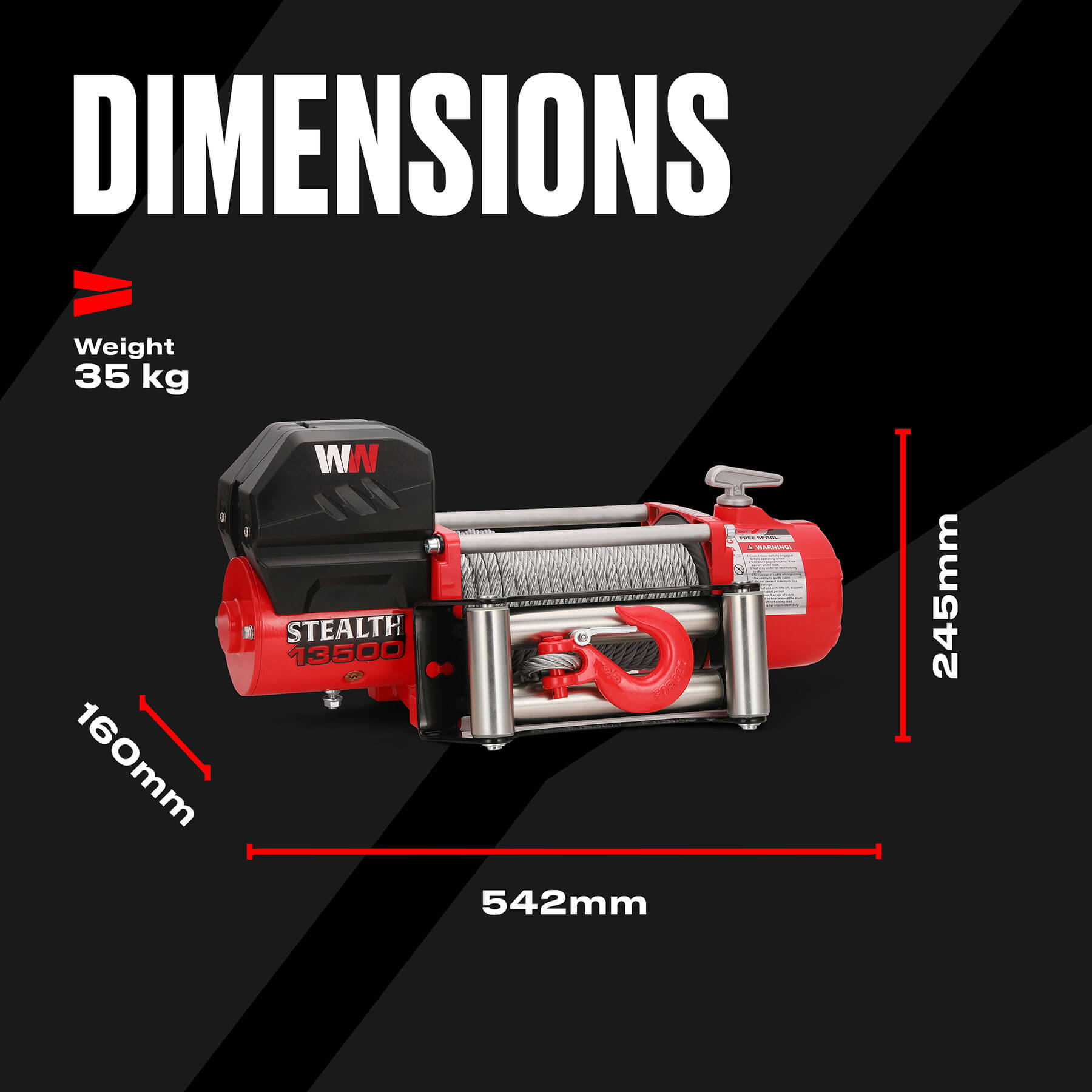

Big capability. Practical design. Measuring 542 x 160 x 245mm and weighing 35kg, the Stealth 13,500lb combines substantial pulling power with a straightforward, durable design. It's built for users who need a high-capacity winch without stepping up to the premium features and higher prices.

Serious recovery without the premium price. The Stealth 13,500lb is designed for enthusiasts and regular off-road users who want proven Warrior Winches performance, substantial pulling power and the essential features required for demanding recoveries. With 13,500lb of line pull, durable steel rope, flexible controls and a practical design, it delivers serious capability while keeping value at the heart of the package.

Backed by a 3-year warranty, the Stealth 13,500lb 12V electric winch with steel rope gives you the pulling power and dependable performance needed when a recovery gets serious.

Sku13V2S12
EAN5060423982197
Rated Line Pull13500 lbs
Motor Type12V: Input: 6.1hp / 4.6 kW; Output: 2.8hp / 2.1 kW
Rated Volt12
ClutchManual
Gearing265:1
Braking ActionAuto in the drum
Drum Size (Diameter x Length)63.0 x 223.0 mm
Controls2x Wireless Remotes
Wired Remote
Cable MaterialSteel
Cable Size (Diameter x Length) 10.2 mm x 20.0 m
FairleadRoller
Mounting Pattern254mm x 114mm mm

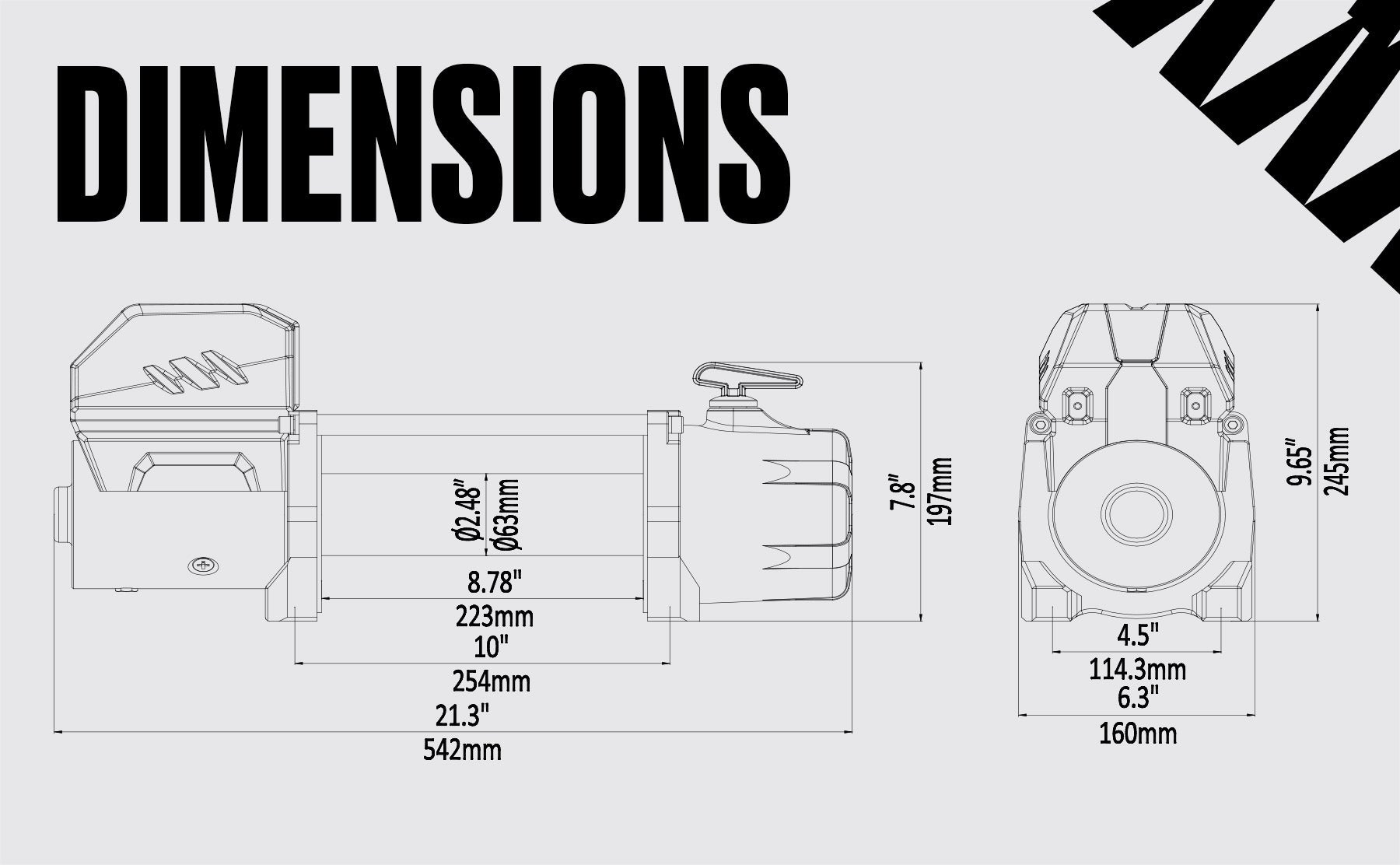

Dimensions542 x 160 x 245 mm
Weight35.0 kg
Warranty3 Year
CertificationCE



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 13 500 (6 123) 16.1 (4.9)
2 10 596 (4 806) 36.4 (11.1)
3 8 720 (3 955) 60.0 (18.3)
4 7 408 (3 360) 65.6 (20.0)


Line Pull
lbs (kgs)		 Line Speed 12v
ft/min (m/min)		 Line Speed 24v
ft/min (m/min)		 Amp Draw
12v		 Amp Draw
24v
0 19.7 (6.0) 20.6 (6.3) 72  50
4000 (1818) 10.5 (3.2) 11.5 (3.5) 180 120
8000 (3629)  7.5 (2.3) 8.9 (2.7) 265 180
12000 (5443) 5.2 (1.6) 6.9 (2.1) 360 240
13500 (6123) 3.9 (1.2) 5.2 (1.6) 390 270
  • Wired Hand Control: 3.9m Wired Hand Control
  • Wireless Control: Includes Two Wireless Controls*
  • Fairlead: 4-Way Roller Fairlead
  • Mounting Bolts: Included for Standard installations
  • Battery Cables (May need extending dependant on application)
  • Hand Saver
  • Instruction Manual
User Manual Download
Specifications Sheet  Download

Video

Load Test

Warrior Winches 3 Year Warranty

BPE Solutions Deutschland GmbH are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earning a
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.



WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 3-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.



WARRANTY EXCLUSIONS

This warranty excludes:

- Cosmetic defects such as paint, decals, ,
- Worn parts due to improper use.
- Steel ropes
- Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.


- Any Accessory part including roller fairleads, hooks and mounting plates.
- Failures due to acts of God and other force major events beyond the manufacturer’s control
- Problems caused by parts that are not original WARRIOR WINCH parts
- Alteration or modification(s) made by any party other than the
- Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
- Any third party equipment
- Batteries



Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

   Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.
