T122S12

T1000 22000lb Electric Winch - 12v Steel Rope

Features

  • Revolutionary External Brake – Prevents heat build-up, ensuring safe, smooth operation and extending the winch’s lifespan.
  • Special Lithium Grease – Maintains performance in extreme temperatures, reducing wear and enhancing durability.
  • IP68 Military Grade Rating – Provides dustproof and waterproof protection, ensuring reliable performance in harsh environments.
  • Overload Protection – Automatically prevents damage from excessive loads, ensuring safe and reliable use.
  • Hardened 3-Stage Planetary Gears – Delivers high torque and efficiency for reliable, long-lasting performance under heavy loads.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

Introducing the T1000: The Ultimate Severe-Duty Winch

Originally engineered as an advanced military prototype, the T1000 Severe Duty Warrior Winch was built to withstand the harshest environments on the planet. Designed for extreme performance in severe climates, this winch has already proven itself in the field—earning high praise from defence experts and industry leaders alike.

After its standout debut at the Defence and Security Equipment International Expo, we made the decision to unleash the T1000 range for widespread use. Now, this battle-ready powerhouse is available for those who demand nothing but the best—whether for industrial, commercial, military, or hardcore off-road applications.

Like its namesake, the T1000 series is the most advanced, durable, and relentless winch on the market. If you need unmatched strength, military-grade reliability, and pure brute force, look no further. This is the ultimate winch—engineered to perform when it matters most.

The T1000 isn’t just a winch. It’s a Warrior.

SkuT122S12
EAN5060423986065
Rated Line Pull22000 lbs
Motor Type12V: Input: 7.4hp / 5.5kW; Output: 3.9hp / 2.9kW
Rated Volt12
ClutchManual
Gearing450:1
Gearing SystemPlanetary
Braking ActionExternal Brake

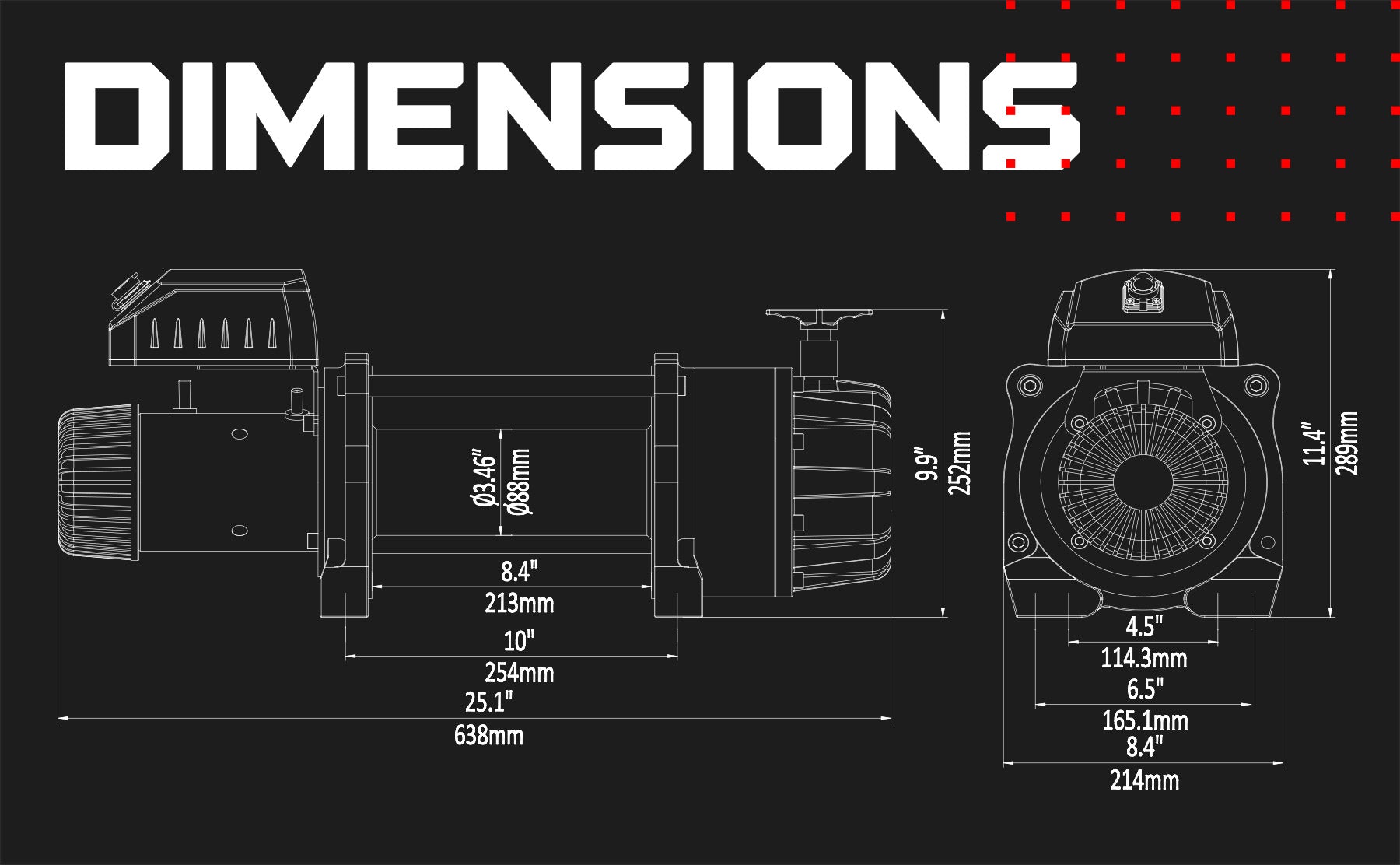

Drum Size (Diameter x Length)88.0 x 213.0 mm
ControlsWired Remote
Cable MaterialSteel
Cable Size (Diameter x Length) 13.8 mm x 24.0 m
FairleadRoller
Mounting Pattern254mm x 114.3mm / 254mm x 165.1mm mm
Dimensions638 x 214 x 289 mm
Weight75.0 kg
Warranty5 Year
Waterproof Rating (IP)68
CertificationCE, UKCA



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 22000 (9979) 14.1 (4.3)
2 17300 (7847) 32.8 (10.0)
3 14260 (6468) 55.1 (16.8)
4 12130 (5502) 78.7 (24.0)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Line Speed 24v
ft/min (m/min)
Amp Draw
12v
Amp Draw
24v
0 21.7 (6.6) 23.0 (7.0) 65 40
5000 (2268) 9.8 (3.0) 10.2 (3.1) 175 100
10000 (4536) 6.6 (2.0) 7.2 (2.2) 270 150
15000 (6804) 4.9 (1.5) 5.2 (1.6) 350 200
22000(9979) 3.0 (0.9) 3.3 (1.0) 460 270
  • T1000 Winch
  • Heavy Duty Stainless Steel Fairlead
  • Steel Rope
  • Heavy Duty Hook
  • Heavy Duty Wired Remote
  • Cable Tensioner
  • Stainless Steel Mounting Hardware (nuts/bolts)
User Manual Download
Brochure Download

Load Test

Brake Test
