Titan 6000lb Electric Winch 12v Steel Rope

The Titan Range are our premium grade Quad, Side-by-side and trailer winches built to deliver fast, quiet, and smooth recovery solutions for those that demand the best of the best.

The Titan 6000lb 12V electric winch combines premium engineering, serious pulling power and refined operation in a compact package. Designed for extreme off-roaders, heavy-duty enthusiasts, trailers and utility applications, the Titan 6000 gives you the strength and control to tackle demanding recoveries while delivering the premium performance expected from the Titan range.

Premium power when you need it. The 2.5kW 12V motor delivers up to 6,000lb (2,722kg) of rated line pull through a durable 202:1 planetary gearing system. Whether you're recovering a heavy side-by-side, tackling challenging terrain, moving equipment or launching a boat, the Titan 6000 gives you the pulling power to handle demanding jobs with confidence.

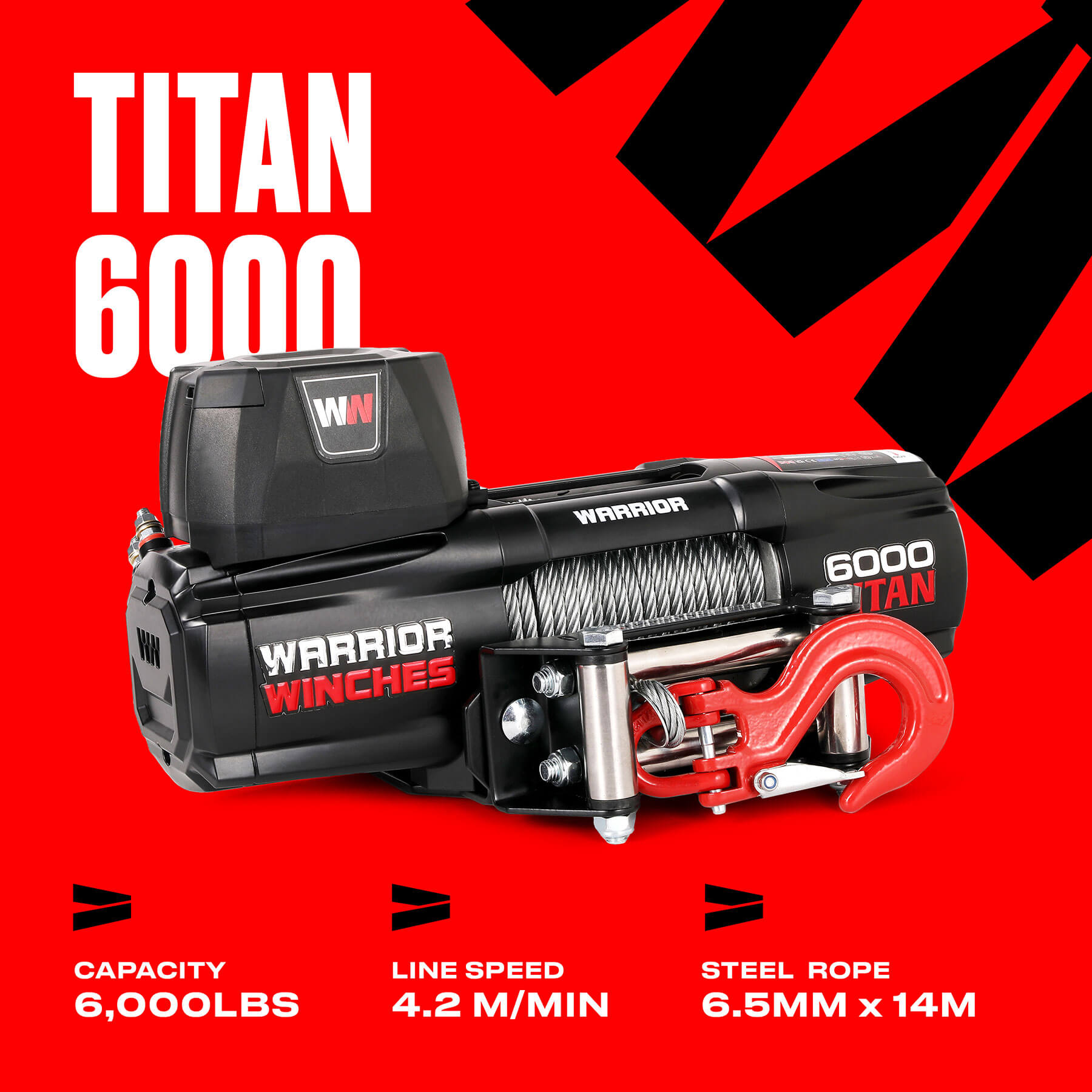

Get your job moving faster. With a no-load line speed of up to 4.2m/min, the Titan 6000 helps you deploy the rope and get into position quickly. As the load increases, the winch maintains controlled pulling performance, helping you manage demanding recoveries efficiently.

Steel rope for dependable durability. The 6.5mm x 14m steel rope provides the strength and abrasion resistance needed for demanding recovery and pulling applications. Combined with a heavy-duty roller fairlead, it provides smooth rope guidance during operation and helps you make the most of the Titan's 6,000lb pulling power.

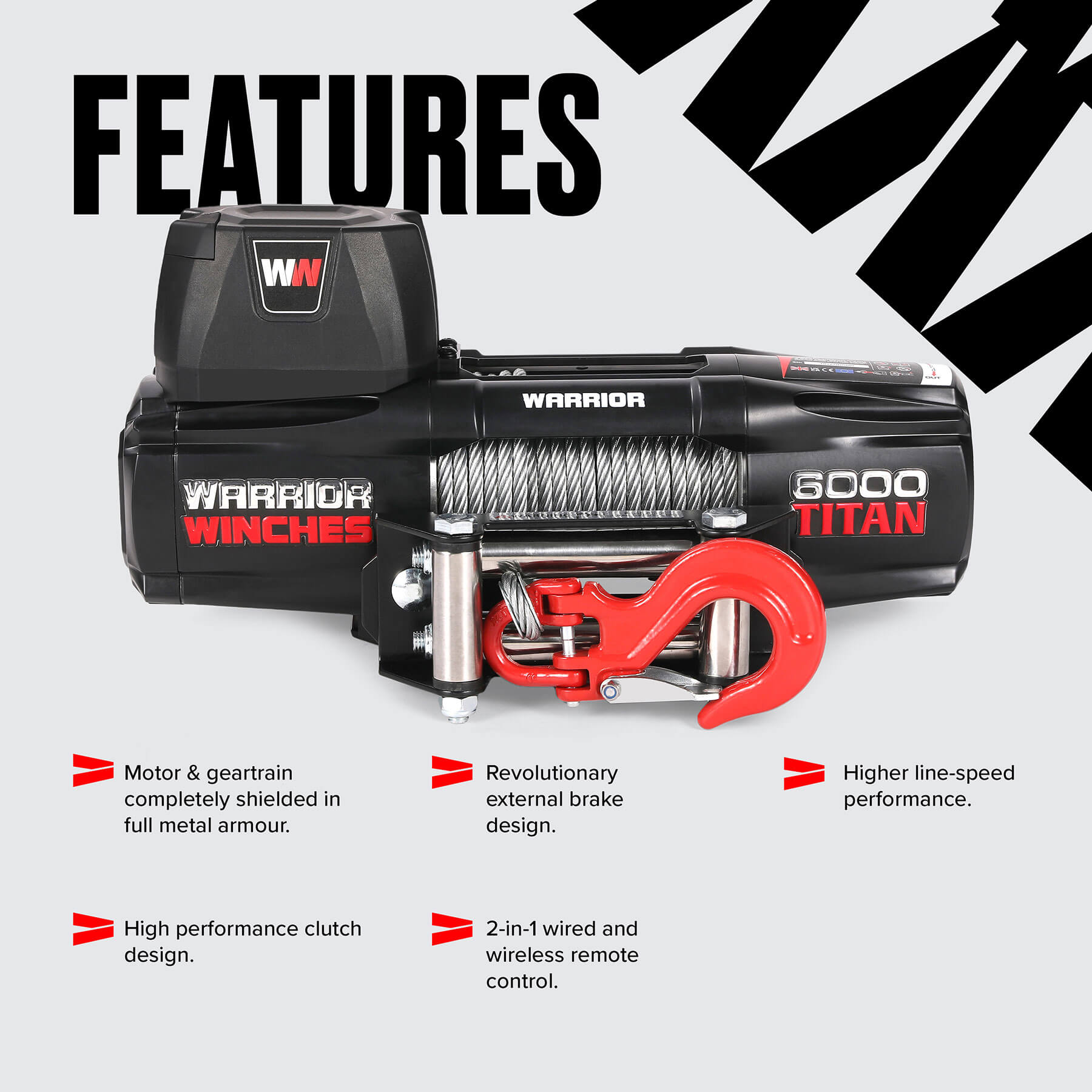

Premium protection you can rely on. The full metal armour casing helps protect the winch's internal components from impacts, dust and harsh weather, while IP67 protection helps keep water and debris away from critical components. It's premium construction designed to withstand the realities of serious off-road use.

Stopping power with maximum control. The mechanical spring brake provides precise load control during recovery, helping prevent unwanted movement when you're working on slopes or handling heavy loads. The manual clutch also allows you to disengage the drum for quick and controlled rope deployment.

Control from the best position. The 2-in-1 rechargeable wired and wireless remote gives you the flexibility to operate the winch from the vehicle or from a distance. Wireless operation lets you choose the position that gives you the clearest view of the recovery, while USB recharging makes it easy to keep the remote ready for use.

Serious pulling power, small footprint. Measuring just 393 x 127 x 195mm and weighing 16.3kg, the Titan 6000 delivers 6,000lb of pulling power without taking up excessive mounting space. Its compact footprint makes it well suited to quad bikes, side-by-sides, trailers and other applications where space and weight need to be considered.

The Titan 6000lb 12V electric winch delivers the combination of premium construction, serious pulling power, refined control and easy operation that sets the Titan range apart. Whether you're tackling rocky trails, pulling through deep mud, recovering heavy equipment or launching and retrieving a boat, it's built to give you the speed, strength and control you need. Backed by a 5-year warranty, the Titan 6000 is premium recovery equipment built to perform when it matters most.

Sku	60TTSU12
EAN	5056789801944
Rated Line Pull	6000 lbs
Motor Type	12V: Input: 3.4hp / 2.5kW; Output: 1.4hp / 1.1kW
Rated Volt	12
Clutch	Manual
Gearing	202:1
Gearing System	Planetary
Braking Action	Mechanical Spring
Drum Size (Diameter x Length)	50.0 x 138.0 mm
Controls	2in1 Rechargeable Wired/Wireless Remote
Cable Material	Steel
Cable Size (Diameter x Length)	6.5 mm x 14.0 m
Fairlead	Roller
Mounting Pattern	168mm × 76.2mm mm
Dimensions	393 x 127 x 195 mm
Weight	16.3 kg
Warranty	5 Year
Waterproof Rating (IP)	67
Certification	CE, UKCA

Layer of Rope/Cable	Line Pull: lbs(kgs)	Total Rope on Drum ft (m)
1	6000(2722)	10.8(3.3)
2	4877(2212)	24.6(7.5)
3	4109(1864)	40.7(12.4)
4	3549(1610)	45.9(14)

Line Pull lbs (kgs)	Line Speed 12v ft/min (m/min)	Amp Draw 12v
0	13.8(4.2)	22
2500(1134)	7.8(2.4)	95
4500(2041)	6.6(2.0)	170
6000(2722)	3.3(1.0)	220

Titan Winch
Rope and Hook
Fairlead
Mounting Plate
Rechargeable Wired/Wireless Remote
Heavy Duty Battery Cables

User Manual	Download
Specifications Sheet	Download

Load Test

Warrior Winches 5 Year Warranty

BPE Solutions Deutschland GmbH are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earning a
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.

WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 5-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.

WARRANTY EXCLUSIONS

This warranty excludes:

- Cosmetic defects such as paint, decals, ,
- Worn parts due to improper use.
- Steel ropes
- Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.

- Any Accessory part including roller fairleads, hooks and mounting plates.
- Failures due to acts of God and other force major events beyond the manufacturer’s control
- Problems caused by parts that are not original WARRIOR WINCH parts
- Alteration or modification(s) made by any party other than the
- Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
- Any third party equipment
- Batteries

Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

Register your winch here
