Name: NH 10000 Hydraulic Winch
Brand: Warrior Winches
SKU: 10NHSHY
Price: 719.99 EUR
Availability: InStock

The Warrior Winches NH Range is our compact industrial hydraulic winching solution, engineered for professional applications where dependable pulling power, rugged construction and controlled operation are essential. Designed for commercial towing, recovery, construction, forestry, agriculture and other demanding working environments, NH winches combine a compact footprint with the durability needed for regular professional use.

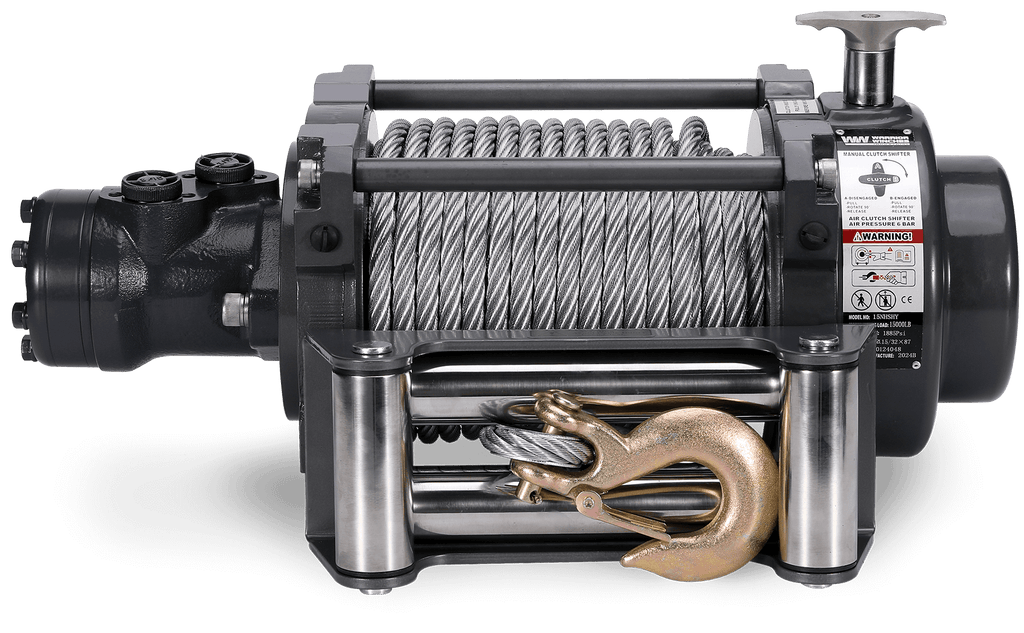

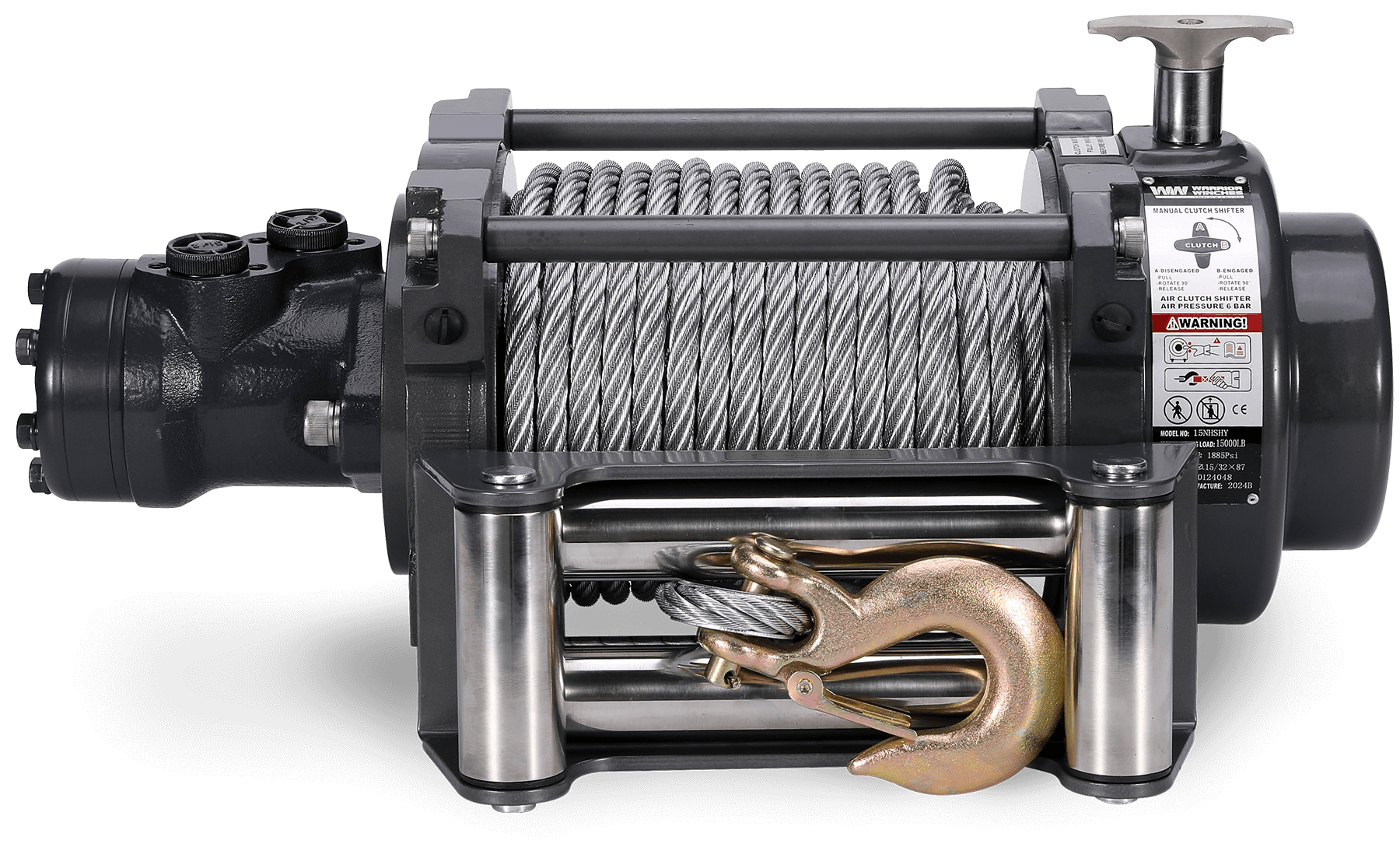

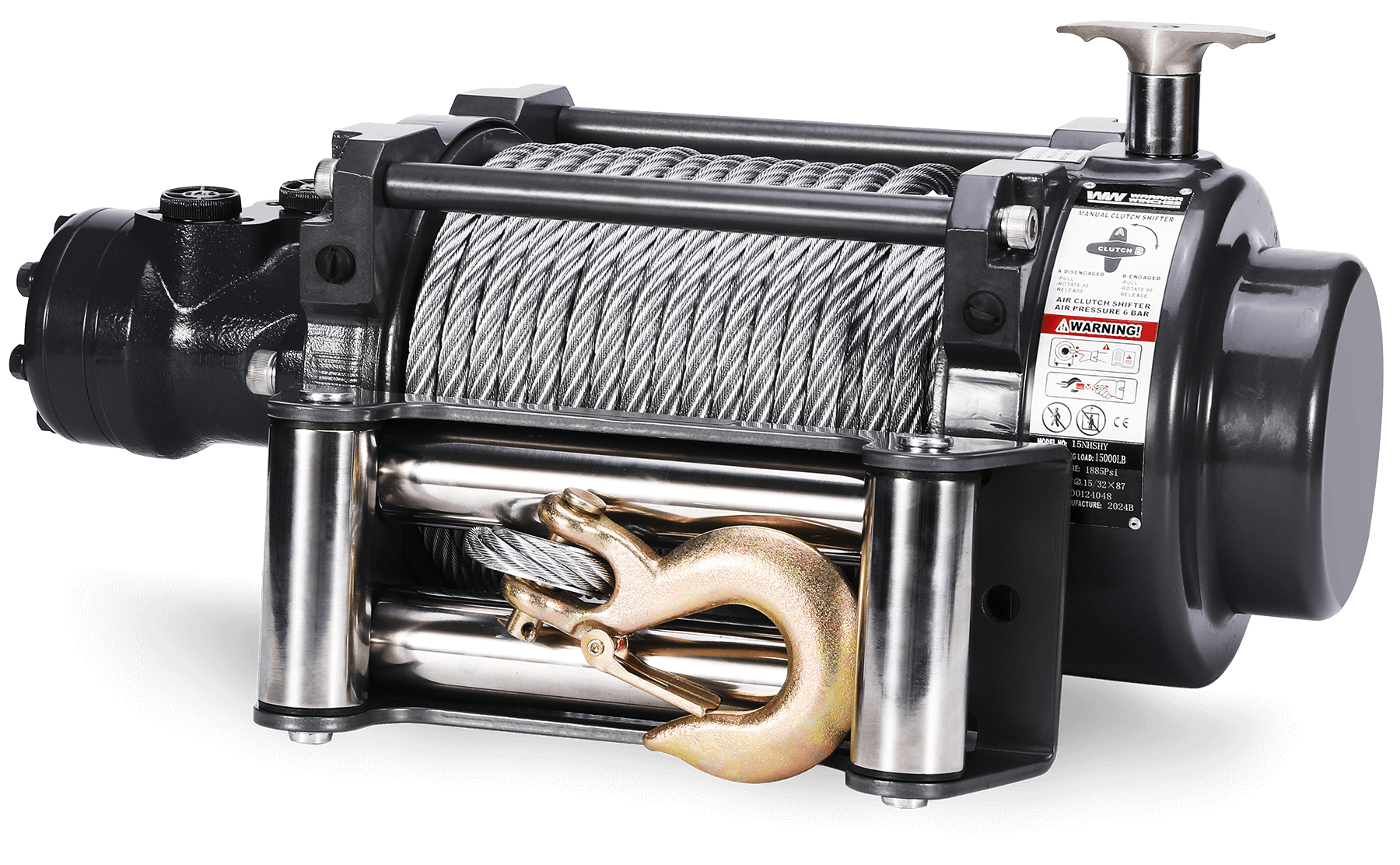

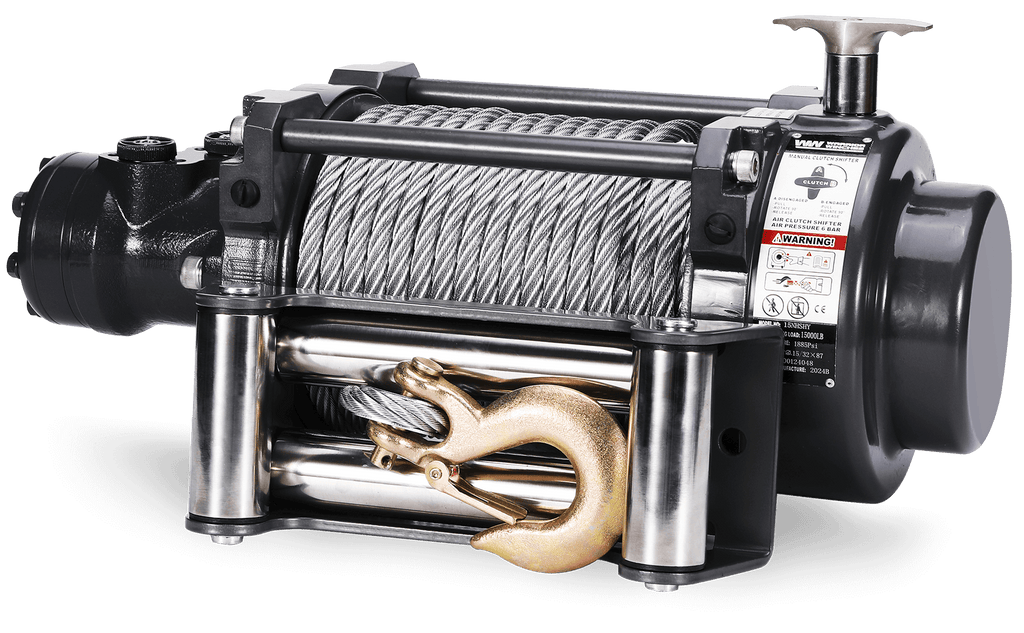

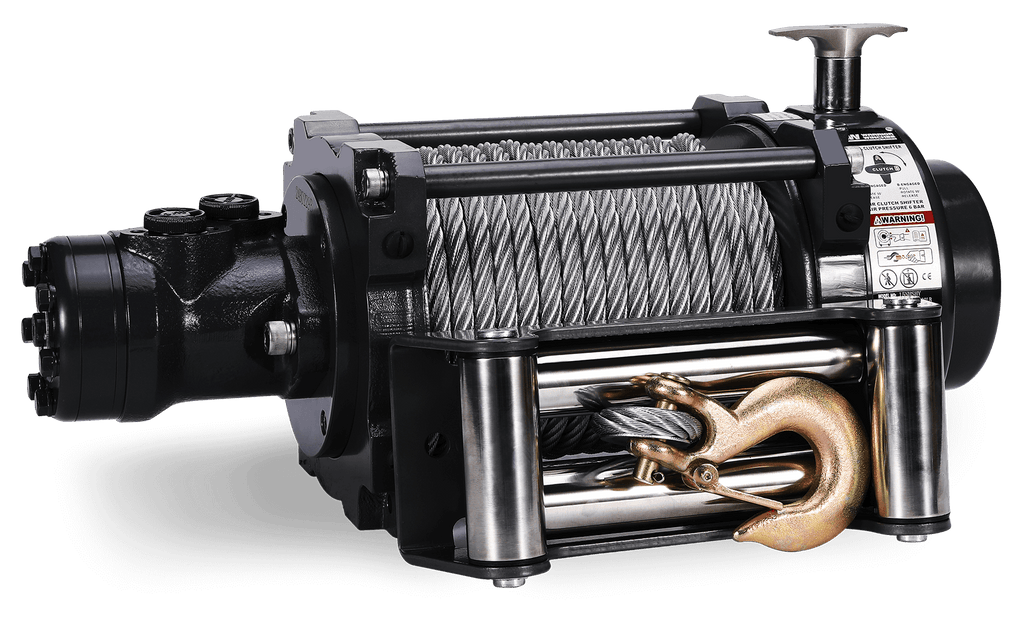

The NH 10,000lb Hydraulic Winch delivers 10,000lb (4,536kg) of rated line pull from a high-efficiency hydraulic motor, backed by patented 25.5:1 planetary gearing and an integral automatic failsafe brake. With 25.5 metres of 10.2mm steel rope, manual freespool and stainless steel external components, it provides a practical combination of pulling power, durability and compact installation for professional applications.

Hydraulic Power in a Compact Package. The high-efficiency hydraulic motor is designed to deliver dependable pulling performance while keeping the overall winch compact. With a maximum hydraulic flow of 45L/min and maximum pressure of 12.5MPa, it can integrate with suitable hydraulic systems for professional use.

Robust Gearing for Reliable Power Transfer. The 25.5:1 planetary gearing system is designed to transfer hydraulic motor power efficiently into controlled pulling force. Its robust construction provides the durability needed for repeated use under demanding loads.

Automatic Failsafe Braking for Added Control. The integral automatic brake provides secure load holding during operation, helping prevent unwanted movement when the winch is under load. It gives operators greater confidence when managing heavy recovery and pulling tasks.

Deploy the Rope Without Power. The spring-engaged manual freespool allows the 25.5 metres of steel rope to be pulled out quickly by hand. This makes line deployment faster and more convenient when setting up for a recovery or pulling operation.

25.5 Metres of Heavy-Duty Steel Rope. The 10.2mm x 25.5m steel rope provides the reach and durability required for professional winching. With four rope layers available on the drum, the NH continues to provide useful pulling capacity as the rope builds up.

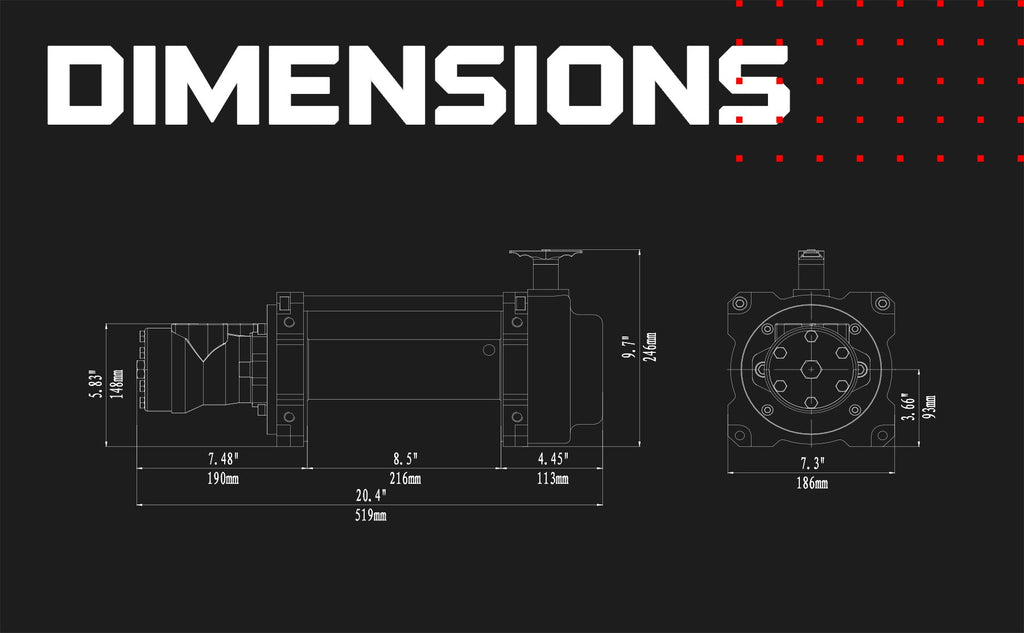

Compact Enough for Practical Installation. Measuring 519 x 206 x 246mm and weighing 53kg, the NH offers serious hydraulic winching capability without an unnecessarily large footprint. Its 254 x 114.3mm mounting pattern also provides a practical installation configuration for suitable vehicles and equipment.

Built for Tough Working Conditions. Stainless steel fairlead and fittings provide increased resistance to corrosion and wear, helping the winch stand up to demanding working environments. The rugged overall construction is designed for reliability and longevity in professional applications.

Controlled Performance Across the Load Range. The NH 10,000lb can achieve line speeds of up to 5.3m/min at maximum specified flow, while maintaining substantial pulling capability as the load increases. This gives professional operators a useful balance between pulling force and efficient rope movement.

Built for Professional Applications. The NH is suited to a wide range of industrial and commercial uses, including towing, vehicle recovery, construction, forestry and agriculture. Its combination of hydraulic drive, compact dimensions and automatic braking makes it a versatile choice where dependable winching performance is required.

Ready for Industrial Winching Work. The NH 10,000lb is supplied with the hydraulic winch, 25.5m steel rope, heavy-duty hook and heavy-duty roller fairlead, providing the essential components required to integrate the winch into a suitable professional installation.

The Warrior Winches NH 10,000lb Hydraulic Winch combines 10,000lb of pulling power, patented 25.5:1 planetary gearing, automatic failsafe braking and 25.5 metres of 10.2mm steel rope into a compact industrial hydraulic winching solution. Built for professional towing, recovery, construction, forestry and agricultural applications, it delivers serious capability while remaining practical to install. The NH range is backed by a 5-year warranty for complete peace of mind.

Sku	10NHSHY
EAN	5060423980476
Rated Line Pull	10000 lbs
Motor Type	Hydraulic
Clutch	Manual
Gearing	25.5:1
Gearing System	Planetary
Braking Action	Auto in the drum
Drum Size (Diameter x Length)	72.0 x 219.0 mm
Controls	N/A
Cable Material	Steel
Cable Size (Diameter x Length)	10.2 mm x 25.5 m
Fairlead	Roller
Mounting Pattern	254mm x 114.3mm mm
Dimensions	519 x 206 x 246 mm
Weight	53.0 kg
Max Flow L/Min	45 L/Min
Max Pressure MPA	12.5 Bar
Warranty	5 Year
Certification	CE, UKCA

Layer of Rope/Cable	Line Pull: lbs(kgs)	Rope on drum ft(m)
1	10000 (4536)	16.4 (5.0)
2	8012 (3634)	37.2 (11.3)
3	6683 (3031)	60.9 (18.6)
4	5732 (2600)	83.7 (25.5)

Line Pull lbs (kgs)	Pressure Mpa (Psi)
0	2.0 (290.1)
3000 (1361)	4.5 (652.7)
6000 (2722)	6.8 (986.2)
9000 (4082)	9.0 (1305.3)
10000 (4536)	12.5 (1812.9)

Line Speed ft/min (m/min)	Flow G/min (L/min)
2.3 (0.7)	1.3 (5)
4.6 (1.4)	2.6 (10)
8.9 (2.7)	5.3 (20)
15.1 (4.6)	9.2 (35)
17.4 (5.3)	10.6 (40)

NH Hydraulic Winch
Steel Winch Rope
Heavy Duty Hook
Heavy Duty Roller Fairlead

User Manual	Download
Technical Drawing	Download
Specifications Sheet	Download

Load Test

Warrior Winches 5 Year Warranty
