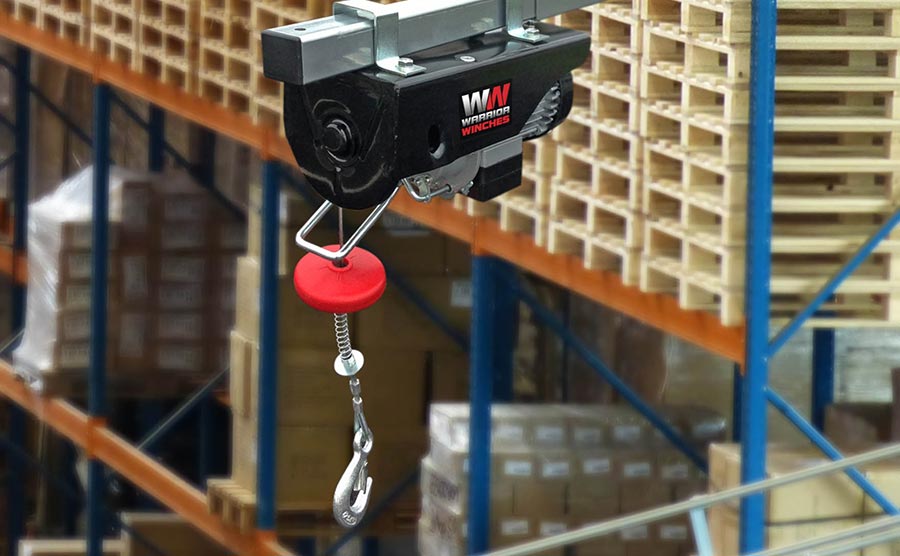

The Warrior Winches Electric Hoist range offers a practical way to lift suitable equipment and materials with less manual effort. Designed for a variety of lifting setups, these compact electric hoists combine convenient remote control, adaptable mounting and built-in safety features to help make moving loads easier to manage.
The Warrior 1000kg Electric Hoist is designed for lifting heavier loads where additional capacity is needed. Its 1600W motor operates on a 240V supply and supports loads of up to 1000kg. With an 18-metre steel rope, wired remote control and the option to add a wireless remote, it provides a flexible lifting solution for suitable installations where a compatible support structure is available.
Lift Loads of Up to 1000kg. Handle heavier equipment and materials with a hoist rated for loads of up to 1000kg. Its electric motor helps reduce the physical effort involved in raising suitable loads, making it easier to position materials when the hoist and supporting structure are correctly rated for the task.

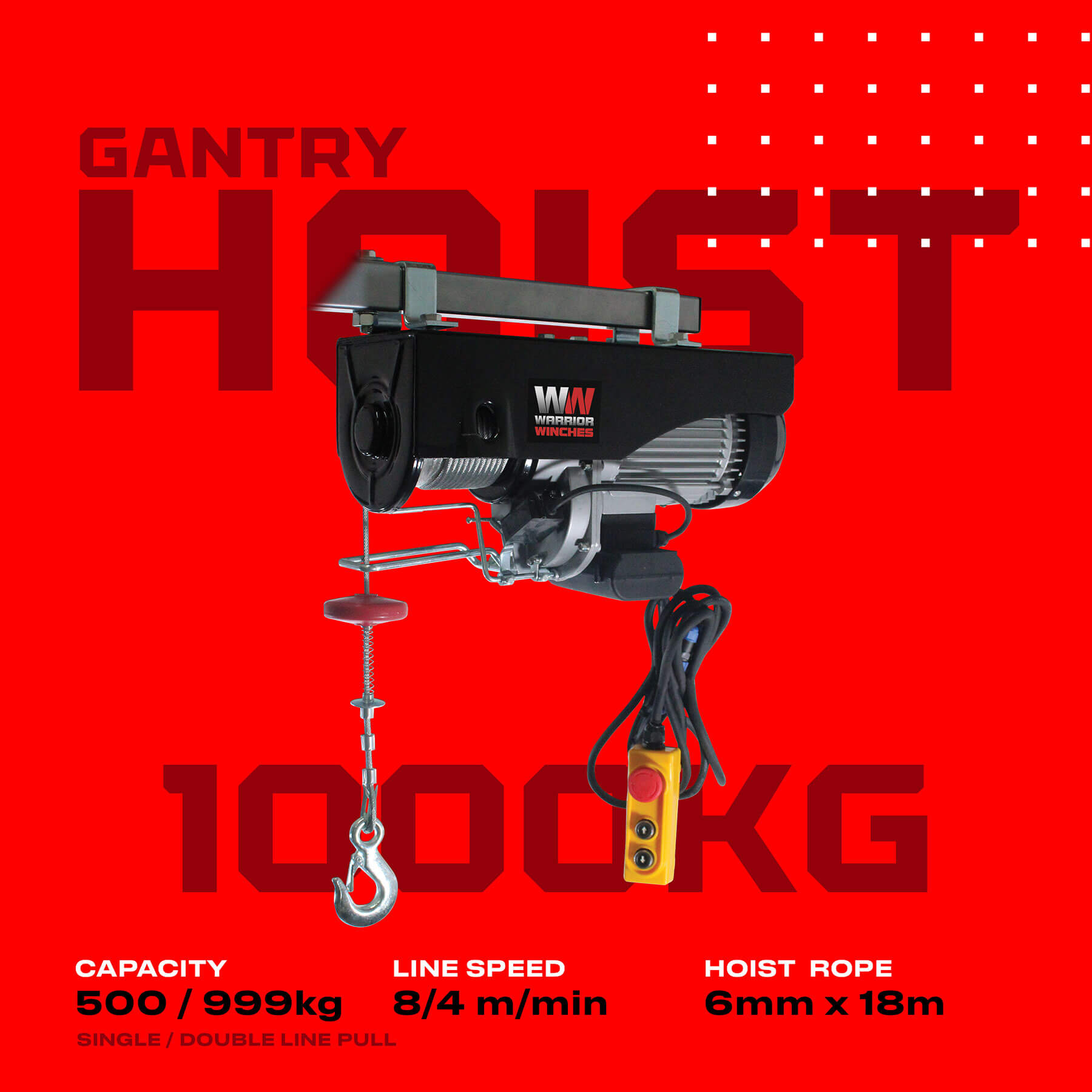

Reach Elevated Positions with 18 Metres of Steel Rope. The 18-metre steel rope gives you the reach to raise loads to elevated working positions. The hoist operates at speeds of up to 8 metres per minute in single-line configuration and 4 metres per minute in double-line configuration, allowing you to select the appropriate arrangement according to the manual's instructions and load limits.
Control Lifting with a Convenient Wired Remote. The wired remote features power-in and power-out controls, giving you a straightforward way to raise and lower loads from a suitable operating position. Its approximately 2.75-metre cable helps keep the controls accessible while you monitor the load and its path. A wireless remote is also available as an optional extra if you need greater freedom of movement.
Simplify Installation and Cable Replacement. The hoist is designed to mount to a suitable box-section support measuring up to 46mm x 46mm. Its easy-change cable design also makes rope replacement more straightforward when maintenance is required. Before installation, ensure the supporting structure and mounting arrangement are suitable for the intended load.
Choose the Right Setup for Your Lifting Task. The supplied pulley allows the hoist to be configured for double-line lifting. This provides an alternative lifting arrangement with greater lifting power at lower speeds than single-line operation.
Help Protect the Motor from Overheating. Thermal overload protection helps protect the motor against excessive heat during operation. The hoist has an S3 20% duty cycle over a 10-minute period, allowing up to 2 minutes of running followed by an 8-minute cooling period. Observing this operating limit helps manage heat build-up and supports appropriate use.

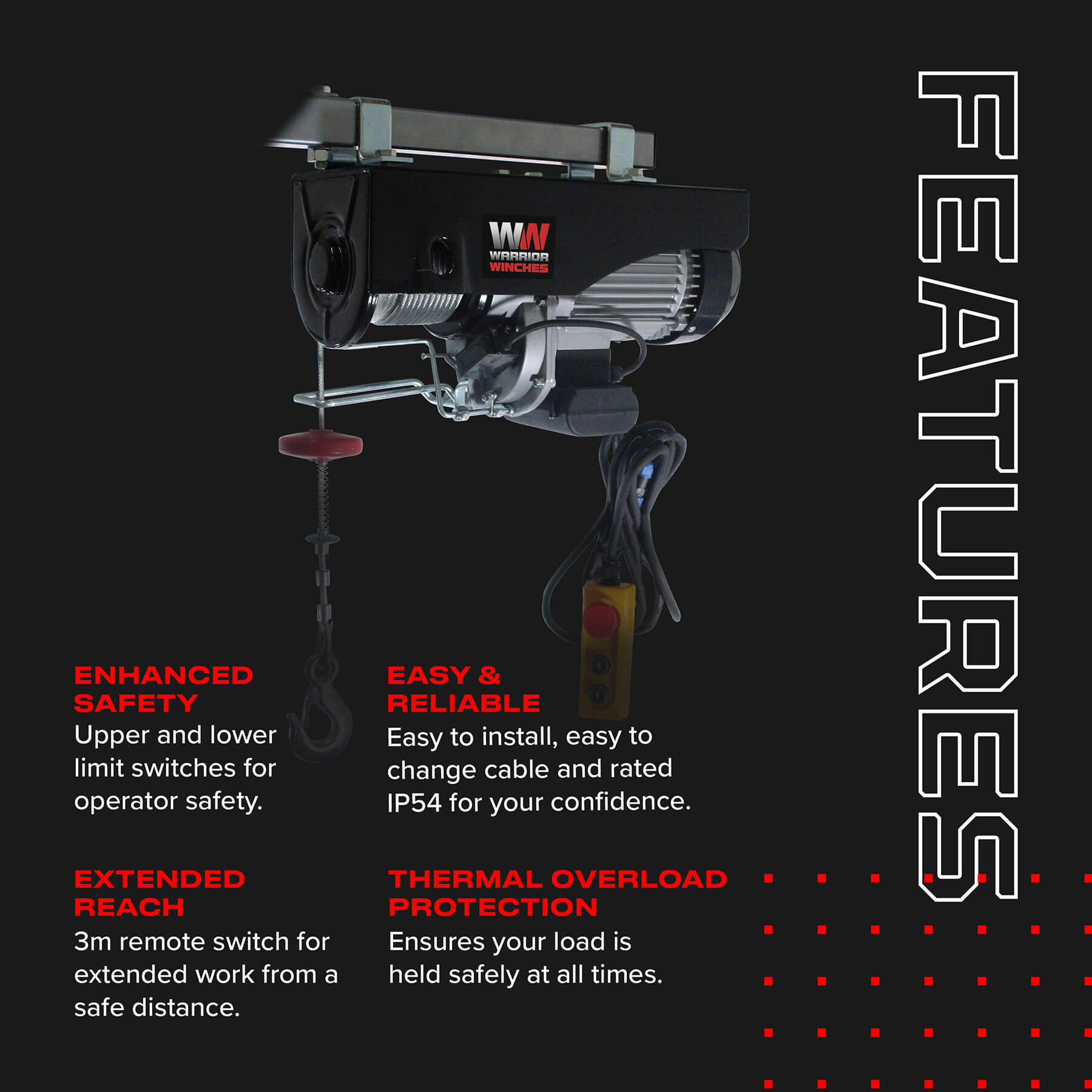

Integrated Features for Controlled Lifting. An integrated limit safety switch helps restrict travel at the end of the lifting range, while the load-holding brake is designed to hold the load when lifting stops. These features support controlled operation but do not replace correct installation, suitable load assessment or safe lifting procedures.
Designed with Recognised Hoist Standards in Mind. The hoist is designed to conform to key elements of BS EN 14492-1 and BS EN 14492-2. These design considerations complement its integrated safety features. Always follow the manufacturer's instructions for installation, operation and maintenance.
Protection for Suitable Working Environments. With an IP54 rating, the hoist is protected against limited dust ingress and splashing water under specified test conditions. Choosing an appropriate installation location helps keep the equipment within its intended operating conditions.
The Warrior 1000kg Electric Hoist combines a 1600W motor, 240V operation and an 18-metre steel rope to support lifting tasks involving heavier loads. Its wired remote, optional wireless control and double-line lifting configuration provide flexibility when planning a suitable setup, while integrated safety features help support controlled operation.
This hoist also has the facility to add a wireless remote control as an optional extra.
