The Warrior Winches Electric Hoist range provides practical lifting solutions for moving tools, equipment and other suitable loads with less manual effort. Compact and versatile, these electric hoists combine convenient remote operation with straightforward installation and integrated safety features to make lifting tasks more manageable in suitable setups.

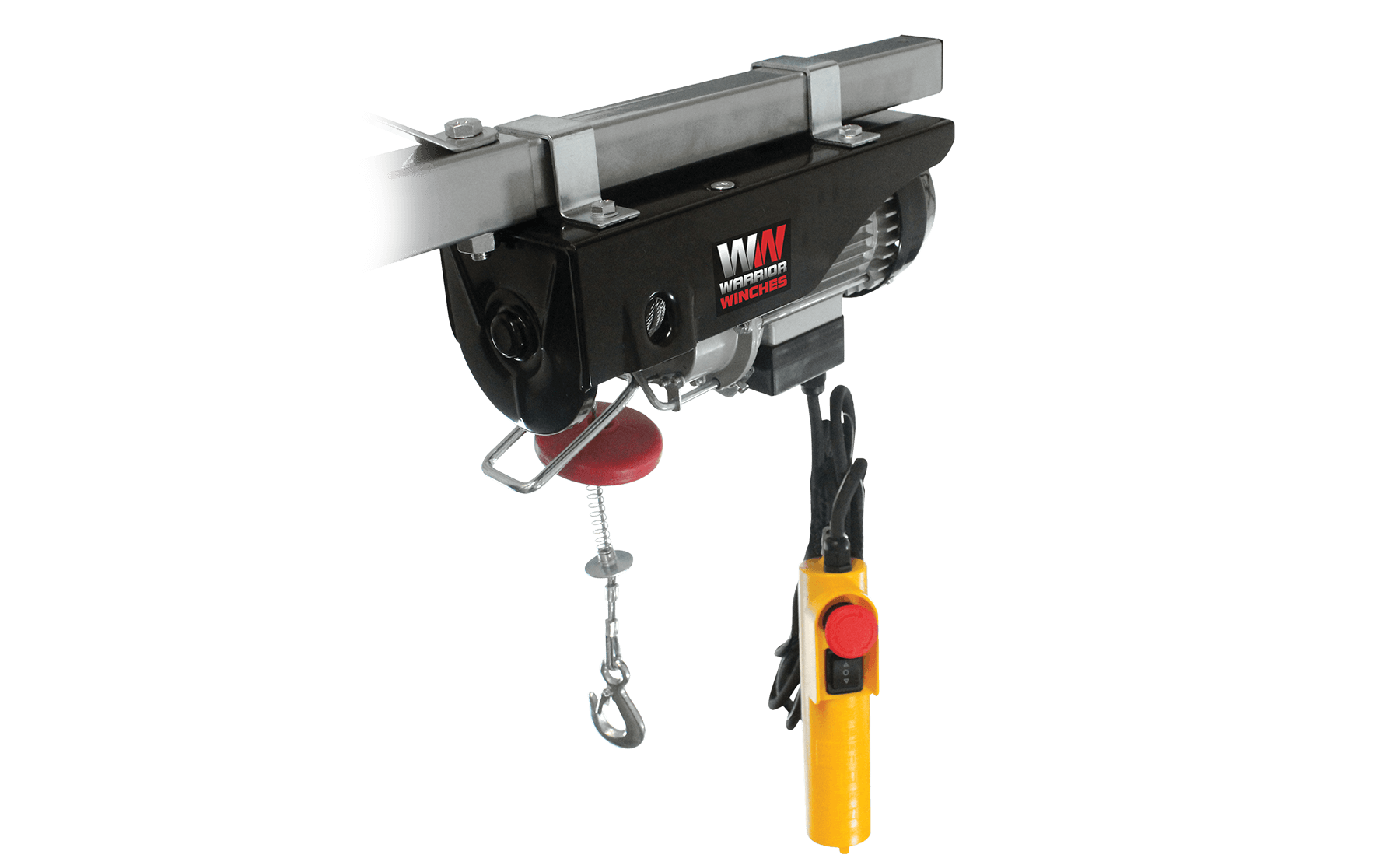

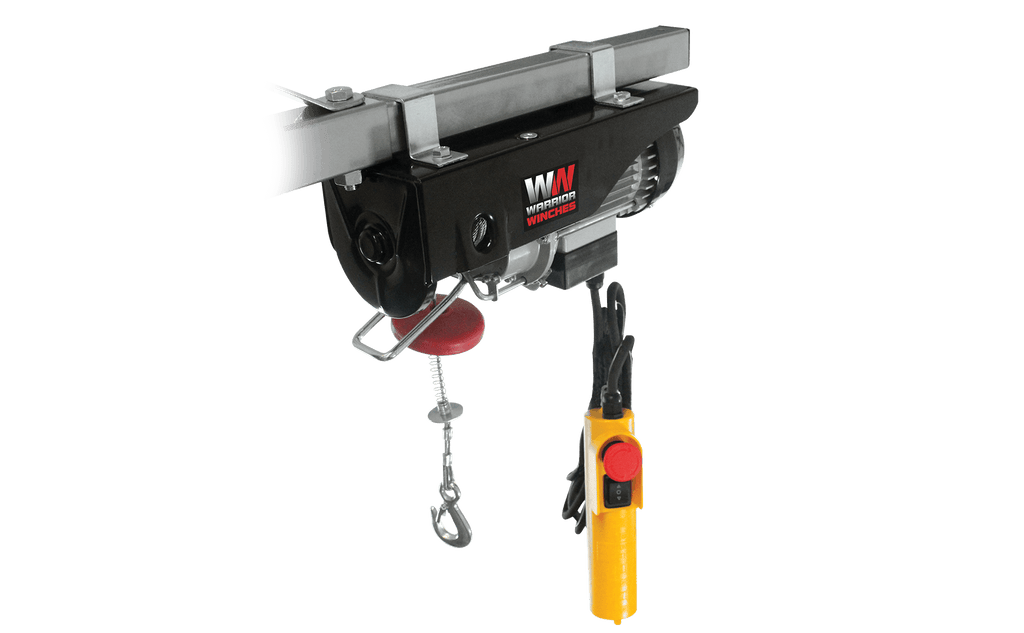

The Warrior 250kg Electric Hoist is designed to make everyday lifting easier in workshops, garages and other suitable working spaces. Powered by a 500W motor and operating from a 240V supply, it can lift loads of up to 250kg, with a lifting height of 12 metres. Its wired remote, adaptable mounting arrangement and supplied pulley offer flexibility for different lifting requirements.
Lift Loads of Up to 250kg. Reduce the effort involved in raising suitable tools, equipment and materials with an electric hoist capable of lifting up to 250kg. It provides a convenient alternative to manual lifting for tasks where loads need to be raised into position, helping make better use of your time and effort.

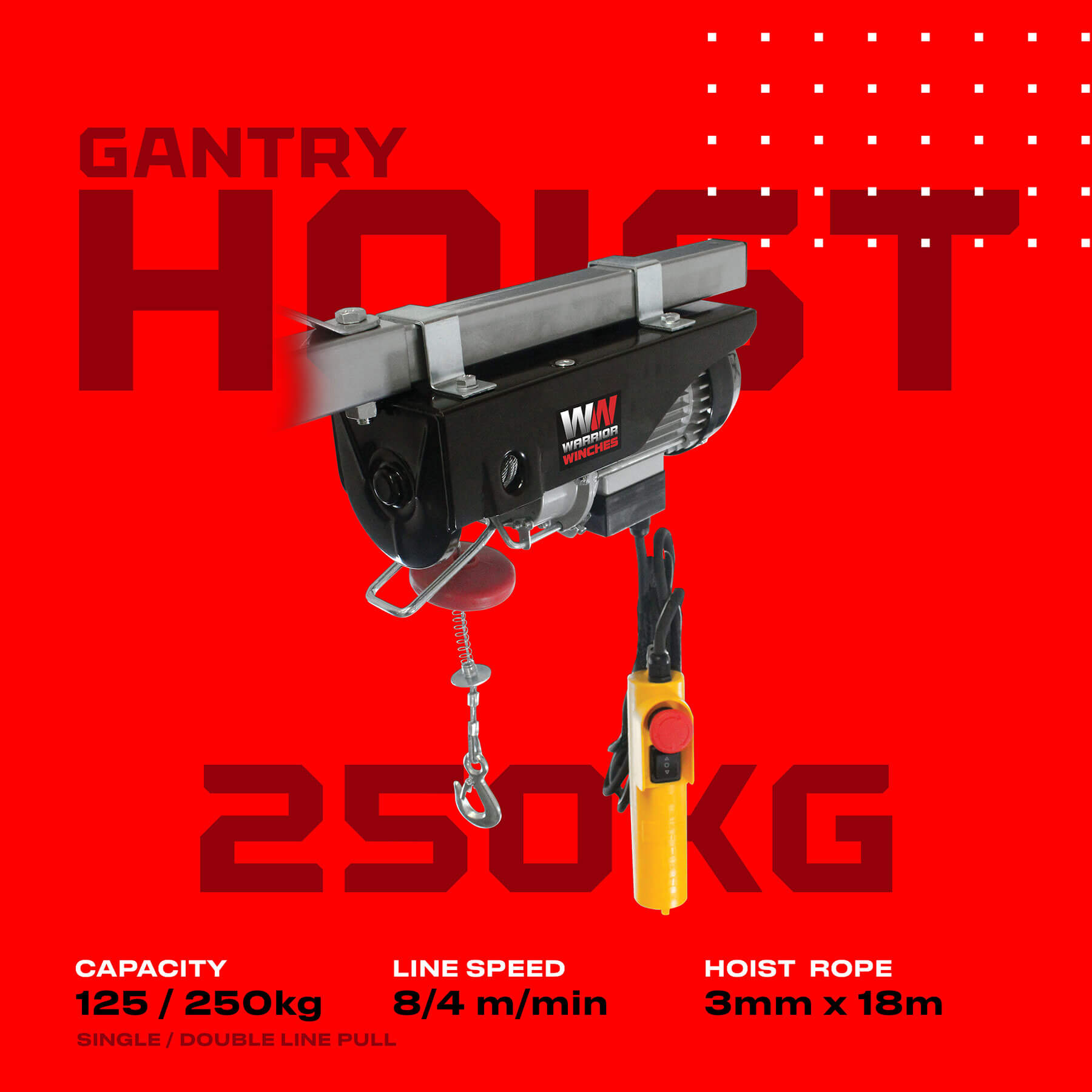

Reach Your Required Lifting Height. With a maximum lifting height of 12 metres, this hoist can help move loads between different levels in an appropriate installation. It offers a lifting speed of up to 8 metres per minute in single-line operation and 4 metres per minute with the supplied pulley configured for double-line lifting.
Control Lifting with a Wired Remote. The wired remote gives you convenient access to the hoist's power-in and power-out controls. Its approximately 3-metre cable provides some flexibility when positioning yourself for a clear view of the lifting operation.

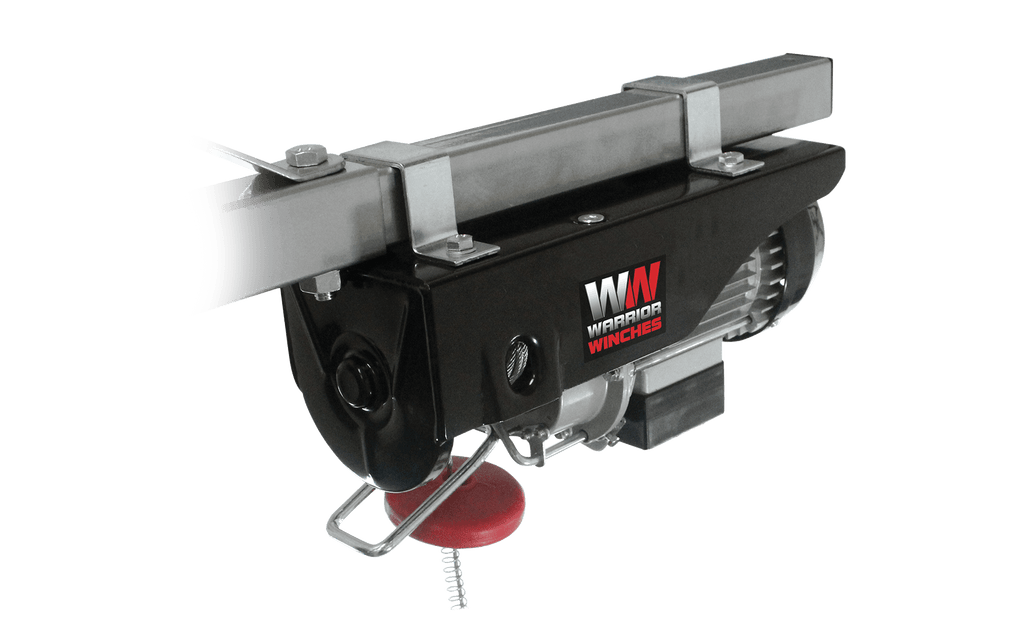

Adapt the Installation to Your Available Space. Designed for straightforward installation, the hoist can be mounted to a suitable box-section support measuring up to 46mm x 46mm. Its compact dimensions of 345 x 130 x 250mm and weight of 10.4kg can make it easier to accommodate in suitable spaces, provided the supporting structure is properly rated for the intended load.
Benefit from a Supplied Pulley for Double-Line Lifting. The included pulley allows the hoist to be configured for double-line lifting. This arrangement provides higher load capacity and lower lifting speed and must be set up in accordance with the manual instructions and rated capacity.
Help Protect the Hoist from Overheating. Thermal overload protection helps protect the motor if it becomes excessively hot during operation. The hoist also has an S3 20% duty cycle, meaning its rated operating pattern is limited: the manufacturer's example specifies up to 2 minutes of continuous running within a 10-minute cycle, followed by an 8-minute cooling period.

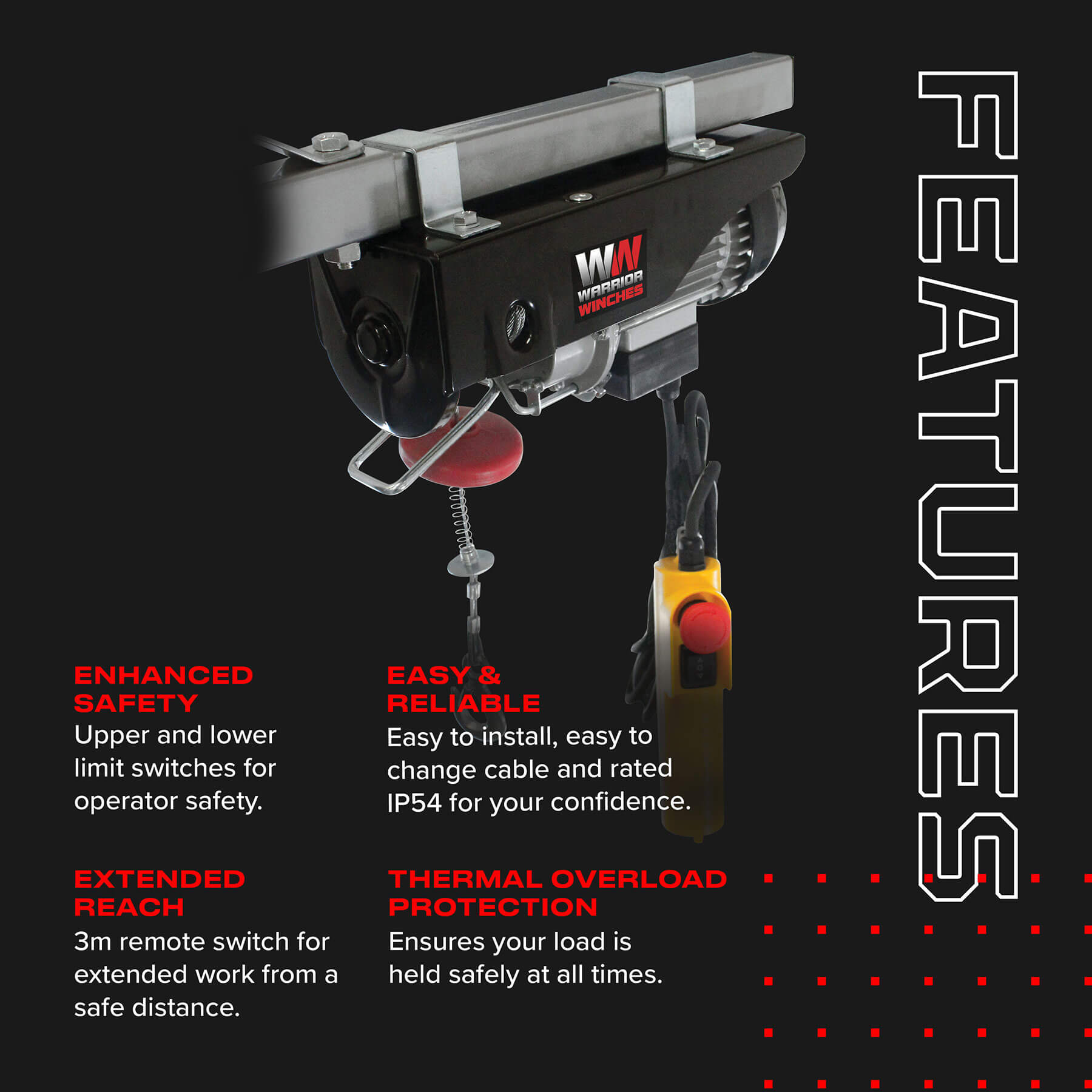

Integrated Features to Support Controlled Lifting. An integrated limit safety switch helps restrict travel at the end of the lifting range, while the load-holding brake is designed to hold the load when lifting is stopped. These features support controlled operation but do not replace correct installation, suitable load assessment or safe lifting practices.
Designed with Recognised Hoist Standards in Mind. The hoist is designed to conform to key elements of BS EN 14492-1 and BS EN 14492-2. This provides a useful reference point for its design, alongside the integrated safety features.
Protection for Suitable Working Environments. With an IP54 rating, the hoist has protection against limited dust ingress and splashing water under specified test conditions. This makes it important to choose an appropriate installation location and avoid exposing the unit to conditions beyond its stated protection rating.
The Warrior 250kg Electric Hoist combines a 500W motor, 240V operation, a 12-metre lifting height and wired remote control in a compact lifting solution. With an included pulley, an adaptable mounting arrangement and integrated safety features, it helps make suitable lifting tasks more convenient in workshops, garages and other appropriate spaces.
This hoist also has the facility to add a wireless remote control as an optional extra.
