240EHA500

Warrior 500kg Electric Hoist - 240v

Warranty: 12 Months

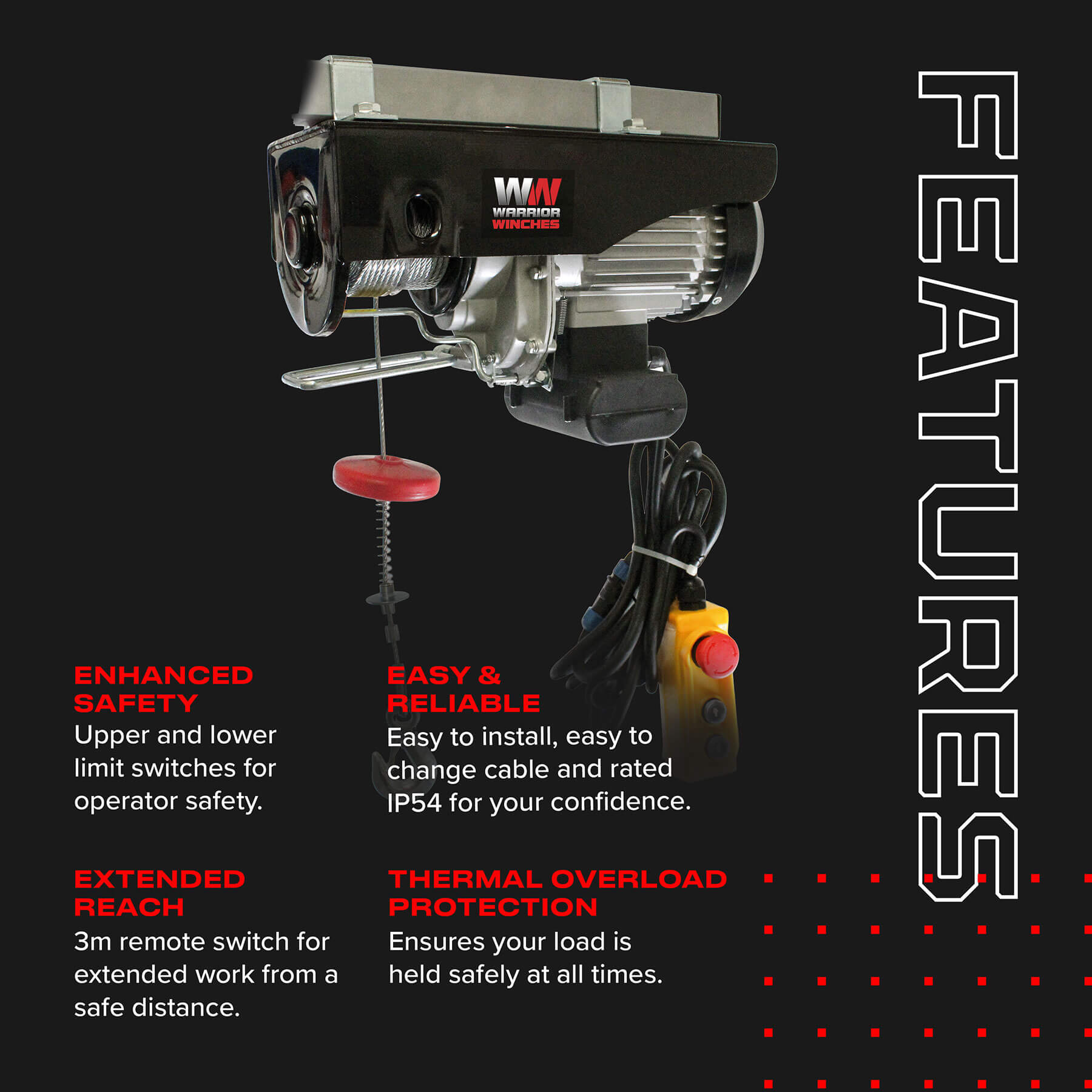

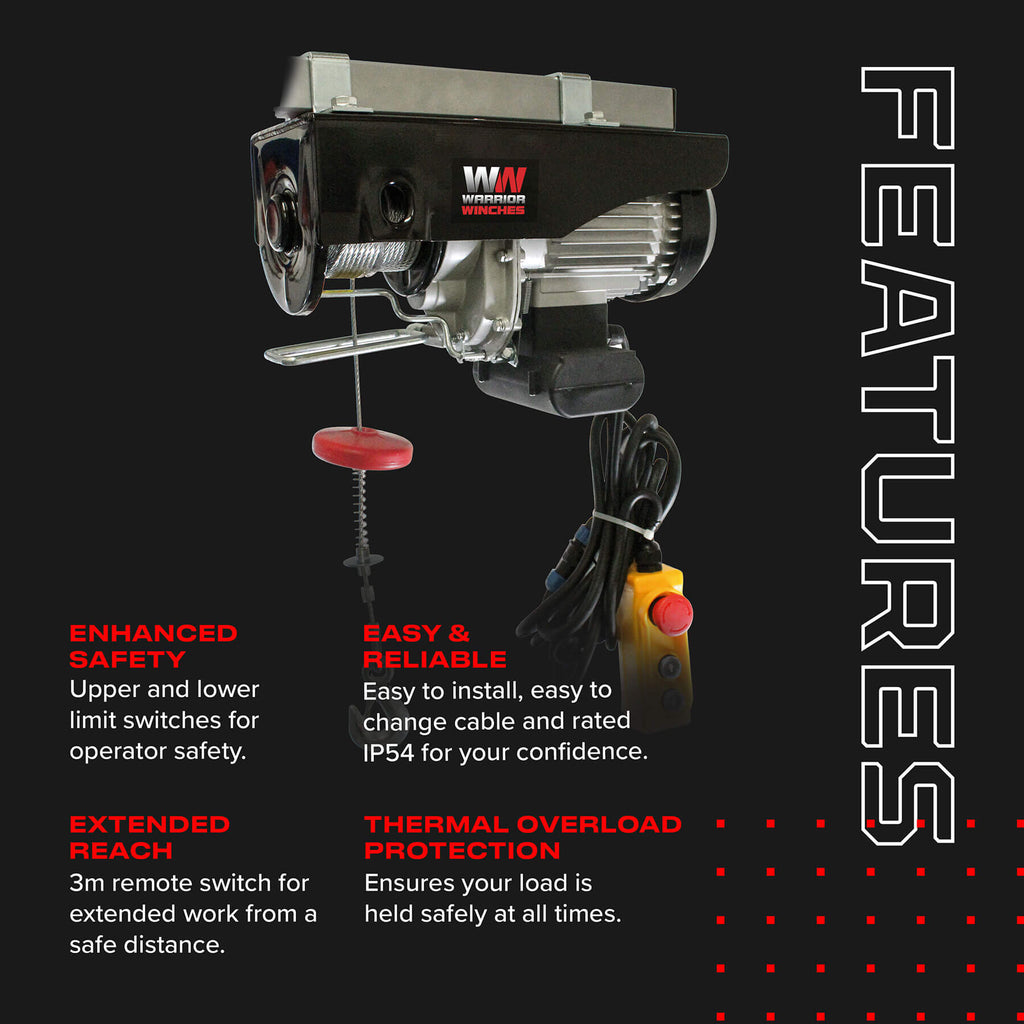

Features

  • More Capacity for Heavier Lifting Jobs - Helps take the effort out of raising suitable loads weighing up to 500kg, making material handling more manageable in compatible lifting setups.
  • Simplify Setup and Routine Maintenance - The mounting design supports easy installation on a suitable structure, while the easy-change cable system helps make rope replacement more convenient.
  • Take Control of Lifting Movements - Use the wired remote's power-in and power-out functions to raise or lower loads easily.
  • Safety-Conscious Design for Greater Confidence - Designed to conform to key elements of BS EN 14492-1 and BS EN 14492-2, alongside integrated features that help support controlled lifting.
  • Help Prevent Excessive Motor Heat - Built-in thermal overload protection helps safeguard the motor against overheating.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

The Warrior Winches Electric Hoist range is designed to simplify lifting tasks by providing powered assistance when moving suitable loads into position. With compact designs, accessible controls and practical lifting features, these hoists offer a convenient option for workshops, garages and other spaces where materials need to be raised safely.

The Warrior 500kg Electric Hoist provides additional lifting capacity for tasks involving heavier equipment and materials. Its 1000W motor runs on a 240V supply and supports loads of up to 500kg. An 18-metre steel rope provides extended lifting reach, while the wired remote allows the operator to control movement from a suitable position. A wireless remote can also be purchased separately for users who prefer an alternative control method.

Move Heavier Loads with 500kg Lifting Capacity. When lifting substantial equipment or materials, powered assistance can make the job considerably more manageable. With a maximum rated capacity of 500kg, this hoist helps reduce the physical demands of raising suitable loads, provided the mounting structure and complete lifting arrangement are rated accordingly.

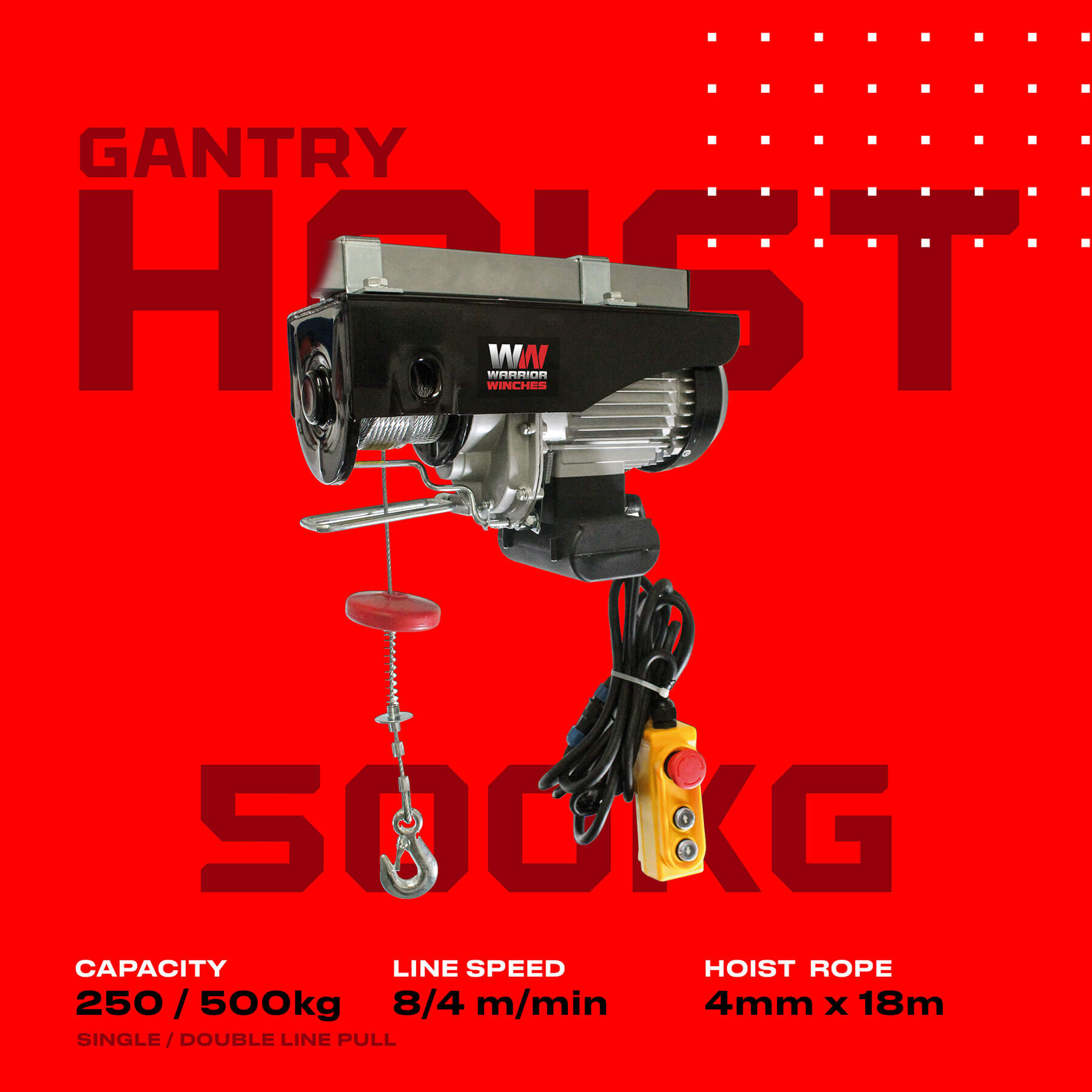

Get More Reach from an 18-Metre Steel Rope. The 18-metre steel rope gives you the reach to lift materials to higher positions within a suitable installation. Choose between single-line lifting at up to 8 metres per minute and double-line lifting at up to 4 metres per minute.

Raise and Lower Loads with Convenient Remote Control. The wired remote places the lifting controls in the operator's hands, making it straightforward to raise or lower a load without reaching the hoist itself. With a control cable of approximately 3 metres, you can choose a suitable operating position while keeping the load and lifting path in view.

Simplify Mounting and Routine Cable Maintenance. The hoist is designed to fit a suitable box-section support measuring up to 46mm x 46mm, helping accommodate it within compatible lifting arrangements. Its easy-change cable design also makes rope replacement more straightforward when maintenance is required. The supporting structure and mounting arrangement must always be checked for suitability before use.

Adapt the Hoist to Different Lifting Tasks. The supplied pulley enables double-line lifting, providing an alternative to the single-line arrangement. This gives you flexibility when setting up the hoist for a task, with lifting speed and capacity varying according to the configuration.

Manage Motor Heat During Repeated Use. Thermal overload protection helps safeguard the motor against excessive heat. The hoist's S3 20% duty cycle specifies a limited operating period: up to 2 minutes of running in a 10-minute cycle, followed by an 8-minute cooling period. Observing this operating pattern helps prevent overheating from excessive use.

Support Safer Lifting with Integrated Controls. An integrated limit safety switch helps stop travel at the intended end of the lifting range, while the load-holding brake is designed to hold the load when the hoist stops. These features contribute to controlled operation, alongside correct installation, appropriate load selection and adherence to safe lifting procedures.

Designed with Recognised Hoist Standards in Mind. The hoist is designed to conform to key elements of BS EN 14492-1 and BS EN 14492-2. These design considerations complement the built-in safety features, but correct installation and operation in line with the manufacturer's instructions remain essential.

Protection for Appropriate Indoor Environments. The IP54 rating provides protection against limited dust ingress and splashing water under specified test conditions. Selecting a suitable location helps protect the equipment and keeps it within its intended operating conditions.

With a 500kg maximum capacity, 1000W motor and 18-metre steel rope, the Warrior 500kg Electric Hoist offers powered lifting for heavier materials in suitable setups. Its wired remote, optional wireless control and single- or double-line configurations provide flexibility when planning a lifting arrangement, while integrated protection features support controlled operation.

This hoist also has the facility to add a wireless remote control as an optional extra.

Sku240EHA500
EAN5060423981138
Rated Line Pull1102 lbs
Rated Volt240
Max Load500
Lift Height 12.0 m
12.0 m (Double line)
Lift Speed 8.0 m/min
4.0 m/min (Double line)
Power1000
ControlsWired Remote
Cable MaterialSteel
Cable Size (Diameter x Length) 4.0 mm x 18.0 m
Limit Safety SwitchIntegrated
Work RateED 20%, 150s/h
Dimensions385 x 148 x 280 mm
Weight16.5 kg
Warranty1 Year
Waterproof Rating (IP)IP54
CertificationCE



  • Electric Hoist
  • Steel Winch Rope with hook
  • 3m Hand Remote Handset
User Manual Download
Technical Drawing Download

Limited lifetime with 1 year on electrical

BPE Holdings Ltd are the sole distributors of WARRIOR WINCHES.

BPE Holdings Ltd (“seller” or BPE Holdings Ltd) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for the lifetime of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (1) one year (12 Months)* from the original purchase provable date of purchase.

Any product BPE Holdings Ltd determines to be defective will be repaired or replaced at BPE Holdings Ltd 's sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

Register your winch here

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

BPE Holdings Ltd shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

BPE Holdings Ltd reserves the right to change the Product design without notice. BPE Holdings Ltd reserves the right to replace any part or whole unit with a newer design of the same function.
