The Warrior Next Generation Scaffold Hoist sets a new benchmark in hoisting technology for professionals demanding top-tier performance and safety. Designed with ease-of-use in mind, this hoist features a secure suspending style mount with a keyed interlock protection hook, enabling fast and safe setup on scaffold systems.

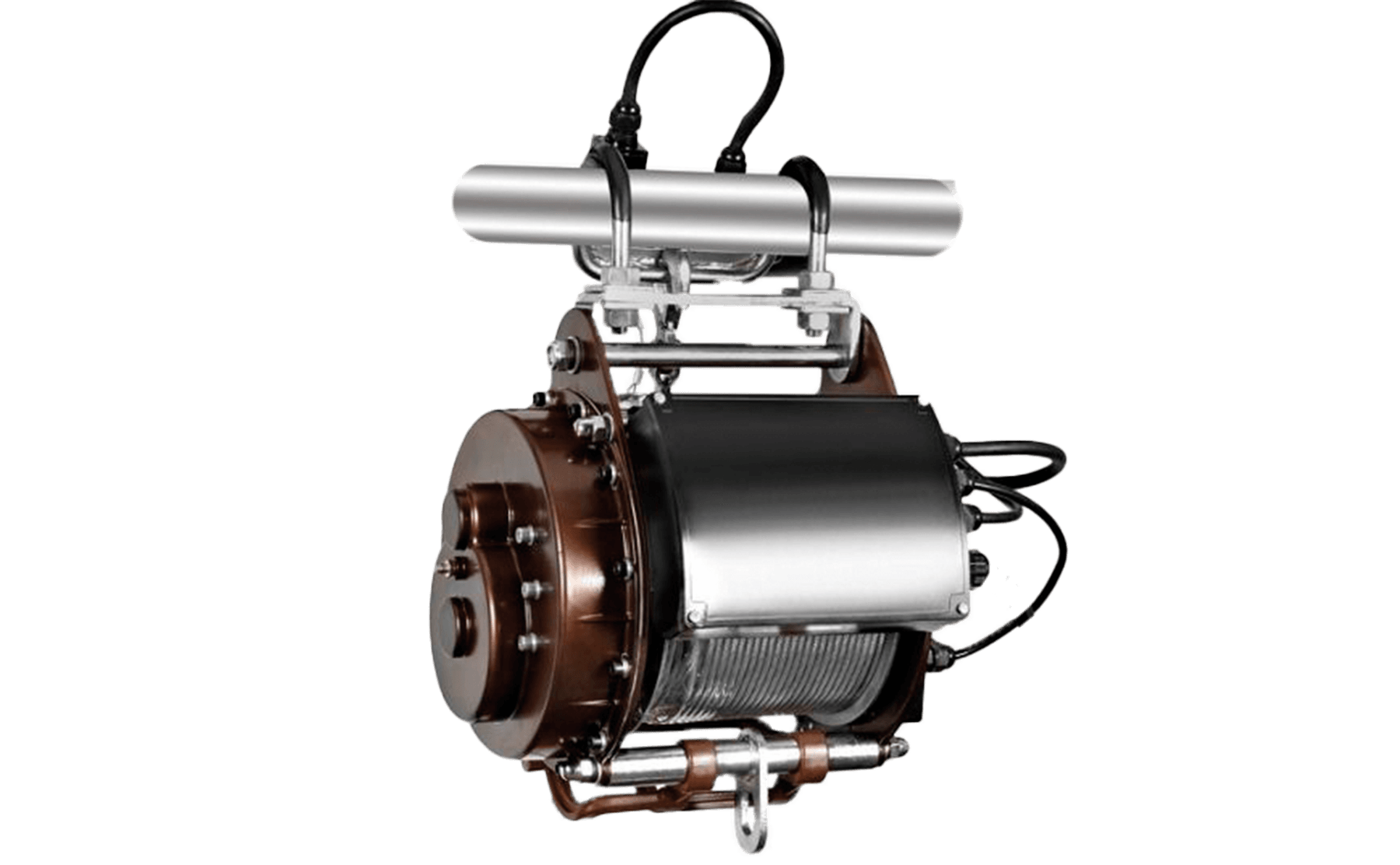

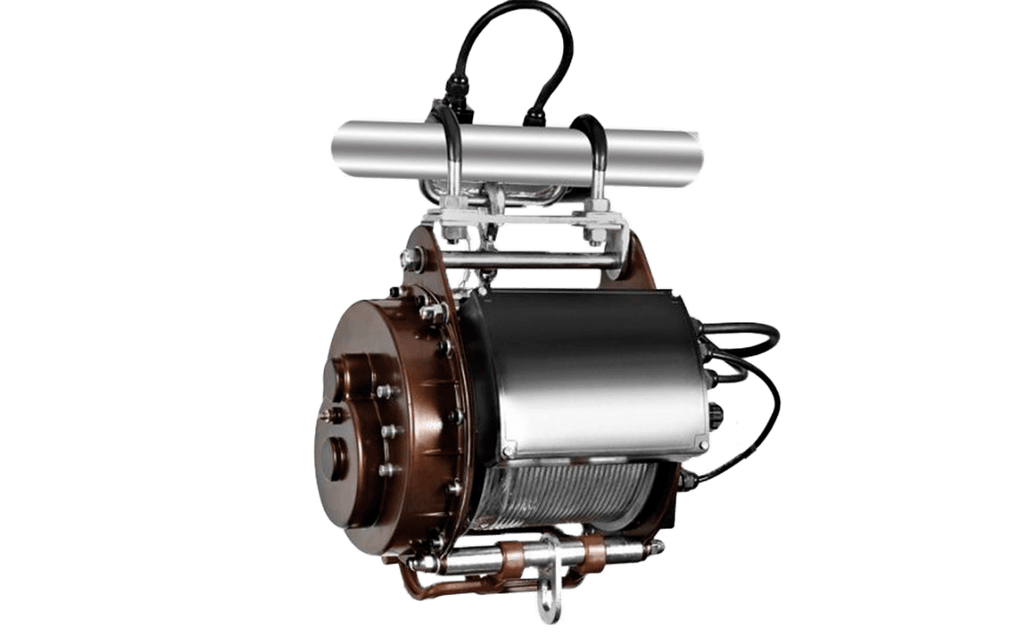

The Warrior 800kg 240V Scaffold Hoist with Wireless Remote is built to make heavier lifting easier & simpler, combining a high-capacity motor with the convenience of cable-free operation. Its 1300W motor provides the power to raise loads of up to 800kg, while the wireless handset gives the operator greater freedom to choose a suitable position when controlling the lift. With 32 metres of steel rope, automatic cable management and a suspension-style mounting system, this model brings together the reach and practical features needed for a versatile scaffold lifting arrangement. It is particularly useful when being able to move around the working area makes controlling the load more convenient.

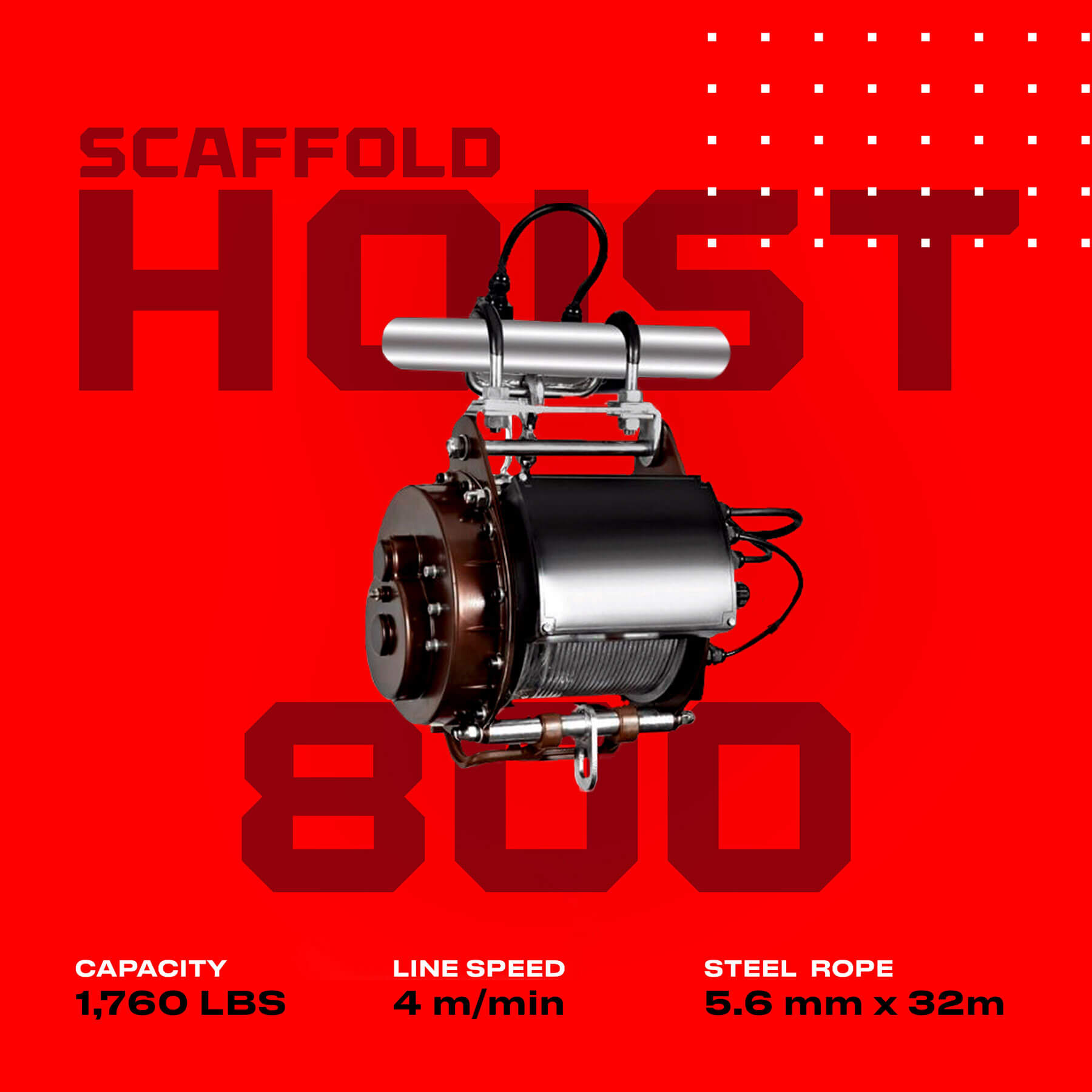

Take on Heavier Lifts with 800kg Capacity. The 1300W motor provides the lifting power to handle loads of up to 800kg, giving you additional capacity when working with heavier materials and equipment. Operating from a 240V supply, it offers lifting speeds of up to 8 metres per minute with single-line operation and 4 metres per minute with double-line lifting.
Make Use of 32 Metres of Steel Rope. The 5.6mm steel rope provides a substantial working length for lifting materials to elevated positions. With 32 metres supplied, you have the flexibility to accommodate different scaffold heights without being limited to a short cable arrangement.
Move Freely While Operating the Hoist. The wireless remote allows you to control lifting movements without being connected to the hoist by a cable. This makes it easier to select a convenient operating position, move around the work area and maintain a clearer view of the load as it travels.

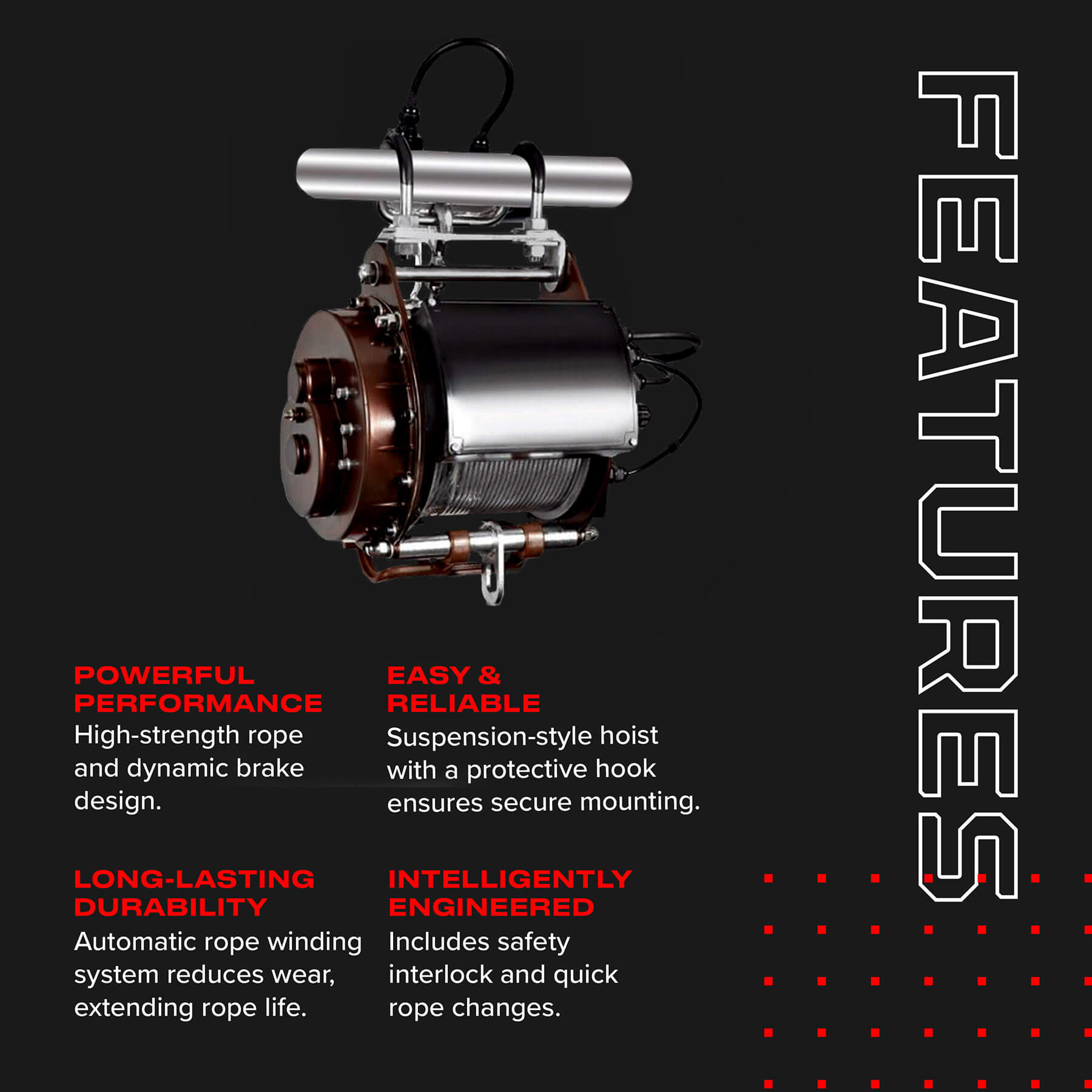

Fit the Hoist Using Its Suspension-Style Mount. A keyed interlock protection hook forms part of the mounting arrangement, helping simplify attachment to a suitable scaffold support. The high-strength carbon steel body features a powder-coated finish, providing a durable outer construction for the lifting mechanism.
Let the Hoist Manage Its Own Rope Alignment. The automatic winding system guides the steel rope onto the drum as it operates, helping prevent uneven accumulation and tangling. Keeping the cable neatly arranged can reduce unnecessary wear and makes the rope easier to manage throughout repeated lifting cycles.
Replace the Cable Without Dismantling the Unit. The easy-change rope system allows replacement of the steel cable without taking the hoist apart. This saves unnecessary work when a new rope is required and makes ongoing equipment maintenance more convenient.
Support Consistent Drum Rotation. A specially developed bearing system helps the cable drum rotate smoothly during operation. By supporting the rotating assembly and reducing friction, this design helps minimise mechanical wear over time.
Built-In Features to Help Manage Lifting Travel. Upper and lower limit switches help prevent the hoist from travelling beyond its intended range. The dynamic braking system assists with controlled stopping, while thermal overload protection helps guard the motor against excessive heat.
IP65-Rated Protection for Suitable Environments. The IP65 rating helps prevent dust ingress and protects the hoist against water, while its powder-coated, high-strength carbon steel construction provides a durable outer structure. The suspension-style mounting arrangement includes a keyed interlock protection hook for secure attachment.
Fully equipped with thermal overload protection and compliant with essential aspects of BS EN14492-1 and BS EN14492-2, this hoist also features upper and lower limit switches and a dynamic brake design for enhanced control under both static and dynamic loads. Whether you're lifting materials or tools, the Warrior Scaffold Hoist delivers industry-leading reliability, safety, and value for any professional scaffolding setup.
