The Warrior Winch Hoist range offers powered lifting solutions designed to help make raising and lowering loads more manageable. With a DC-powered design, these hoists provide an alternative to mains-powered electric models where a compatible battery supply is available.

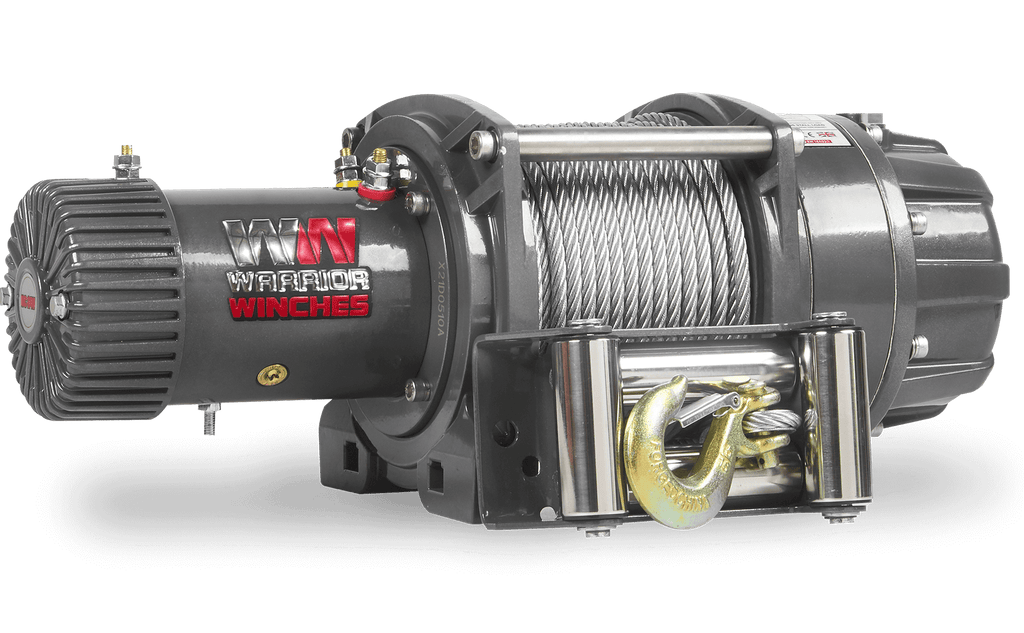

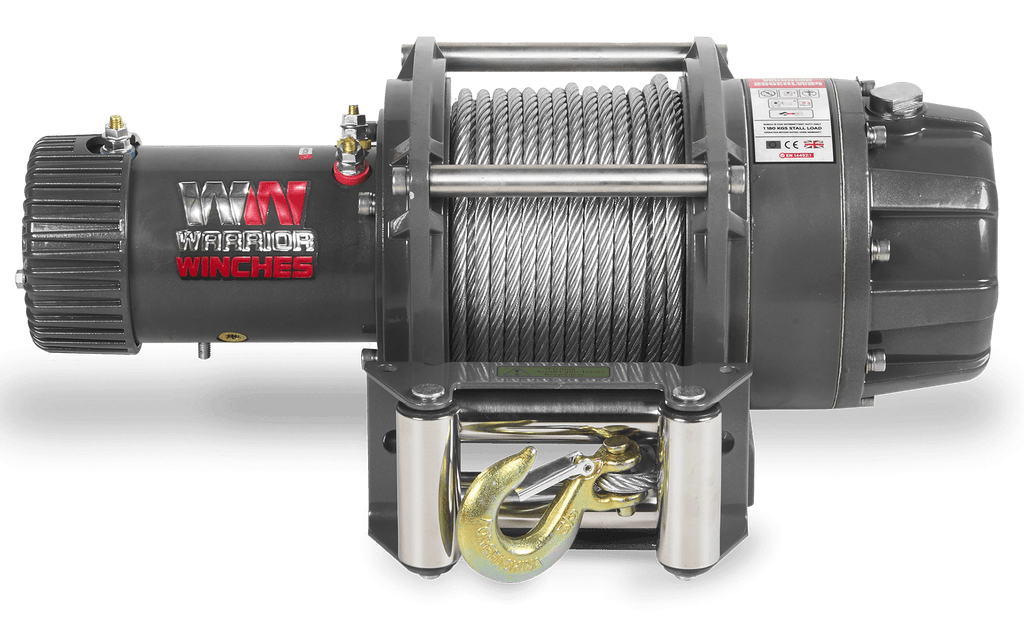

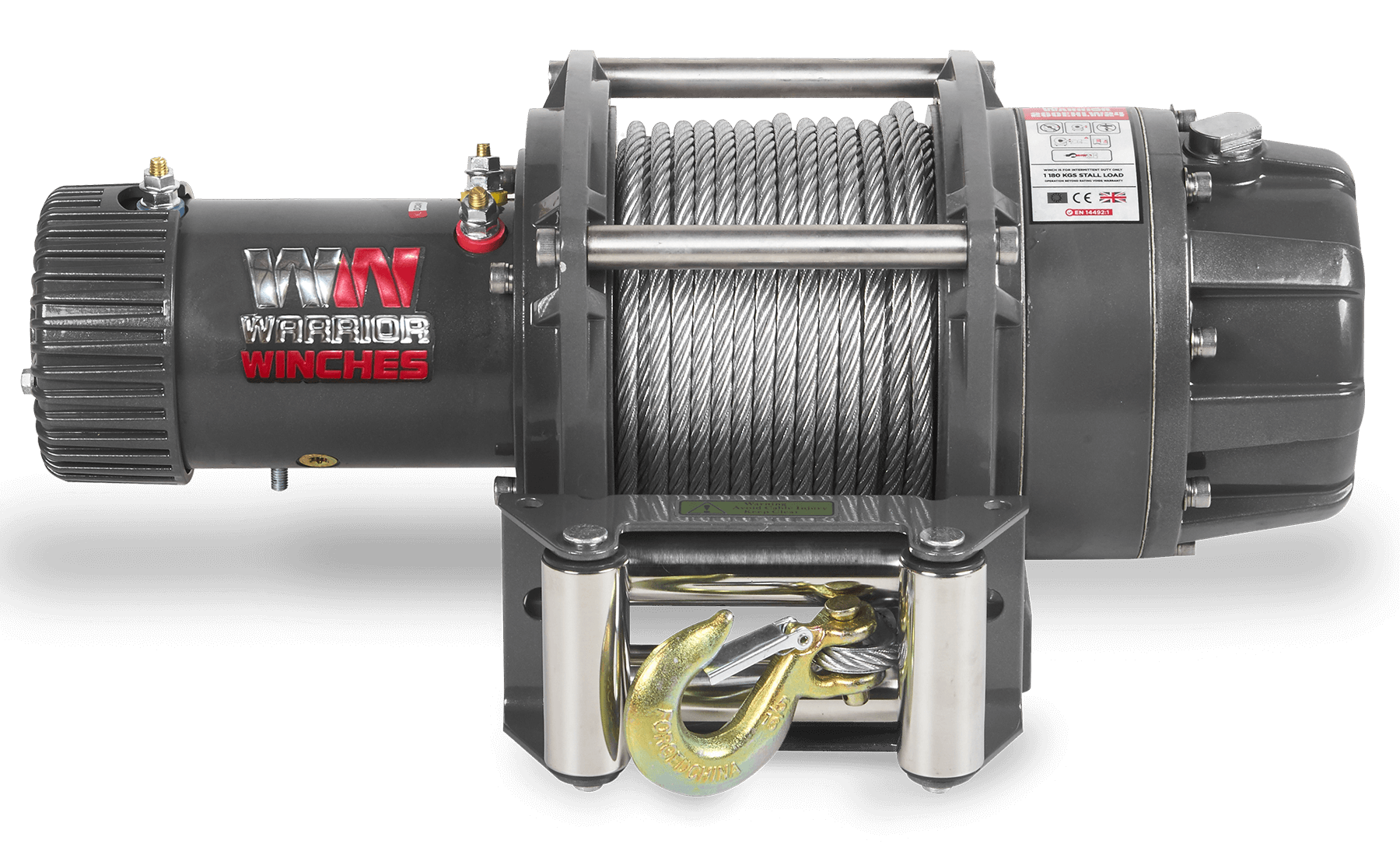

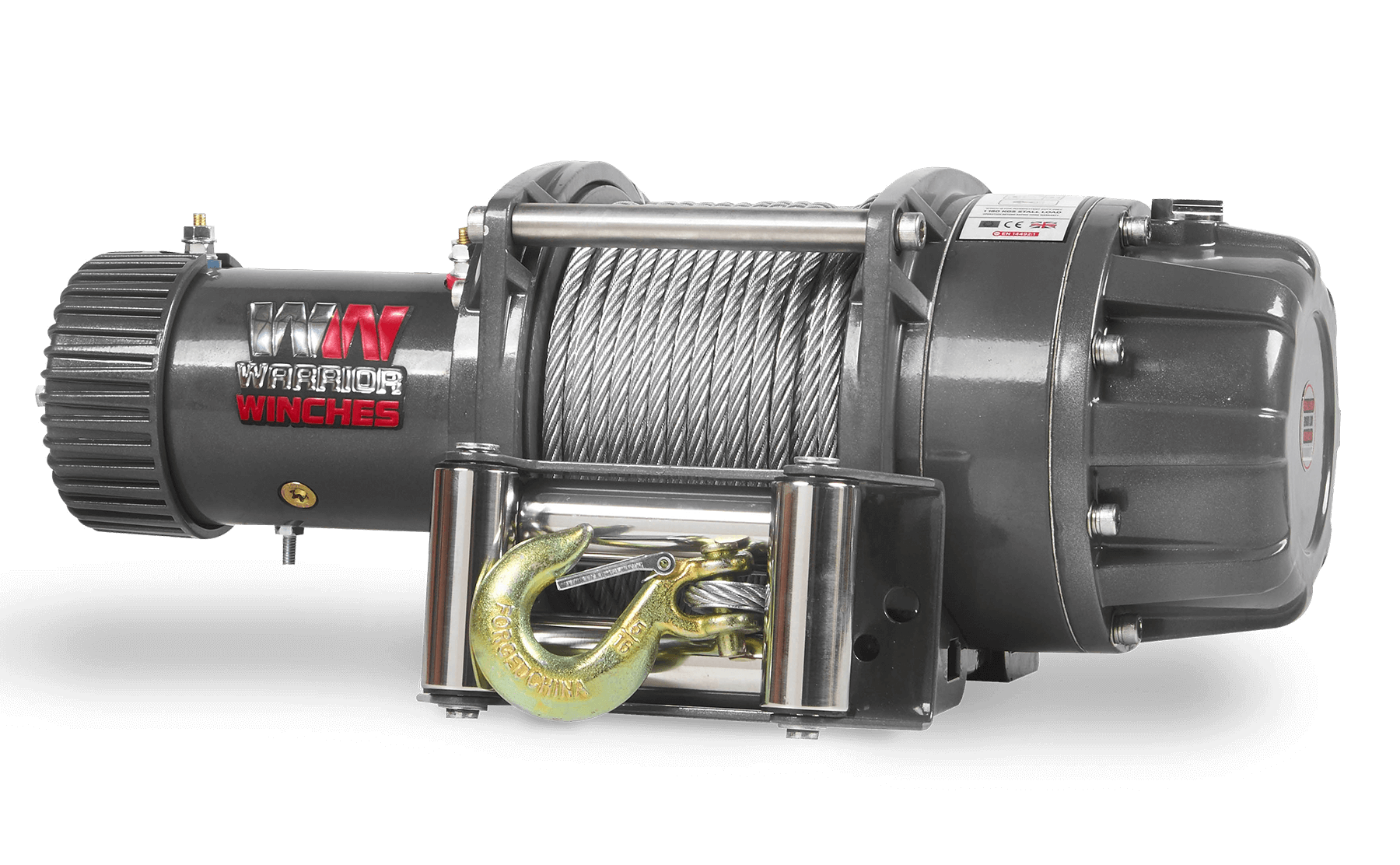

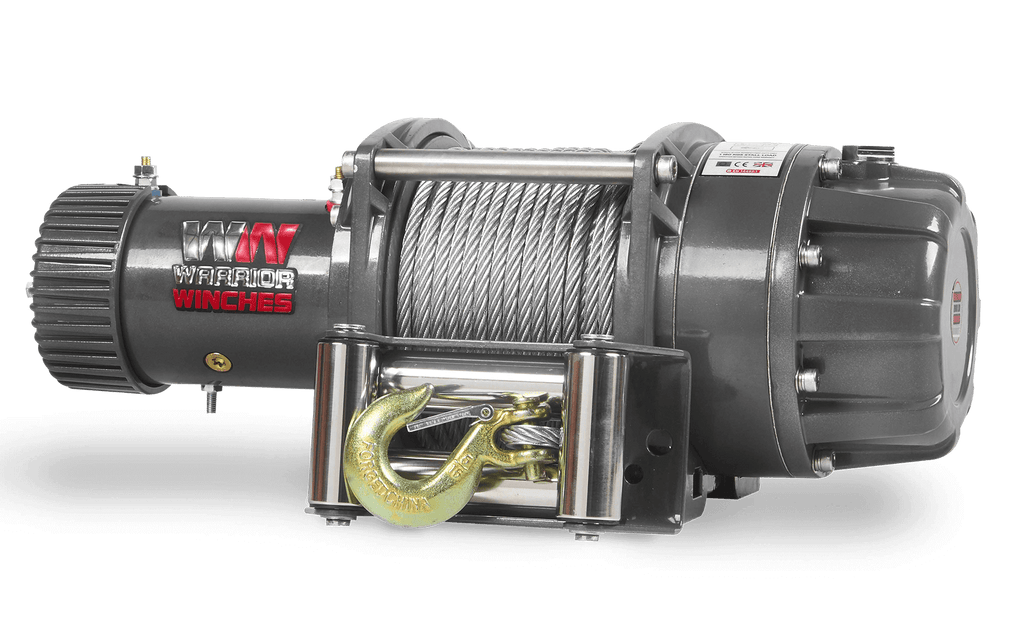

The Warrior 2600lb 12V DC Winch Hoist combines a 1,180kg maximum rated line pull with 28 metres of steel rope and a powerful series-wound motor. Featuring an automatic mechanical brake, wired remote with emergency stop and an IP68-rated control box, it brings together practical operating features for suitable lifting applications.
Lift Loads with Up to 1,180kg of Rated Line Pull. With a rated line pull of 2,600lb (1,180kg) on the first layer of rope, this model provides substantial lifting capability for compatible loads.
Reach Further with 28 Metres of Steel Rope. The supplied 8.1mm-diameter steel rope offers a generous 28-metre length, giving you flexibility when setting up a lift that requires additional reach. The robust steel construction is suited to demanding lifting tasks, while the substantial rope capacity helps accommodate different lifting heights.
Get Powerful Performance from a 12V DC Motor. The series-wound 12V DC motor delivers 5.5kW of input power and 2.9kW of output power. This setup is useful where a compatible 12V electrical supply is available, providing powered lifting without relying on a conventional 240V mains connection.
Operate the Hoist from a Wired Remote. The included hand remote allows you to control the winch from a convenient operating position. Its integrated emergency stop gives you a direct way to stop operation when necessary, helping you manage the lifting process with greater control.
Help Keep Loads Secure with an Automatic Mechanical Brake. The automatic cone brake is designed to hold the rated load when the winch stops, supporting controlled lifting and helping prevent unwanted movement during pauses. Always follow the operating instructions and never rely on the brake as a substitute for appropriate load securing and safe lifting procedures.
Spend Less Time on Routine Gear Maintenance. An all-metal, three-stage gear train with permanent grease lubrication helps simplify routine maintenance. The clutchless design also provides straightforward operation, allowing you to focus on the lifting task rather than managing a separate clutch mechanism.
Protect Electrical Components with an IP68-Rated Control Box. The sealed control box is rated IP68, helping protect its electrical components against dust and water ingress under the specified test conditions.
Designed with Recognised Hoist Standards in Mind. The hoist conforms to part of BS EN 14492-1.

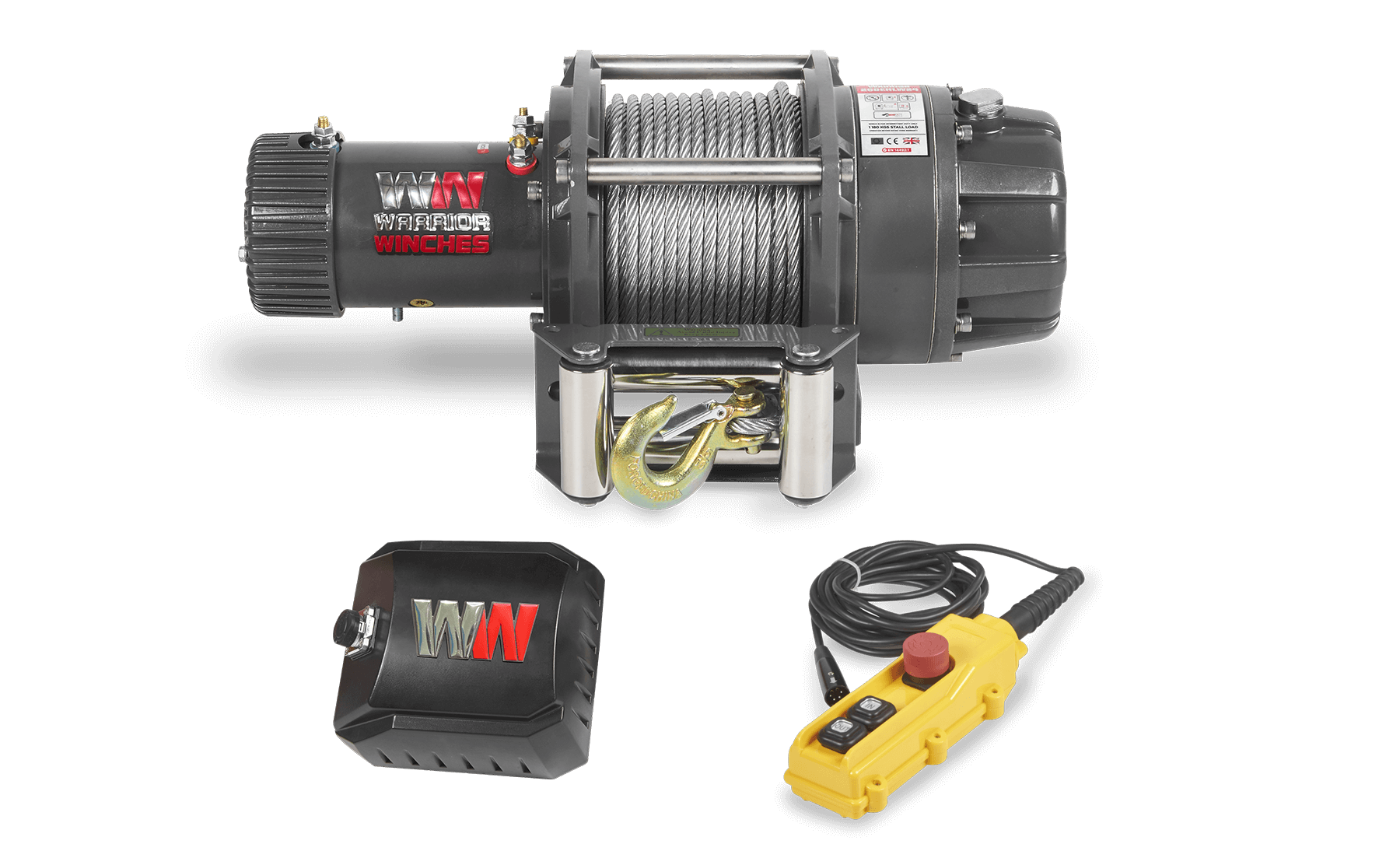

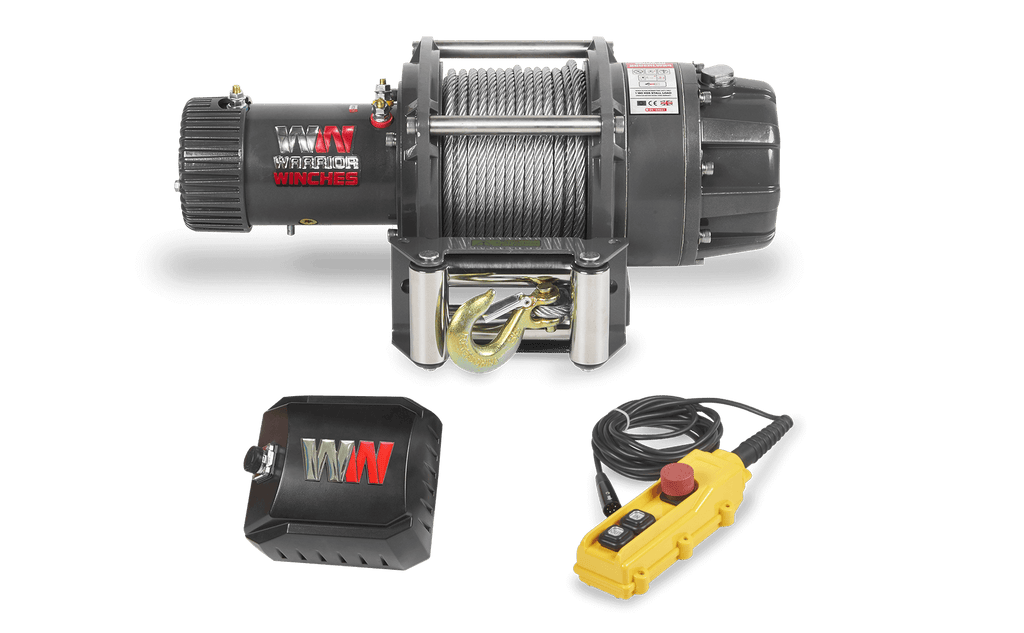

A Ready-to-Install Lifting Package. The package includes the DC winch hoist, steel rope, heavy-duty hook, wired remote handset with emergency stop, watertight contactor and mounting hardware. Check the mounting arrangement, electrical supply and suitability of the complete lifting system before installation and use.
Combining 12V DC operation, a long steel rope and integrated load-control features, the Warrior 2600lb DC Winch Hoist is a practical option for suitable lifting tasks where a compatible low-voltage power supply is preferred. It is backed by a 12-month warranty.
