35STS12

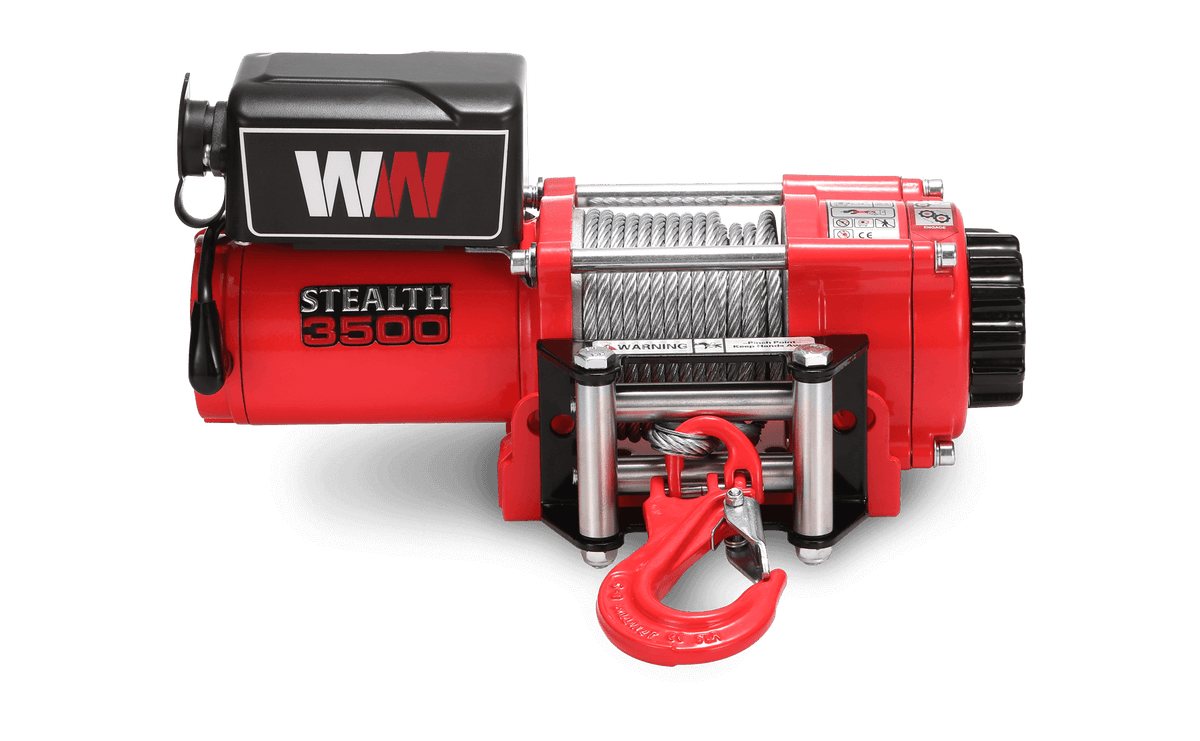

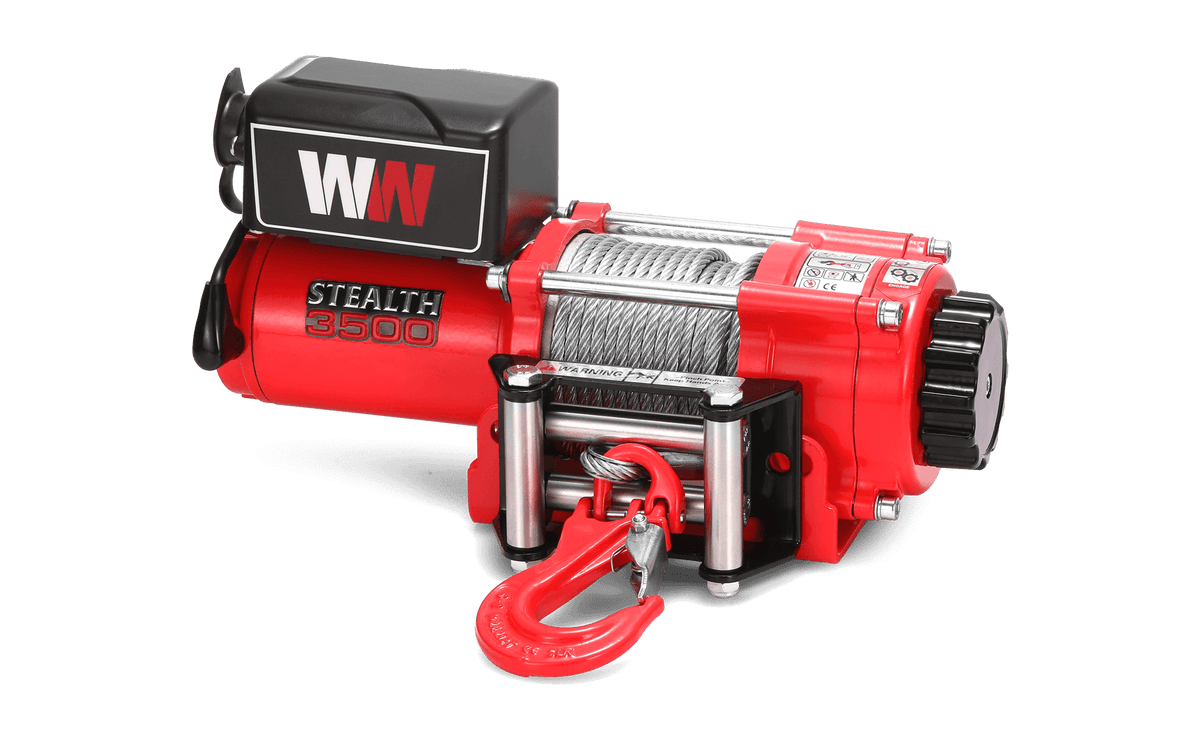

Stealth 3500lb Winch - 12v Steel Rope

Warranty: 3 Years
12.8m Steel Rope
14m Synthetic Rope
Find a store near you

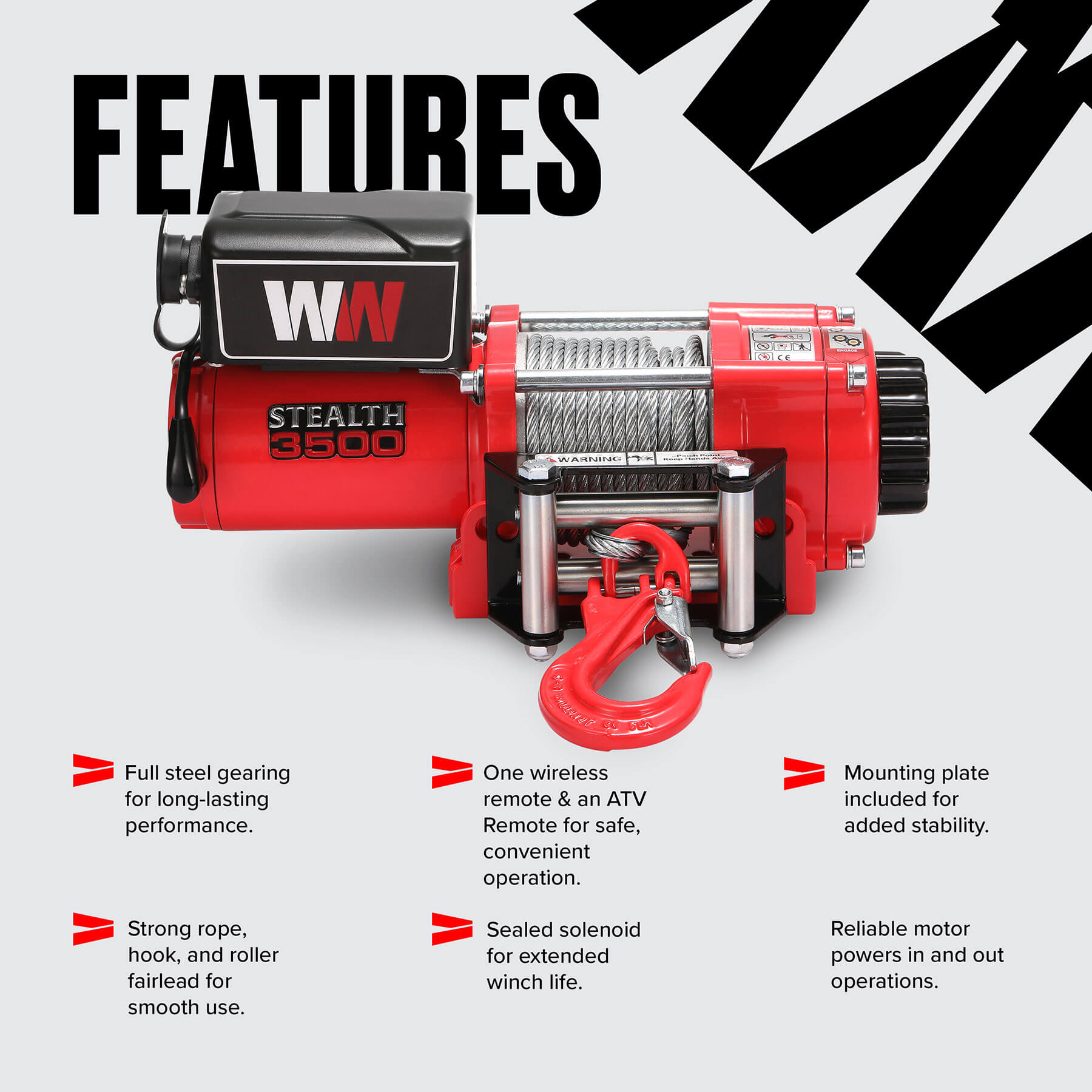

Features

  • Compact Power for Demanding Recoveries - With 3,500lb of pulling capacity, this Stealth provides dependable recovery power in a compact package, making it ideal for smaller 4x4s, trailers and recreational vehicles.
  • Steel Rope Ready for Hard Work - The 12.8m x 5.4mm steel rope is built for dependable recovery use and comes complete with a clevis hook and handsaver strap for safer, more controlled operation.
  • Reliable Power in Both Directions - The reversible 1.3hp 12V permanent magnet motor delivers dependable pulling power in both directions, giving you the flexibility to recover, reposition and manage your load with confidence.
  • Deploy Your Line by Hand - The manual freespooling clutch lets you disengage the gearbox and pull the steel rope out by hand, making it quicker and easier to position your line before starting the recovery.
  • Everything You Need to Get Moving - Supplied with wired and wireless controls, a mounting plate, fairlead, mounting bolts and essential installation hardware, the Stealth 3,500lb comes ready to be fitted and put to work.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

The Warrior Winches Stealth Range is built for 4x4 owners and off-road drivers who want dependable recovery performance without paying for features they don't need. Combining proven engineering, reliable motors, durable gearing and practical recovery features, Stealth winches deliver serious capability at an accessible price.

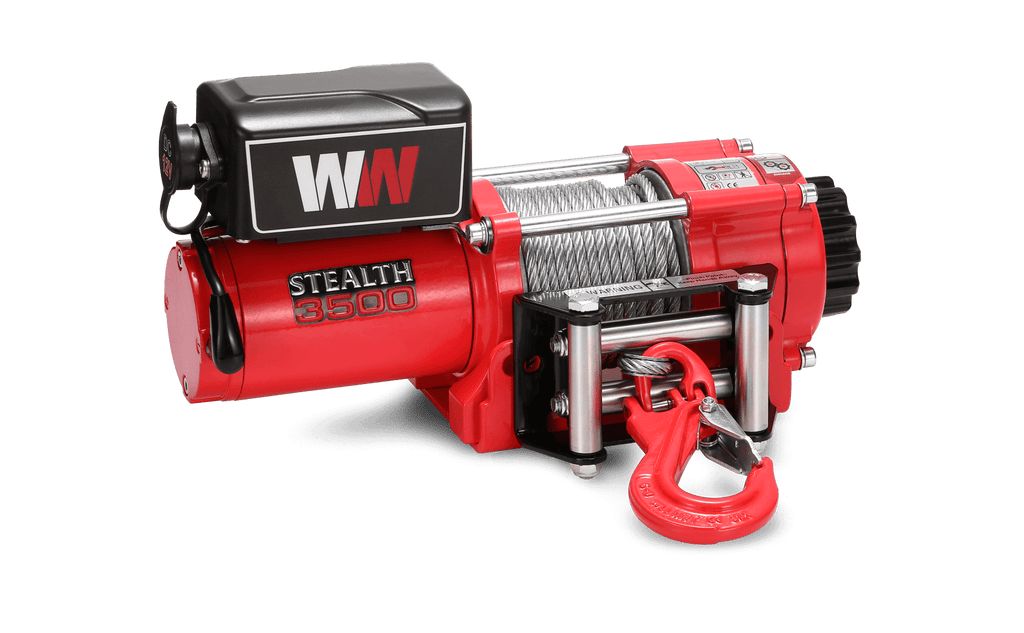

The Stealth 3500lb 12V electric winch is a compact and capable recovery solution for smaller 4x4s, trailers, recreational vehicles and general recovery applications. With a rated line pull of 3,500lb (1,588kg), durable steel rope and both wired and wireless controls included, it gives you the essential equipment needed to handle everyday recovery jobs without unnecessary cost or complexity.

Compact power for everyday recoveries. The 2.4kW 12V permanent magnet motor delivers up to 3,500lb (1,588kg) of rated line pull through a 170:1 planetary gearing system. This provides the pulling power needed for a wide range of recovery and hauling tasks while keeping the winch compact enough for installations where space is limited.

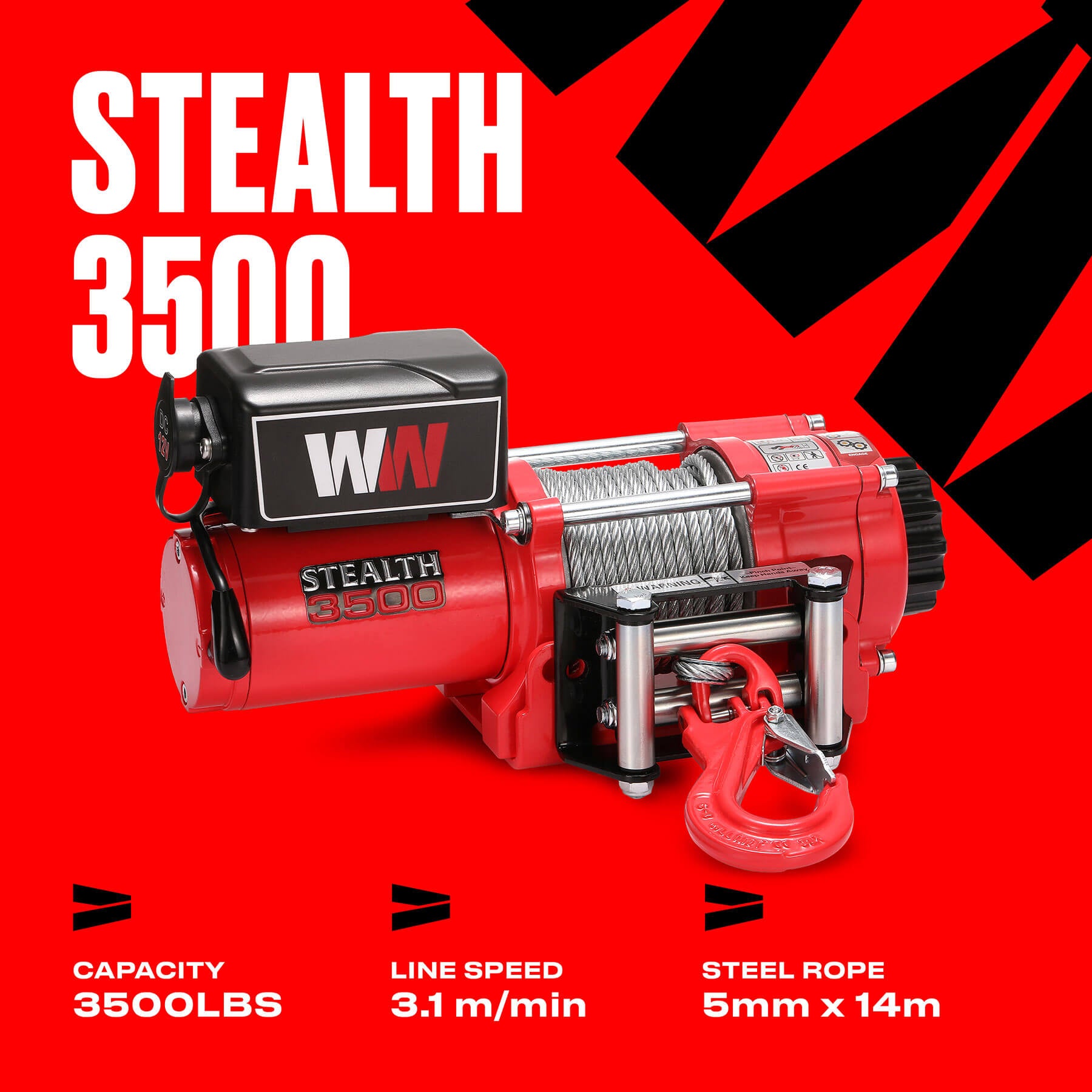

Get the rope out and get to work. The manual freespooling clutch allows you to disengage the drum and pull the 12.8m x 5.4mm steel rope out by hand, making it quick and straightforward to position the rope before a recovery. With a no-load line speed of up to 3.1m/min, the winch helps keep rope retrieval moving once the recovery is underway.

Steel rope built for practical recovery. The durable 5.4mm steel rope provides dependable performance for regular recovery and hauling applications. A 4-way roller fairlead helps guide the rope smoothly onto and off the drum, while the included clevis hook and handsaver strap make connecting and handling the rope easier during setup.

More control, without the premium price. The Stealth 3,500lb comes with both wired and wireless control, giving you the flexibility to operate the winch from the vehicle or step away for a clearer view of the recovery. The wireless handset makes remote operation straightforward, while the wired controller provides a dependable alternative whenever you need it.

Simple installation. Ready to recover. The compact 348 x 116 x 165mm design and 10.5kg weight make the Stealth practical to install on a variety of vehicles and applications. A mounting plate, mounting bolts, roller fairlead and heavy-duty battery cables are included, giving you the key components needed to get the winch installed and ready for use.

Value where it matters. The Stealth is designed around the features that matter most during a recovery: reliable pulling power, durable steel rope, practical controls and straightforward operation. It delivers proven Warrior Winches performance without the additional cost of premium features you may not need.

Backed by a 3-year warranty, the Warrior Stealth 3,500lb 12V electric winch is a practical choice for 4x4 owners, off-road enthusiasts, trailer users and recreational applications looking for dependable recovery capability at an accessible price.

Sku35STS12
EAN5060423984726
Rated Line Pull3500 lbs
Motor Type12V: Input: 3.2hp / 2.4 kW; Output: 1.3hp / 1.0 kW
Rated Volt12
ClutchManual
Gearing170:1
Braking ActionDynamic
Drum Size (Diameter x Length)37.0 x 80.0 mm
ControlsWired Remote
Wireless Remote
Cable MaterialSteel
Cable Size (Diameter x Length) 5.4 mm x 12.8 m
FairleadRoller
Mounting Pattern79.5mm (2 central bolts front to back) mm

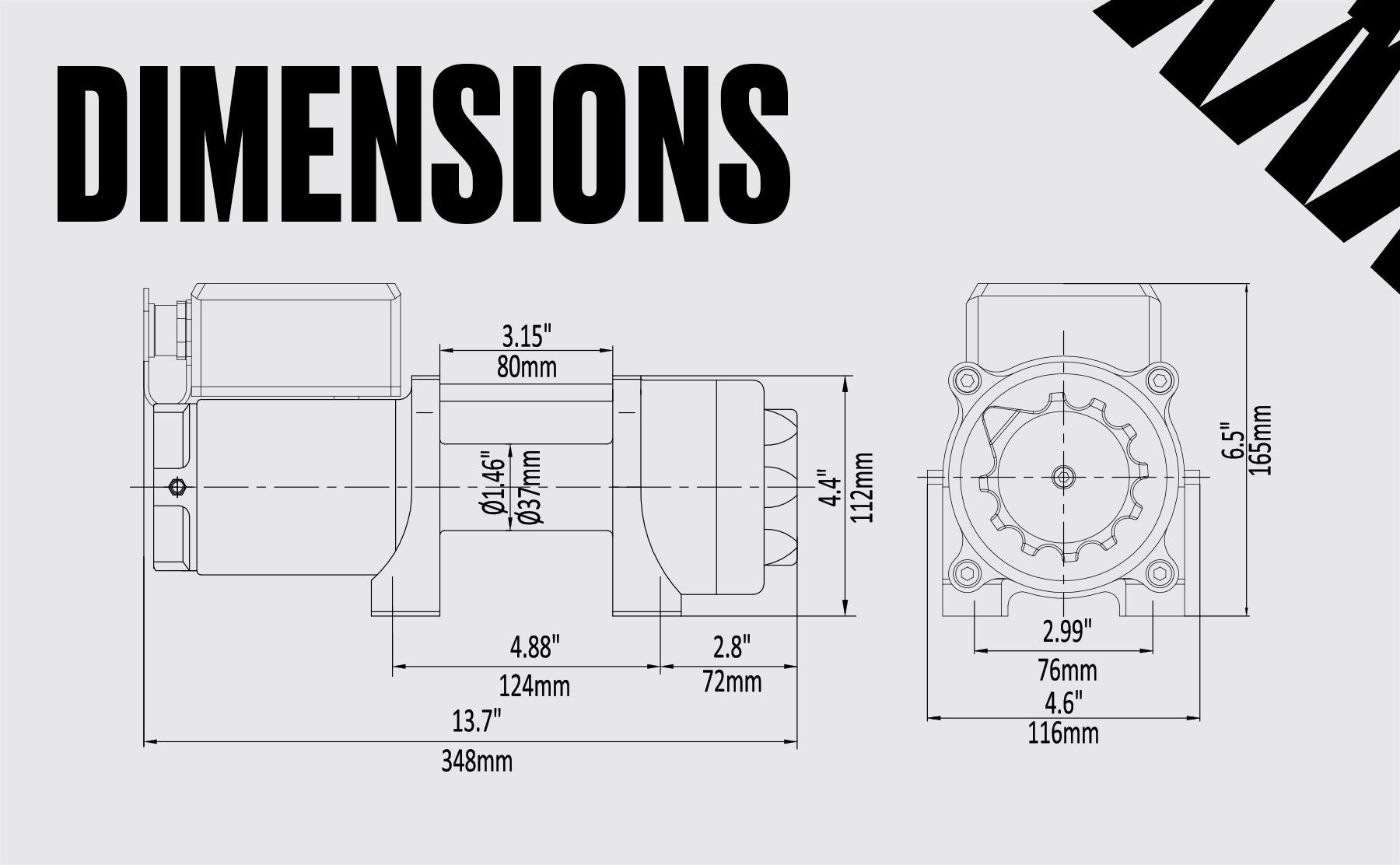

Dimensions348 x 116 x 165 mm
Weight10.5 kg
Warranty3 Year
CertificationCE



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 3500 (1588) 5.9 (1.8)
2 2789 (1265) 13.5 (4.1)
3 2319 (1052) 22.0 (6.7)
4 1984 (900) 31.2 (9.5)
5 1733 (786) 42.0 (12.8)
Line Pull
lbs (kgs)		 Line Speed 12v
ft/min (m/min)		 Amp Draw
12v
0 10.2 (3.1) 20
1000 (454) 8.9 (2.7) 75
2000 (907) 7.5 (2.3) 130
3500 (1588) 4.6 (1.4) 200

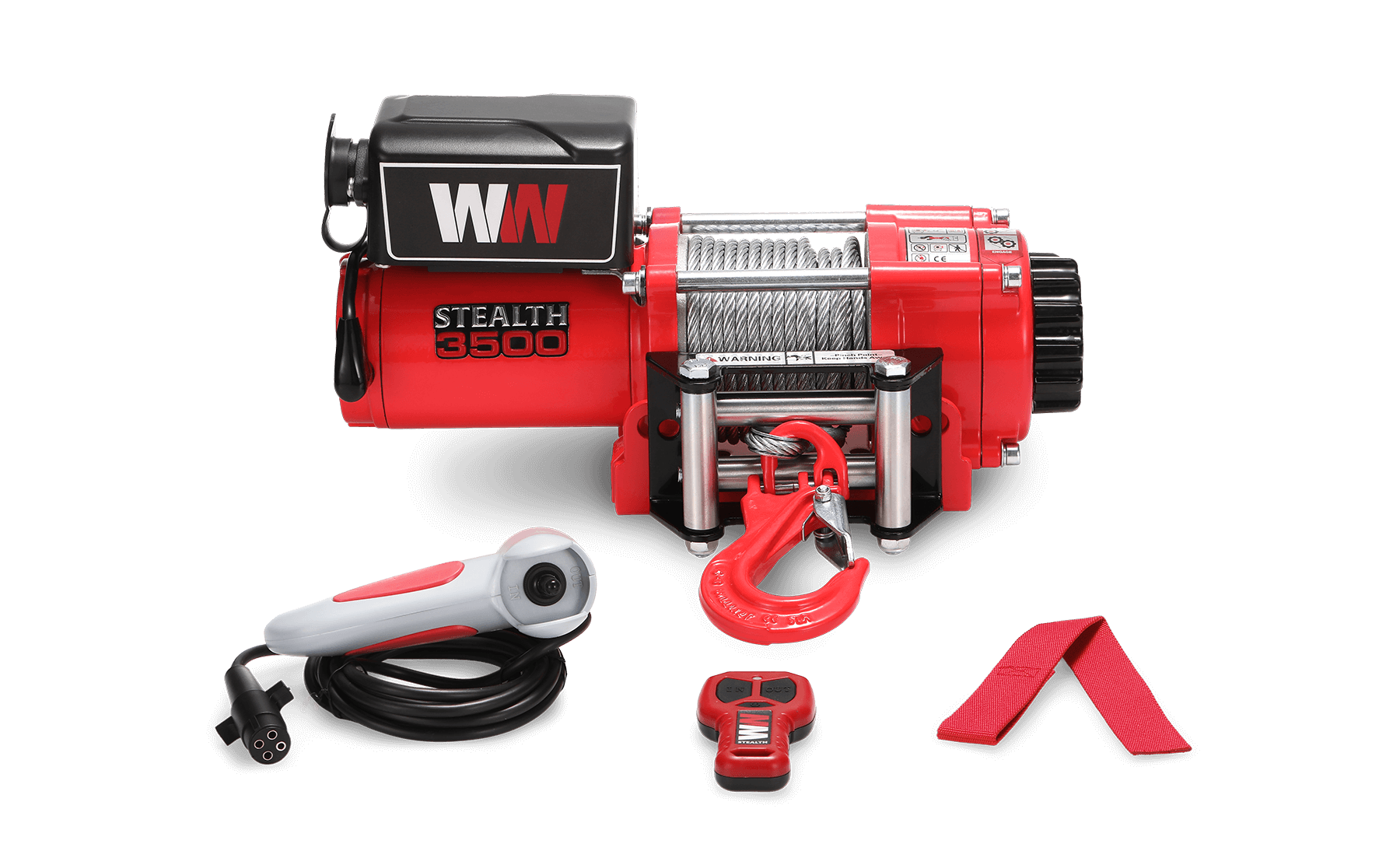

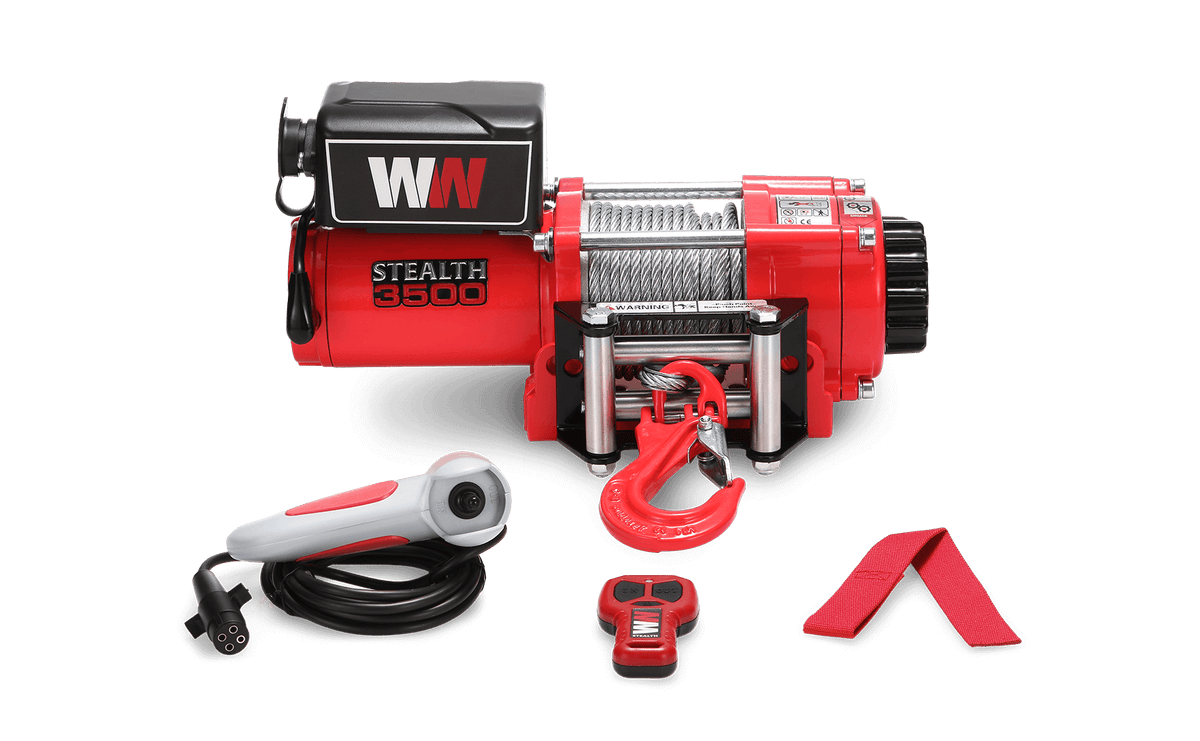

  • Wired Hand Control
  • Wireless Control: Included - with a Handset
  • Mounting Plate: Included for flat mount applications
  • Fairlead: 4-Way Roller Fairlead
  • Mounting Bolts: Included for Standard installations
  • Heavy Duty Battery Cables (May need extending dependant on application)
  • Instruction Manual
User Manual Download
Specifications Sheet  Download

Video

Load Test

Warrior Winches 3 Year Warranty

BPE Solutions Deutschland GmbH are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earning a
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.



WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 3-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.



WARRANTY EXCLUSIONS

This warranty excludes:

- Cosmetic defects such as paint, decals, ,
- Worn parts due to improper use.
- Steel ropes
- Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.


- Any Accessory part including roller fairleads, hooks and mounting plates.
- Failures due to acts of God and other force major events beyond the manufacturer’s control
- Problems caused by parts that are not original WARRIOR WINCH parts
- Alteration or modification(s) made by any party other than the
- Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
- Any third party equipment
- Batteries



Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

   Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

Register your winch here
