35STA12

Stealth 3500lb Winch - 12v Synthetic Rope

Warranty: 3 Years
12.8m Steel Rope
14m Synthetic Rope
Find a store near you

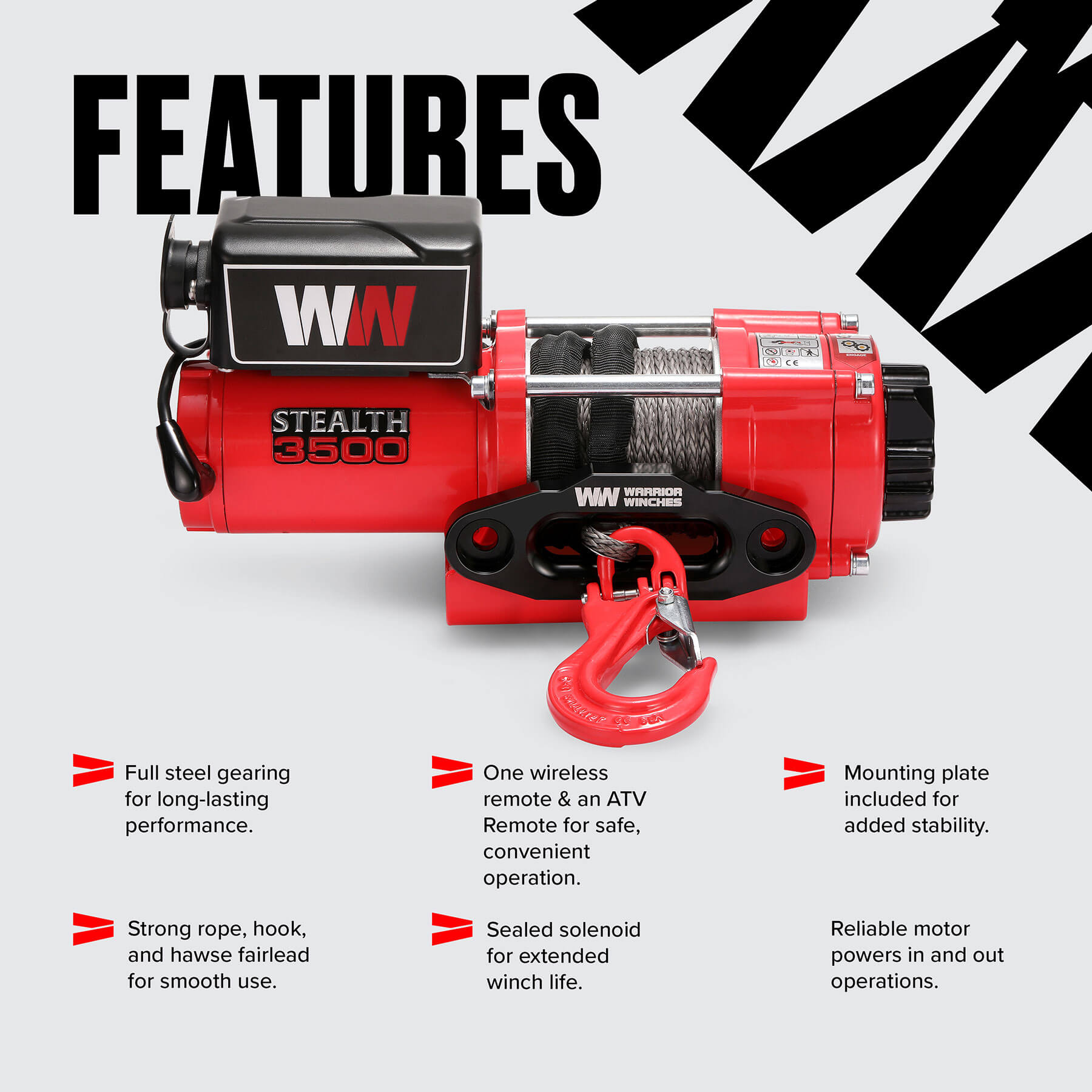

Features

  • Compact Strength. Serious Capability - With 3,500lb of pulling power, this compact winch gives smaller 4x4s, trailers and recreational vehicles the recovery capability they need without unnecessary bulk.
  • Lightweight Rope. Easier Recovery - The 14m x 5mm synthetic rope is lightweight and easy to handle, with a clevis hook and handsaver strap included to make line deployment and recovery more straightforward.
  • Power When You Need It - The reversible 1.3hp 12V permanent magnet motor provides reliable power in both directions, giving you greater flexibility when pulling, repositioning or recovering a load.
  • Get the Line Out Quickly - The manual freespooling clutch lets you disengage the gearbox and pull the synthetic rope out by hand, helping you position the line quickly before starting your recovery.
  • Ready to Fit. Ready to Work - Wired and wireless controls, a mounting plate, hawse fairlead and mounting hardware are included, giving you the essential equipment needed to get the winch installed and operational.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

The Warrior Winches Stealth Range is built for 4x4 owners and off-road drivers who want dependable recovery performance without paying for features they don't need. Combining proven engineering, reliable motors, durable gearing and practical recovery features, Stealth winches deliver serious capability at an accessible price.

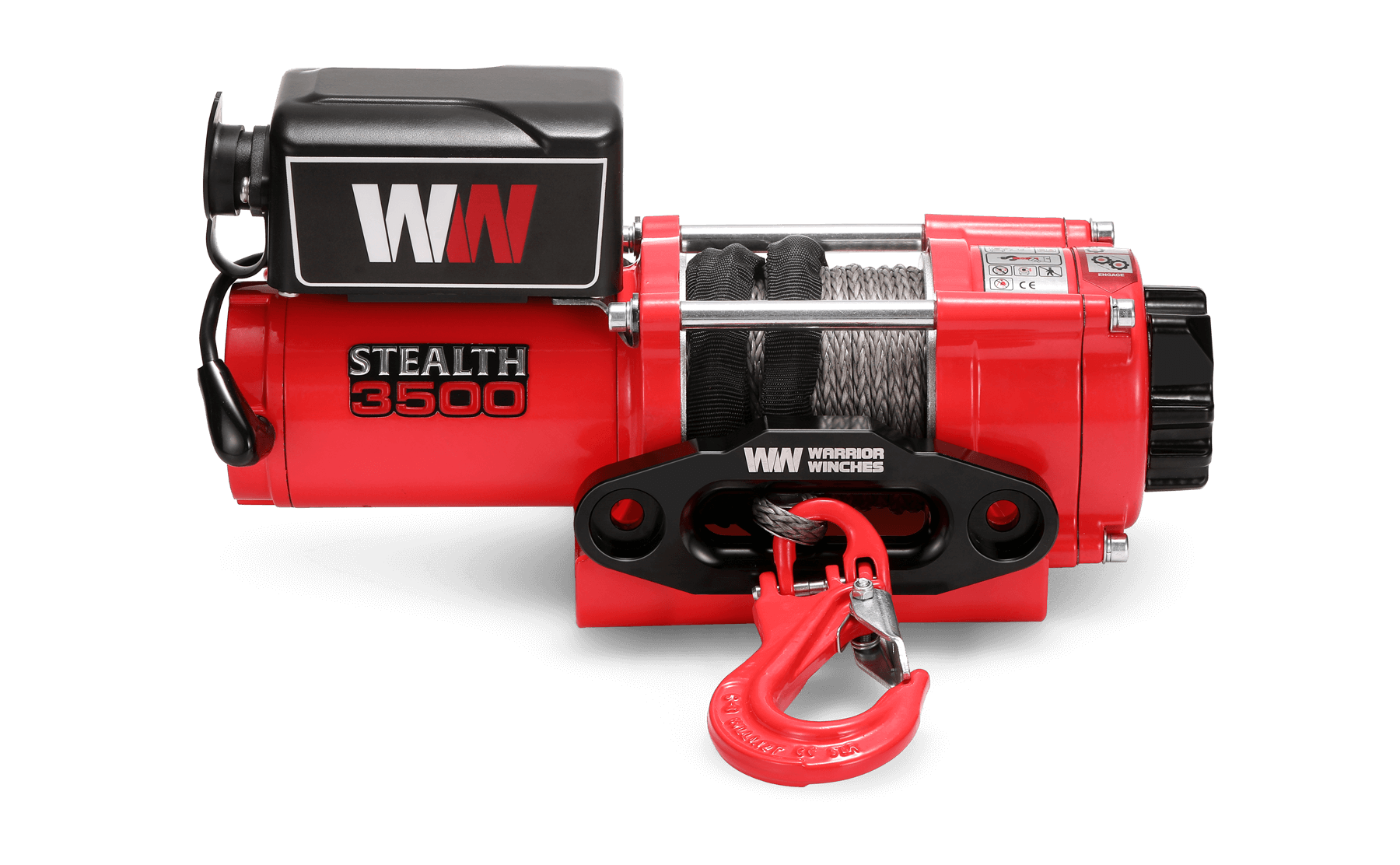

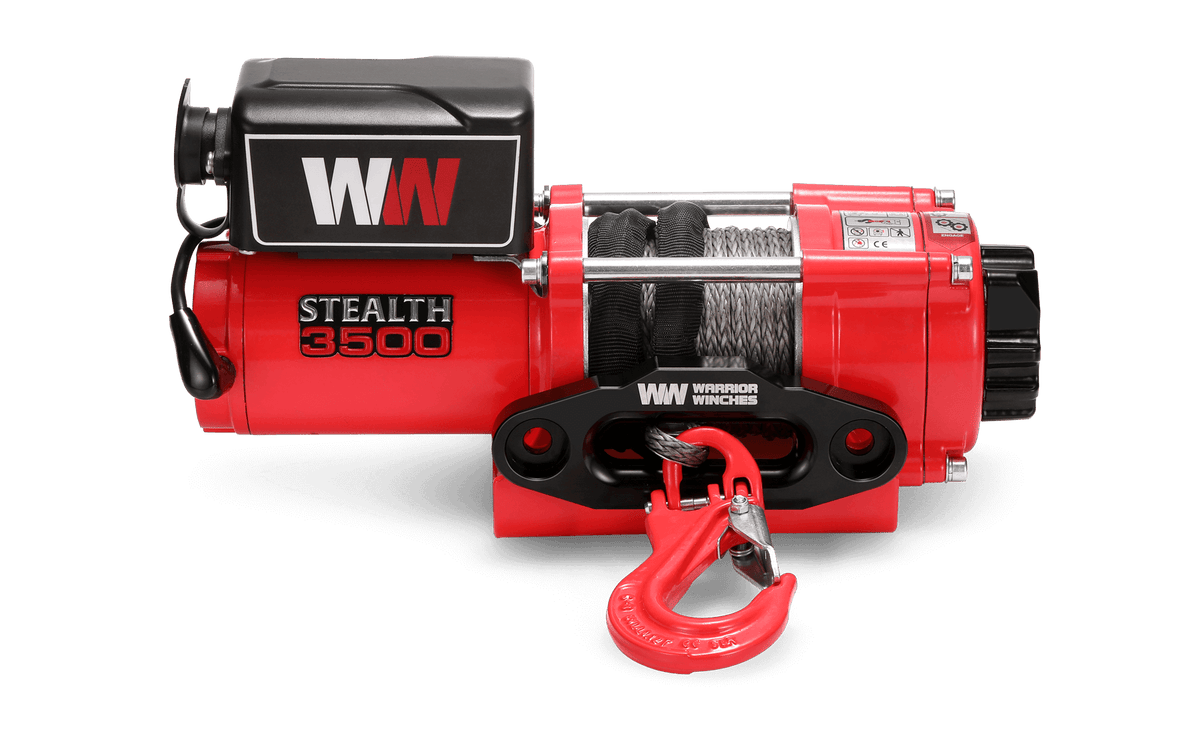

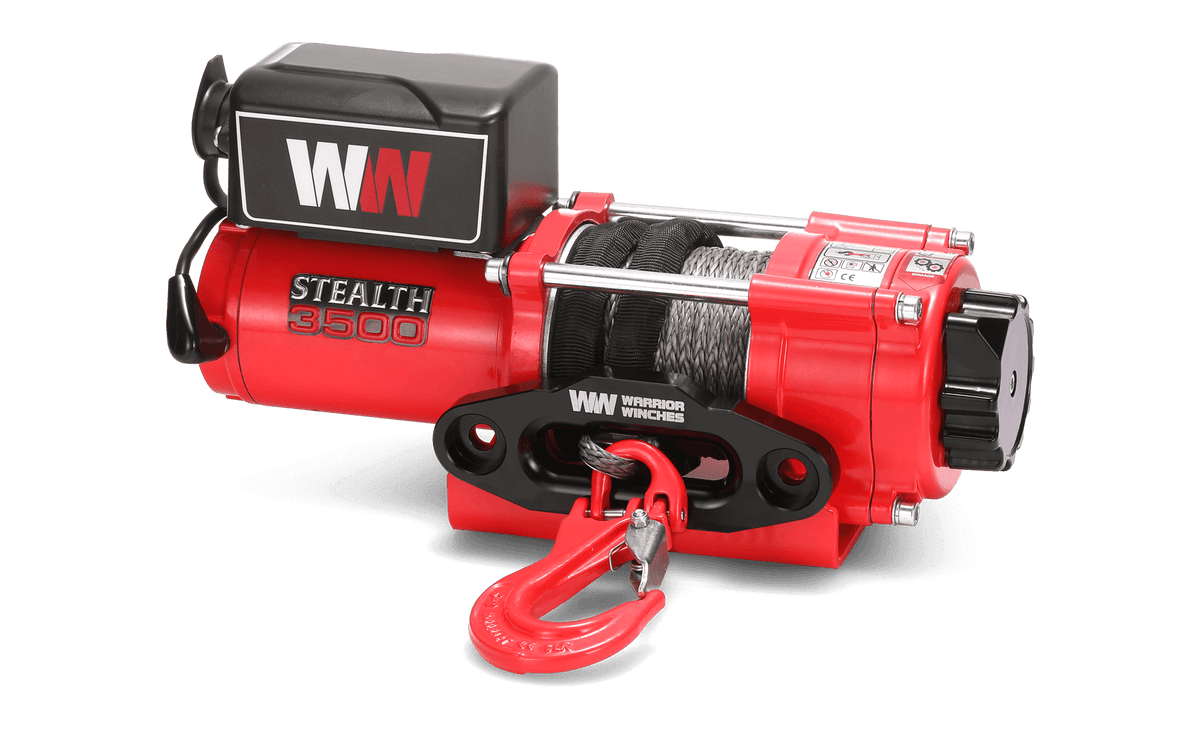

The Stealth 3,500lb 12V electric winch with synthetic rope is a compact and capable recovery solution for smaller 4x4s, trailers, recreational vehicles and general recovery applications. Delivering a rated line pull of 3,500lb (1,588kg), it combines dependable pulling power with lightweight synthetic rope, wired and wireless controls and straightforward operation, giving you the essentials for everyday recovery without unnecessary cost or complexity.

Compact power for everyday recoveries. The 2.4kW 12V permanent magnet motor delivers up to 3,500lb (1,588kg) of rated line pull through a 170:1 planetary gearing system. This gives you dependable pulling power for a wide range of recovery and hauling tasks while keeping the winch compact enough for installations where space is limited.

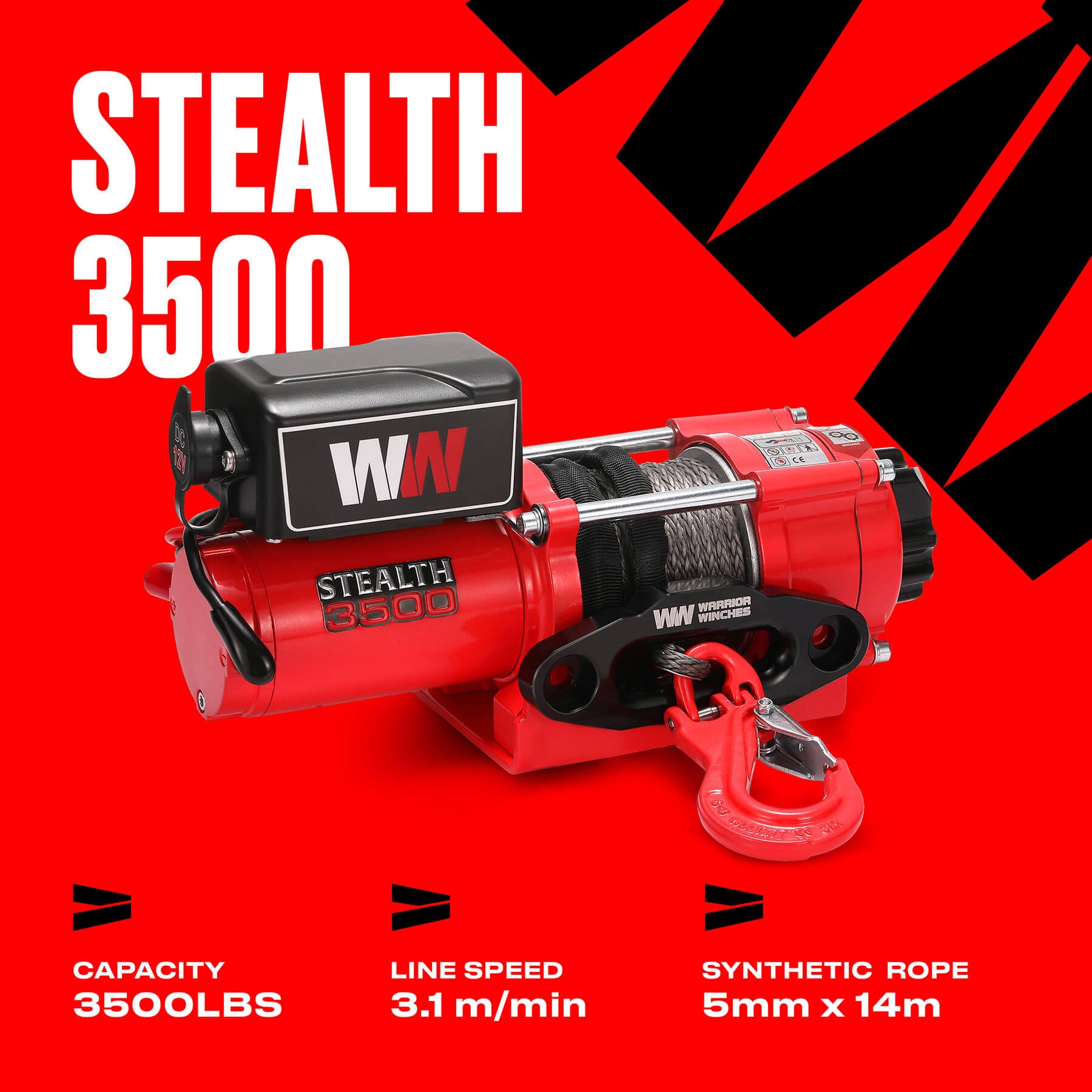

Get set up and get moving. The manual freespooling clutch lets you disengage the drum and pull the 14m x 5mm synthetic rope out by hand, making rope deployment quick and straightforward. With a no-load line speed of up to 3.1m/min, the Stealth keeps the recovery moving once the winch is engaged.

Lightweight rope. Easier handling. The 5mm synthetic rope offers a lighter and more manageable alternative to steel rope, making it easier to handle when setting up a recovery. The supplied clevis hook and handsaver strap add practicality during rope handling, while the hawse fairlead provides a smooth path for the rope as it enters and leaves the drum.

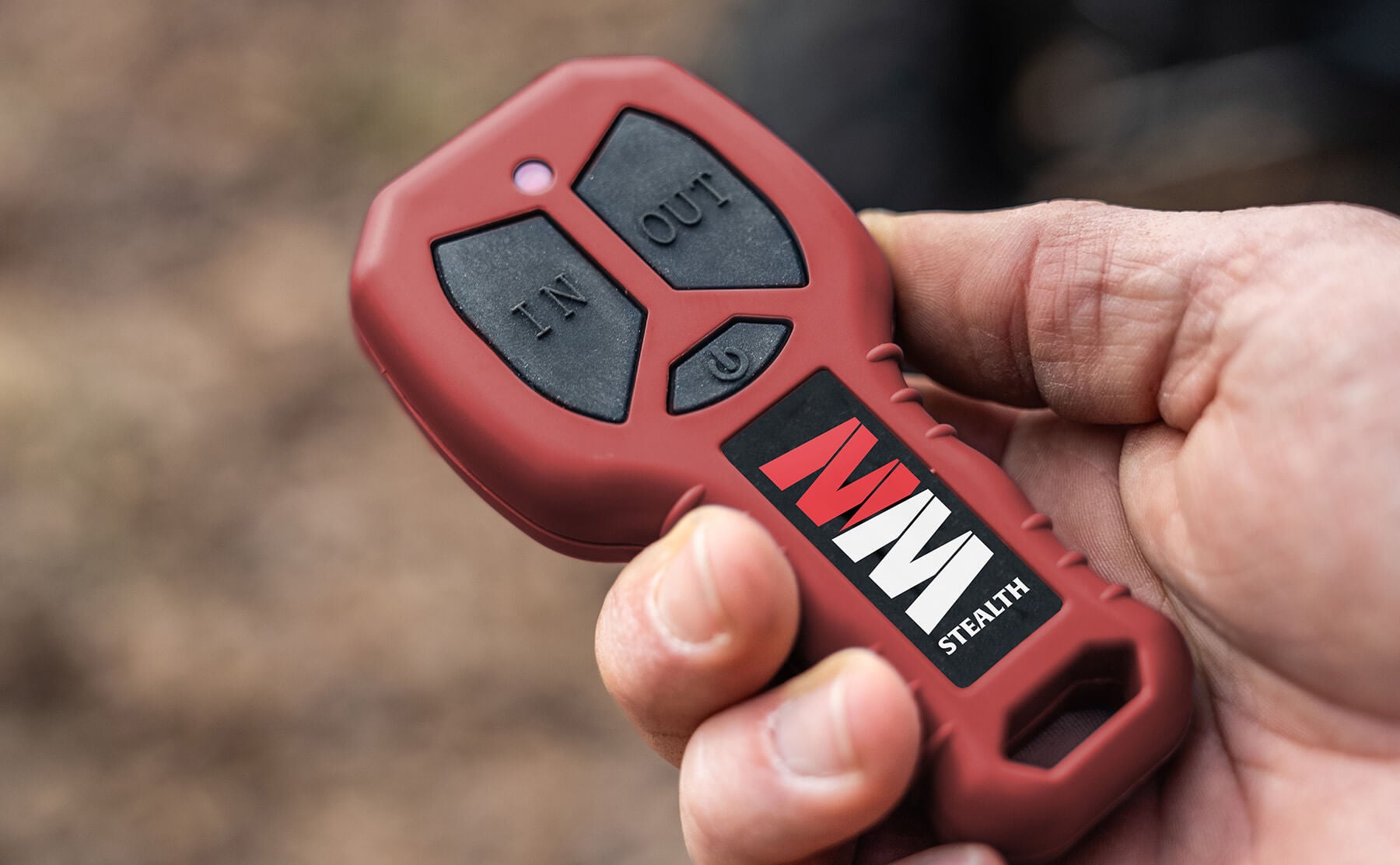

Control without the premium price. Both wired and wireless controls are included, giving you the flexibility to operate the winch from the vehicle or step away for a better view of the recovery. The wireless handset makes remote operation convenient, while the wired controller provides a dependable alternative whenever you need it.

Small footprint. Easy installation. Measuring 348 x 116 x 165mm and weighing just 8.5kg, the Stealth 3,500lb is easy to accommodate where mounting space and overall weight matter. A mounting plate, hawse fairlead, mounting bolts and heavy-duty battery cables are included, giving you the key components required to get the winch installed and ready to work.

The smart way to add recovery capability. The Stealth 3,500lb focuses on the features that matter during everyday recovery: reliable 3,500lb pulling power, lightweight synthetic rope, practical controls and simple operation. It gives 4x4 owners and recreational users proven Warrior Winches performance without the additional cost of premium features they may not need.

Backed by a 3-year warranty, the Stealth 3,500lb 12V synthetic rope winch is a practical choice for 4x4 owners, off-road enthusiasts, trailer users and recreational applications looking for dependable recovery capability, easy rope handling and excellent value.

Sku35STA12
EAN5060423984733
Rated Line Pull3500 lbs
Motor Type12V: Input: 3.2hp / 2.4 kW; Output: 1.3hp / 1.0 kW
Rated Volt12
ClutchManual
Gearing170:1
Braking ActionDynamic
Drum Size (Diameter x Length)37.0 x 80.0 mm
ControlsWired Remote
Wireless Remote
Cable MaterialSynthetic
Cable Size (Diameter x Length) 5.0 mm x 14.0 m
FairleadHawse
Mounting Pattern79.5mm (2 central bolts front to back) mm

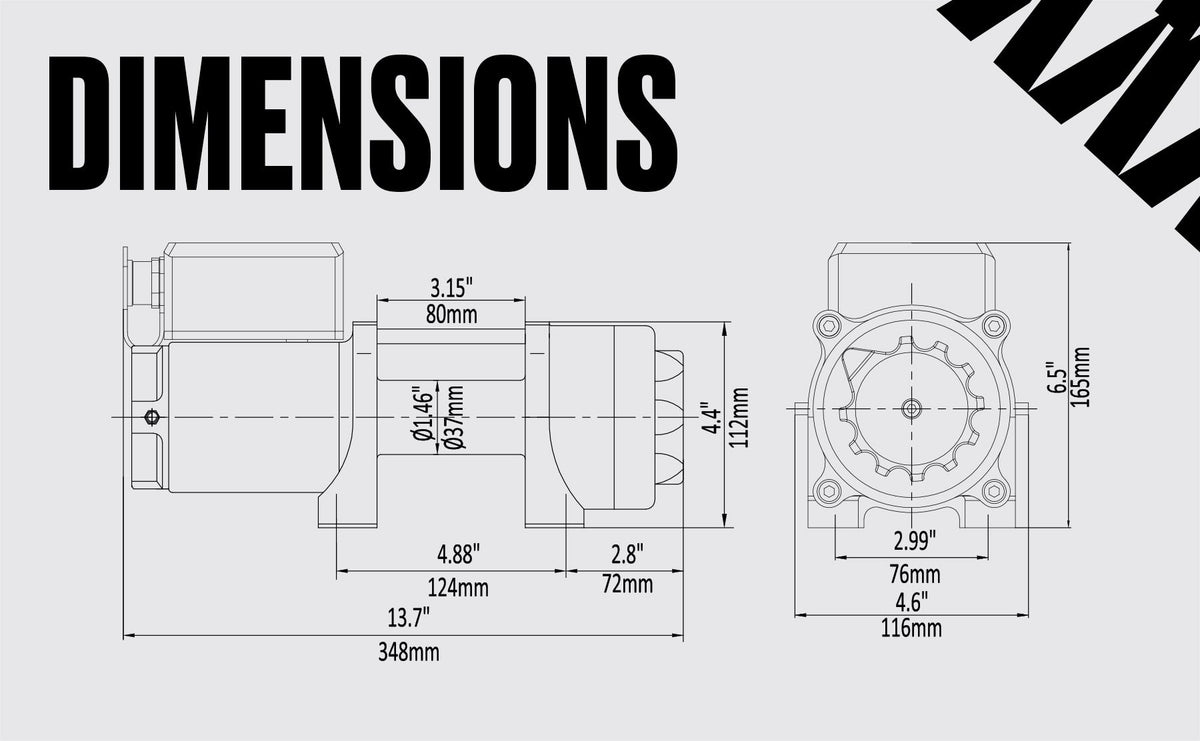

Dimensions348 x 116 x 165 mm
Weight8.5 kg
Warranty3 Year
CertificationCE



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 3500 (1588) 5.9 (1.8)
2 2789 (1265) 13.5 (4.1)
3 2319 (1052) 22.0 (6.7)
4 1984 (900) 31.2 (9.5)
5 1733 (786) 42.0 (12.8)
Line Pull
lbs (kgs)		 Line Speed 12v
ft/min (m/min)		 Amp Draw
12v
0 10.2 (3.1) 20
1000 (454) 8.9 (2.7) 75
2000 (907) 7.5 (2.3) 130
3500 (1588) 4.6 (1.4) 200

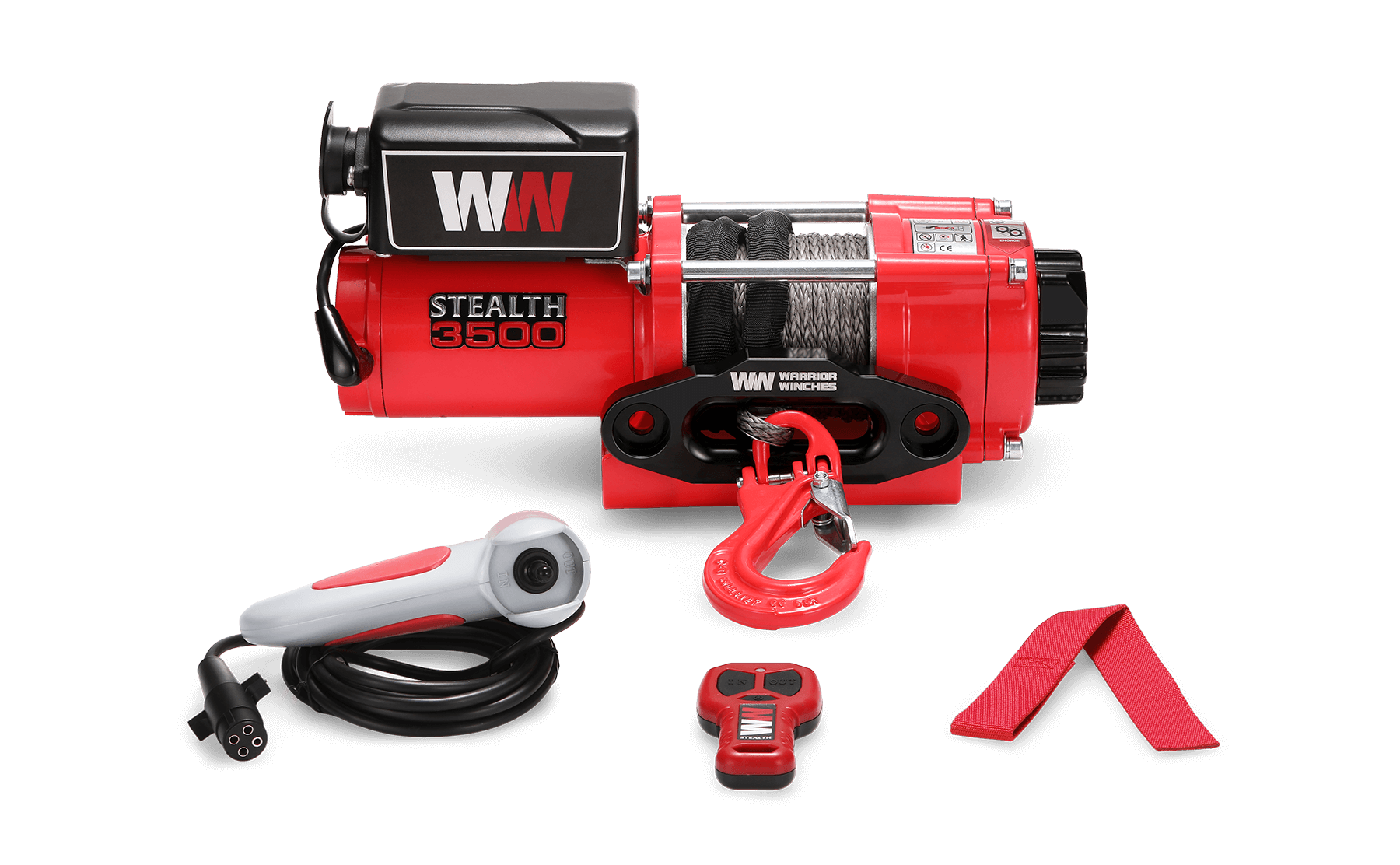

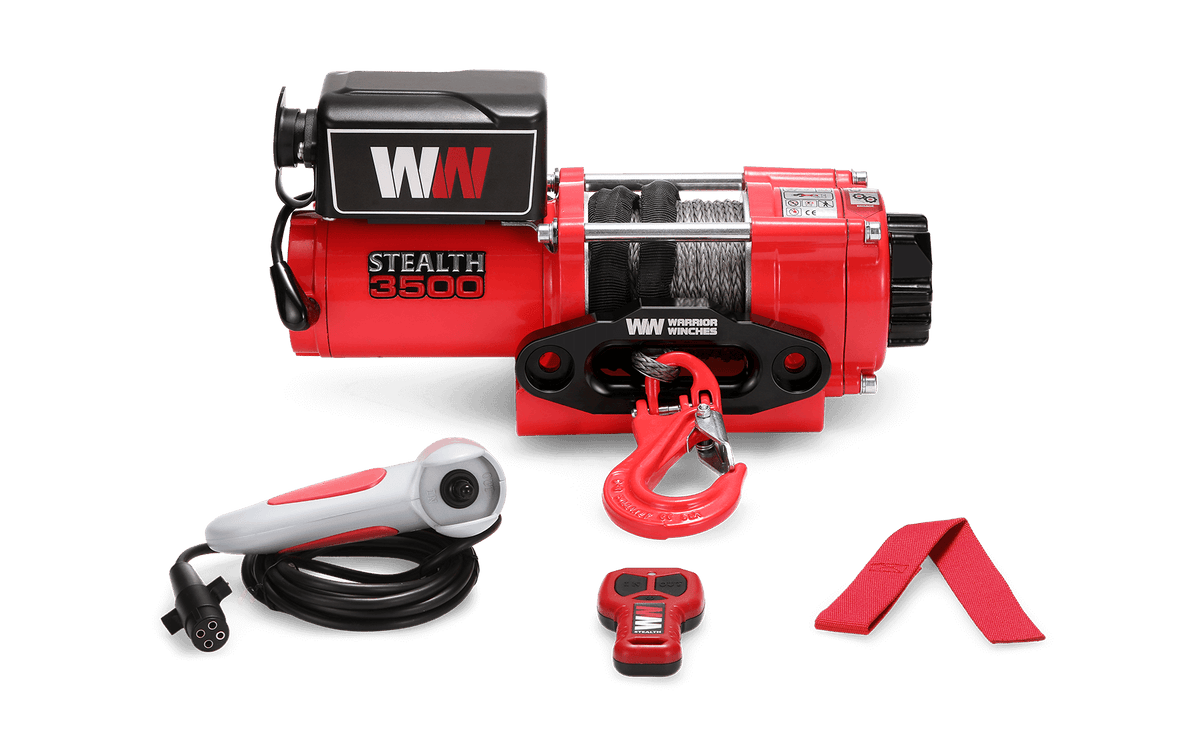

  • Wired Hand Control
  • Wireless Control: Included - with a Handset
  • Mounting Plate: Included for flat mount applications
  • Hawse Fairlead
  • Mounting Bolts: Included for Standard installations

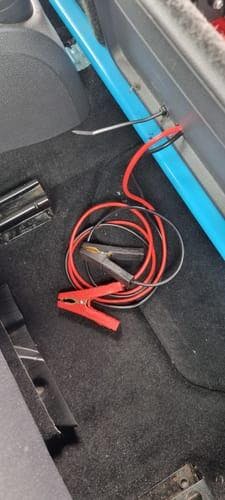

  • Heavy Duty Battery Cables (May need extending dependant on application)
  • Instruction Manual
User Manual Download
Specifications Sheet  Download

Video

Load Test

Warrior Winches 3 Year Warranty

BPE Solutions Deutschland GmbH are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earning a
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty. Titan winches are given a 5 year warranty.



WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 3-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.



WARRANTY EXCLUSIONS

This warranty excludes:

- Cosmetic defects such as paint, decals, ,
- Worn parts due to improper use.
- Steel ropes
- Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.


- Any Accessory part including roller fairleads, hooks and mounting plates.
- Failures due to acts of God and other force major events beyond the manufacturer’s control
- Problems caused by parts that are not original WARRIOR WINCH parts
- Alteration or modification(s) made by any party other than the
- Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
- Any third party equipment
- Batteries



Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

   Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

Register your winch here
