240VSH500

Warrior 500kg Scaffold Hoist - 240v Pendant Remote

Warranty: 12 Months

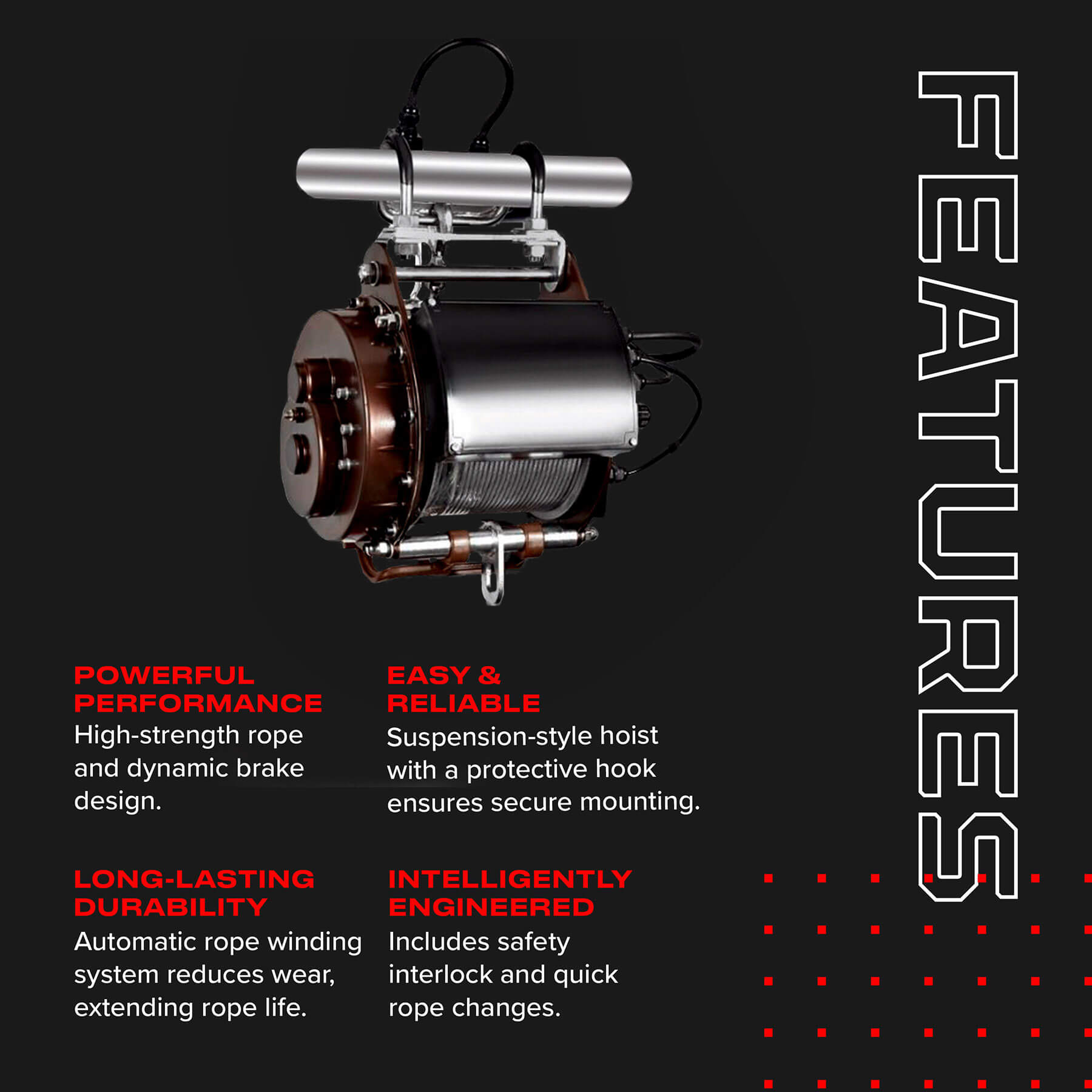

Features

  • Straightforward Scaffold Mounting - The suspension-style mounting design and secure protection hook help simplify setup on a suitable scaffold installation, so you can get your lifting arrangement ready with greater confidence.
  • Keep Your Steel Rope Under Control - An automatic rope winding system helps keep the steel rope organised on the drum, reducing tangles and making routine handling easier.
  • Simpler Rope Replacement - Replace the steel rope without dismantling the hoist, helping make maintenance more convenient and minimise unnecessary delays.
  • Smooth Lifting Performance - The bearing-supported drum helps maintain smooth rotation during operation, supporting consistent performance and reducing unnecessary mechanical strain.
  • Safety Features You Can Rely On - Designed around key elements of BS EN 14492-1 and BS EN 14492-2, with integrated safety features to help support controlled lifting.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

The Warrior Next Generation Scaffold Hoist sets a new benchmark in hoisting technology for professionals demanding top-tier performance and safety. Designed with ease-of-use in mind, this hoist features a secure suspending style mount with a keyed interlock protection hook, enabling fast and safe setup on scaffold systems.

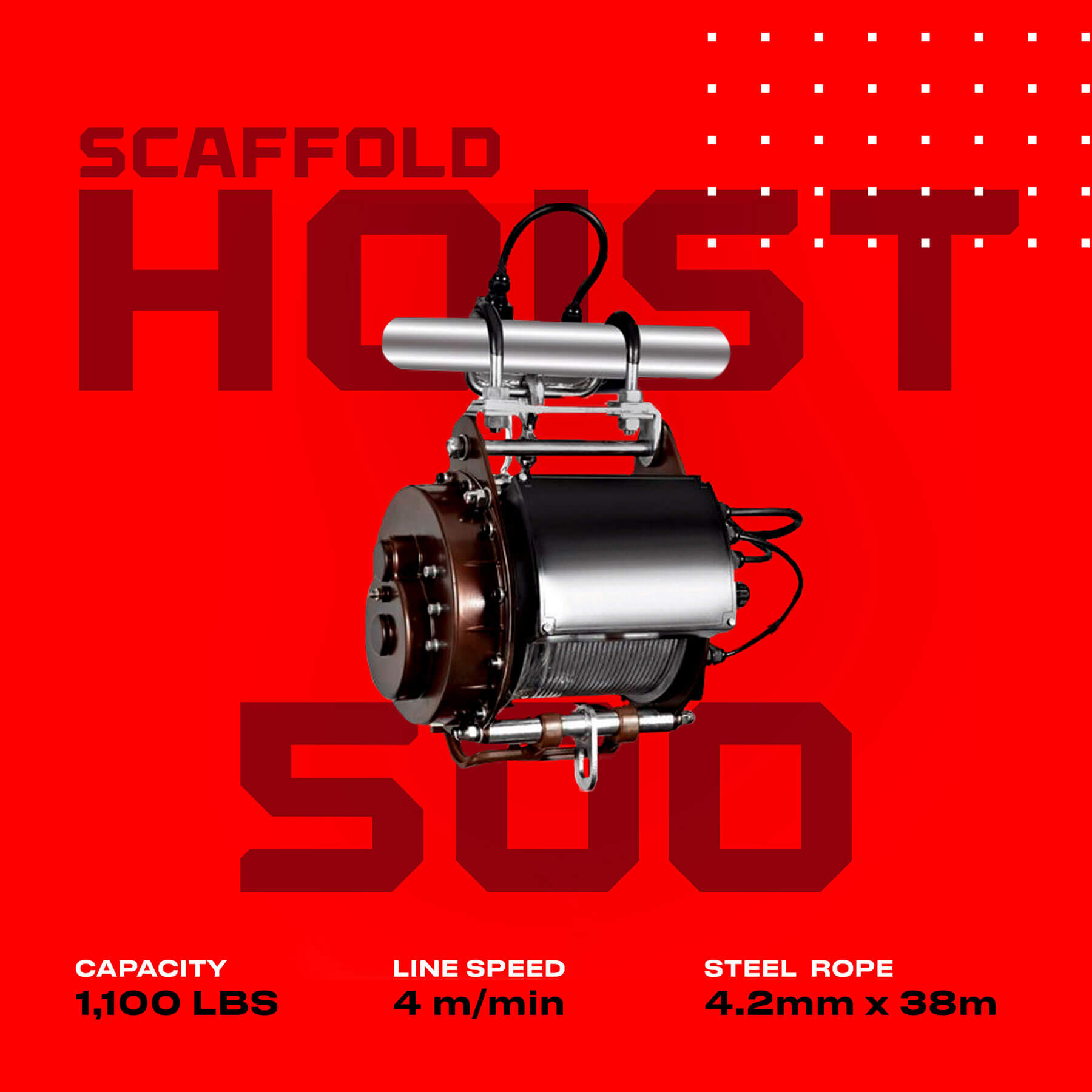

The Warrior 500kg 240V Scaffold Hoist with Pendant Remote is a versatile option for lifting loads of up to 500kg, with an impressive 38 metres of steel rope for reaching elevated working positions. Its 1000W motor, automatic rope management system and suspension-style mounting make it a practical choice when you need dependable lifting capability and direct control from a wired handset.

Move Loads of Up to 500kg with Powered Assistance. A maximum lifting capacity of 500kg gives you the ability to raise suitable materials and equipment without relying on manual lifting. The 240V, 1000W motor delivers lifting speeds of up to 8 metres per minute using a single line, or 4 metres per minute with double-line operation.

Get More Reach from 38 Metres of Steel Rope. The generous rope length provides flexibility when lifting materials to higher positions, helping you work with a wider range of scaffold heights. Supplied with 4.2mm steel rope and a hook, the hoist offers a ready-to-use rope arrangement for compatible lifting tasks.

Keep Operation Direct with the Pendant Remote. The wired pendant handset gives you straightforward control over raising and lowering loads from a connected operating position. With the controls kept close at hand, you can manage the movement of materials without repeatedly returning to the hoist itself.

Set Up with a Secure Suspension Mount. The suspension-style mounting arrangement uses a keyed interlock protection hook to help make positioning the hoist on a suitable scaffold support more straightforward. Its powder-coated, high-strength carbon steel construction provides a robust housing for the lifting mechanism.

Keep the Steel Rope Neatly Managed. An automatic rope winding system helps guide the cable evenly onto the drum, reducing the likelihood of tangling and uneven winding. This can help preserve the rope during repeated use and makes the hoist easier to manage between lifting tasks.

Change the Rope Without Stripping Down the Hoist. The easy-change rope design allows the steel cable to be replaced without dismantling the hoist assembly. This makes routine rope replacement more convenient and helps avoid unnecessary work when the cable eventually needs attention.

Enjoy Smooth Drum Movement. A specially developed bearing system supports the cable drum as it rotates, helping reduce friction and wear during operation. This design supports smoother rope movement and contributes to the durability of the hoist.

Built-In Protection for Controlled Operation. Upper and lower limit switches help prevent the hoist from travelling beyond its intended operating limits, while the dynamic braking system supports controlled stopping. Thermal overload protection also helps protect the motor from excessive heat during operation.

Protection Against Dust and Water Ingress. With an IP65 rating, the hoist is protected against dust ingress and water, while its powder-coated, high-strength carbon steel construction provides a durable outer structure. The suspension-style mounting arrangement includes a keyed interlock protection hook for secure attachment.

Fully equipped with thermal overload protection and compliant with essential aspects of BS EN14492-1 and BS EN14492-2, this hoist also features upper and lower limit switches and a dynamic brake design for enhanced control under both static and dynamic loads. Whether you're lifting materials or tools, the Warrior Scaffold Hoist delivers industry-leading reliability, safety, and value for any professional scaffolding setup.

Sku240VSH500
EAN5060423980162
Rated Line Pull1102 lbs
Rated Volt240
Max Load500
Lift Height 38.0 m
38.0 m (Double line)
Lift Speed 8.0 m/min
4.0 m/min (Double line)
Power1000
Cable MaterialSteel
Cable Size (Diameter x Length) 4.2 mm x 38.0 m
Limit Safety SwitchUpper & Lower
Work RateS3 20% 10mins
Dimensions340 x 500 x 400 mm
Weight36.0 kg
Warranty1 Year
Waterproof Rating (IP)IP65
CertificationCE



  • Scaffold Hoist
  • Steel Winch Rope with Hook
  • Pendant Remote
User Manual Download
Technical Drawing Download

Limited lifetime with 1 year on electrical

BPE Holdings Ltd are the sole distributors of WARRIOR WINCHES.

BPE Holdings Ltd (“seller” or BPE Holdings Ltd) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for the lifetime of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (1) one year (12 Months)* from the original purchase provable date of purchase.

Any product BPE Holdings Ltd determines to be defective will be repaired or replaced at BPE Holdings Ltd 's sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

Register your winch here

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

BPE Holdings Ltd shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

BPE Holdings Ltd reserves the right to change the Product design without notice. BPE Holdings Ltd reserves the right to replace any part or whole unit with a newer design of the same function.
