240VSH500WRC

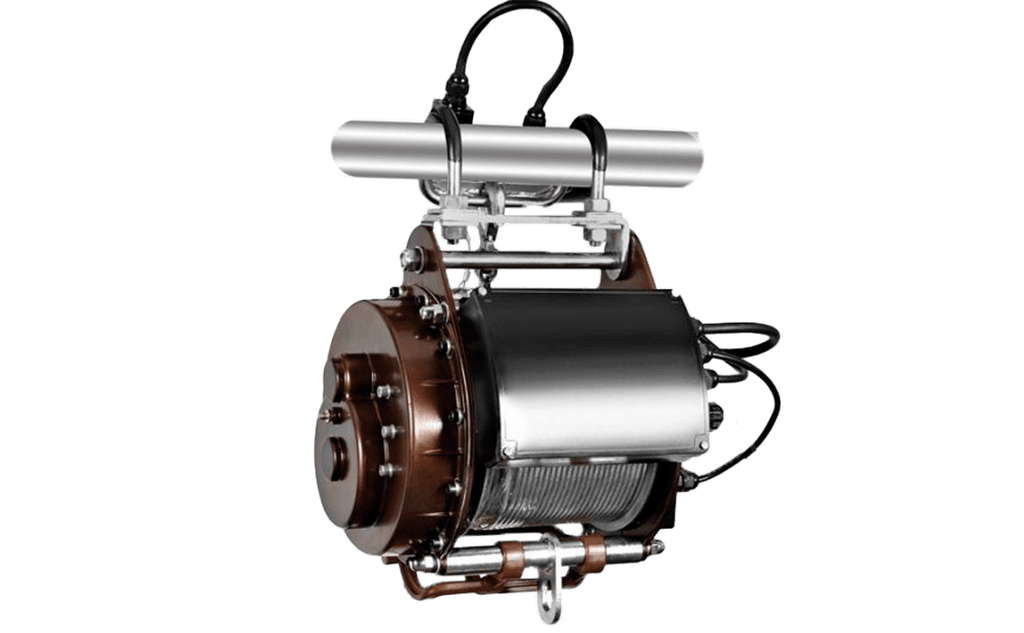

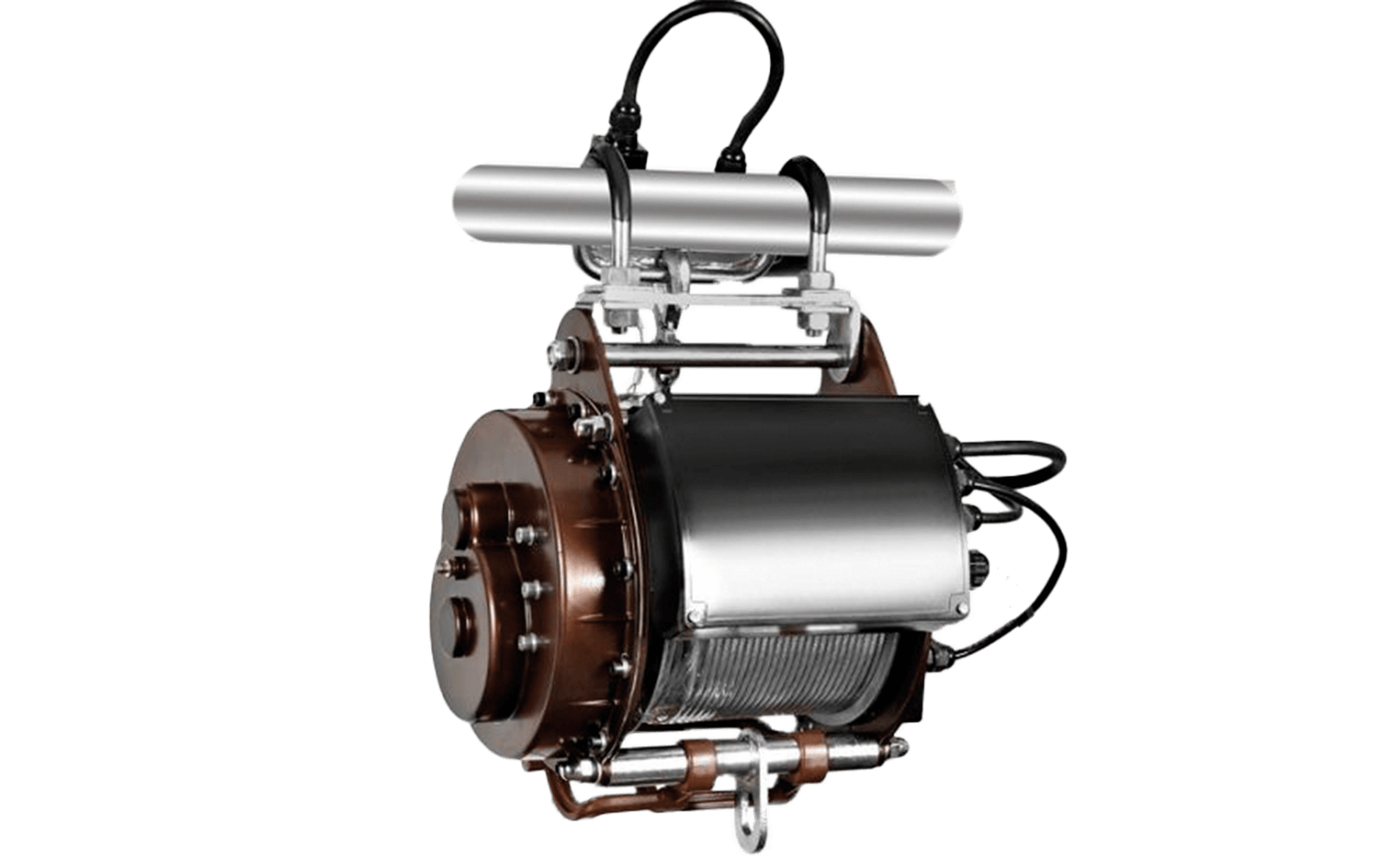

Warrior 500kg Scaffold Hoist - 240v Wireless Remote

Warranty: 12 Months

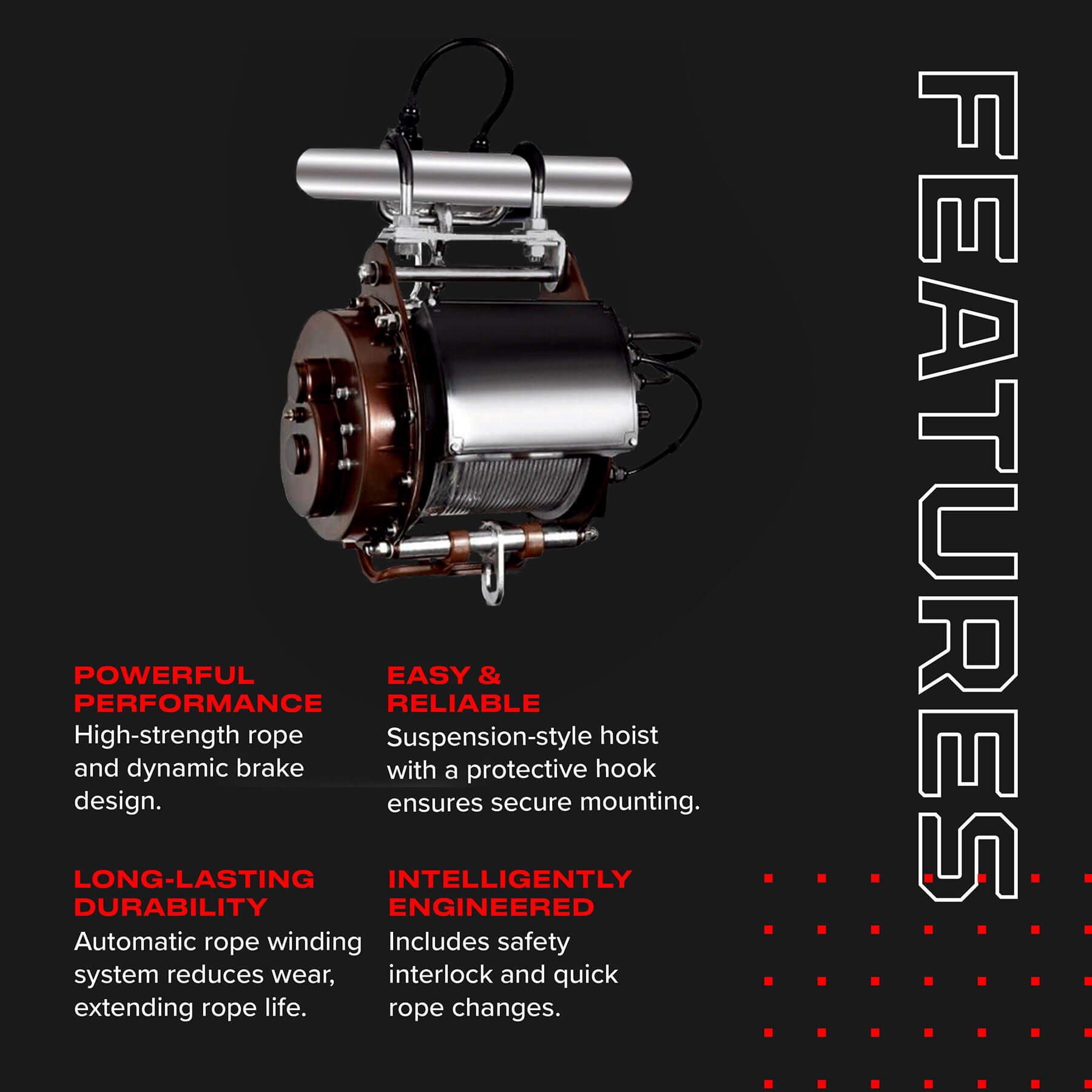

Features

  • Flexible Installation for Your Setup - The suspension mounting system and secure protection hook help provide an easy, practical way to position the hoist on a suitable scaffold structure.
  • Less Hassle with Rope Handling - An automatic winding system helps guide the steel rope back onto the drum neatly, helping prevent untidy rope storage and reducing avoidable wear.
  • Maintenance Without Full Dismantling - The rope can be replaced without taking the hoist apart, making an essential maintenance task less complicated.
  • Consistent Drum Movement - An integrated bearing system helps the cable drum rotate smoothly, supporting dependable operation throughout regular lifting tasks.
  • Designed with Safety in Mind - Key elements of BS EN 14492-1 and BS EN 14492-2 inform the hoist's design, alongside built-in features intended to help control lifting operation.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

The Warrior Next Generation Scaffold Hoist sets a new benchmark in hoisting technology for professionals demanding top-tier performance and safety. Designed with ease-of-use in mind, this hoist features a secure suspending style mount with a keyed interlock protection hook, enabling fast and safe setup on scaffold systems.

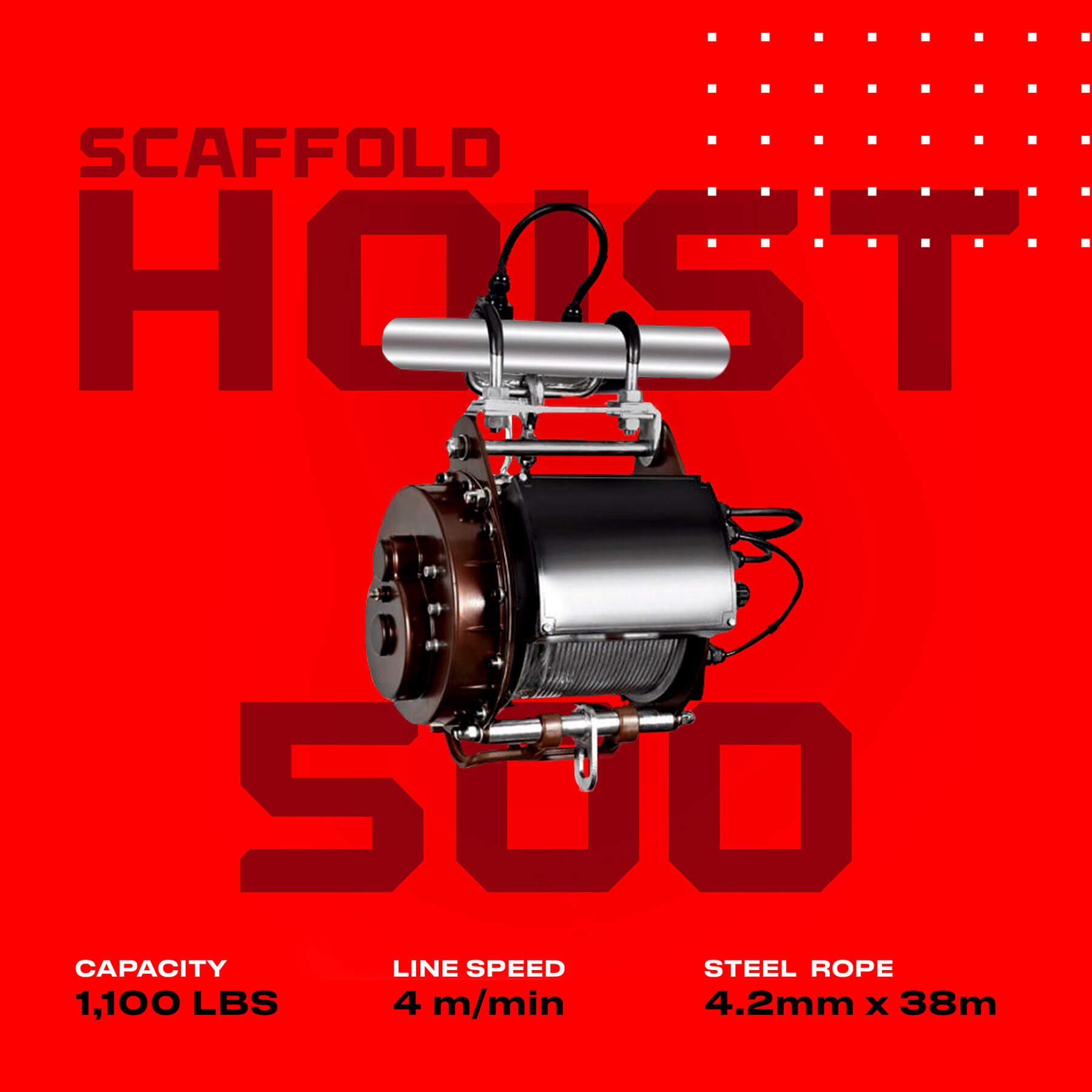

The Warrior 500kg 240V Scaffold Hoist with Wireless Remote gives you the convenience of powered lifting without being restricted by a wired handset. Its 1000W motor can lift loads of up to 500kg, while 38 metres of steel rope provides plenty of reach for elevated applications. With wireless operation, automatic rope winding and an easy-change cable system, it is designed to make lifting and positioning materials more convenient.

Raise Materials with 500kg of Lifting Capacity. Whether moving equipment or materials to an elevated working position, the 500kg capacity provides substantial lifting assistance. The 1000W motor operates from a 240V supply and delivers speeds of up to 8 metres per minute with single-line lifting, or 4 metres per minute when configured for double-line operation.

Reach Higher Working Positions with 38m of Rope. The supplied steel rope provides an extended lifting length, giving you greater flexibility when working with taller scaffold arrangements. With a 4.2mm rope diameter and supplied hook, the hoist is equipped for suitable lifting tasks within its rated capacity.

Operate Wirelessly with Greater Freedom. The wireless remote gives you the flexibility to control lifting movements without being physically connected to the hoist. This allows you to choose a more convenient operating position and maintain a clearer view of the load as it moves, helping you manage the lift with greater visibility.

Make Better Use of Your Available Scaffold Space. The suspension-style mounting arrangement is designed to attach to a suitable scaffold support using its keyed interlock protection hook. Its high-strength carbon steel construction and powder-coated finish provide a sturdy housing for the motor and lifting mechanism.

Keep Rope Movement Consistent. Automatic rope winding helps distribute the steel cable neatly across the drum as the hoist operates. This reduces the likelihood of uneven winding and tangles, helping keep the rope organised and ready for the next lift.

Simplify Future Rope Replacement. When the steel rope eventually needs replacing, the easy-change cable design makes the process more straightforward without requiring the entire hoist to be dismantled. This is a useful practical feature for maintaining the equipment over time.

Support the Drum for Smoother Operation. A purpose-designed bearing system assists the rotation of the cable drum, helping reduce friction during operation. This supports smooth movement and helps limit unnecessary wear on the rotating components.

Keep Lifting Movements Within Their Intended Limits. Integrated upper and lower limit switches help prevent the hoist from travelling beyond its designated operating range. A dynamic braking system assists with controlled stopping, while thermal overload protection helps safeguard the motor against excessive heat.

IP65 Protection for Suitable Working Conditions. The hoist's IP65 rating provides protection against dust ingress and water, while its powder-coated, high-strength carbon steel construction provides a durable outer structure. The suspension-style mounting arrangement includes a keyed interlock protection hook for secure attachment.

Fully equipped with thermal overload protection and compliant with essential aspects of BS EN14492-1 and BS EN14492-2, this hoist also features upper and lower limit switches and a dynamic brake design for enhanced control under both static and dynamic loads. Whether you're lifting materials or tools, the Warrior Scaffold Hoist delivers industry-leading reliability, safety, and value for any professional scaffolding setup.

Sku240VSH500WRC
EAN5060423980179
Rated Line Pull1102 lbs
Rated Volt240
Max Load500
Lift Height 38.0 m
38.0 m (Double line)
Lift Speed 8.0 m/min
4.0 m/min (Double line)
Power1000
Cable MaterialSteel
Cable Size (Diameter x Length) 4.2 mm x 38.0 m
Limit Safety SwitchUpper & Lower
Work RateS3 20% 10mins
Weight36.0 kg
Warranty1 Year
Waterproof Rating (IP)IP65
CertificationCE



  • Scaffold Hoist
  • Steel Winch Rope with Hook
  • Wireless Remote
User Manual Download

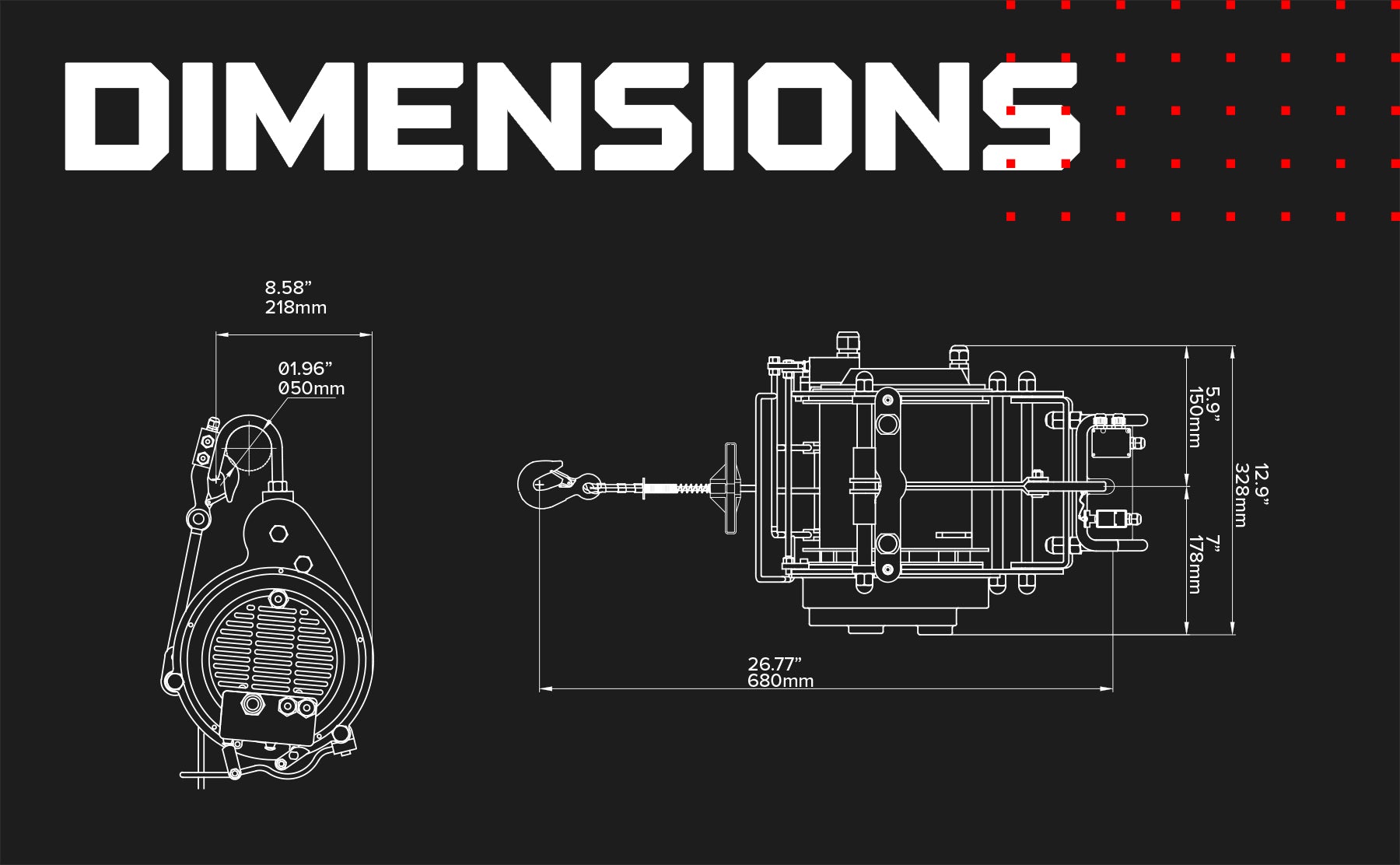

Technical Drawing Download

Limited lifetime with 1 year on electrical

BPE Holdings Ltd are the sole distributors of WARRIOR WINCHES.

BPE Holdings Ltd (“seller” or BPE Holdings Ltd) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for the lifetime of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (1) one year (12 Months)* from the original purchase provable date of purchase.

Any product BPE Holdings Ltd determines to be defective will be repaired or replaced at BPE Holdings Ltd 's sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

Register your winch here

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

BPE Holdings Ltd shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

BPE Holdings Ltd reserves the right to change the Product design without notice. BPE Holdings Ltd reserves the right to replace any part or whole unit with a newer design of the same function.
